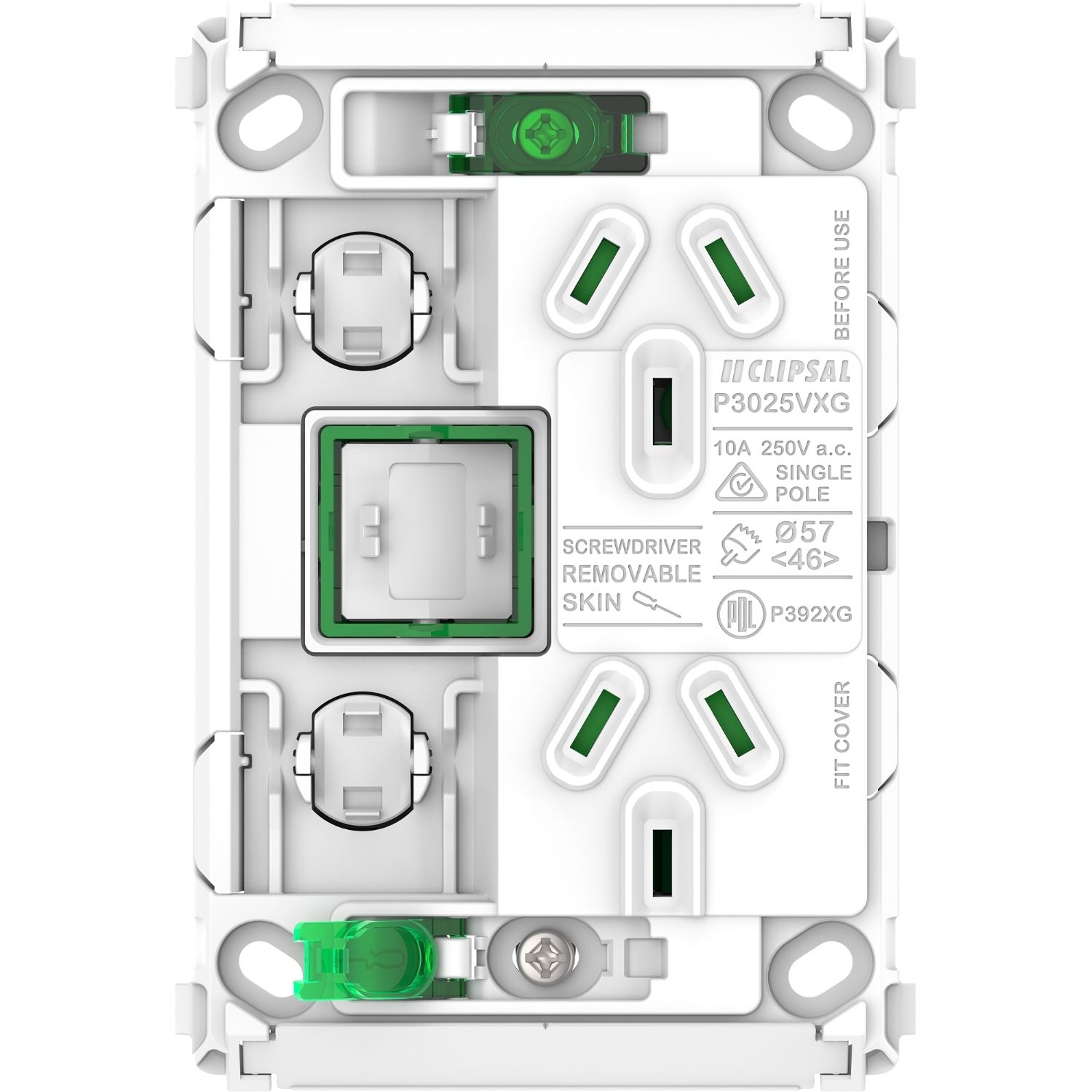

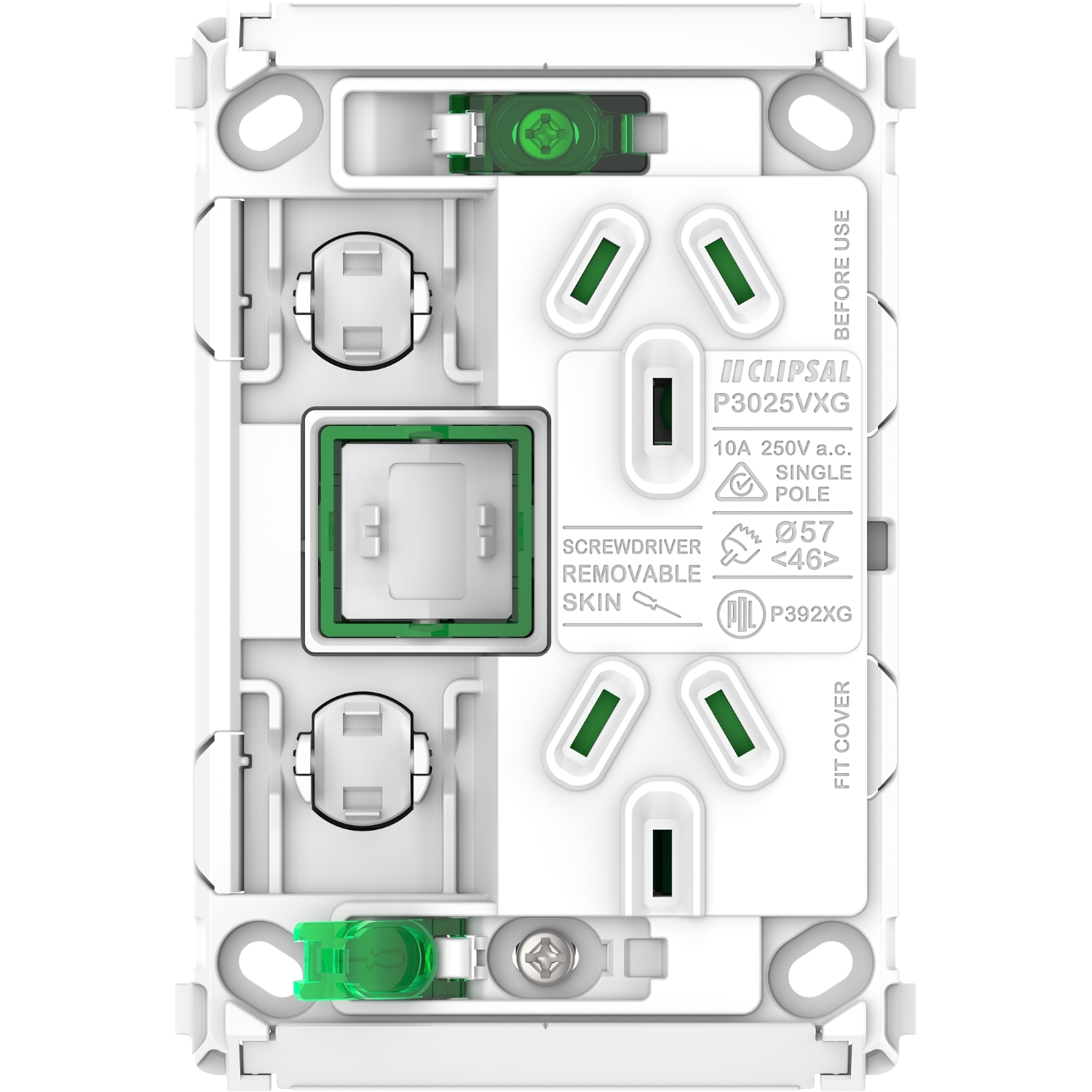

The Pro Series Vertical Twin Switched Power Point Grid includes an extra 20A switch. The extra switch gives you flexible switching options for lighting, exhaust fan control, heating, or a cooker switch. The grid has pre-mounted screws and screw covers to help prevent unauthorised access.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Outlet standard | Australian |
| Outlet poles configuration | 2P + E with shutter |
| Device presentation | mechanism with fixing frame |
| Range | Pro Series |
| Product or component type | switched socket |
| Complementary | |
| Ground lug position | straight 180° position |
| Number of power socket outlets | 2 |
| Quantity per set | set of 10 |
| Sale per indivisible quantity | 1 |
| Wire stripping length | 16 mm |
| Surface treatment | untreated |
| Height | 112 mm |
| Screwdriver shape | Philips No 2, square drive no 1 (SQ1) |
| Connections - terminals | 3 screw terminals |
| [Ue] rated operational voltage | 230/240 V |
| Depth | 30 mm |
| Number of rocker | 3 |
| Width | 72 mm |
| Material | POM (polyoxymethylene): locking bar, POM (polyoxymethylene): shutter, PP (polypropylene), PC (polycarbonate): fixing frame |
| Installation direction | vertical |
| Net weight | 0.078 kg |
| Type of packing | polybag |
| Clamping connection capacity | 3 x 4 mm² for rigid or stranded cable(s), 1 x 2.5...4 x 2.5 mm² for rigid or stranded cable(s) |
| Outlet standard description | with earthing contact |
| Outlet standard deviation | Australian/New Zealand |
| Rated current | 10 A at 230/240 V AC 50 Hz |
| Fixing mode | by screws |
| Range compatibility | Pro Series |
| Device mounting | flush |
| Colour tint | white |
| Environment | |
| Relative humidity | 10-95 % |
| Product certifications | RCM |
| Ambient air temperature for operation | 0-45 °C |
| Standards | AS/NZ 3112 |
