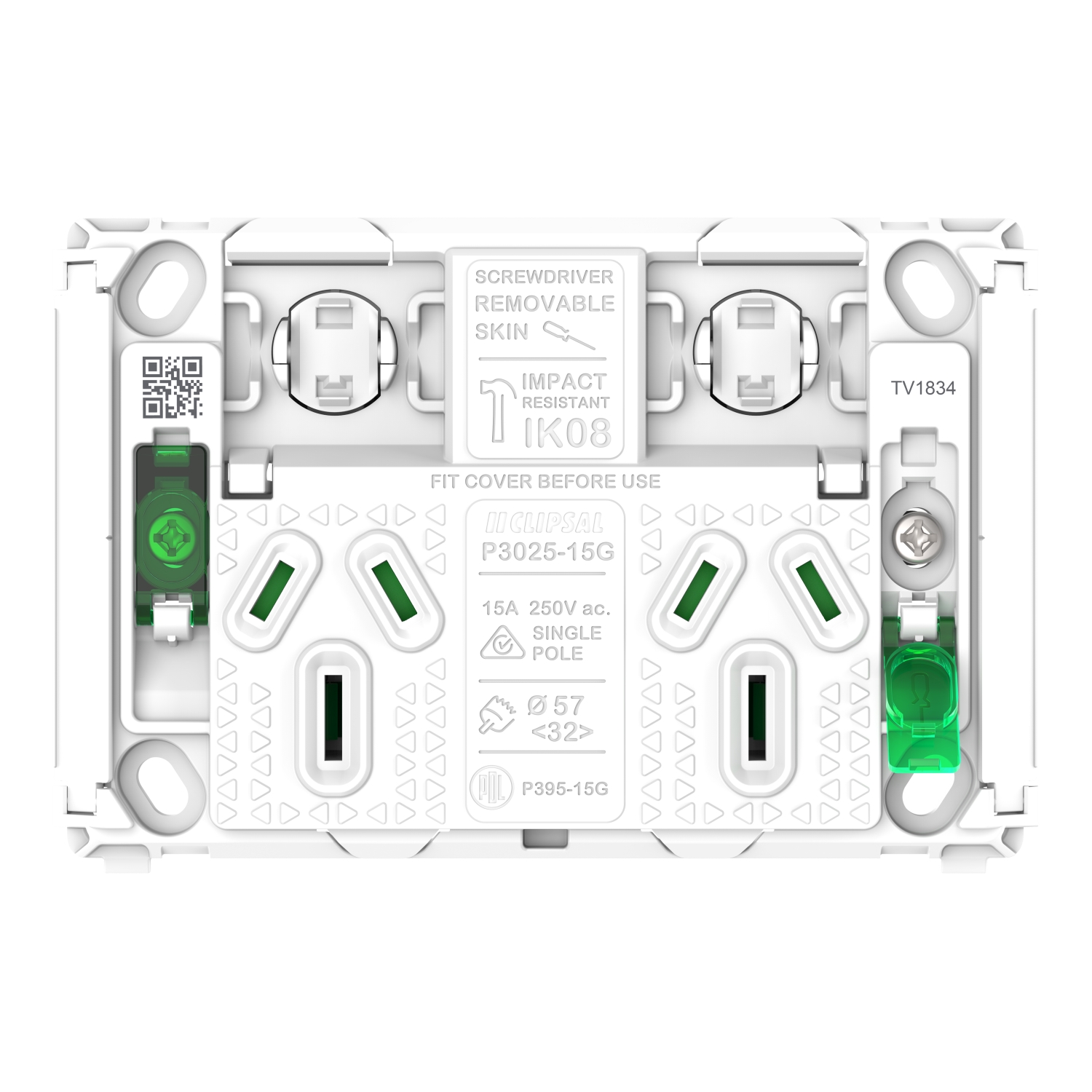

The Clipsal Pro Series Horizontal Twin Switched Power Point Grid features screw covers to help prevent direct access to the screws after installation. Circuit identification labels can be positioned in purpose designed panels.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Outlet standard | Australian |
| Outlet poles configuration | 2P + E with shutter |
| Device presentation | mechanism with fixing frame |
| Range | Pro Series |
| Product or component type | switched socket |
| Complementary | |
| Ground lug position | straight 180° position |
| Number of power socket outlets | 2 |
| Quantity per set | set of 10 |
| Sale per indivisible quantity | 1 |
| Wire stripping length | 16 mm |
| Surface treatment | untreated |
| Height | 72 mm |
| Screwdriver shape | Philips No 2, square drive no 1 (SQ1) |
| Connections - terminals | 3 screw terminals |
| Depth | 27 mm |
| Number of rocker | 2 |
| Width | 112 mm |
| Material | POM (polyoxymethylene): shutter, PP (polypropylene), PC (polycarbonate): fixing frame |
| Installation direction | horizontal |
| Net weight | 0.078 kg |
| Type of packing | polybag |
| Clamping connection capacity | 3 x 4 mm² for rigid or stranded cable(s), 1 x 2.5...4 x 2.5 mm² for rigid or stranded cable(s) |
| Outlet standard description | with earthing contact |
| Outlet standard deviation | Australian/New Zealand |
| Rated current | 15 A at 250 V AC 50 Hz |
| Fixing mode | by screws |
| Range compatibility | Pro Series |
| Device mounting | flush |
| Colour tint | white |
| Environment | |
| Relative humidity | 10-95 % |
| Product certifications | RCM |
| Ambient air temperature for operation | 0-45 °C |
| Standards | AS/NZ 3112 |
