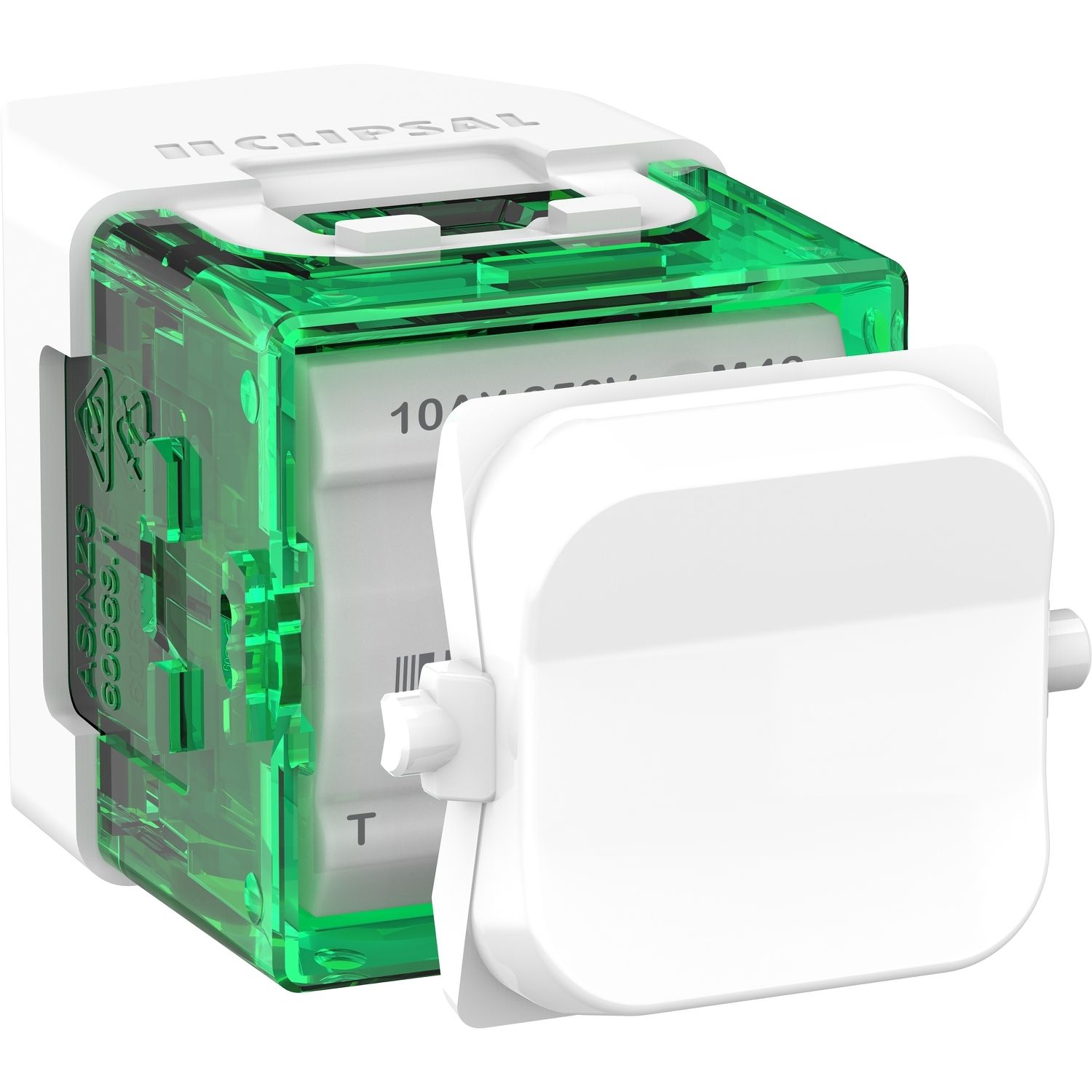

For momentary switching, the Clipsal Pro Series Three Position Momentary Toggle Switch gives you the control you need. Configure the switch for use to open and close blinds, electronic shutters or a range of other uses. Rated at 10A, 250V.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | momentary switch |
| Colour tint | white |
| Quantity per set | set of 20 |
| Range | Pro Series |
| Type of packing | polybag |
| Product or component type | switch |
| Complementary | |
| [Ue] rated operational voltage | 250 V |
| Depth | 32 mm |
| Width | 23 mm |
| Switch function | 3 positions |
| Device presentation | mechanism with central plate |
| Control type | rocker |
| Net weight | 0.016 kg |
| Material | ABS (acrylonitrile butadiene-styrene), PA66, PC (polycarbonate) |
| Clamping connection capacity | 1 x 4 mm² for stranded cable(s), 3 x 2.5 mm² for stranded cable(s), 1 x 1.5...4 x 1.5 mm² for rigid or stranded cable(s) |
| Surface treatment | untreated |
| Surface finish | glossy |
| Fixing mode | by clips |
| Rated current | 10 A |
| Height | 23 mm |
| Connections - terminals | screw terminal |
| Environment | |
| Relative humidity | 10-95 % |
| Ambient air temperature for operation | 0-45 °C |
| Product certifications | RCM |
