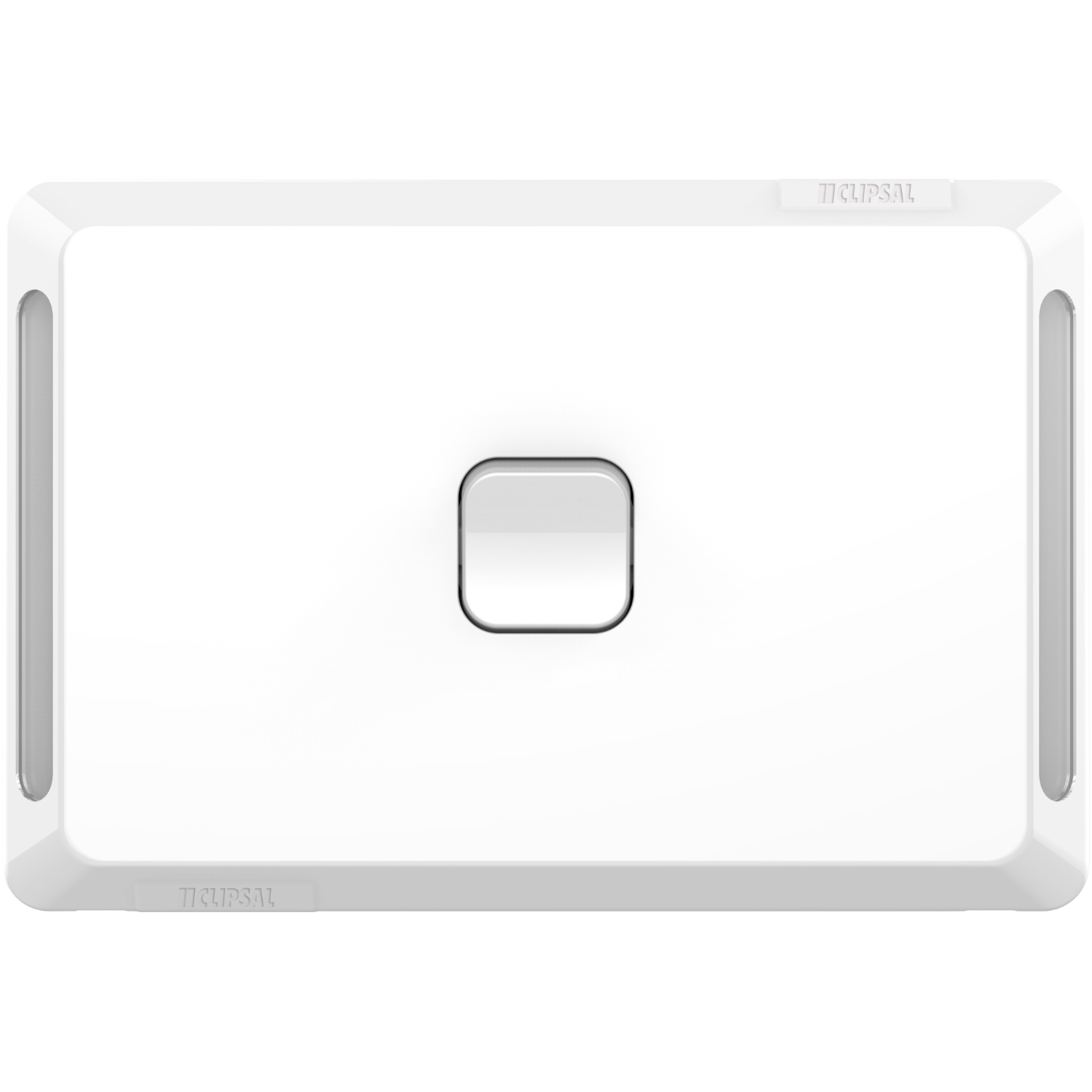

For one or two way switching at either end of a corridor, or across a large area, the Clipsal Pro Series 20A/16AX, 250V, 1 Gang Horizontal Switch is an easy choice. The switch is designed to be surface mounted and has a gloss finish which is easy to clean.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | lighting |
| Quantity per set | set of 10 |
| Range | Pro Series |
| Colour tint | white |
| Type of packing | polybag |
| Product or component type | switch |
| Complementary | |
| Switch function | 1-pole 1/2-way |
| Device presentation | complete product |
| Control type | rocker |
| Surface treatment | untreated |
| Surface finish | glossy |
| Rated current | 20 A/16 AX |
| Height | 78 mm |
| Connections - terminals | screw terminal |
| [Ue] rated operational voltage | 230/240 V |
| Depth | 38 mm |
| Number of rocker | 1 |
| Width | 116 mm |
| Installation direction | horizontal |
| Net weight | 0.05 kg |
| Material | POM (polyoxymethylene), ABS (acrylonitrile butadiene-styrene), PP (polypropylene), PC (polycarbonate) |
| Fixing mode | by screws |
| Device mounting | wall |
| Environment | |
| Relative humidity | 10-95 % |
| Ambient air temperature for operation | 0-45 °C |
| Product certifications | RCM |
