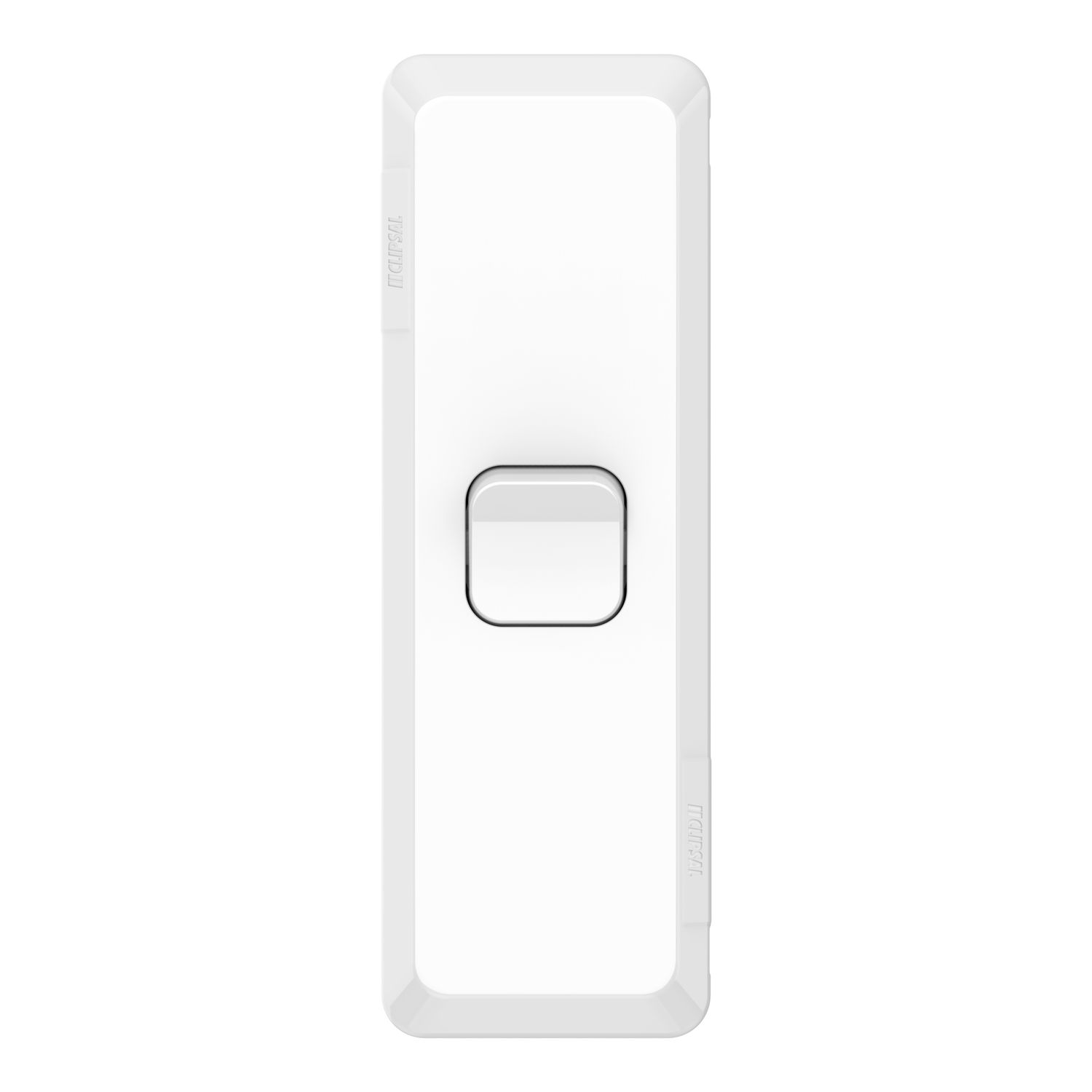

For slim areas where switching is needed, the Clipsal Pro Series 1 Gang Architrave Switch fits perfectly. The 16AX, 250V switch is 38mm wide and can be configured for one or two way switching, making it suitable to use at either end of a corridor or large room.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | lighting |
| Colour tint | white |
| Quantity per set | set of 10 |
| Range | Pro Series |
| Type of packing | polybag |
| Product or component type | switch |
| Complementary | |
| [Ue] rated operational voltage | 230/240 V |
| Depth | 40 mm |
| Number of rocker | 1 |
| Width | 38 mm |
| Switch function | 1-pole 1/2-way |
| Installation direction | vertical |
| Device presentation | complete product |
| Control type | rocker |
| Net weight | 0.046 kg |
| Material | POM (polyoxymethylene), ABS (acrylonitrile butadiene-styrene), PP (polypropylene), PC (polycarbonate) |
| Clamping connection capacity | 1 x 4 mm² for stranded cable(s), 3 x 2.5 mm² for stranded cable(s), 1 x 1.5...4 x 1.5 mm² for rigid or stranded cable(s) |
| Surface treatment | untreated |
| Surface finish | glossy |
| Fixing mode | by screws |
| Rated current | 20 A/16 AX |
| Device mounting | wall |
| Height | 113 mm |
| Connections - terminals | screw terminal |
| Environment | |
| Relative humidity | 10-95 % |
| Ambient air temperature for operation | 0-45 °C |
| Product certifications | RCM |
