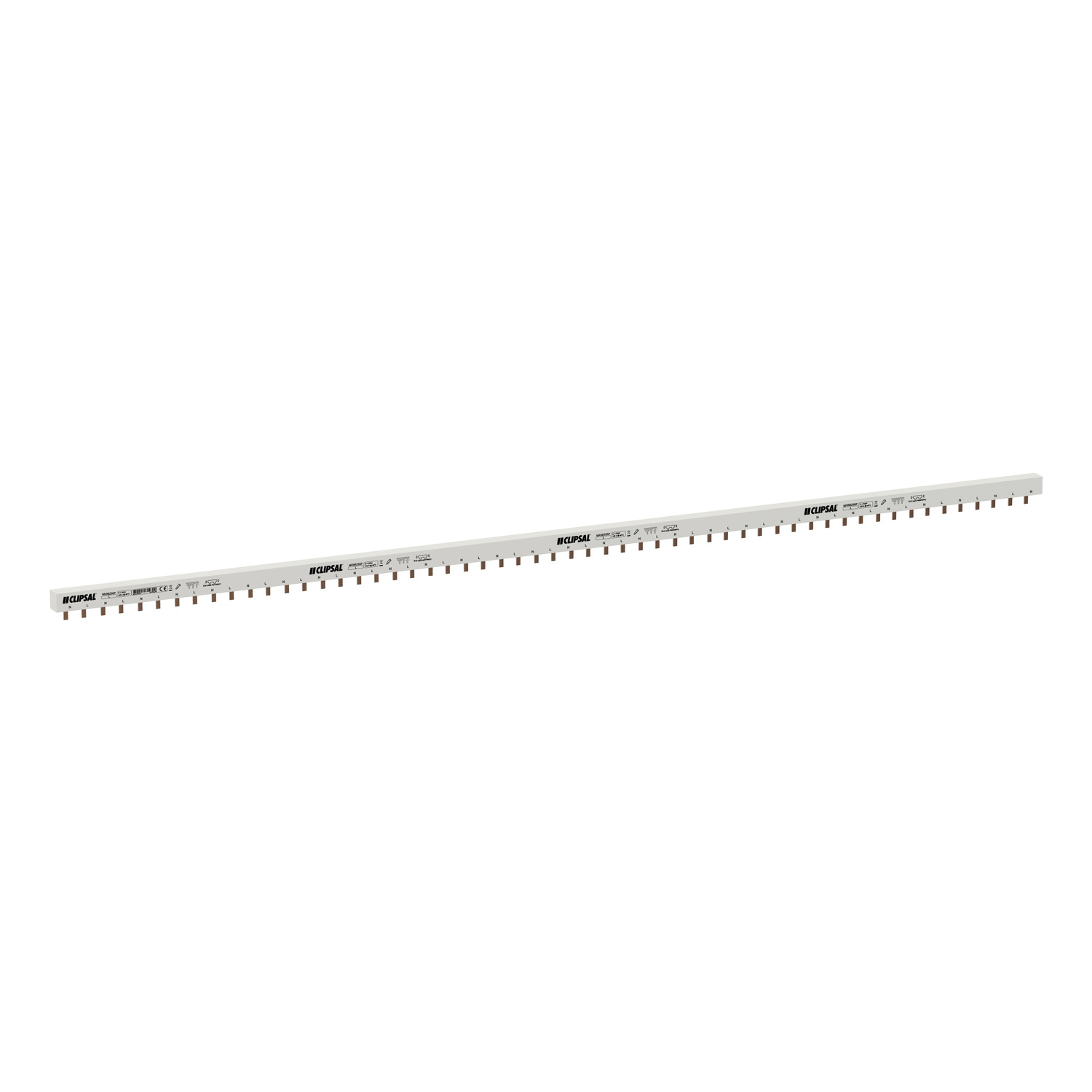

MAX9 product is a Pin comb busbar. The rated current is 100A. It is 2P and 56 modules. Comb busbar mounting mode is horizontal and cuttable. The provided equipements are end-pieces and tooth covers. It is dedicated to residential market. The Ue rated operational voltage is 230VAC or 415VAC. The Ui rated insulation voltage is 500V. The dimensions are (W) 1017mm x (H) 30mm x (D) 17mm.colour is white electric (RAL9003). The comb busbar colour is white electric (RAL9003)
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range | MAX9 |
| Product or component type | comb busbar |
| Total number of 18 mm modules | 28 |
| Product brand | Clipsal |
| Complementary | |
| Poles configuration for 1 way | 28 x 2P |
| Depth | 17 mm |
| Mounting location | top |
| Market segment | residential |
| Width | 1017 mm |
| Colour | grey |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Connection pitch | 18 mm |
| [Ue] rated operational voltage | 230 V AC |
| Insulation | insulated |
| Mounting mode | horizontal |
| [Ie] rated operational current | 100 A |
| [Ui] rated insulation voltage | 500 V |
| Device presentation | cuttable |
| Number of ways | 28 ways N + L |
| Provided equipment | tooth covers, 10 end-pieces |
| Height | 30 mm |
| Environment | |
| Fire resistance | 960 °C |
| Standards | AS/NZS 3000, AS/NZS 61439-3 |
