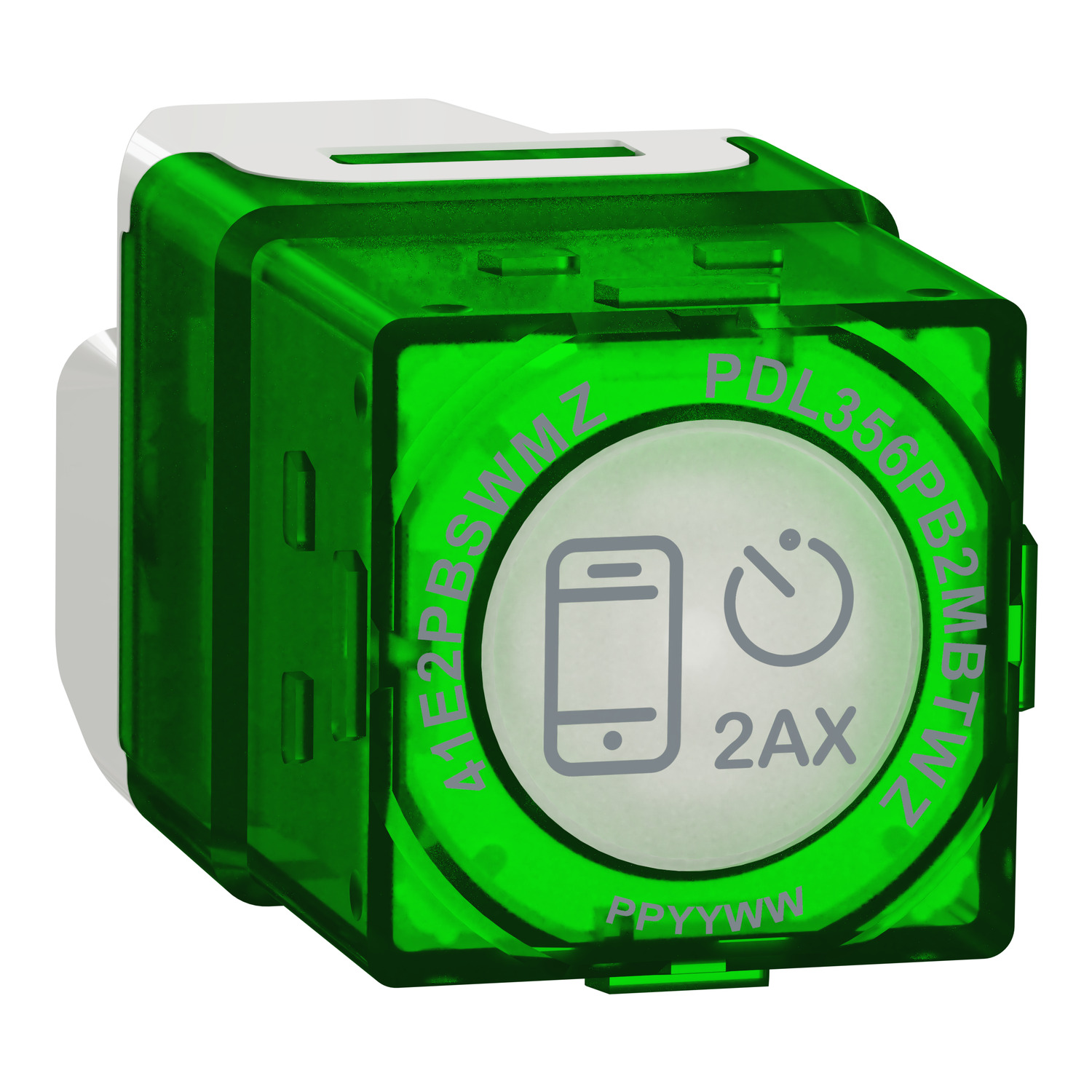

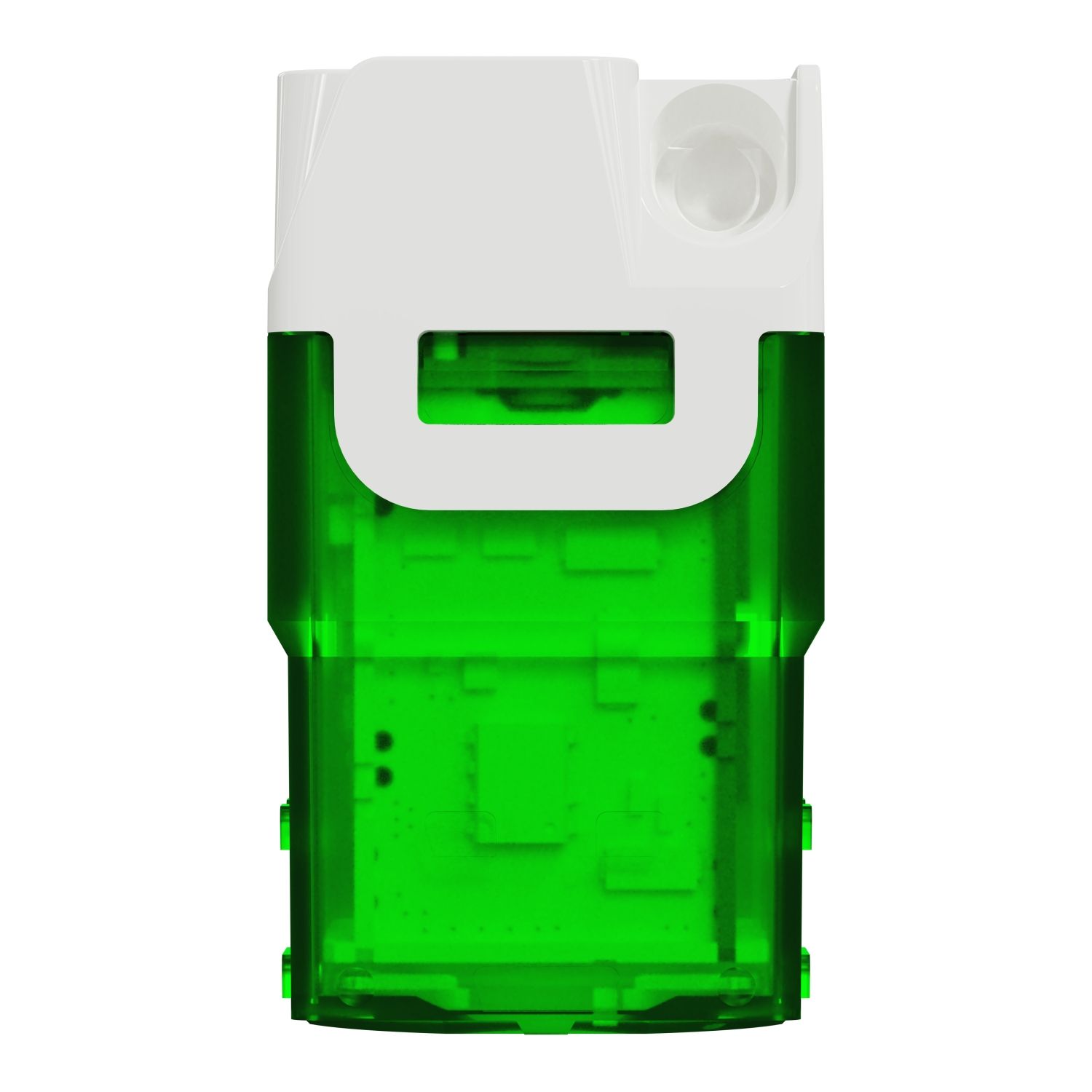

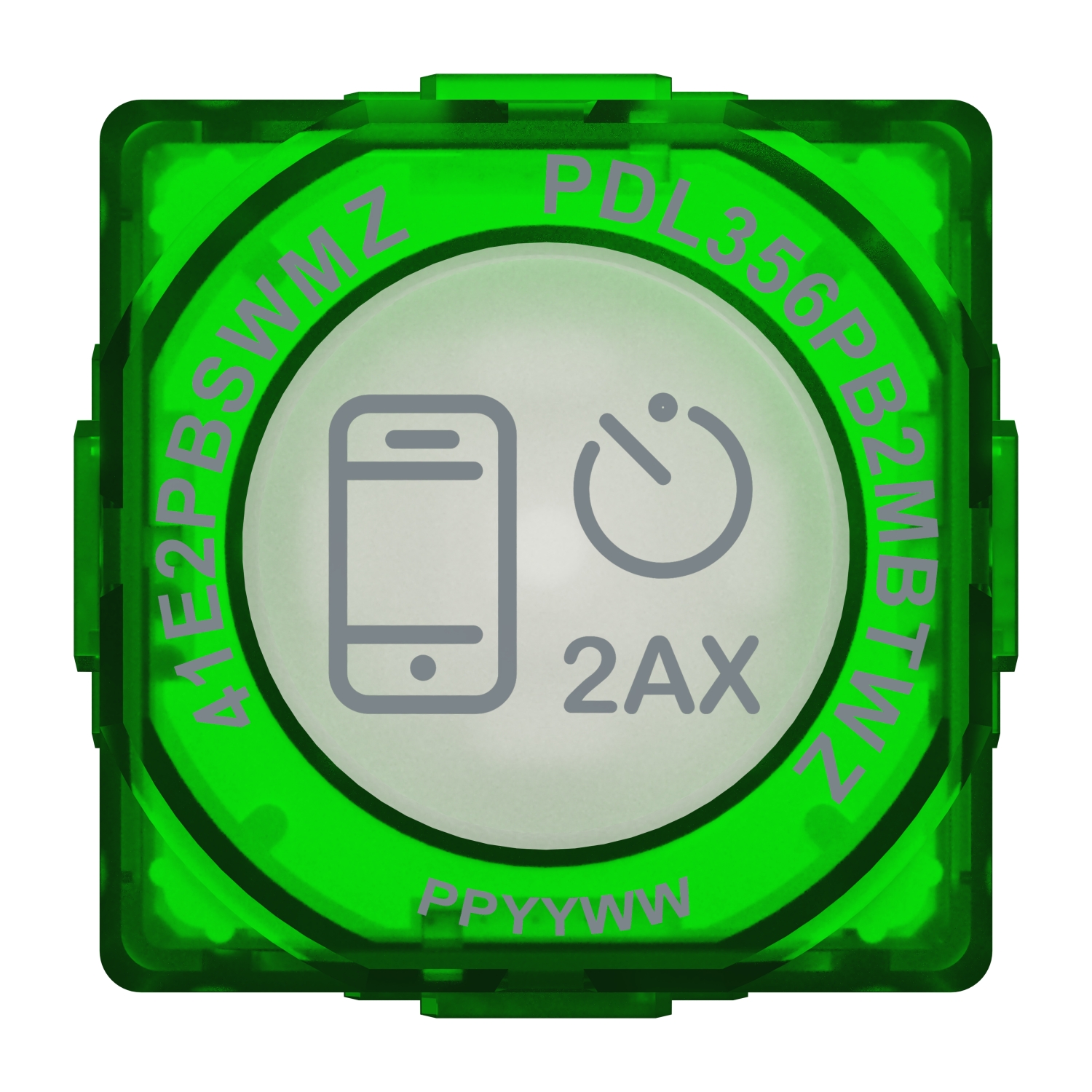

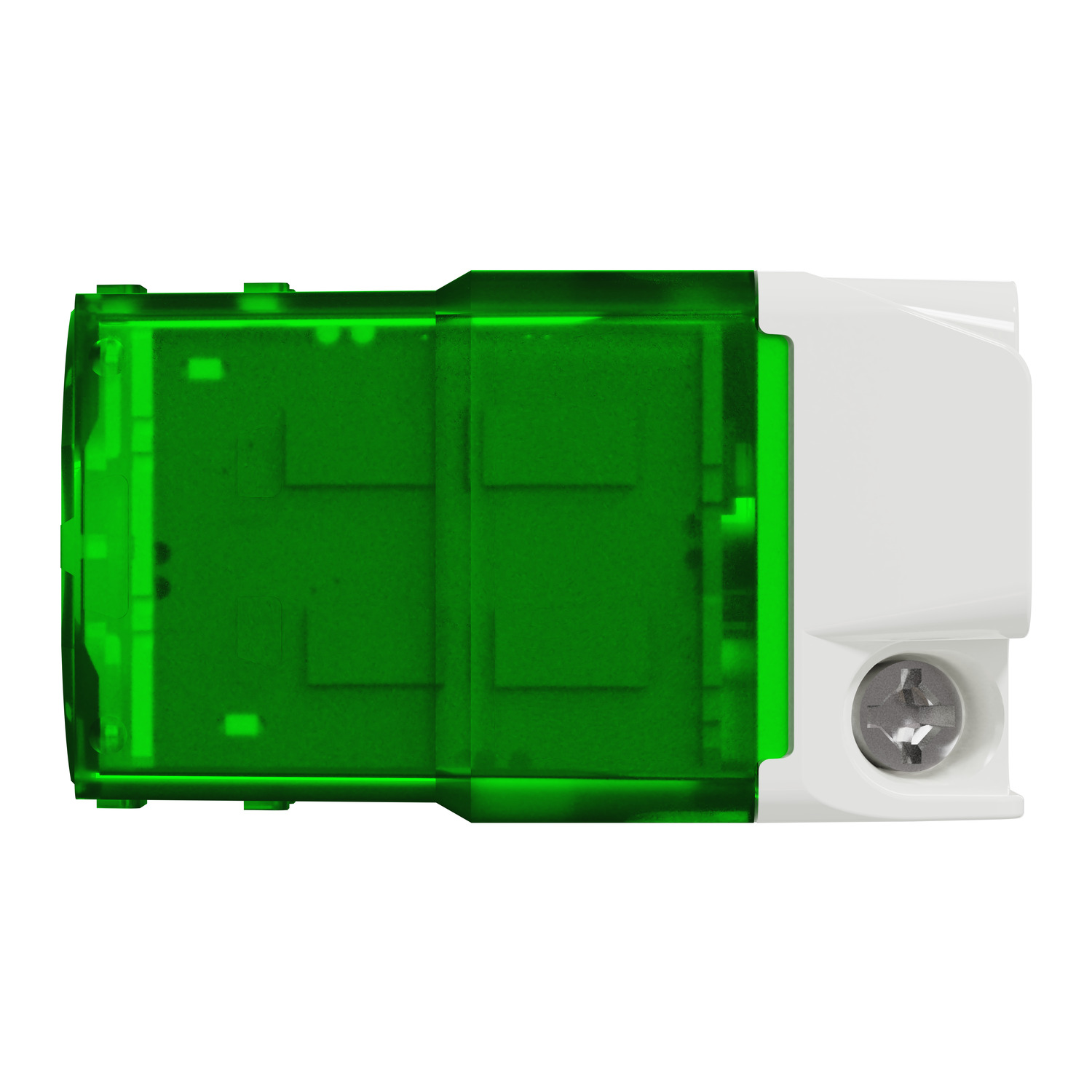

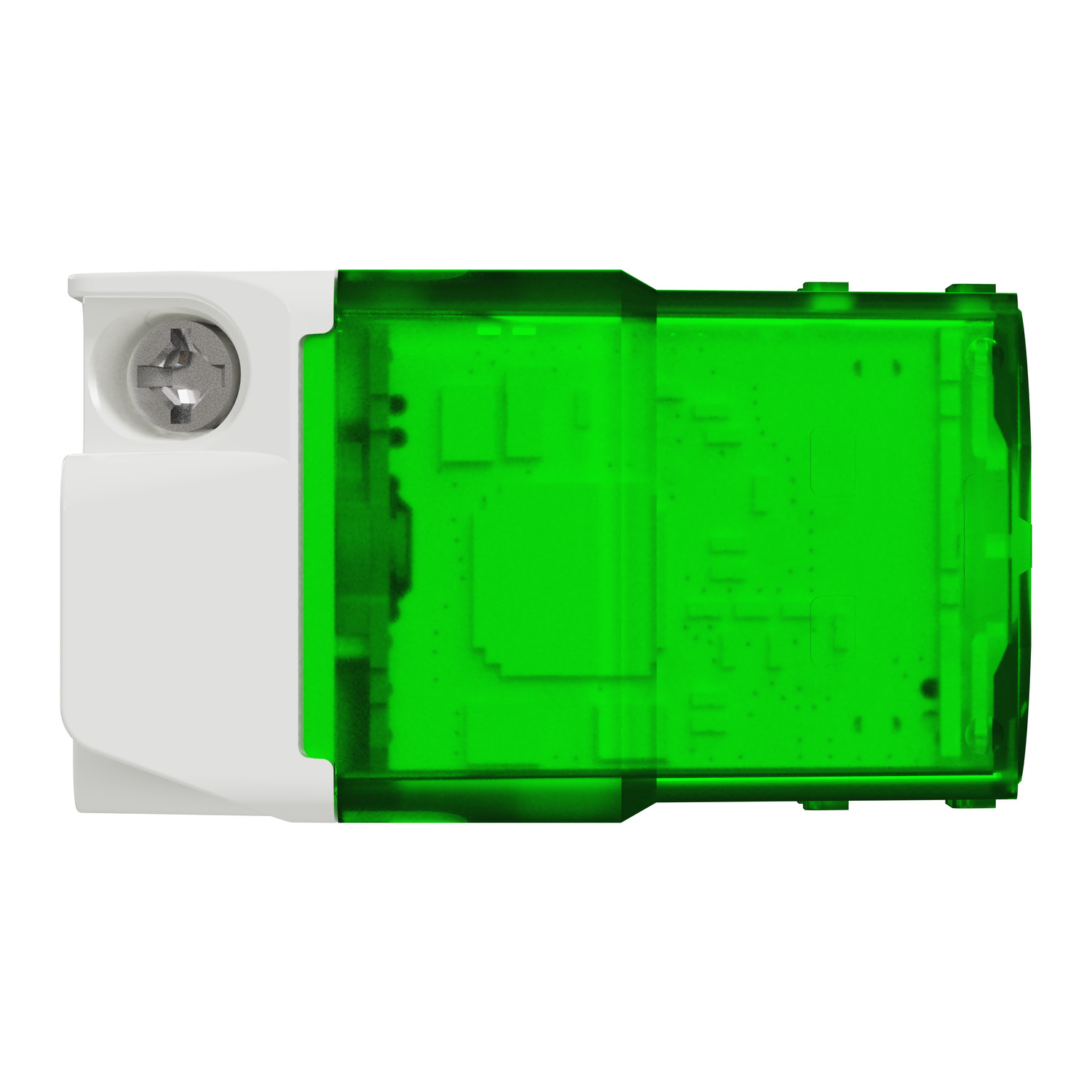

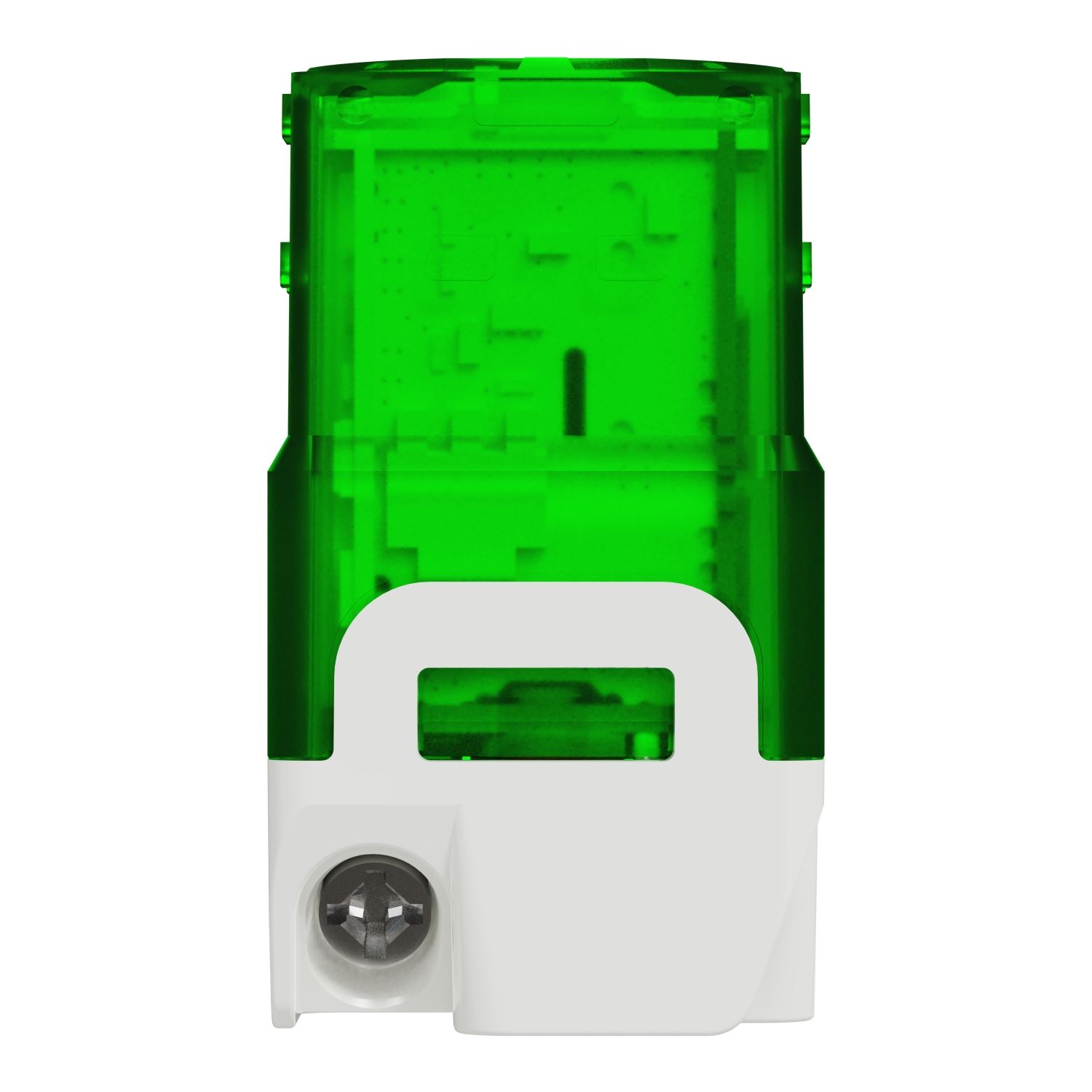

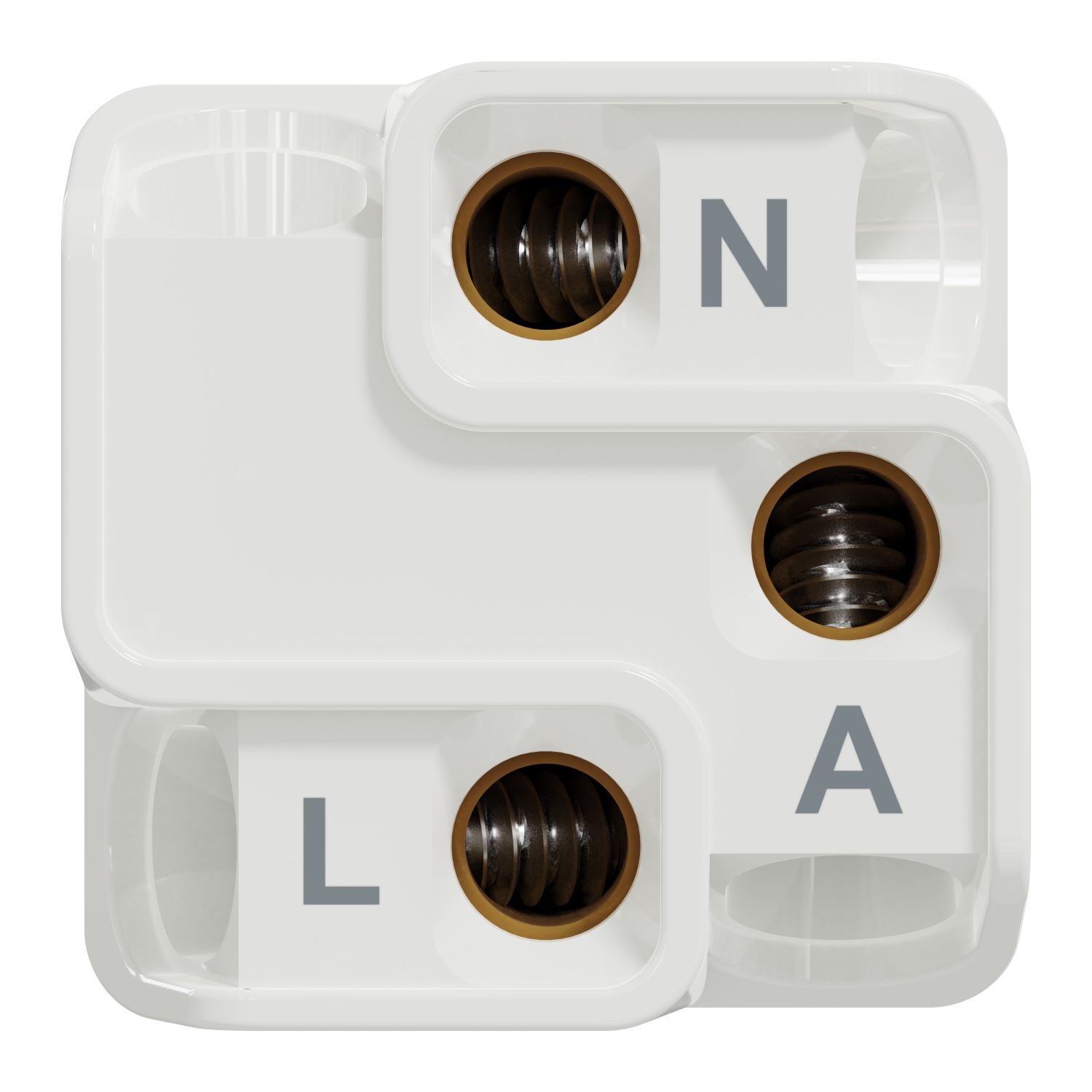

The Iconic Push button Wiser Connected Smart Switch 2 AX offers flexible installation options and is ideal for controlling lighting and exhaust fans. It can be controlled through the push button on the wall, remotely using the Wiser by SE app or voice command. With default Zigbee mode it can connect to the Wiser Hub for full home automation control and functions.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Concentrator compatibility | Wiser hub generation 1 |
| Range | Iconic |
| Product or component type | connected switch |
| Product brand | Clipsal |
| Mobile App name | Wiser by SE |
| Complementary | |
| Technology type | bluetooth low energy, Zigbee default, electronic |
| Main colour tint | vivid white |
| Depth | 56 mm |
| Software name | Wiser App |
| Number of rocker | 1 |
| Width | 22 mm |
| Wiring configuration | 3-wire |
| Communication network type | wireless (2.4-2.4 GHz), 2.5 mW at < 50 m |
| Protection type | thermal protection, over temperature protection |
| Control type | by mobile application, push-button |
| Material | plastic |
| Device presentation | mechanism |
| Type of installation | indoor installation |
| Fixing center | 84 mm |
| Colour tint | vivid white (VW) |
| Local signalling | LED |
| Surface finish | glossy |
| Fixing mode | clip-in |
| Mounting support | grid |
| Device mounting | flush |
| Embedding depth | 40 mm |
| Actuator | push-button |
| Height | 22 mm |
| [Ue] rated operational voltage | 220...240 V AC 50 Hz |
| Load type | motor: 2 A, resistive: 2 A, inductive: 2 A (cos phi =0.6 ), linear fluorescent ballast: 2 A, medium voltage halogen lamp: 2 A, electronic transformer: 2 A, LED lighting driver (non-dimmable): 2 A, dimmable LED lighting driver: 2 A |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-90 % non-condensing |
| Standards | AS/NZS 4268 radio, AS/NZS 60669.2.1 EMC, AS/NZS 60669.2.1 safety |
