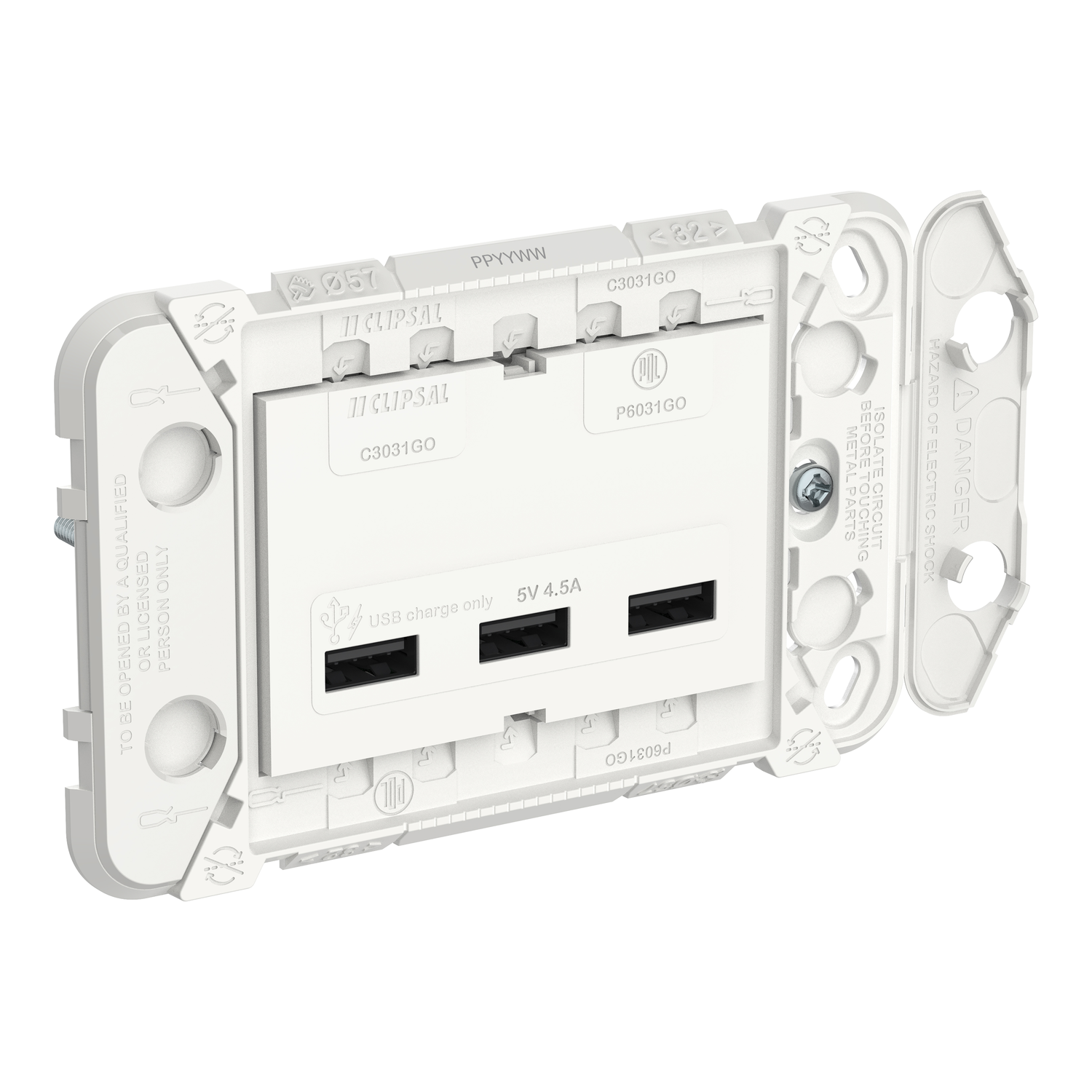

The Iconic 3 Gang USB Charging Station with smart charging technology. All-in-one design with large floating wrapper terminals. Colour shelf skins purchased separately.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range | Clipsal Iconic |
| Integrated connection type | 3 USB 2.0 type A 5 V DC, maximum load current: 2.1 A |
| Product or component type | USB charger |
| Output current | 4.5 A |
| [Ue] rated operational voltage | 220/240 V AC 50 Hz |
| Complementary | |
| Number of terminals | 3 screw terminal |
| Protection type | short time short-circuit protection |
| Ambient air temperature for storage | 0-60 °C |
| Sale per indivisible quantity | 1 |
| Relative humidity | 5-90 % |
| Wire stripping length | 10 mm |
| Device presentation | mechanism with fixing frame |
| Surface finish | textured, matt |
| Ambient air temperature for operation | 0-35 °C |
| Height | 71 mm |
| Screwdriver shape | square drive no 1 (SQ1), Philips No 2 |
| Depth | 5 mm |
| Width | 5 mm |
| Type of packing | polybag |
| Clamping connection capacity | 4 x 2.5 mm² for rigid cable(s), 4 x 2.5 mm² for flexible cable(s), 4 x 2.5 mm² for stranded cable(s) |
| Fixing mode | by screws |
| Device mounting | flush |
| Embedding depth | 35 mm |
| Colour tint | vivid white |
| Environment | |
| Product certifications | RCM |
