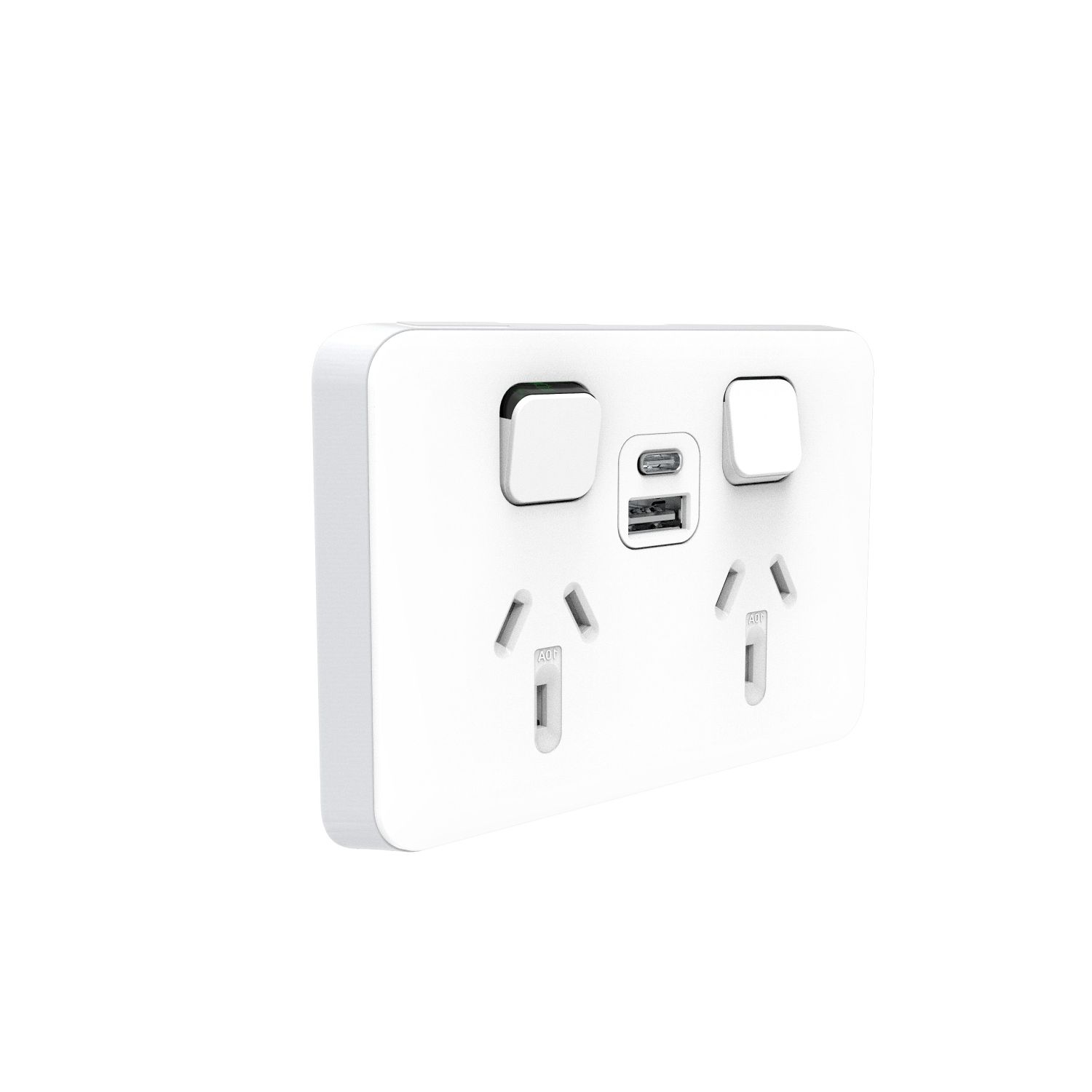

This Clipsal Iconic double Power Point with Type A+C USB outlet is designed to eliminate bulky chargers whilst freeing up Power Points. Two dedicated independent ports optimise charging whilst monitoring the temperature of the device to ensure internal components don't overheat.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Outlet standard | Australian |
| Outlet poles configuration | 2P + E with shutter |
| Device presentation | complete product |
| Range | Clipsal Iconic |
| Product or component type | switched socket |
| Complementary | |
| Ground lug position | straight 180° position |
| Number of power socket outlets | 2 |
| Quantity per set | set of 10 |
| Sale per indivisible quantity | 1 |
| Wire stripping length | 16 mm |
| Surface finish | matt |
| Height | 120 mm |
| Screwdriver shape | Philips No 2 |
| Connections - terminals | 3 screw terminals |
| Depth | 55 mm |
| Number of rocker | 2 |
| Width | 78 mm |
| Material | PC (polycarbonate): cover frame |
| Device composition | 2 USB charger |
| Installation direction | horizontal |
| Type of packing | polybag |
| Clamping connection capacity | 1 x 2.5...4 x 2.5 mm² for stranded cable(s) |
| Outlet standard description | with earthing contact |
| Outlet standard deviation | Australian/New Zealand |
| Rated current | 10 A at 250 V AC 50 Hz |
| Fixing mode | by screw |
| Range compatibility | Clipsal Iconic |
| Device mounting | flush |
| Embedding depth | 55 mm |
| Colour tint | vivid white (VW) |
| Environment | |
| Ambient air temperature for storage | 0-60 °C |
| Relative humidity | 10-95 % |
| Ambient air temperature for operation | 0-45 °C |
| Standards | AS/NZS 60950-1 |
