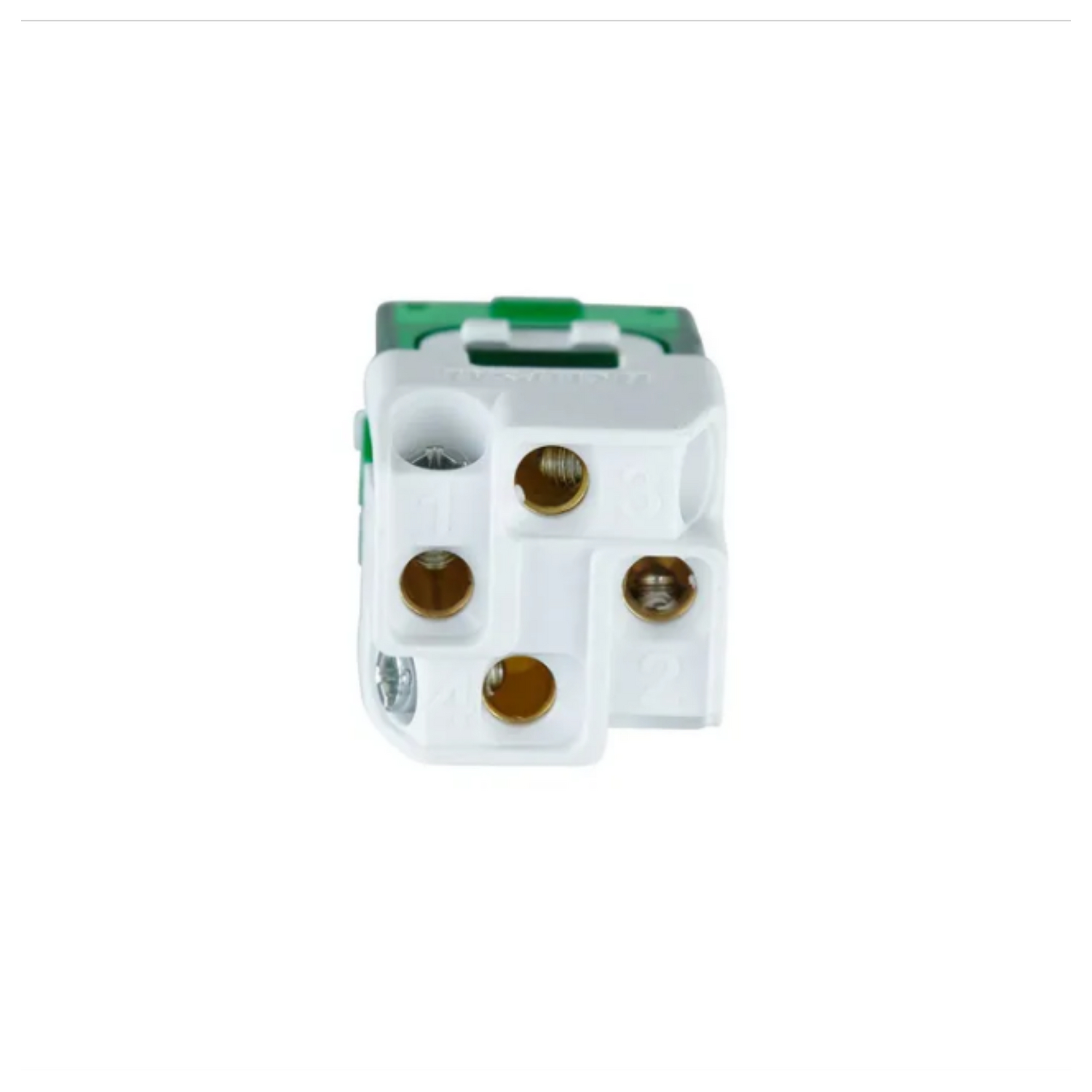

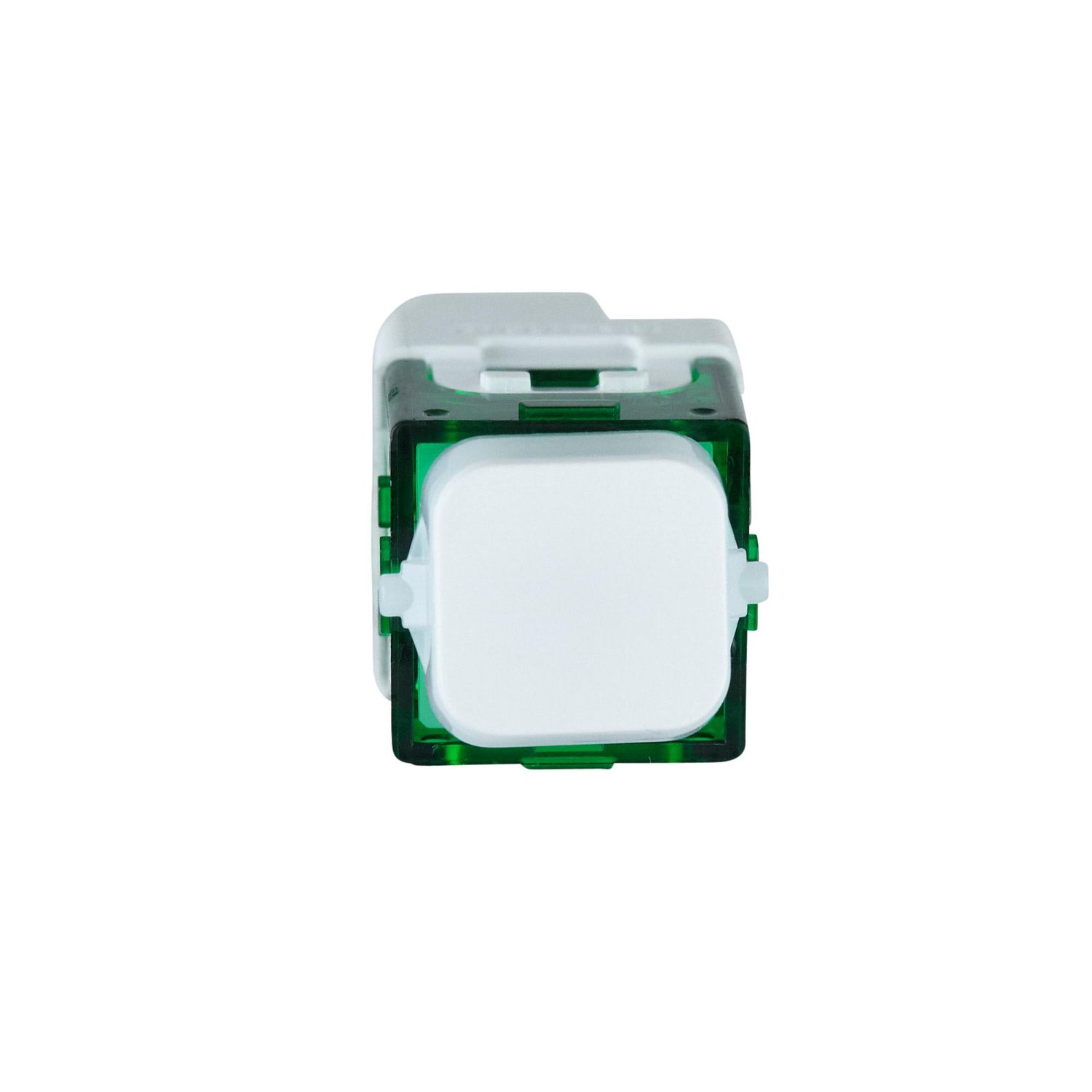

The Clipsal 40 Mech module is an intermediary light switch allowing you to activate or deactivate loads from 3 locations. The 10A, 250V mech is perfect for turning on light sources and can be used with a variety of Clipsal Pro Grid and Plate assemblies.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Load type | LEDi lamp 100 W, fluorescent 10 A |
| Device application | lighting |
| Range | Pro Series |
| Product or component type | switch |
| Complementary | |
| [Ue] rated operational voltage | 250 V |
| Width | 23 mm |
| Switch function | intermediate |
| Device presentation | mechanism |
| Control type | rocker |
| Clamping connection capacity | 1 x 4 mm² for stranded cable(s), 3 x 2.5 mm² for stranded cable(s), 1 x 1.5...4 x 1.5 mm² for rigid or stranded cable(s) |
| Surface treatment | untreated |
| Fixing mode | by clips |
| Rated current | 10 A |
| Height | 23 mm |
| Connections - terminals | screw terminal |
| Environment | |
| Relative humidity | 10-95 % |
| Ambient air temperature for operation | 0-45 °C |
