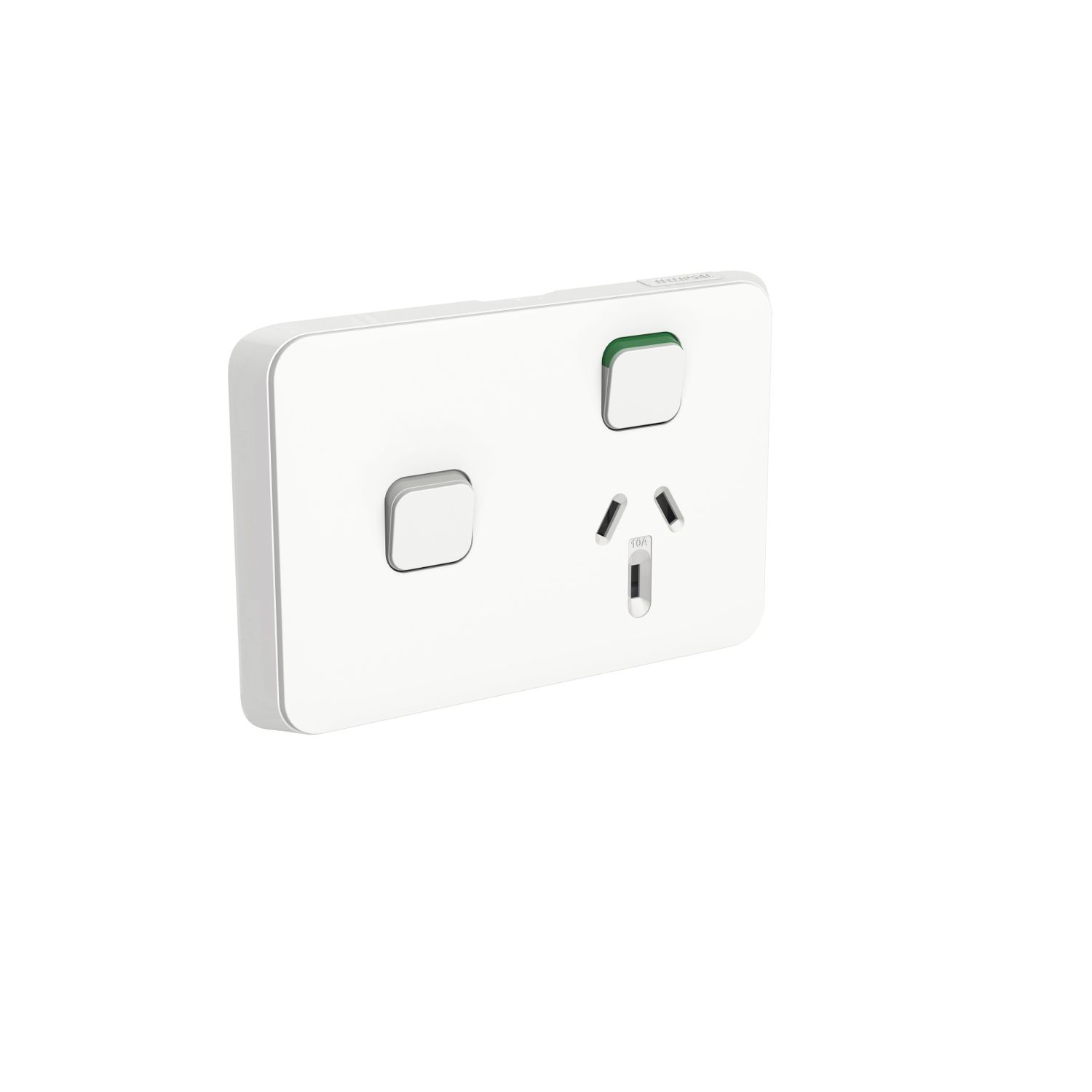

Plug it in and turn it on with a Clipsal Iconic switched power point. Like all Clipsal Iconic smart power points, this 10A, 250V horizontal single switched outlet, comes with internal shutters, providing additional protection and is built to be switched more than 12000 times.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Outlet poles configuration | 2P + E with shutter |
| Device presentation | complete product |
| Outlet standard | Australian |
| Range | Clipsal Iconic |
| Product or component type | switched socket |
| Complementary | |
| Number of power socket outlets | 1 |
| Quantity per set | set of 10 |
| Sale per indivisible quantity | 1 |
| Wire stripping length | 16 mm |
| Height | 78 mm |
| Electrical durability | 12000 cycles |
| Number of rocker | 2 |
| Material | POM (polyoxymethylene): locking bar, POM (polyoxymethylene): shutter, PP (polypropylene): rocker, PC (polycarbonate): fixing frame, ABS (acrylonitrile butadiene-styrene): cover frame, PC (polycarbonate): cover frame |
| Type of packing | polybag |
| Clamping connection capacity | 1 x 2.5...4 x 2.5 mm² for rigid cable(s), 1 x 2.5...4 x 2.5 mm² for flexible cable(s), 1 x 2.5...4 x 2.5 mm² for stranded cable(s) |
| Range compatibility | Clipsal Iconic |
| Device mounting | flush |
| Ground lug position | straight 180° position |
| Surface finish | matt |
| Screwdriver shape | Philips No 2, square drive no 1 (SQ1) |
| Depth | 31 mm |
| Width | 120 mm |
| Installation direction | horizontal |
| Outlet standard description | with earthing contact |
| Outlet standard deviation | Australian/New Zealand |
| Rated current | 10 A at 250 V AC 50 Hz |
| Fixing mode | by screw |
| Colour tint | vivid white (VW) |
| Environment | |
| Ambient air temperature for storage | 0-60 °C |
| Relative humidity | 10-95 % |
| Product certifications | RCM |
| Ambient air temperature for operation | 0-45 °C |
| Standards | AS/NZS 3133, AS/NZS 60669.1, AS/NZS 3112 |
