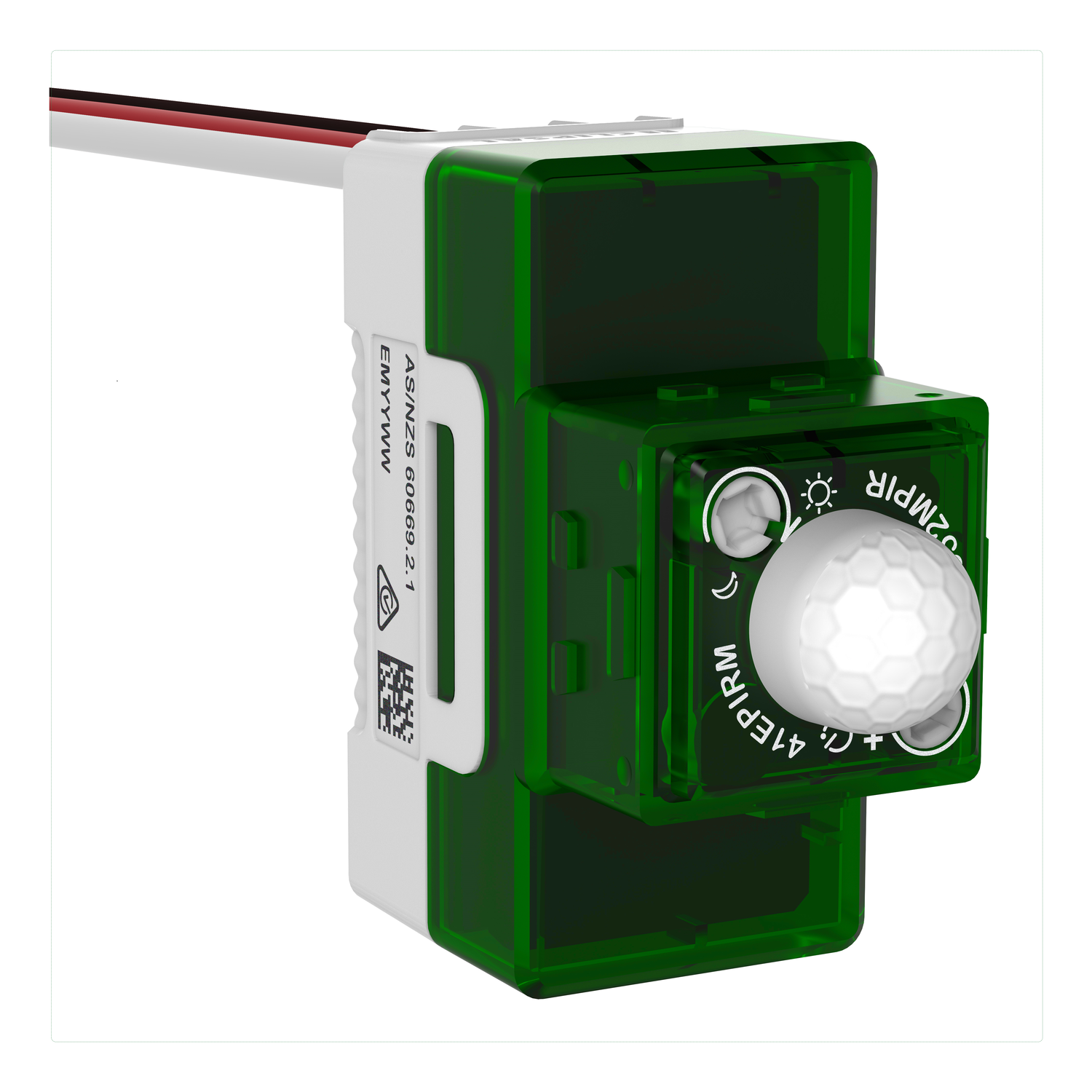

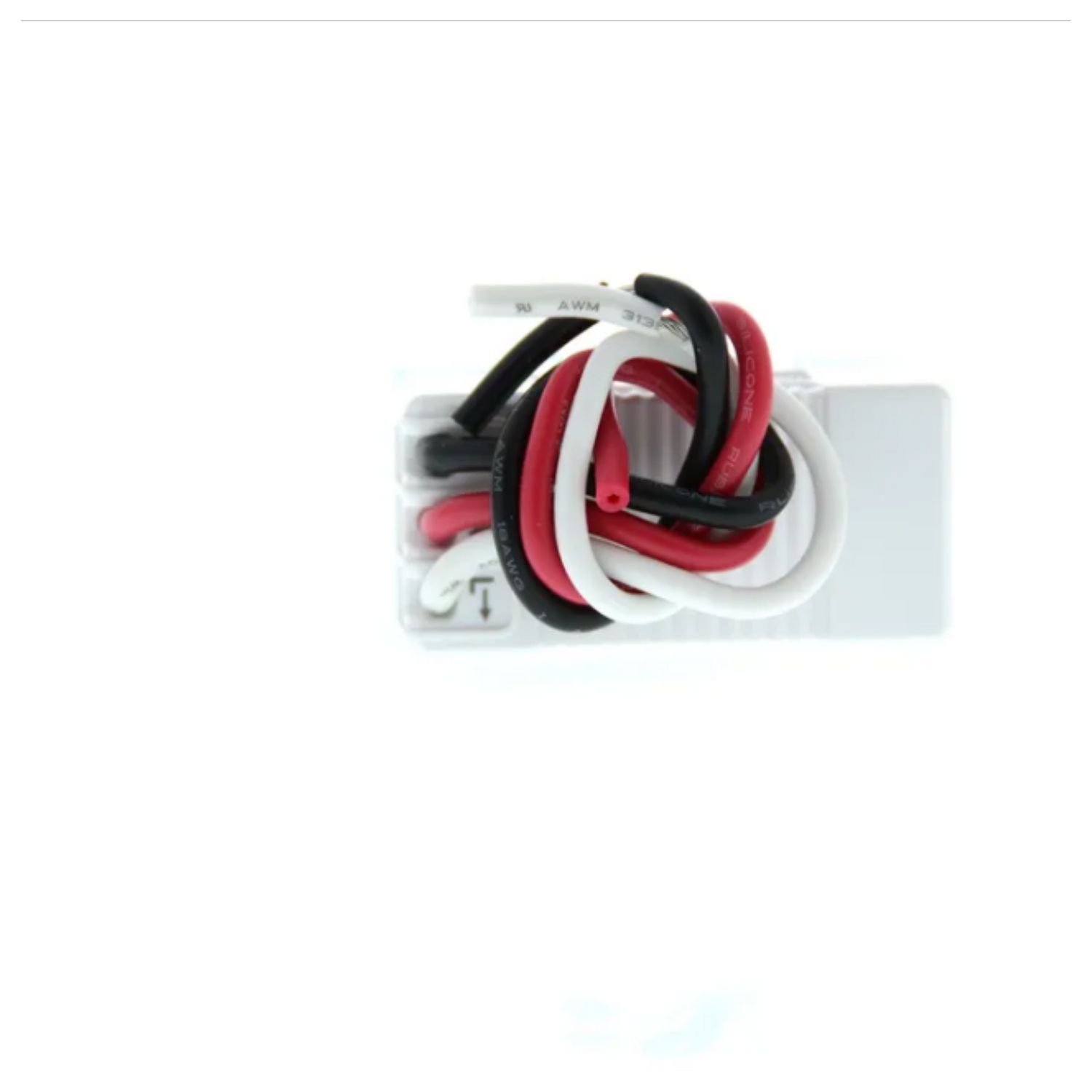

PIR Motion Sensor Mechanism, Clipsal Iconic
Manufacturer: Clipsal
SKU: 41EPIRM-TN
GTIN: 9311554794224
Old price: $150.70 inc GST
$217.01 inc GST
Supported cards
Supported cards
The 40 series sensor module is a wall mounted PIR motion sensor providing 100° detection of movement up to 5m. The internal relay and 3-wire design offers 150W LED load control. The simple front facing trimpots and modular form factor provides simple and flexible installation and setup of lux and timer settings. With the convenience of hands free lighting control and benefits of saving energy usage, the 40 series PIR sensor module is suitable for Iconic, Styl, Essence and Pro series wall plate ranges. It is great for multiple areas around the home such as entrances, walk-in-pantries, walk-in-robes, hallway or stairs. In commercial applications it is great for lighting control in toilets, cleaner rooms, stair wells, offices and more.

Products specifications

Attribute name Attribute value
Main
Device application lighting, power circuit application
Function of module motion detection
Sensor type PIR
Range Clipsal Iconic
Product or component type movement detector
Product brand Clipsal
Complementary
[Ue] rated operational voltage 220/240 V AC 50 Hz 25 °C
Type of setting time adjustment: 20...900 s
Protection type input surge protection for sensor
Depth 49 mm
Width 48.5 mm
Movement detection area 5 m
Light intensity adjustment 10-2000 lux
Electrical insulation class double insulation
Power consumption in W 1 W at 240 V AC 50 Hz
Type of installation indoor installation
Material plastic
Mounting height 1.2 m
Provided equipment finishing accessory, carrier (plastic)
Device mounting wall mounted
Embedding depth 41 mm
Maximum load current 3 A for per output
Height 23.5 mm
Detection angle 82° vertical, 100° horizontal
Rated power in W 100 W motor, 400 W LV halogen, 100 W fluorescent, 750 W incandescent, 100 W LED lighting
Environment
Relative humidity 5-90 % non-condensing
Ambient air temperature for storage -20-60 °C
IP degree of protection IP20 (modular enclosure) conforming to IEC 60529
Standards AS/NZS 60669.2.1
Ambient air temperature for operation -10-50 °C
