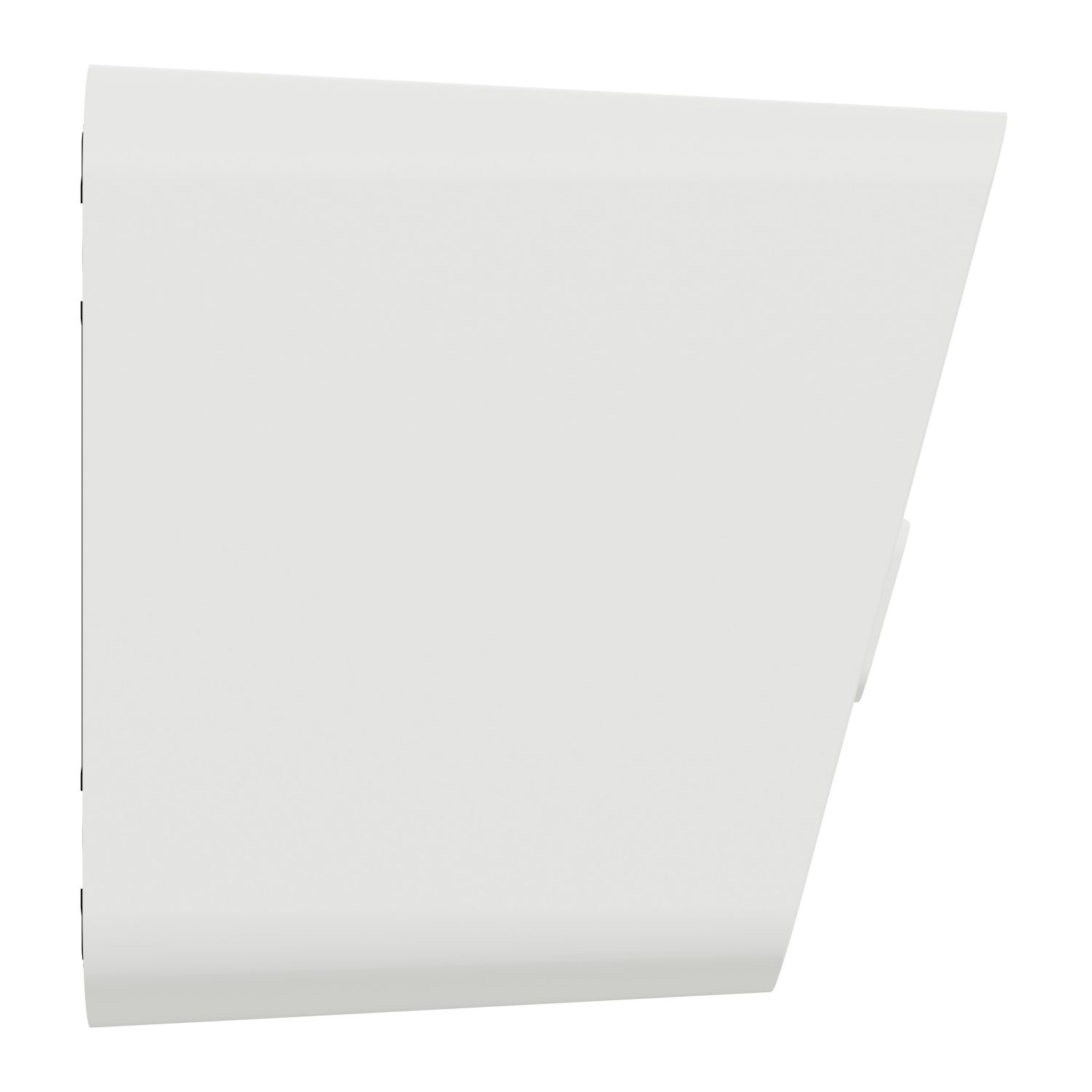

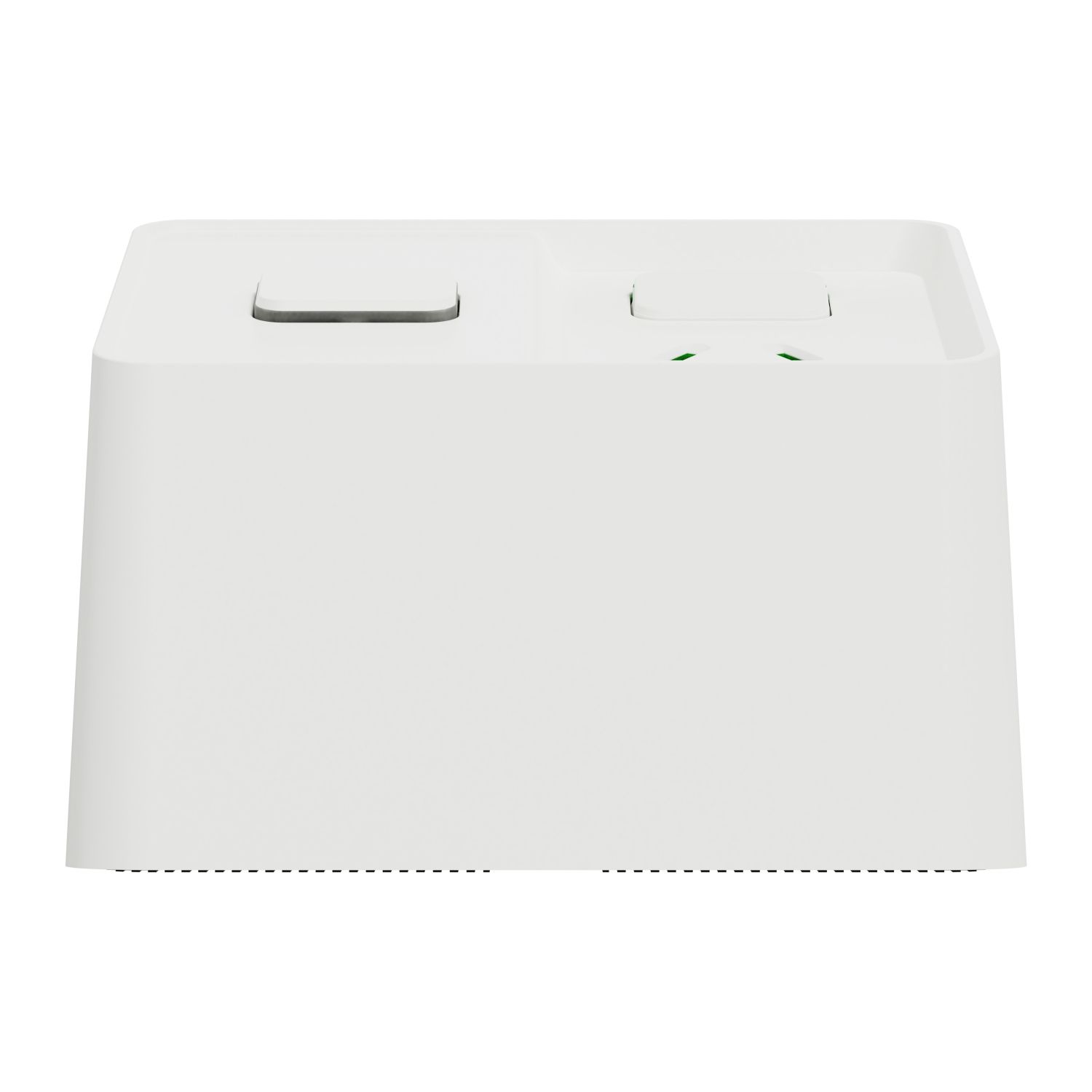

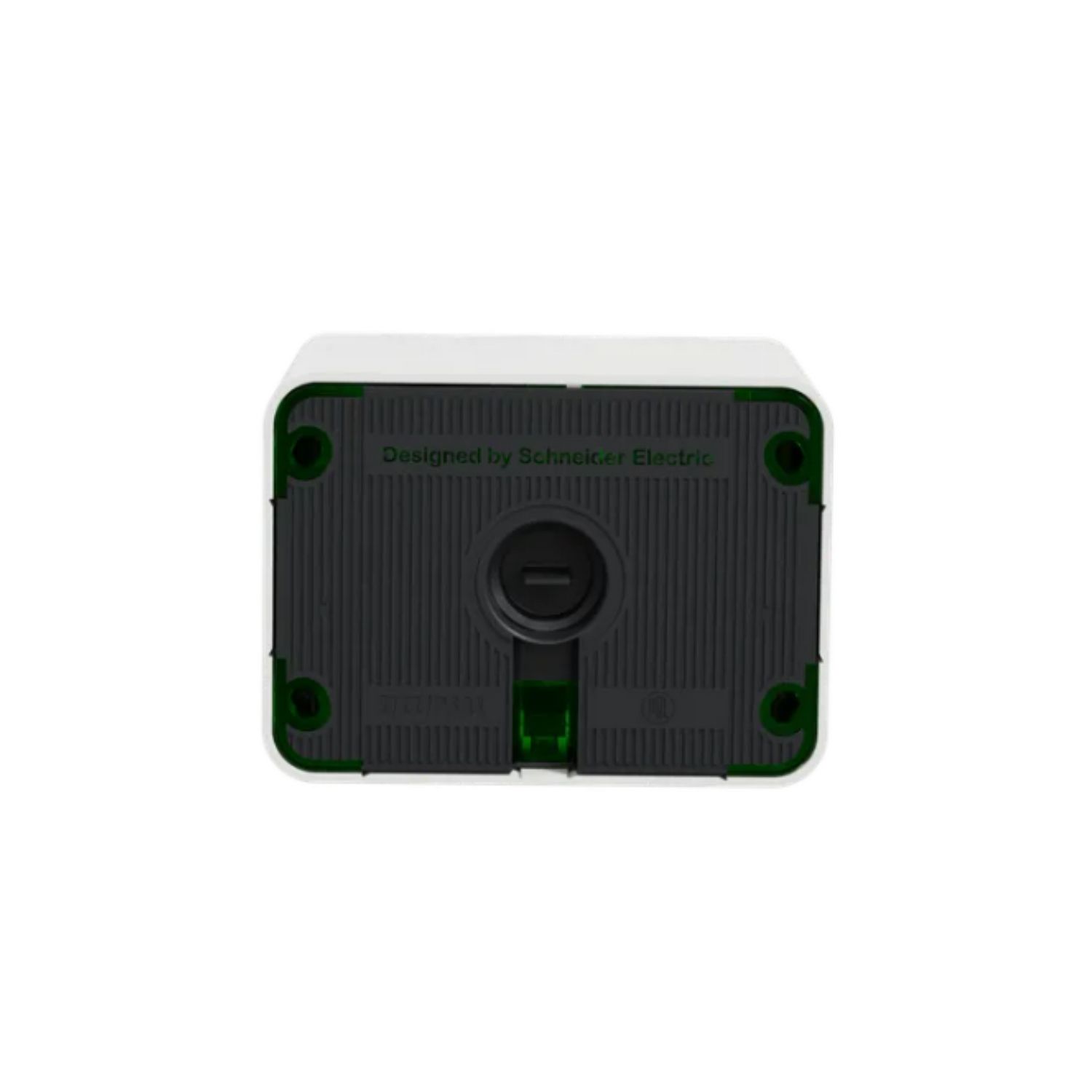

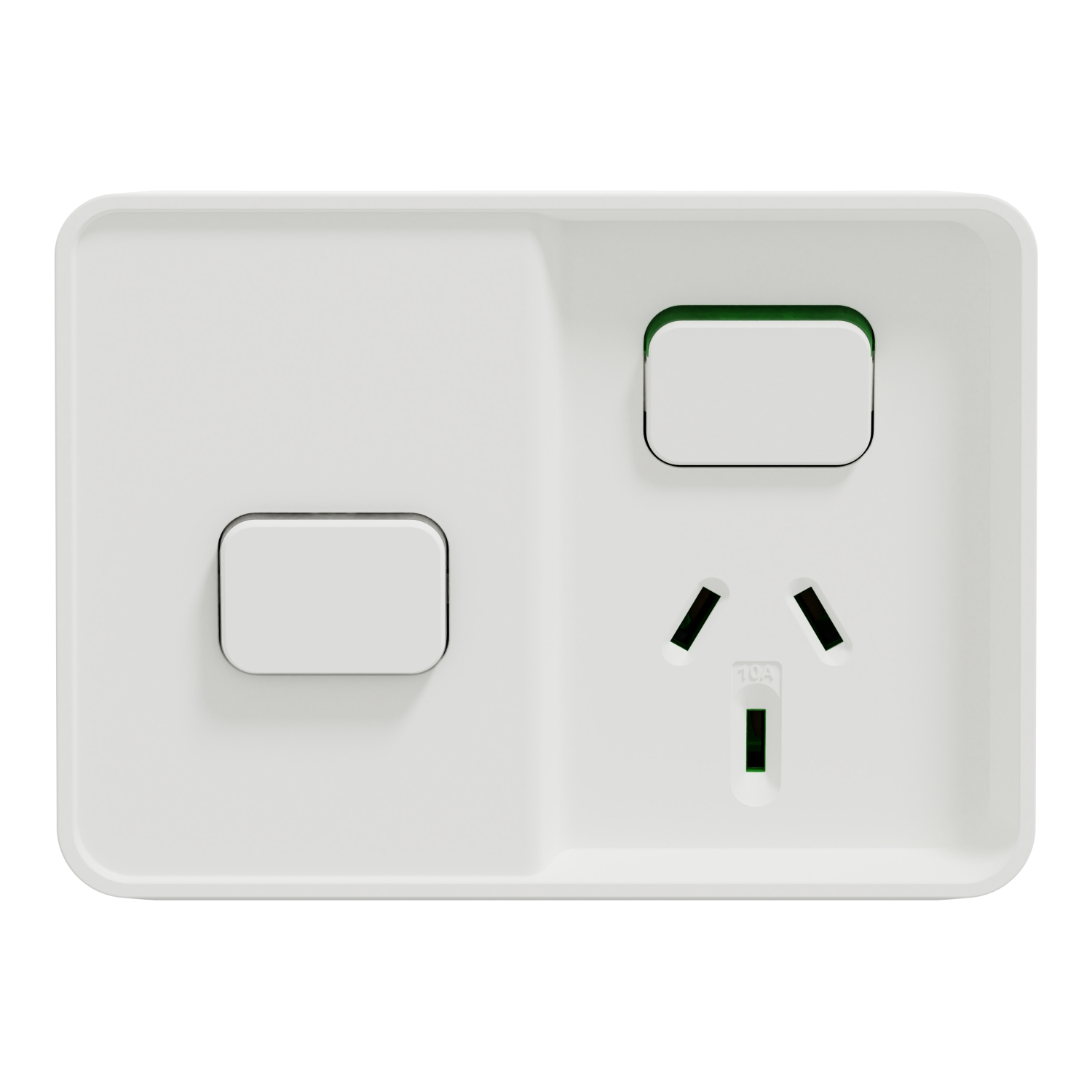

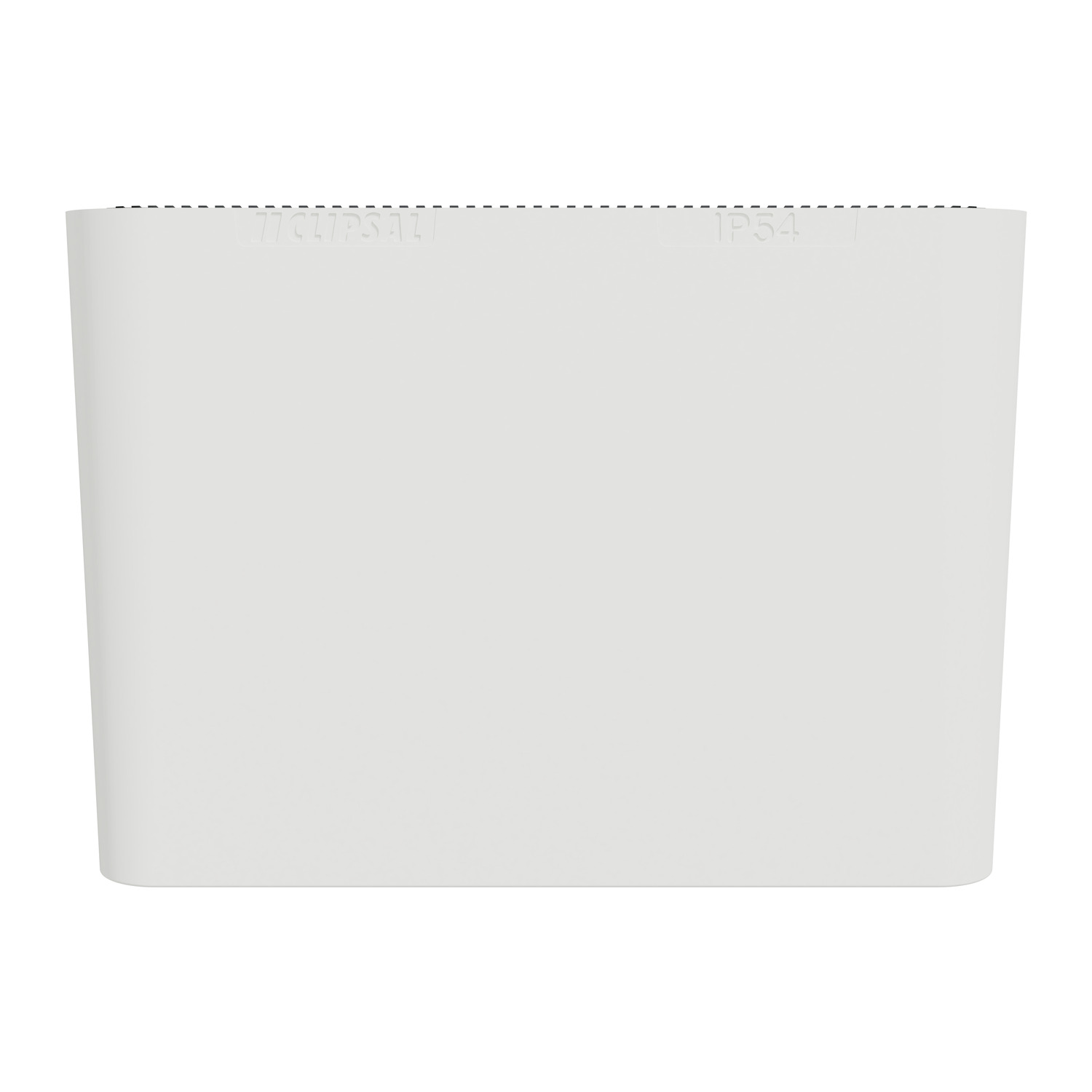

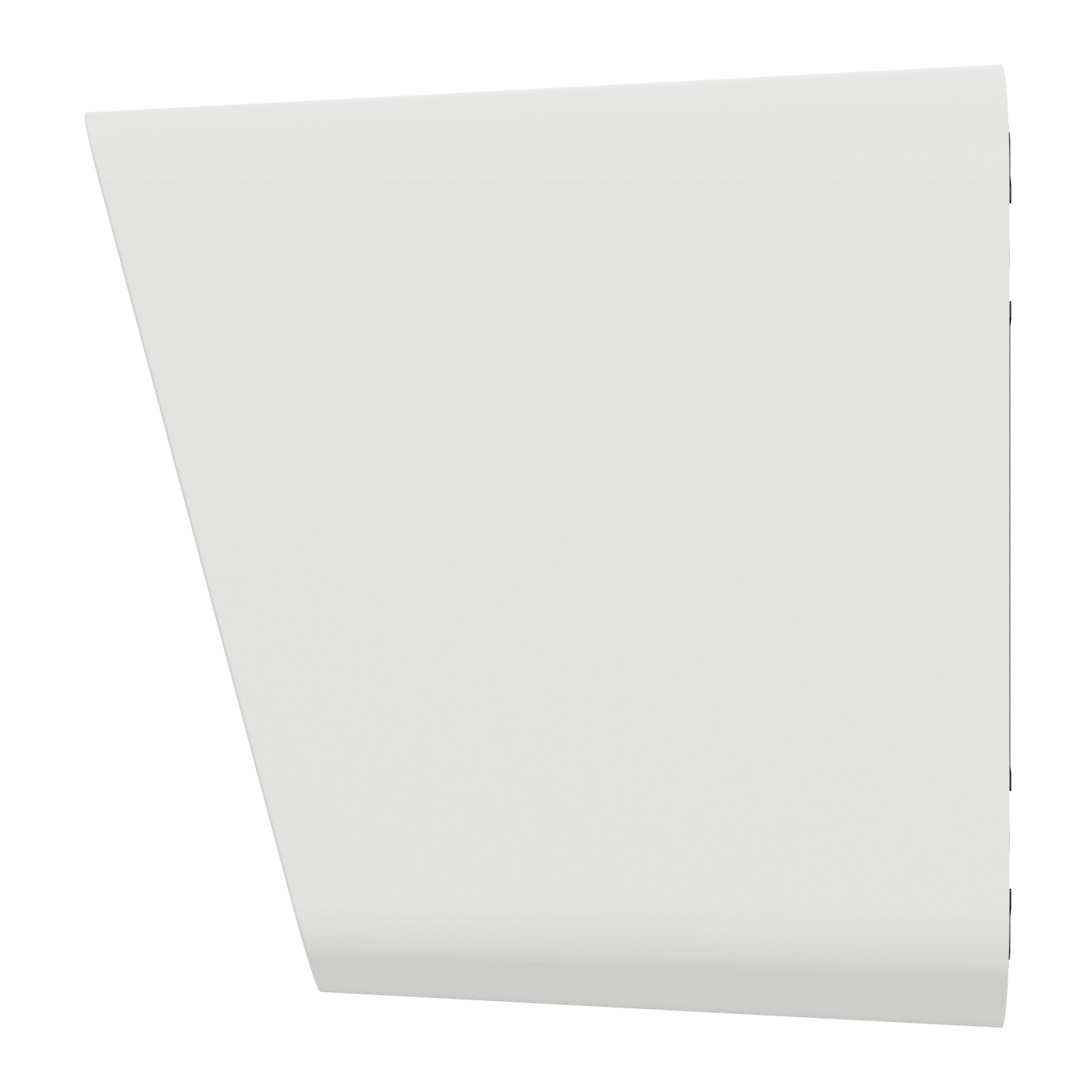

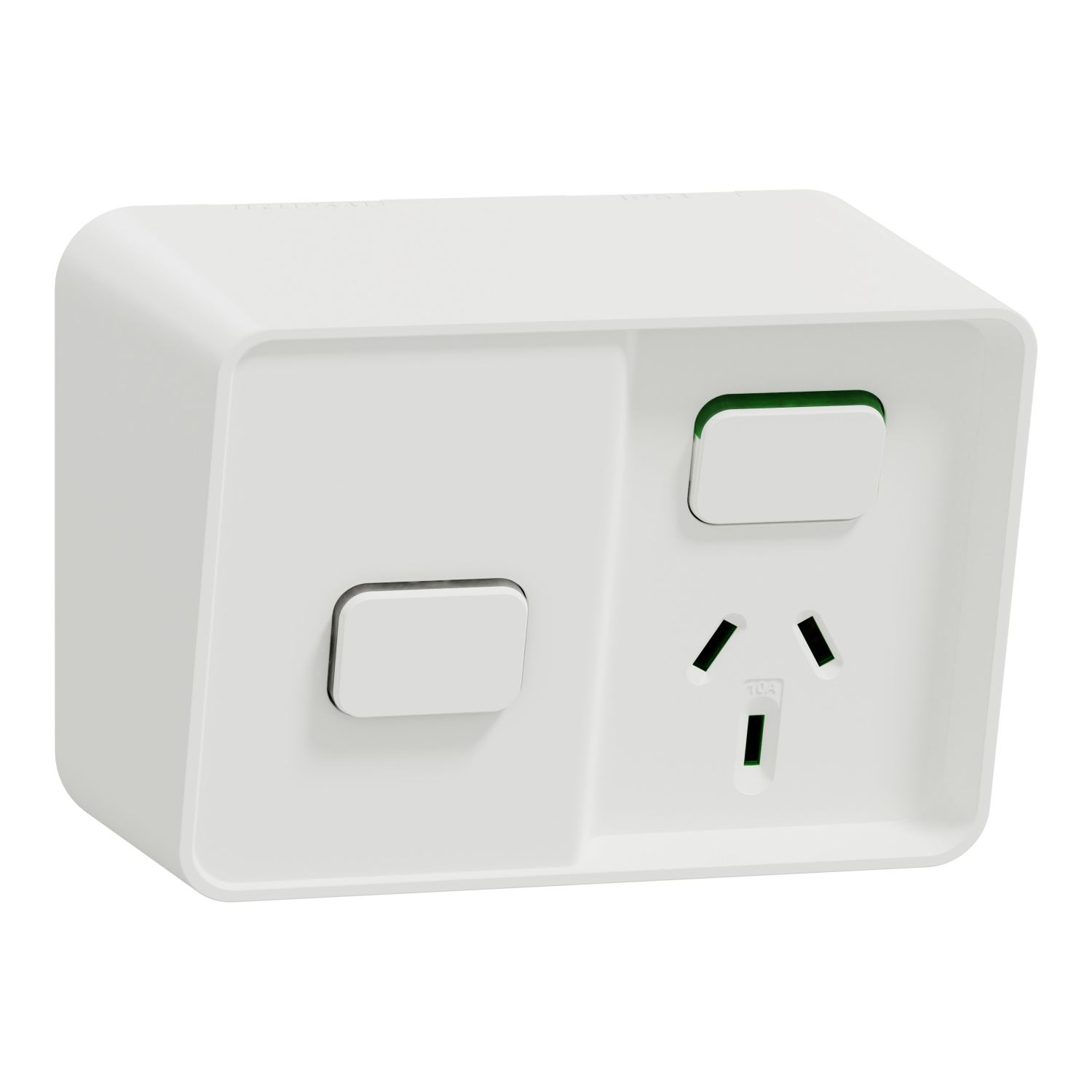

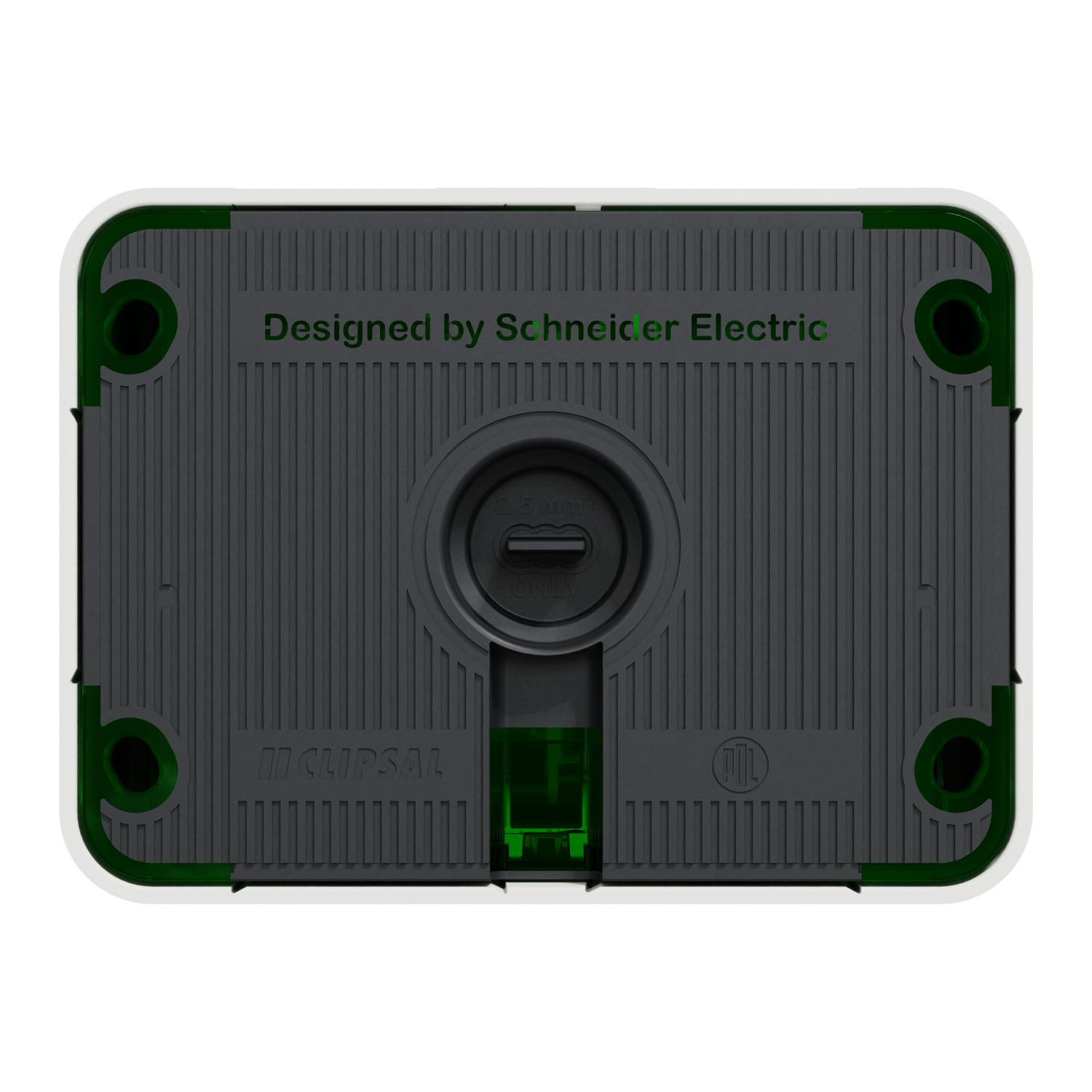

Designed to withstand harsh weather conditions, the Clipsal Weathershield Single Switched Socket is an ideal solution for outdoor installations. Provides convenient control over connected devices, allowing you to switch power on or off with ease. Iconic connected devices in BLE default mode can be swapped to Zigbee mode after installation to allow connection to Wiser Home Automation. The device comes with a screw terminal that offers a more secure connection for larger wires, reducing the risk of loose wires caused by external factors. The rated current is 10A and the rated operational voltage is 250VAC. This device allows for surface mounting. Screws are available for installation. The dimensions are (W) 115.5mm x (H) 85mm x (D) 82mm. The product is extra white and has a matt surface finish. It is made of thermoplastic ABS (acrylonitrile-butadiene-styrene) material which is resistant to wear and tear.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Switch application | on/off switching |
| Memory usage | program, date and time |
| Colour code | XW |
| Memory description | backup memory |
| Outlet poles configuration | 1P + E |
| Technology type | Zigbee, bluetooth low energy |
| Colour | white |
| Software name | Wiser by SE App |
| Device presentation | complete product |
| Product or component type | switched socket |
| Range of product | Iconic |
| Product brand | Clipsal |
| Complementary | |
| [Ue] rated operational voltage | 250 V AC |
| Pin number | 3 |
| Depth | 82 mm |
| Width | 115.5 mm |
| Mounting position | horizontal |
| Local signalling | without light indicator |
| [In] rated current | 10 A |
| Number of power socket outlets | 1 |
| Control type | by mobile application, rocker, ON/OFF button |
| Type of installation | outdoor |
| Material | POM (polyoxymethylene), ABS (acrylonitrile butadiene-styrene), PC (polycarbonate) |
| Socket-outlet type | single socket-outlet |
| Clamping connection capacity | 2 x 4 mm², 3 x 2.5 mm² |
| Surface finish | matt |
| Fixing mode | by clipping locks, by screws |
| Device mounting | wall mounted, surface |
| Height | 85 mm |
| Network frequency | 50 Hz |
| Environment | |
| IP degree of protection | IP54 |
| Electrical durability | 12000 cycles |
| Standards application | radio, EMC, safety |
| Ambient air temperature for storage | 0-60 °C |
| Relative humidity | 10-95 % |
| Standards | AS/NZS 3112 |
| Ambient air temperature for operation | 0-45 °C |
| Product certifications | RCM |
