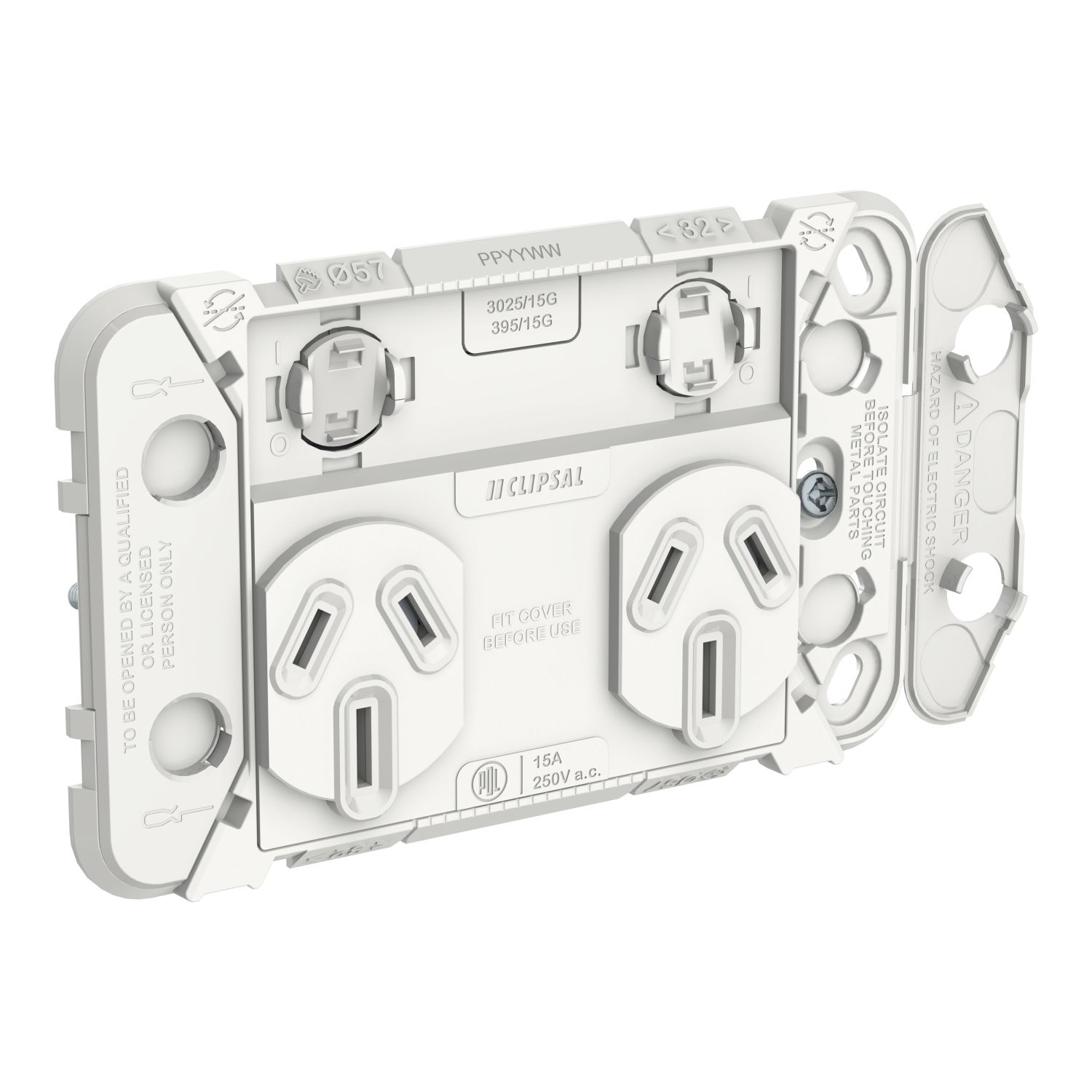

The Clipsal Iconic Horizontal Twin Power Point Grid has been designed in Australia with protection in mind. The protective flaps clearly indicate they should only be opened by certified electricians, and once installed the grid is ready for a Clipsal Iconic skin to complete the power point.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Outlet poles configuration | 2P + E with shutter |
| Device presentation | mechanism with fixing frame |
| Outlet standard | Australian |
| Range | Clipsal Iconic |
| Product or component type | switched socket |
| Complementary | |
| Number of power socket outlets | 2 |
| Quantity per set | set of 10 |
| Sale per indivisible quantity | 1 |
| Wire stripping length | 16 mm |
| Height | 71 mm |
| Connections - terminals | 3 screw terminals |
| Electrical durability | 10000 cycles |
| Number of rocker | 2 |
| Material | POM (polyoxymethylene): shutter, PP (polypropylene): rocker, PC (polycarbonate): fixing frame |
| Net weight | 0.094 kg |
| Type of packing | polybag |
| Clamping connection capacity | 1 x 2.5...4 x 2.5 mm² for flexible cable(s), 1 x 2.5...4 x 2.5 mm² for stranded cable(s), 1 x 2.5...4 x 2.5 mm² for rigid cable(s) |
| Range compatibility | Clipsal Iconic cover frame |
| Device mounting | flush |
| Embedding depth | 18 mm |
| Ground lug position | straight 180° position |
| Surface finish | matt |
| Screwdriver shape | Philips No 2, square drive no 1 (SQ1) |
| Depth | 26 mm |
| Width | 115 mm |
| Installation direction | horizontal |
| Outlet standard description | with earthing contact |
| Outlet standard deviation | Australian/New Zealand |
| Rated current | 15 A at 250 V AC 50 Hz |
| Fixing mode | by screw |
| Environment | |
| Relative humidity | 10-95 % |
| Product certifications | RCM |
| Ambient air temperature for operation | 0-45 °C |
| Standards | AS/NZS 3112 |
