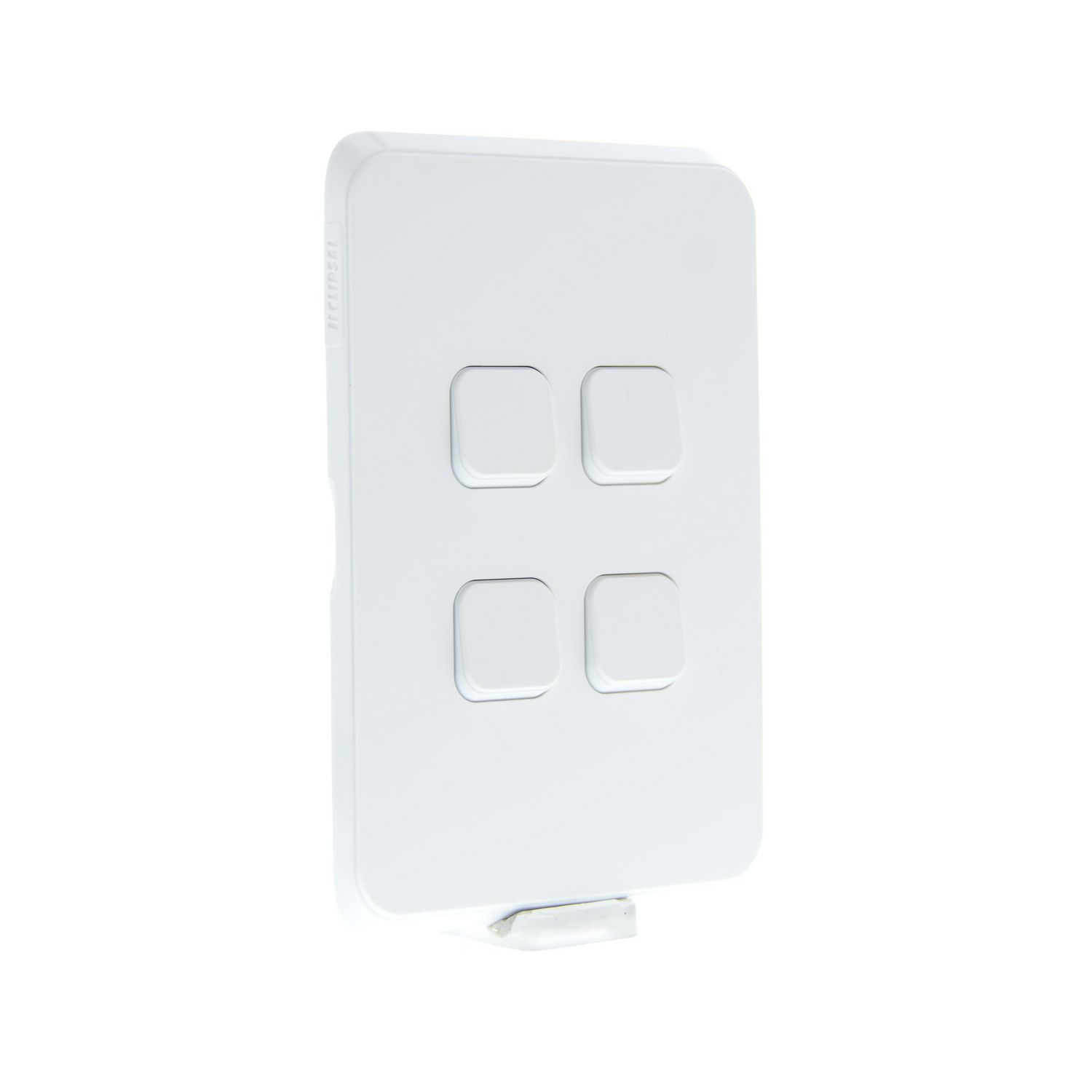

The Clipsal Iconic Flush Switch is a multipurpose quad light switch assembly with convenient 2-way switching functionality. The flush-mounted smart light switch has a modern look and can be easily customised with changeable skins.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | lighting |
| Quantity per set | set of 10 |
| Range | Iconic |
| Load type | LEDi lamp 100 W, fluorescent 10 A |
| Colour tint | white |
| Type of packing | polybag |
| Product or component type | switch |
| Complementary | |
| Switch function | 1-pole 1/2-way |
| Device presentation | complete product |
| Control type | rocker |
| Surface treatment | untreated |
| Surface finish | glossy |
| Rated current | 20 A/16 AX |
| Height | 116 mm |
| Connections - terminals | screw terminal |
| [Ue] rated operational voltage | 230/240 V |
| Depth | 38 mm |
| Number of rocker | 4 |
| Width | 78 mm |
| Installation direction | vertical |
| Net weight | 0.114 kg |
| Material | POM (polyoxymethylene), ABS (acrylonitrile butadiene-styrene), PP (polypropylene), PC (polycarbonate) |
| Clamping connection capacity | 1 x 4 mm² for stranded cable(s), 3 x 2.5 mm² for stranded cable(s), 1 x 1.5...4 x 1.5 mm² for rigid or stranded cable(s) |
| Fixing mode | by screws |
| Device mounting | wall |
| Environment | |
| Relative humidity | 10-95 % |
| Ambient air temperature for operation | 0-45 °C |
| Product certifications | RCM |
