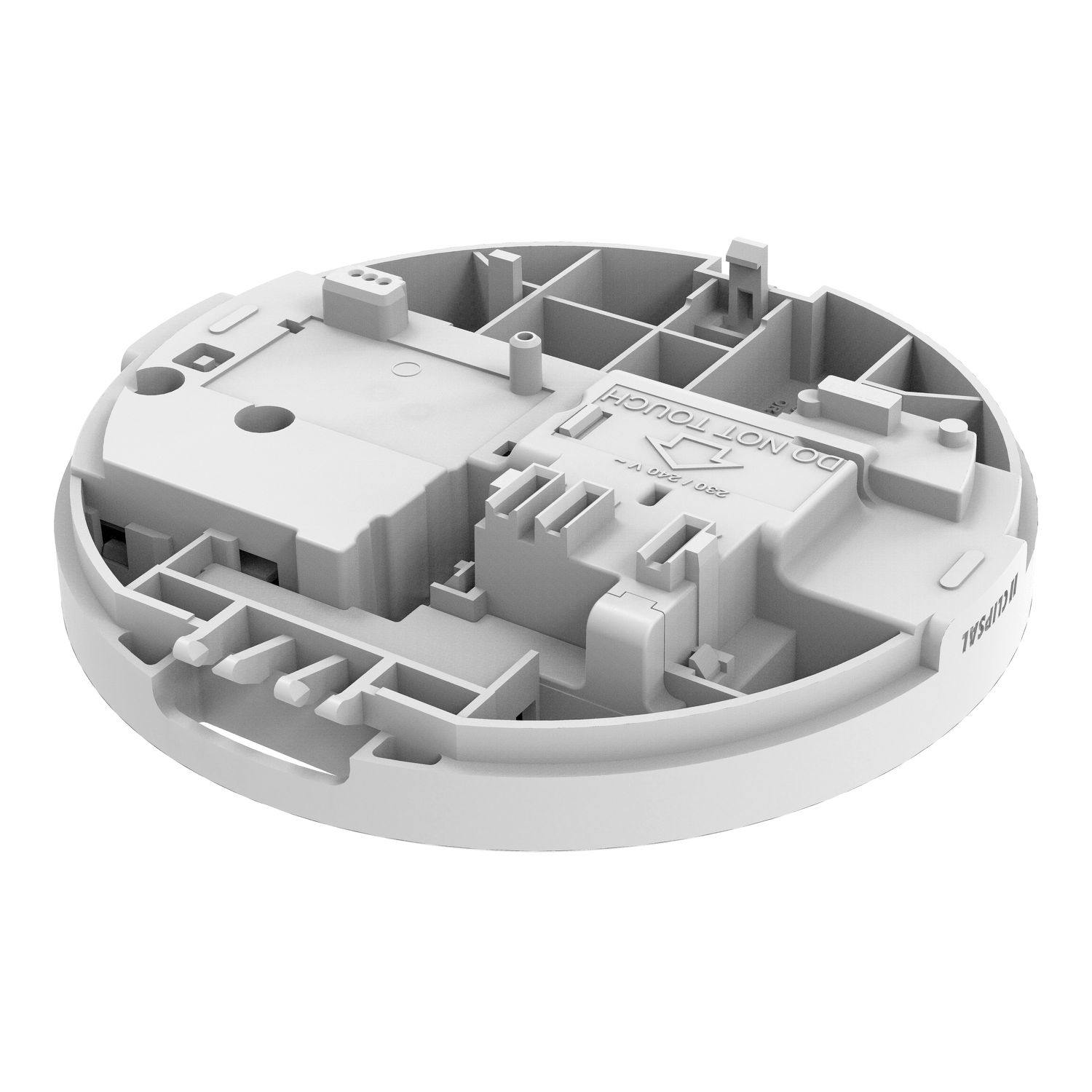

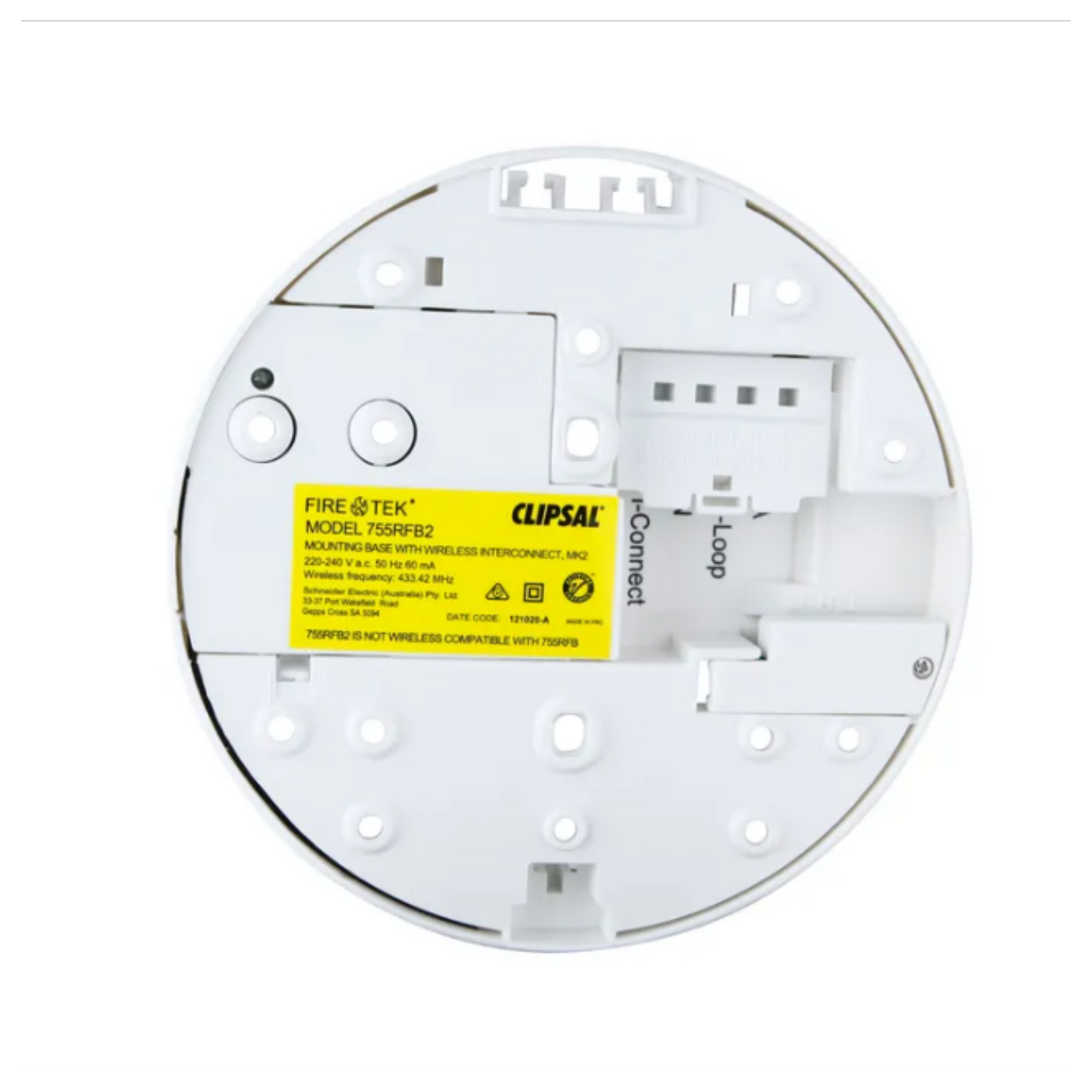

The Fire Tek smoke alarm Wireless Mounting Base allows up to 40 smoke alarms to be wirelessly interconnected. This is useful when adding a new alarm to an existing group, or if it is challenging to run interconnected cables. It has a remote test/hush input to allow testing or silencing from a momentary wall switch.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | mounting |
| Range | Fire Tek |
| Product or component type | mounting base |
| Product brand | Clipsal |
| Complementary | |
| Backup type | battery |
| [Us] rated supply voltage | 220...240 V AC 50 Hz |
| [Ie] rated operational current | 60 mA maximum |
| Battery life | 10 year(s) |
| Operating distance | 100 m in free field, 30 m indoor use line of sight |
| Battery type | sealed rechargeable |
| Number of devices | 40 for wired alarm wired over <= 150 m, 40 for wireless alarm |
| Type of installation | indoor |
| Fixing center | 84 mm |
| Connections - terminals | For common: screw terminal with 2 x 1.5 mm² wiring capacity , For hush: screw terminal with 2 x 1.5 mm² wiring capacity , For TEST: screw terminal with 2 x 1.5 mm² wiring capacity , For interconnect: screw terminal with 2 x 1.5 mm² wiring capacity , For earth loop: screw terminal with 2 x 1.5 mm² wiring capacity , For neutral: screw terminal with 2 x 1.5 mm² wiring capacity , For line: screw terminal with 2 x 1.5 mm² wiring capacity |
| Local signalling | flashing: 1 LED (red) 10 s for low battery |
| Time delay range | 2 min (pairing) |
| Remote control type | Dry contact momentary switch for test/hush function with max. cable length 20 m |
| Transmission frequency | 433.42 MHz |
| Diameter | 140 mm |
| Environment | |
| Relative humidity | 5-95 % |
| Product certifications | RCM, Activfire |
| Standards | AS/NZS 4268, AS/NZS 60950.1, AS/NZS 60065 |
| Ambient air temperature for operation | 0-45 °C |
