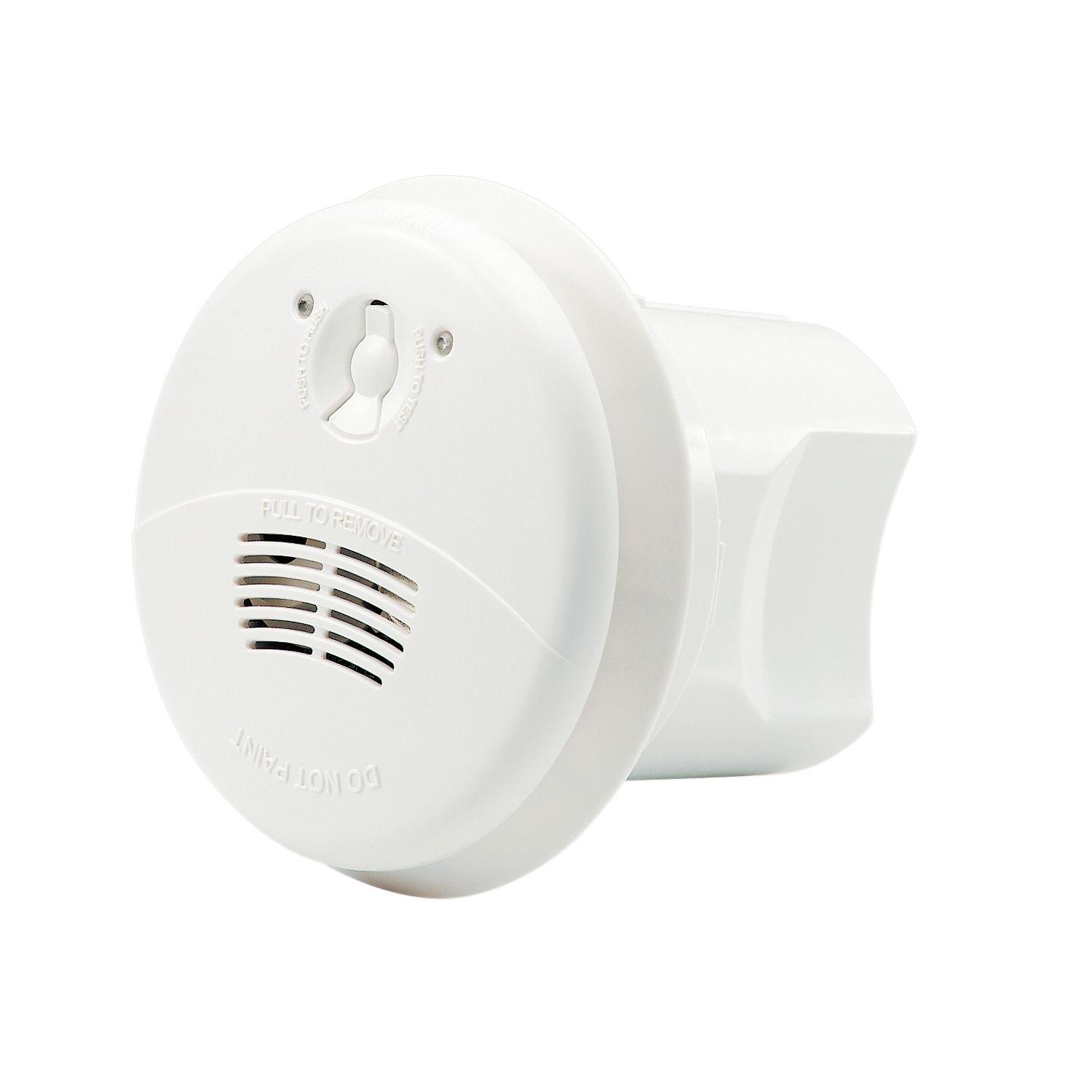

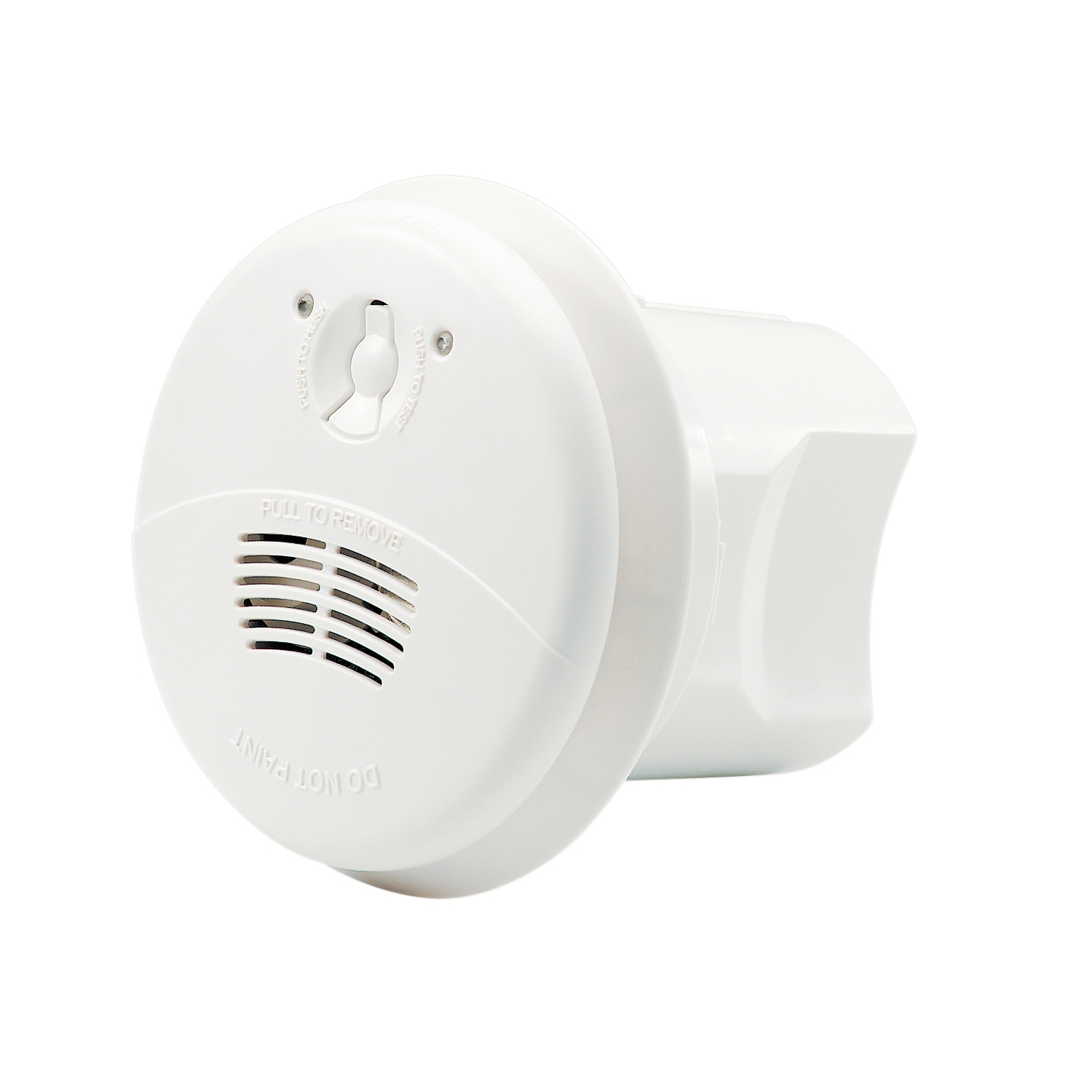

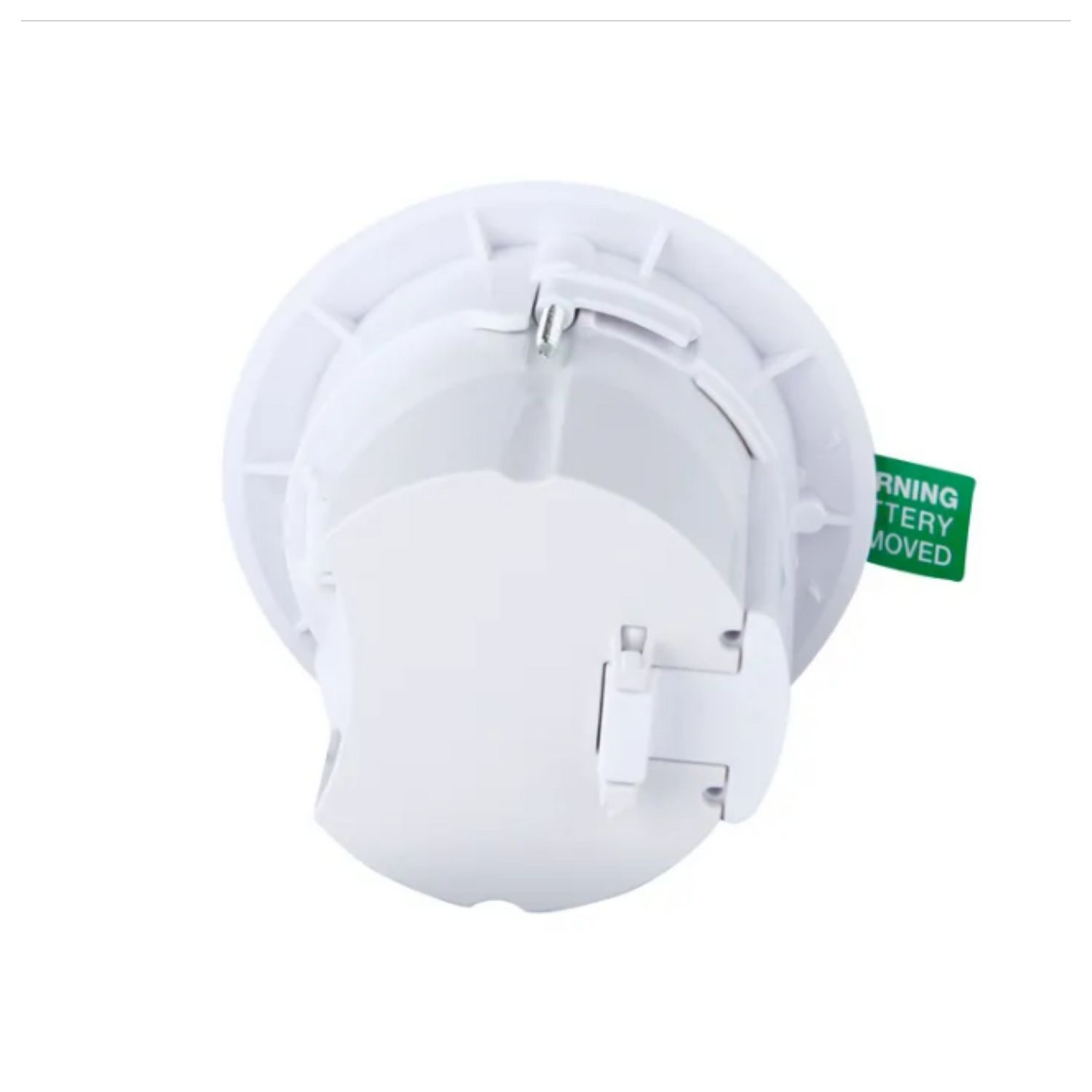

755PFM4 is a photoelectric flush mount smoke alarm that can be used as a single mains powered battery backed alarm or can be interconnected with other 755 series smoke alarms. The stylish design is extremely low profile and unobtrusive. It caters for fast installs with 90mm cut out & extra large terminals.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | early detection of smouldering fires and open fires |
| Colour | white (RAL 9003) |
| Electronic sensor type | photo-electric sensor |
| Range | Fire Tek |
| Type of packing | carton |
| Product or component type | smoke detector |
| Product brand | Clipsal |
| Complementary | |
| [In] rated current | 40-40 mA at 9 V, DC operation, 13-13 µA at 9 V, DC not in operation |
| Depth | 102.6 mm |
| Projecting depth | 23 mm |
| Material | thermoplastic |
| Technology type | scattered light (Tyndall effect) |
| Battery life | 1 year(s) |
| [Us] rated supply voltage | 220...240 V AC 50 Hz |
| Noise level | 85 dB at 3 m, minimum |
| Function available | self-test of smoke detection, hush function, local alarm |
| Number of devices | 40 for wired alarm wired over <= 150 m |
| Output voltage limits | interconnection: 6.5...20 V |
| Type of installation | indoor |
| Net weight | 263 g |
| Device composition | 1 sticker sheet, 3 screws, 1 user guide, 1 dust protection foil, 1 mounting base |
| Connections - terminals | screw terminal (interconnect) - 2 x 1...3 x 2.5 mm², screw terminal (earth loop) - 2 x 1...3 x 2.5 mm², screw terminal (neutral) - 2 x 1...3 x 2.5 mm², screw terminal (line) - 2 x 1...3 x 2.5 mm² |
| Battery type | alkaline 9 V 6LR61 |
| Type of measurement | optic |
| Supply | mains |
| Local signalling | visual: LED (green) for ON status, visual: LED (red) for warning and low battery, sound: signal |
| Fixing mode | by screws |
| Detection type | heat |
| Mounting support | ceiling |
| Device mounting | flush |
| Type of alarms | low battery at 6.9...7.5 V |
| Diameter | 108 mm |
| Control type | button (test/hush function) |
| Environment | |
| Ambient air temperature for storage | -20-60 °C |
| Relative humidity | 5-95 % |
| IP degree of protection | IP20 |
| Product certifications | Activfire, SAI, RCM |
| Standards | AS/NZS 60065, AS/NZS 60950.1, AS 3786:2014, ISO 8201 |
| Ambient air temperature for operation | 0-45 °C |
