Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | control |
| Range | C-Bus |

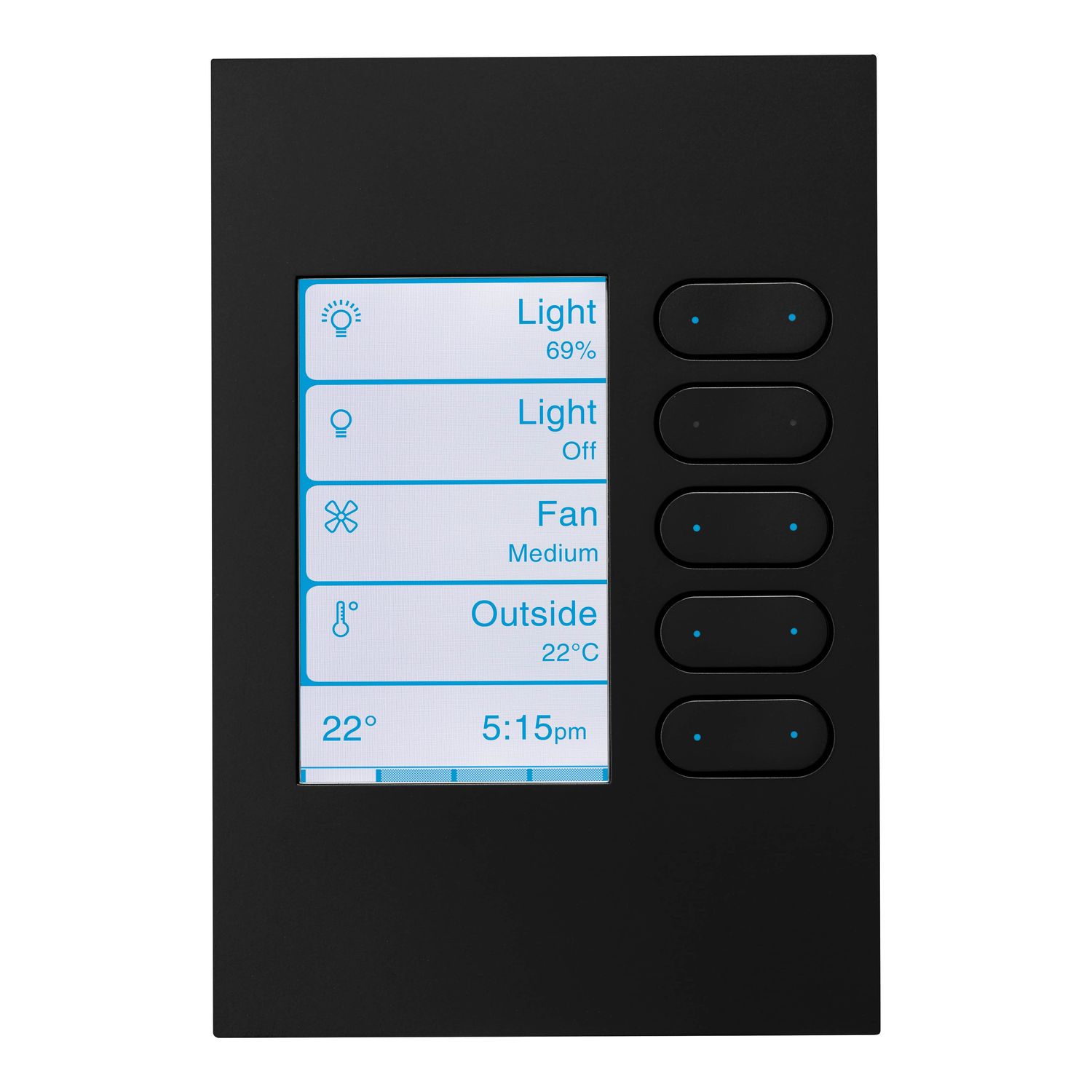

| Product name | C-Bus Saturn Zen |
| Product or component type | wall plate |
| Product brand | Clipsal |
| Complementary | |
| Switch application | page navigation, dimming up/down control, shutter control, on/off switching, scene control, fan speed control, blind control, audio, timer, lighting |
| Function of module | proximity sensor monitoring wake-up |
| Depth | 35 mm |
| Colour | grid: black, cover plate: zen black |
| Display type | colour TFT display |
| Width | 83 mm |
| Provided equipment | flying lead, mounting plate |
| Electrical connection | flying lead |
| Display size | 2.8 inch |
| Maximum supply current | 32 mA |
| Function available | firmware update by USB |
| Control type | 5 x push-button dual-action |
| Connector type | socket (rear) for C-Bus, mini USB port (rear) |
| Colour code | ZB |
| Messages display capacity | up to 4 pages |
| Local display | backlit LCD display |
| Material | plastic |
| Product compatibility | LAN cable Cat. 5e |
| Local signalling | status: LED (tri-colour) on push-button |
| Communication port protocol | C-Bus - 2 wires |
| [Us] rated supply voltage | 15...36 V: DC |
| Fixing mode | by screws |
| Mounting support | wall |
| User language | multi-language |
| Number of outputs | 5 in 1 page option, 16 in 4 page option |
| Clamping connection capacity | 0.2...1.5 mm² |
| Embedding depth | 23.5 mm |
| Height | 123 mm |
| Information displayed | operating mode, time, date, power, temperature, load type |
| Environment | |
| IP degree of protection | IP20 |
| Product certifications | RCM, CE |
| Ambient air temperature for operation | 5-45 °C |
