Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | quick termination tool, punch down tool |
| Colour code | TIA-568A/B |
| Provided equipment | with RJ45 connectors 24 , ports identification at the rear 24 , removable cable tray 1 , label holder 3 inside the rack, side cover 2 6 U/UTP inside the enclosure |
| Colour | grey (RAL 7040) |
| Quantity per set | set of 1 |
| Device presentation | loaded |
| Range | Actassi |

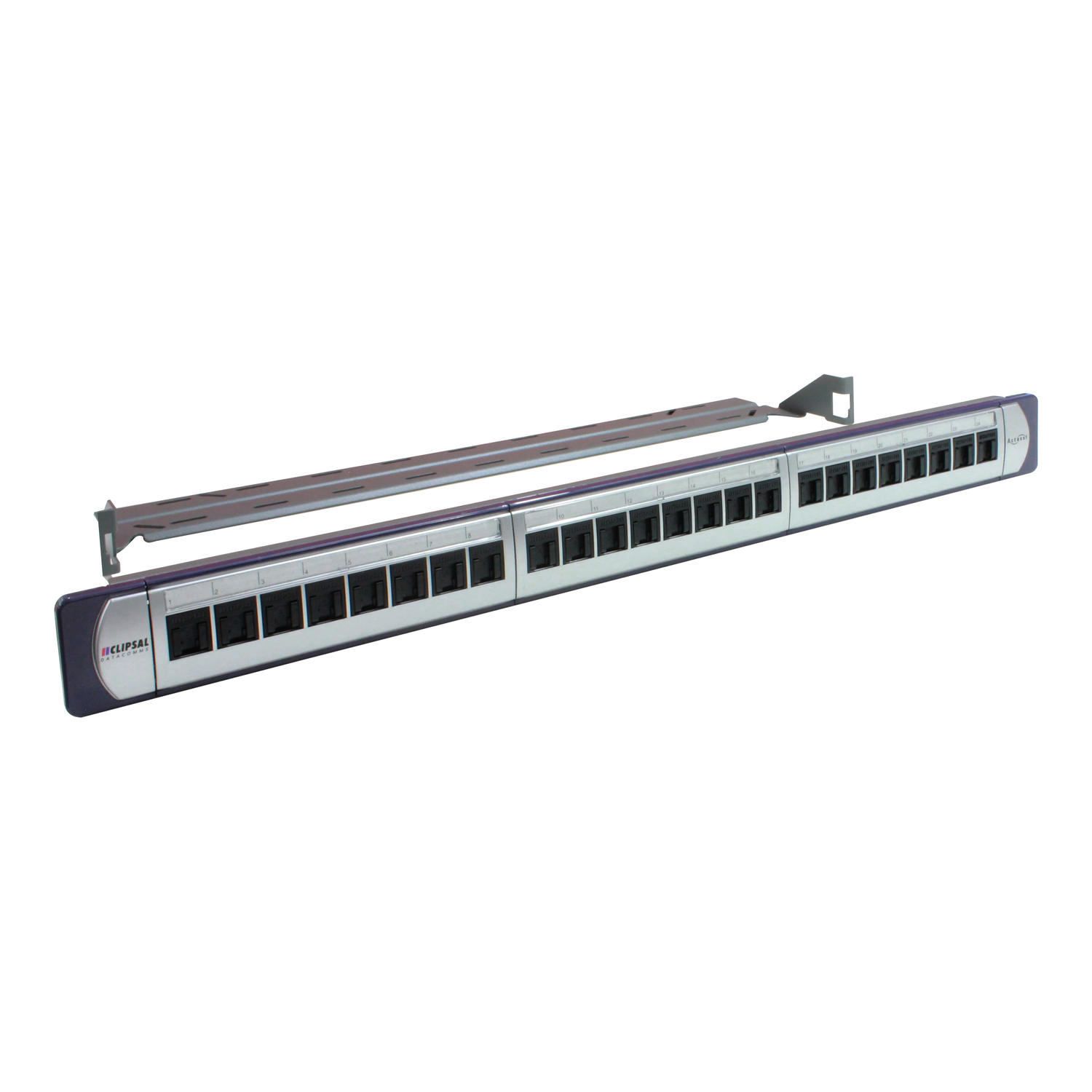

| Product or component type | patch panel |
| Product brand | Clipsal |
| Complementary | |
| Dielectric strength | 1000 V |
| Contact resistance | 20 mOhm |
| Cable outer diameter | 0.9-1.4 mm |
| Depth | 124 mm |
| Width | 482 mm |
| Communication network category | 6 |
| Minimum number of matings | 750 cycles |
| Number of pairs | 4 pairs |
| Connections - terminals | IDC |
| AWG gauge | AWG 24...AWG 23 |
| Number of rack unit | 1U |
| Installation direction | 90° |
| Communication port support | ETHERNET |
| Cable shielding type | U/UTP |
| Net weight | 1 kg |
| Material | ABS + PC + metal TIA-568A/B 1.5 mm |
| Connector type | 24 RJ45 Cat. 6 U/UTP |
| Targeted region | Asia Pacific. |
| Insulation resistance | >= 500 MOhm |
| Mounting support | 19" rack |
| Height | 44 mm |
| Type of footprint | S-110 keystone |
| [In] rated current | 1.5 A at 25 °C |
| Environment | |
| Ambient air temperature for storage | -20-70 °C |
| Relative humidity | 0-93 % |
| Product certifications | RCM, UL listed conforming to UL 94 V0 |
| Standards | UL 1863, AS/NZS 3080:2003, IEC 60603-7-2, ANSI/TIA-568-C.2, ISO/IEC 11801:2011 Ed.2.2 |
| Ambient air temperature for operation | -10-60 °C |
