Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | power supply |
| Colour | grey (RAL 7035) |
| Range | Clipsal - 56 Series |

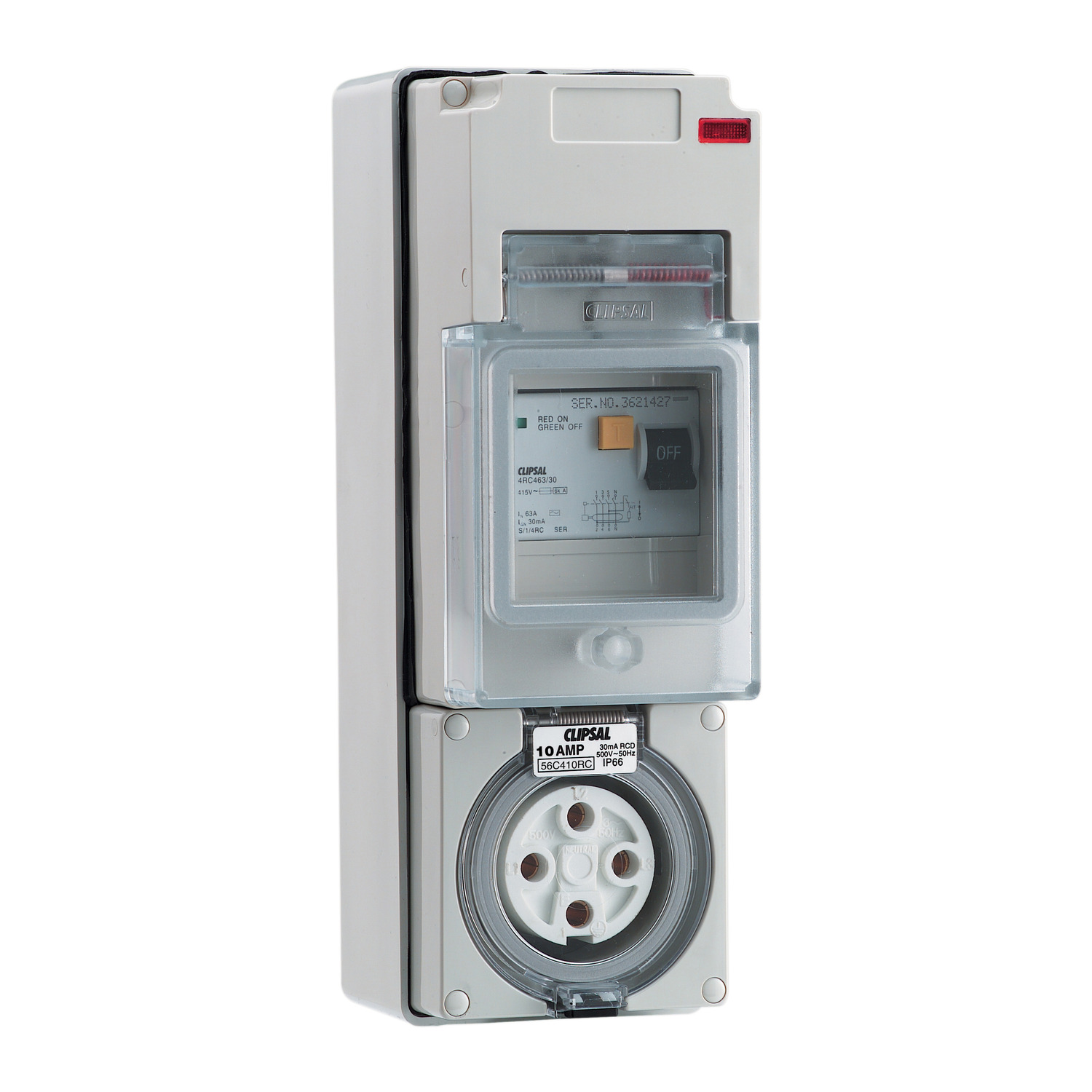

| Product or component type | socket-outlet with residual current device |
| Complementary | |
| Depth | 110 mm |
| Market segment | utility, small commercial, industry |
| Width | 101 mm |
| [In] rated current | 10 A |
| Material | polycarbonate |
| Mounting mode | surface mounted |
| Installation direction | vertical |
| Control type | push-button |
| Net weight | 1.696 kg |
| Network number of phases | 3 phases |
| Connections - terminals | screw terminal cable(s) 1.5-16 mm² |
| Number of gangs | 3 gangs |
| [Ue] rated operational voltage | 500 V AC 50 Hz |
| Height | 294 mm |
| Targeted country | Australia |
| Environment | |
| IP degree of protection | IP66 |
| Earth-leakage protection class | class A |
| Ambient air temperature for operation | -25-75 °C |
