Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | power supply |
| Colour | orange (RAL 2004) |
| Range | Clipsal - 56 Series |

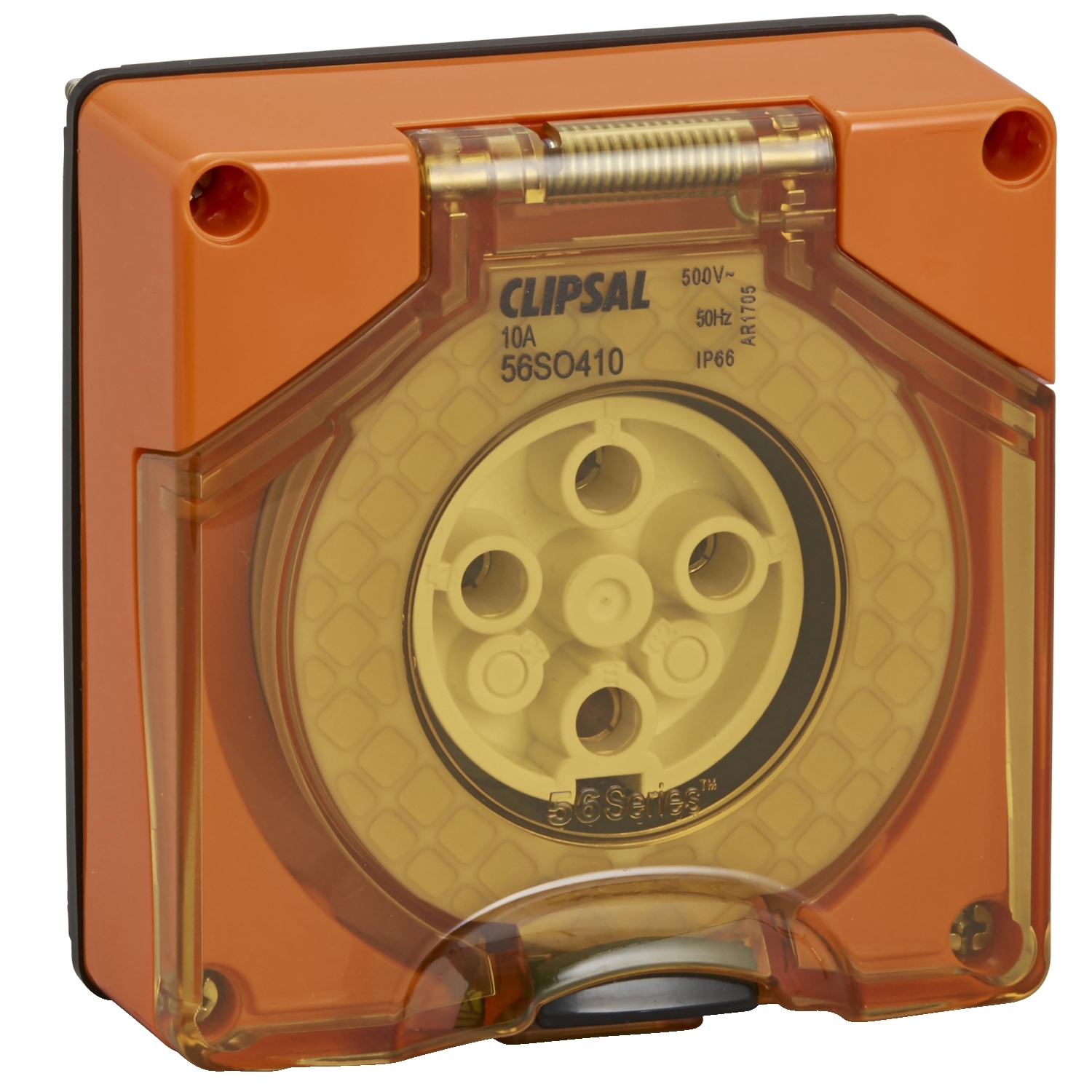

| Product or component type | socket-outlet |
| Outlet standard deviation | Australian/New Zealand |
| Range of product | Series 56 |
| Product brand | Clipsal |
| Complementary | |
| Depth | 71 mm |
| Market segment | utility, industry, small commercial |
| Plug, socket category | low voltage |
| Width | 101 mm |
| Outlet standard | industrial |
| [In] rated current | 10 A |
| Poles description | 3P + E |
| Material | PC + PET: cover |
| Tightening torque | 0.8 N.m |
| Mounting mode | external mounting |
| Voltage colour | black |
| Colour code | RO |
| Net weight | 0.333 kg |
| Socket-outlet type | K |
| Socket number | 1 |
| Contacts material | screws: brass |
| Device mounting | surface |
| [Ue] rated operational voltage | 500 V AC 50 Hz conforming to EN 60309-2 |
| Duration | 7 h |
| Height | 107 mm |
| Targeted country | Australia |
| Connections - terminals | screw terminals 1.5-6 mm² rigid or stranded cable |
| Environment | |
| Standards | AS/NZS 3112 |
| Ambient air temperature for operation | -25-75 °C |
