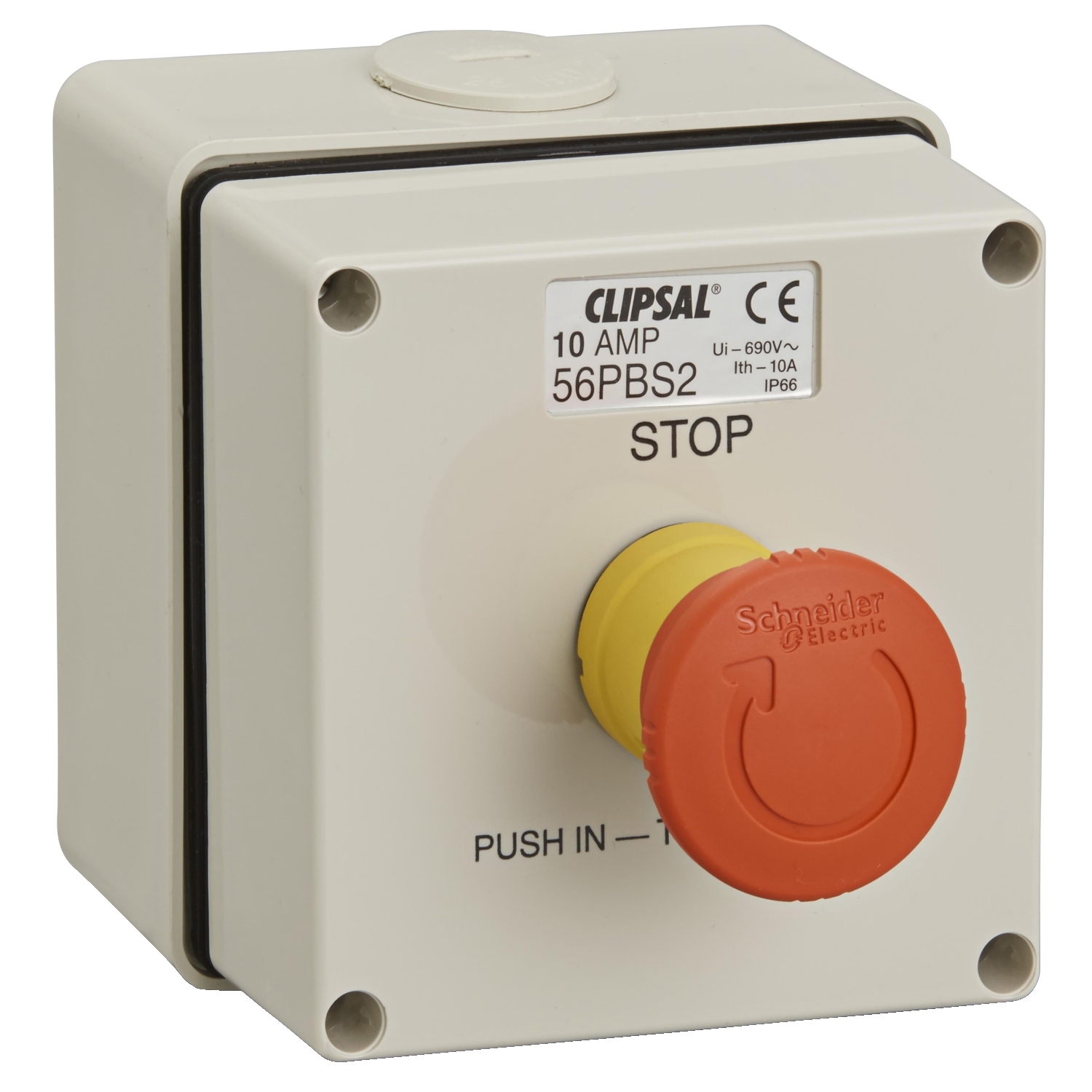

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | control |
| Colour | cover: grey |
| Range | Clipsal - 56 Series |
| Range of product | Series 56 |
| Product or component type | switch |
| Product brand | Clipsal |
| Complementary | |
| [Us] rated supply voltage | lamp: 500 V AC 50 Hz |
| Tightening torque | 0.8 N.m |
| Width | 101 mm |
| Colour | grey |
| Control type | push-button |
| Colour code | GY |
| Depth | 102 mm |
| Connections - terminals | screw terminal cable(s) 1-4 mm² solid |
| Cap/operator or lens colour | red |
| Marking | STOP |
| Targeted country | Australia |
| Market segment | small commercial, industry, utility |
| [In] rated current | 10 A |
| Poles description | 1P |
| Height | 107 mm |
| Suitability for isolation | no |
| Net weight | 0.36 kg |
| Environment | |
| IP degree of protection | IP66, IP66 conforming to AS 60529 |
| Ambient air temperature for operation | -25-75 °C |
| Standards | AS/NZS 3133, AS/NZS 3100 |
