Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | power supply |
| Colour | grey |
| Range | Clipsal - 56 Series |

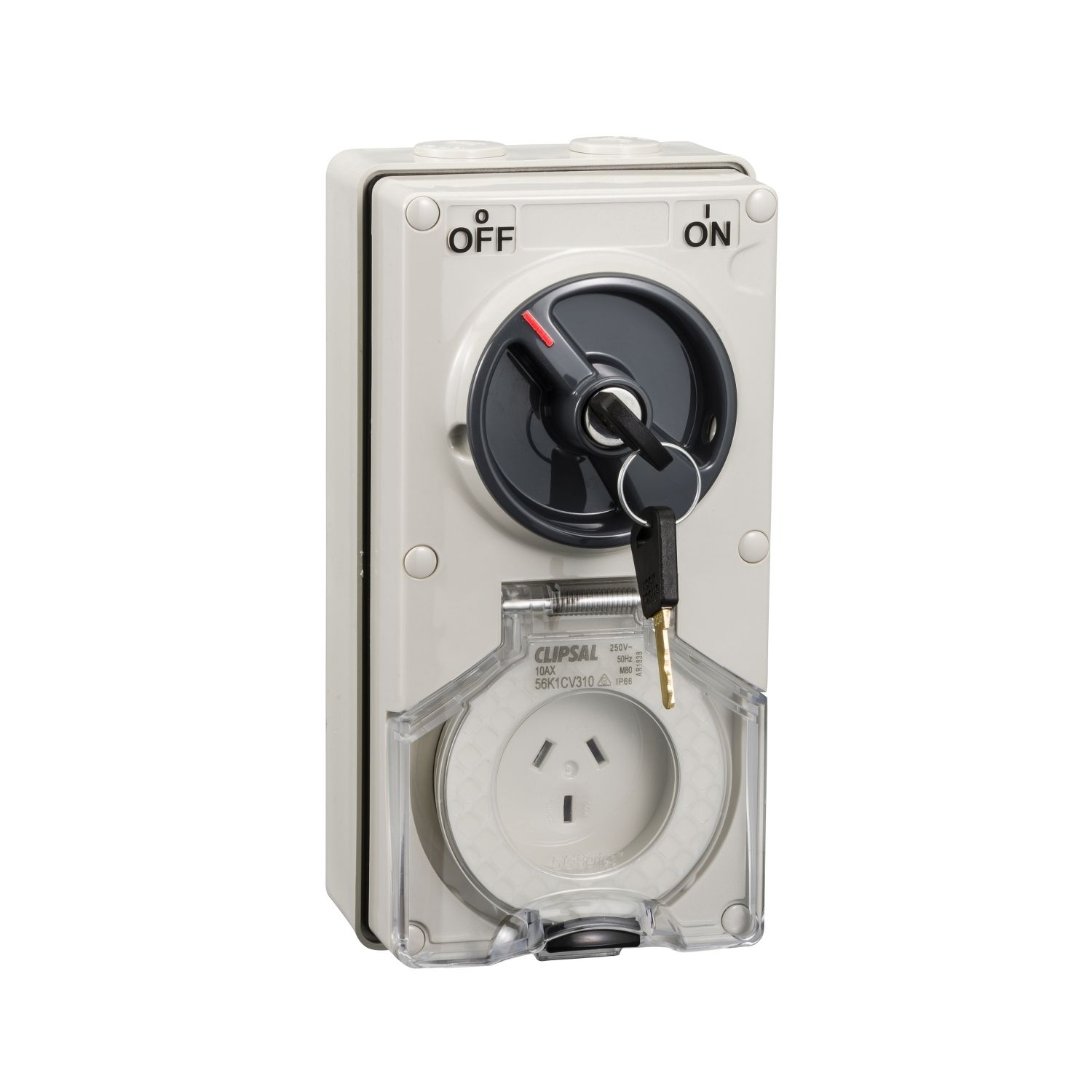

| Product or component type | switched socket |
| Outlet standard deviation | Australian/New Zealand |
| Range of product | Series 56 |
| Product brand | Clipsal |
| Complementary | |
| Depth | 85 mm |
| Market segment | small commercial, utility, industry |
| Plug, socket category | low voltage |
| Width | 101 mm |
| Protection type | without protection |
| [In] rated current | 10 A |
| Poles description | 1P + N + E |
| Material | polycarbonate: cover |
| Mounting mode | surface mounting |
| Voltage colour | blue |
| Colour code | GY |
| Plug, socket, control station shape | angled, straight |
| Contacts material | pins: phosphor bronze |
| [Ue] rated operational voltage | 250 V AC 50 Hz conforming to EN 60309-2 |
| Duration | 6 h |
| Height | 204 mm |
| Targeted country | Australia |
| Connections - terminals | screw terminals 1.5-6 mm² |
| Environment | |
| IP degree of protection | IP66 conforming to AS 60529 |
| Standards | AS/NZS 4417.1, AS/NZS 3112 |
| Ambient air temperature for operation | -25-75 °C |
