Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Colour | cover: grey |

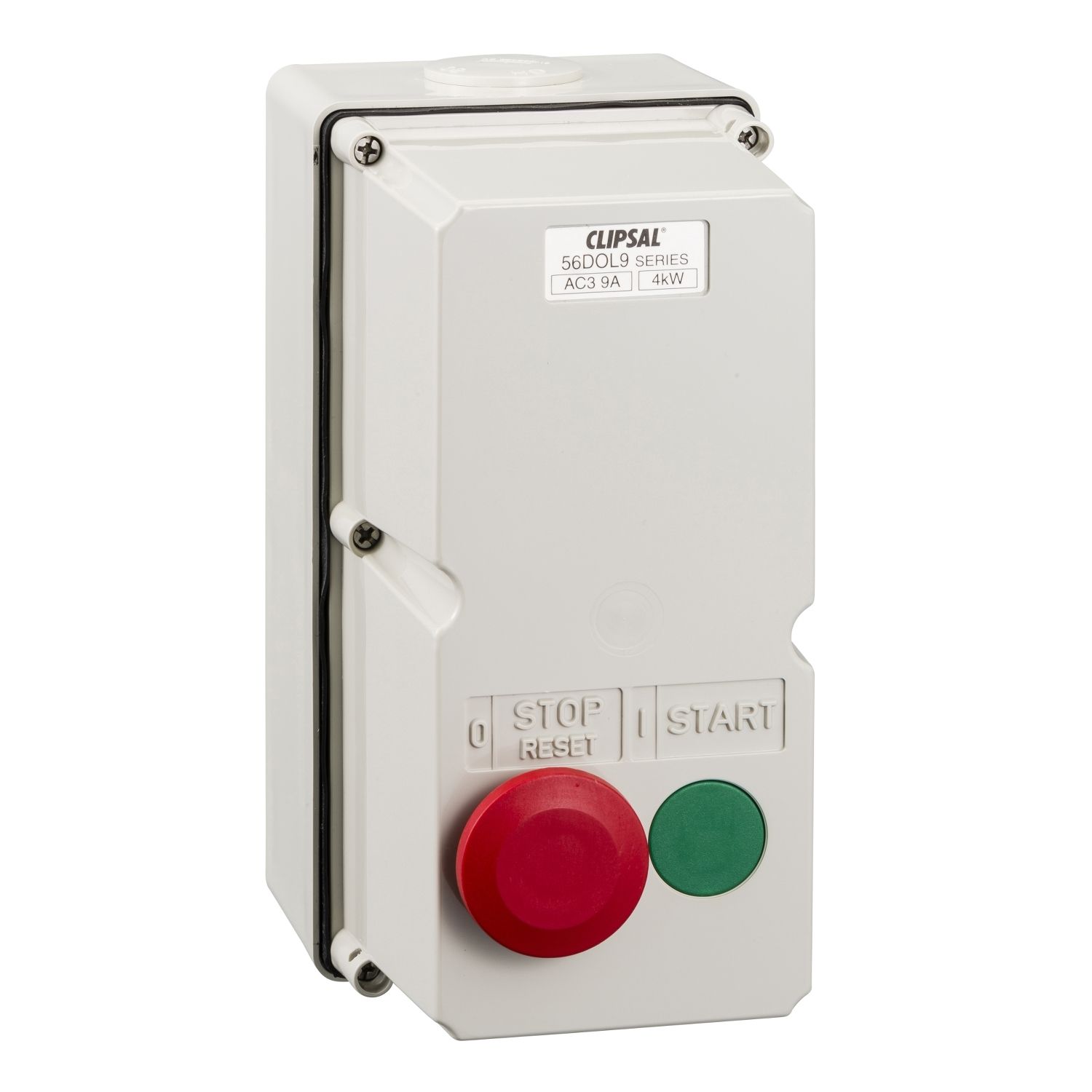

| Product or component type | switch |
| Range of product | Series 56 |
| Complementary | |
| Rated operational power in W | 4 kW at 240 V (AC-3) |
| Market segment | small commercial, industry, utility |
| Width | 101 mm |
| [Ie] rated operational current | 9 A |
| Tightening torque | 0.8 N.m |
| [Us] rated supply voltage | 240 V AC 50 Hz |
| Motor starter type | direct on line |
| Control type | push-button |
| Colour code | GY |
| Net weight | 1.42 kg |
| Network number of phases | 3 phases |
| Overload current | 4...6 A |
| Connections - terminals | screw terminal stranded, screw terminal solid |
| Network type | AC |
| Height | 204 mm |
| Targeted country | Australia |
| Product destination | 2 push-button |
| Environment | |
| Suitability for isolation | no |
| IP degree of protection | IP66 conforming to AS 60529 |
| Standards | AS/NZS 3100, AS/NZS 3133 |
| Ambient air temperature for operation | -25-75 °C |
