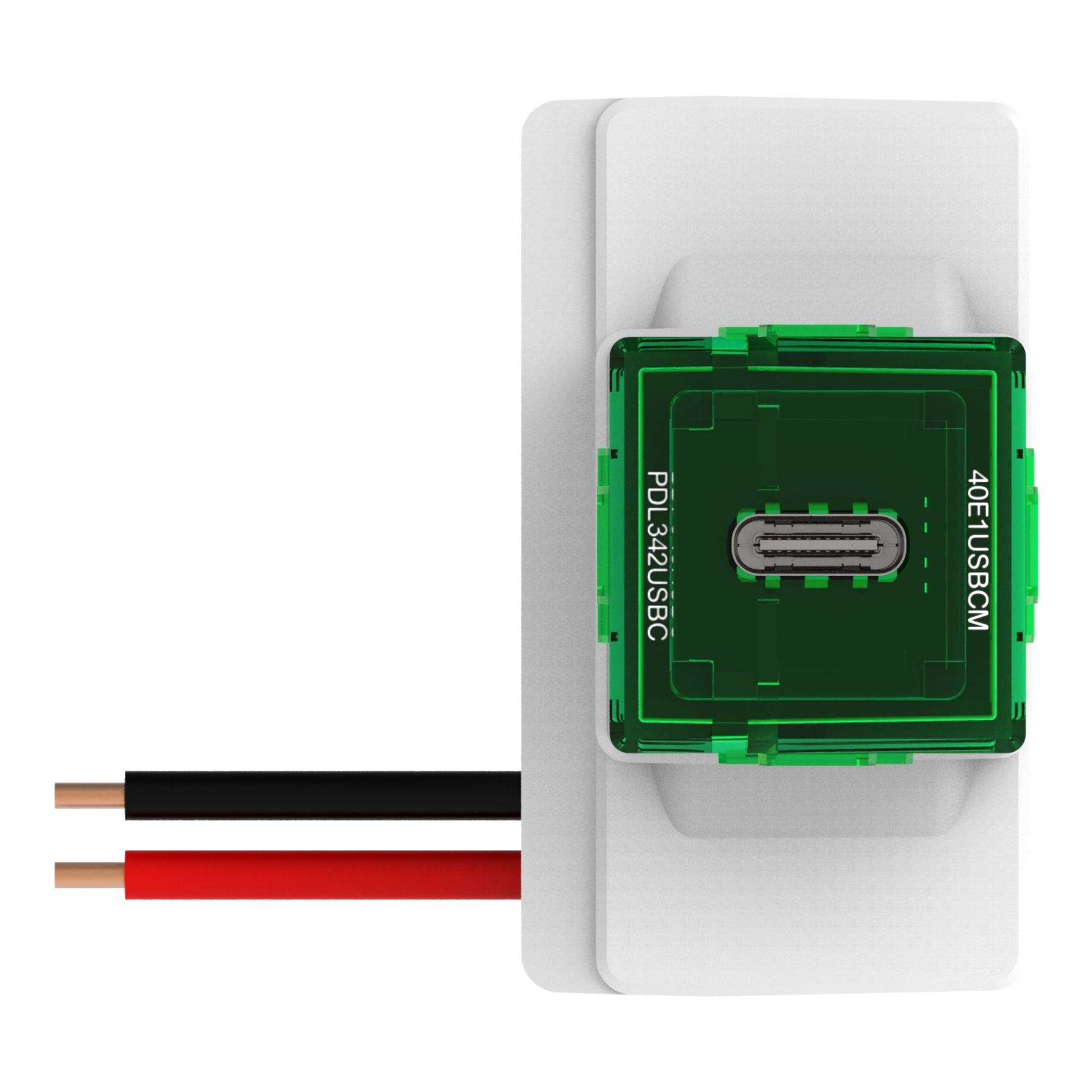

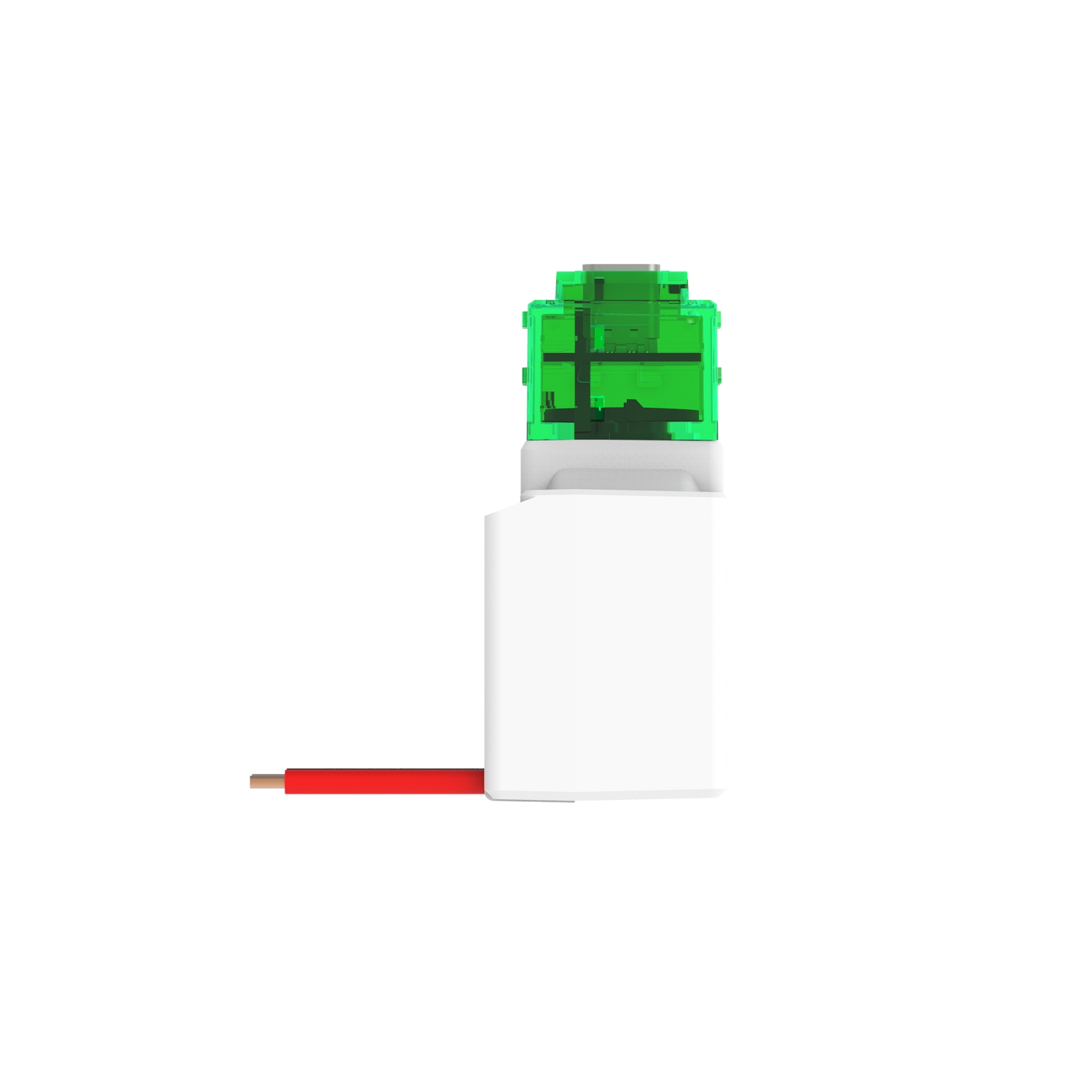

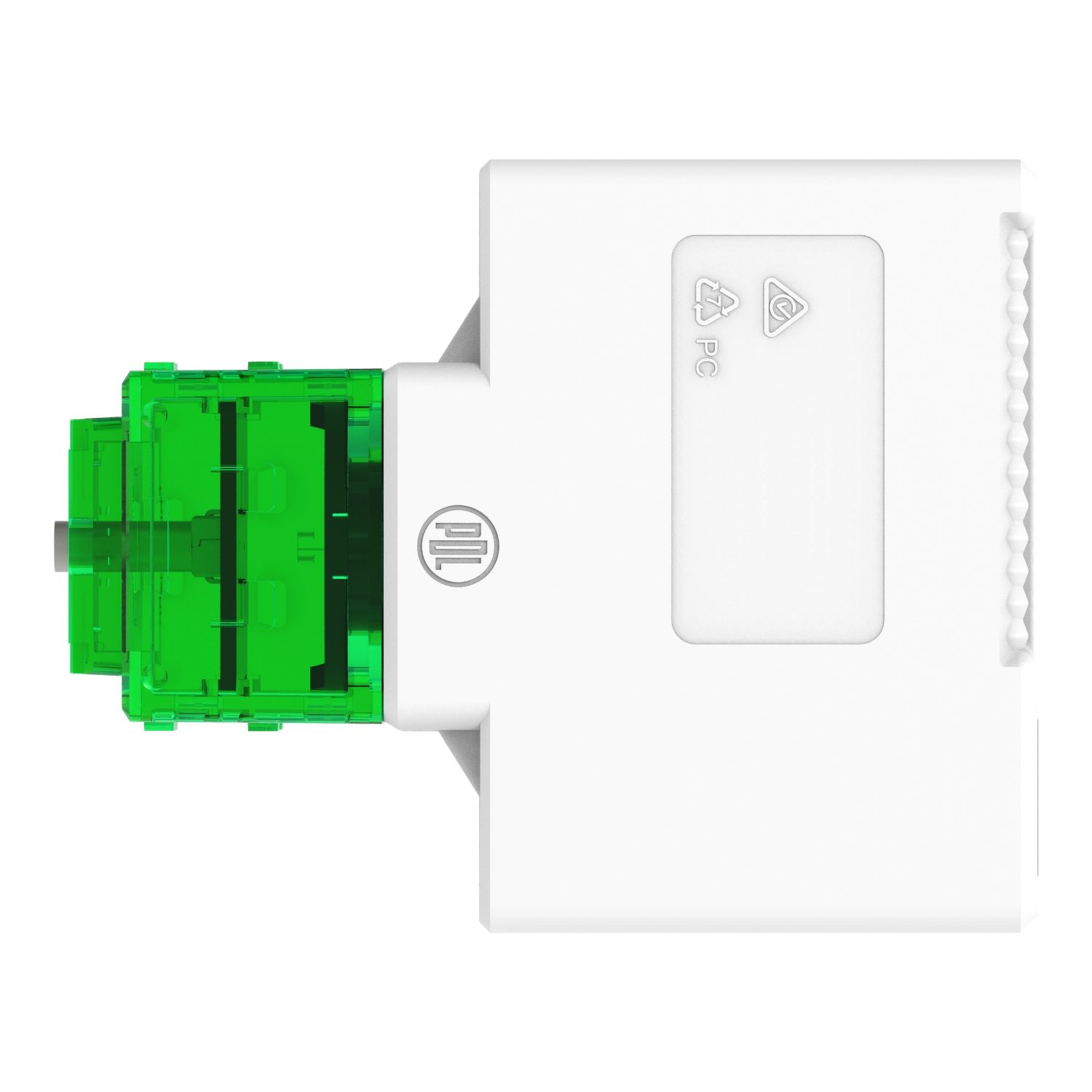

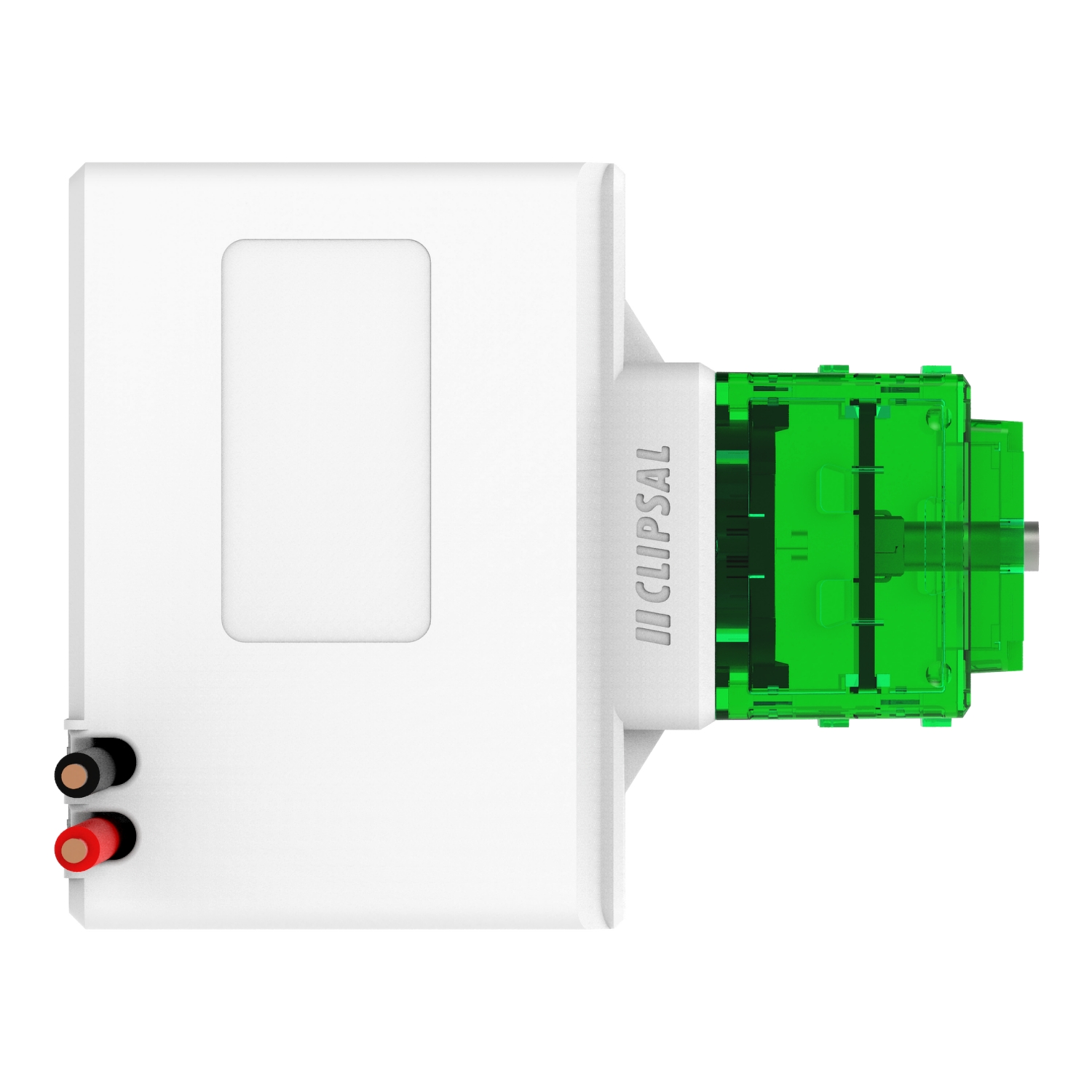

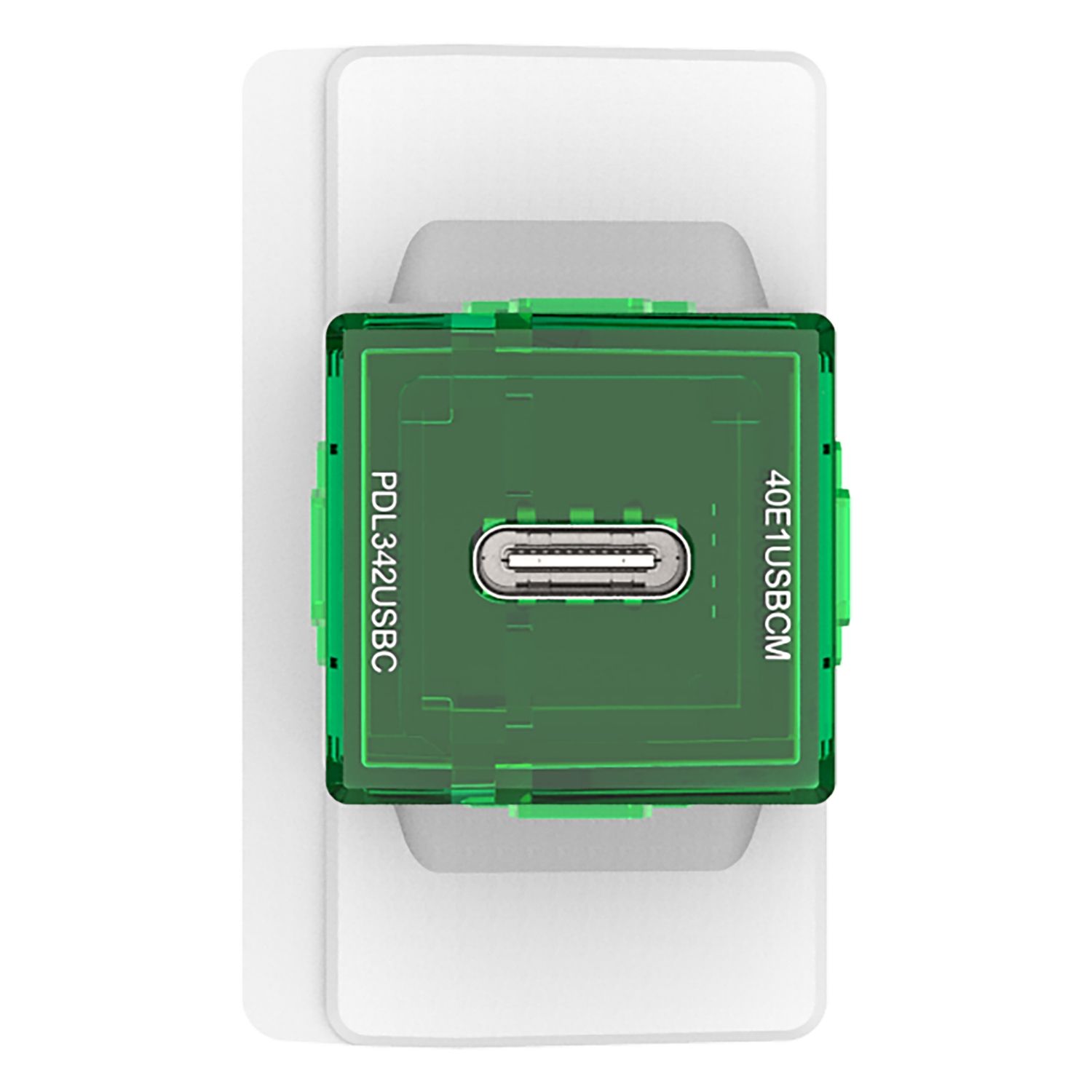

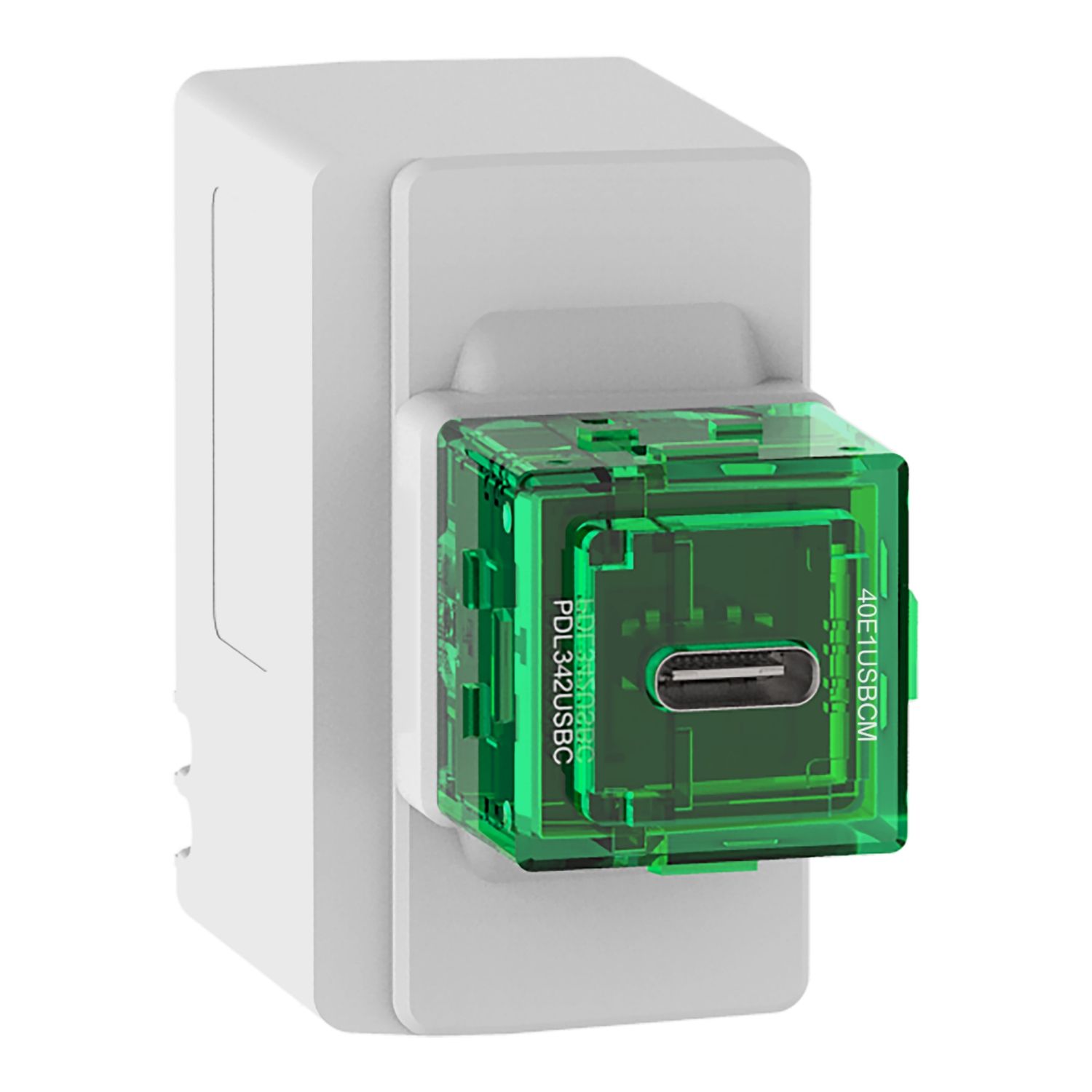

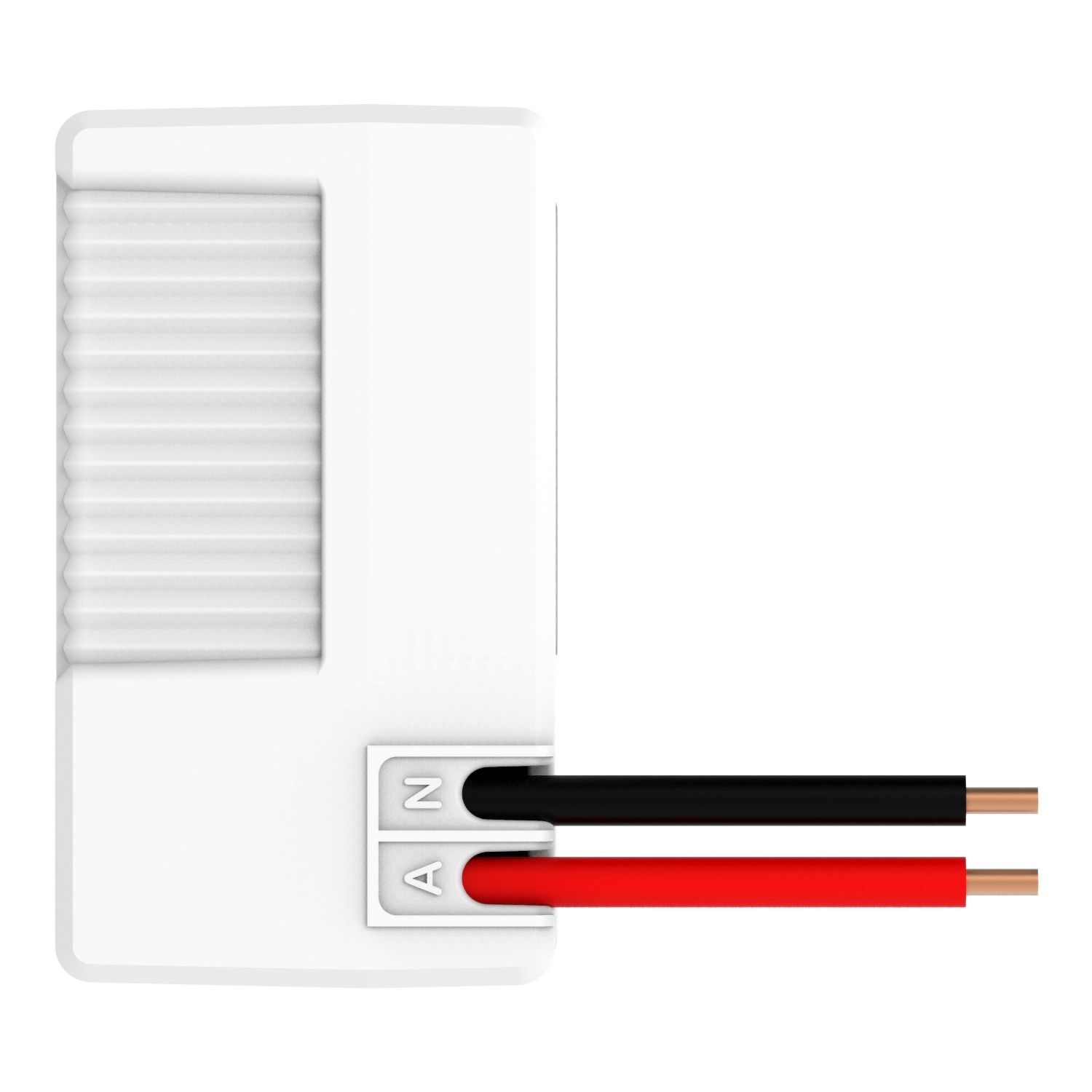

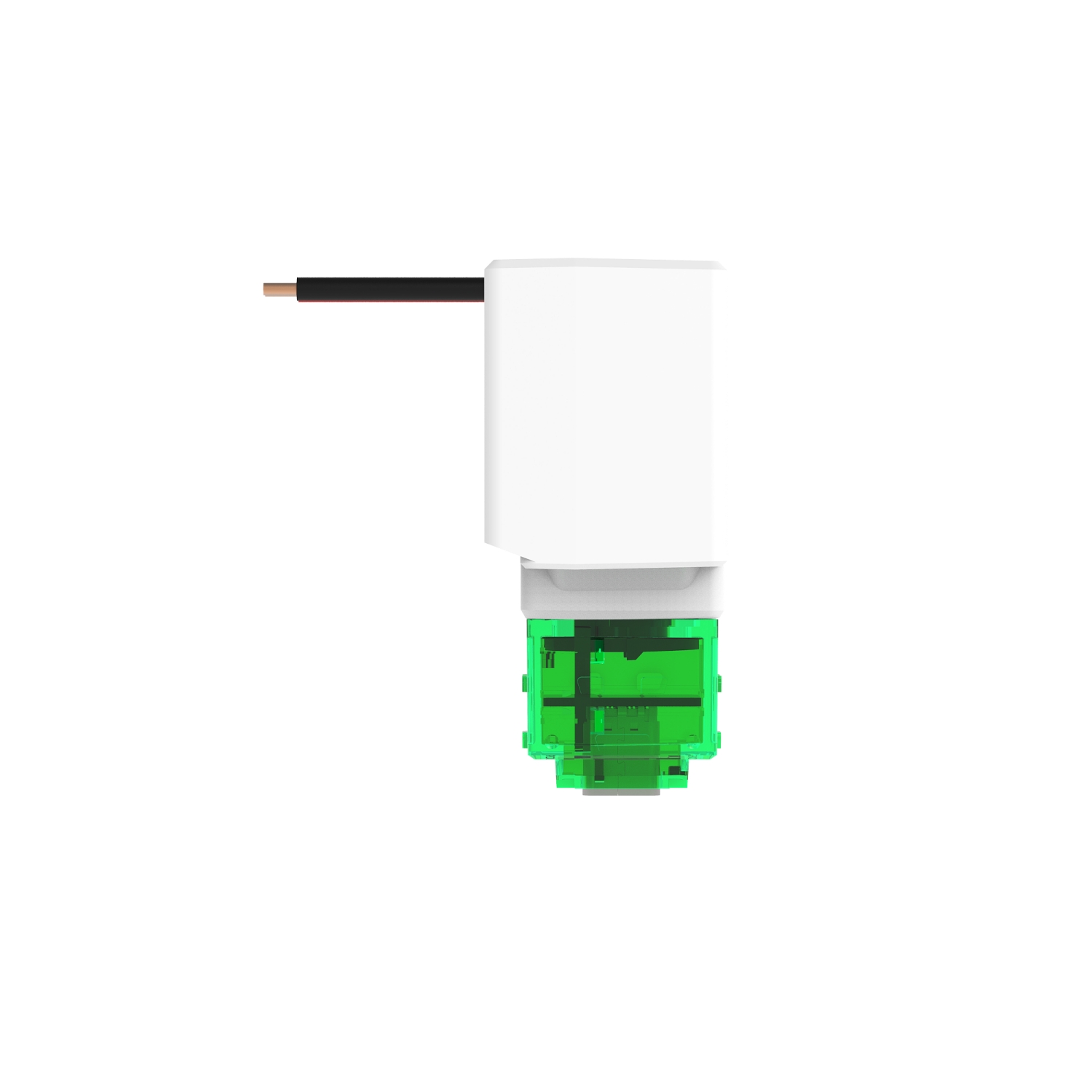

This Clipsal 40 series module is a Type C USB fast charger. The module comes with a patented rotational head making it suitable for different configuration options. It is compatible with Iconic, Iconic Styl, Iconic Essence and Pro Series. The module comes with USB charger cap in Vivid White. The rated operational voltage is 220 to 240VAC at 50Hz and the port output is 25W. The product has thermal fuse protection. The dimensions are (H) 27mm x (W) 56mm x (D) 55mm.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Integrated connection type | 1 USB type C 15 V DC, 1 USB type C 12 V DC, 1 USB type C 9 V DC, 1 USB type C 5 V DC, maximum load current: 3 A |
| Range | Clipsal Iconic |
| Product or component type | USB charger |
| Output current | 3 A |
| [Ue] rated operational voltage | 220/240 V AC 50 Hz |
| Complementary | |
| Width | 56 mm |
| Protection type | thermal fuse |
| Device presentation | mechanism |
| Surface finish | glossy |
| Power consumption in W | 25 W |
| Fixing mode | clipped |
| Device mounting | flush |
| Embedding depth | 55 mm |
| Colour tint | vivid white (VW) |
| Height | 27 mm |
| Environment | |
| Product certifications | RCM |
