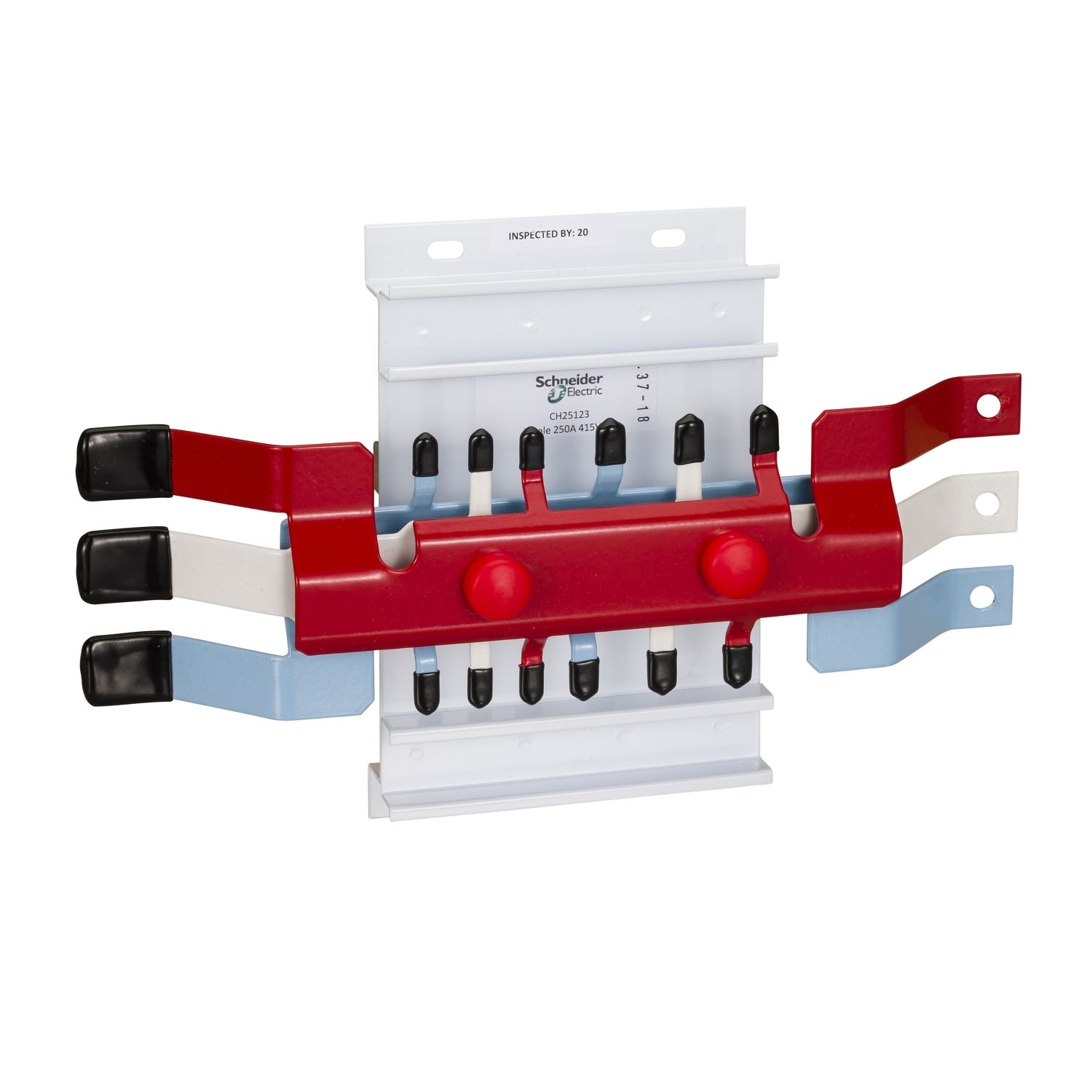

This Acti9 MSC 3-phase chassis product is a pan assembly which can be installed in Acti9 Isobar B distribution board. It is designed to support hybrid configurations of miniature circuit breakers (MCBs) and residual current circuit breakers with overcurrent protection (RCBOs). supports dual feed configurations for flexible load management. The chassis features 1 incomer way (3-pole) and 24 outgoing ways. The outgoer section supports 6 modules of 27 mm and 18 modules of 18 mm The chassis is rated for 400 A and can withstand a short-circuit current of 25 kA.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range | Acti9 |
| Device short name | MSC 18/27 |
| Device application | distribution |
| Product or component type | chassis |
| Complementary | |
| Length | 245 mm |
| [In] rated current | 400 A |
| Range compatibility | Acti 9 Acti9 Isobar B distribution board |
| Number of ways | 24 ways (outgoer), 1 way (incomer) - 3P |
| Number of poles | 6 x 27 mm, 18 x 18 mm |
| [Icw] rated short-time withstand current | 25 kA |
