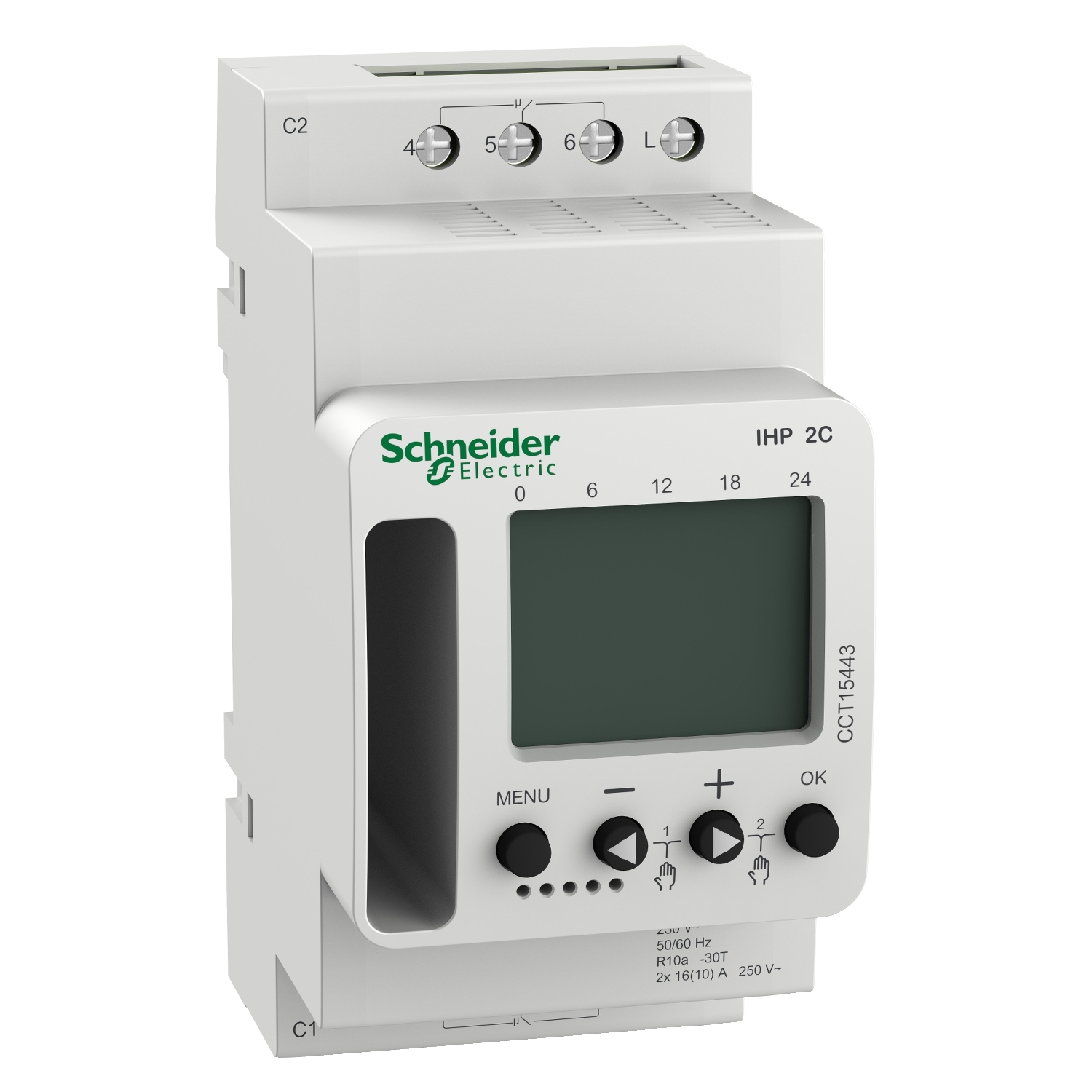

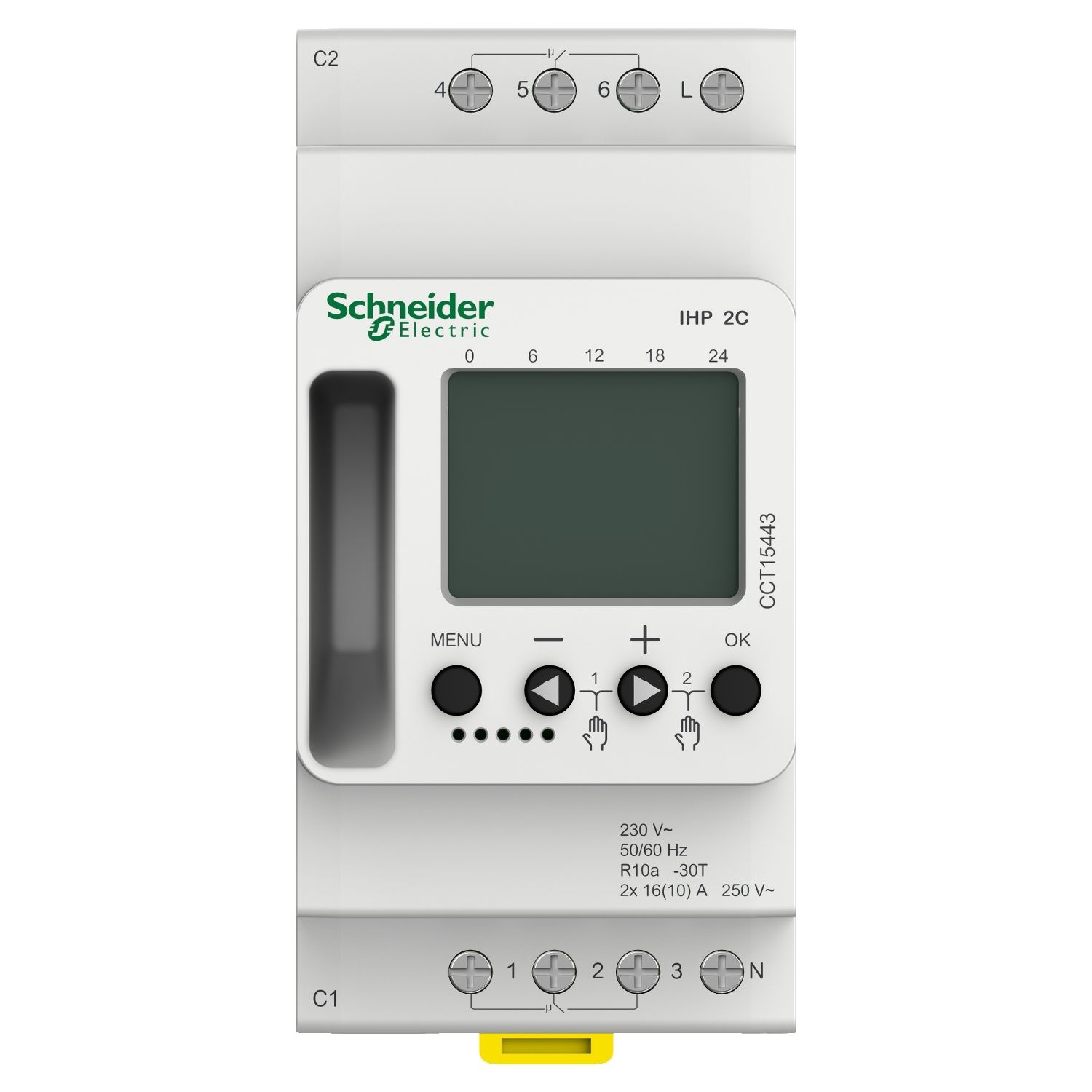

IHP digital time switch Width of 45mm (5 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on weekly level Swiching cycle is 7 days (weekly) Number of switching operations: 56 Savings on mains cut off with battery reserve: 10 years Manual override is possible 2 channel output User manual holder on product left side allows to reach document easily
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | IHP |
| Device application | building |
| Number of channels | 2 |
| Range | Acti9 |
| User language | Finnish, Swedish, Norwegian, Danish, Portuguese, Spanish, Italian, Dutch, German, French, English |
| Product name | Acti9 IHP |
| Product or component type | programmable digital time switch |
| Colour tint | white |
| Complementary | |
| Control button type | 4 push-buttons |
| Type of setting | weekly programming |
| Function available | switch preselection, on/off switching times, manual operation, on/off permanent switching, automatic winter/summer time changeover, holiday schedules, code lock function |
| Electrical insulation class | class II |
| Marking | CE |
| Maximum number of switchings | 56 |
| Backup time | 10 years time and program saving |
| Accuracy | +/- 0.25 s/day 25 °C |
| Maximum switching current | 16 A - 250 V AC pf = 1 , 10 A - 250 V AC pf = 0.6 |
| Height | 92.6 mm |
| Load type | > 2 W LED lamp: 200 W, < 2 W LED lamp: 25 W, compact fluorescent lamp: 400 W, parallel compensated fluorescent lamp: 400 VA (48 µF), serial-compensated fluorescent tube: 2600 VA, non-corrected fluorescent tube: 2600 VA, halogen lamp: 2600 W, incandescent lamp: 2600 W |
| Minimum interval duration | 1 min |
| Maximum power consumption in W | 0.5 W standby |
| Depth | 66.7 mm |
| Overvoltage category | class 3 |
| Output type | dry contact |
| Width | 45 mm |
| Absence for holidays | yes |
| Updated by | none |
| Function | none |
| Mounting support | TH35 DIN rail conforming to EN 60715 |
| Contacts type and composition | C/O |
| Connections - terminals | 1 x 2.5-2.5 mm² screw terminals solid or flexible with sleeve, 2 x 0.5-2.5 mm² screw terminals solid or flexible |
| Net weight | 130 g |
| Time changeover | automatic |
| [Ue] rated operational voltage | 230 V AC +10 % -15 % at 50/60 Hz |
| Minimum switching current | 100 mA 24 V AC/DC, 10 mA 230 V AC |
| Cycle duration | 24 hours + 7 days |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 90-90 %, non-condensing |
| Ambient air temperature for storage | -30-70 °C |
| Standards | EN 60730-2-7:2010 |
| Ambient air temperature for operation | -30-55 °C |
