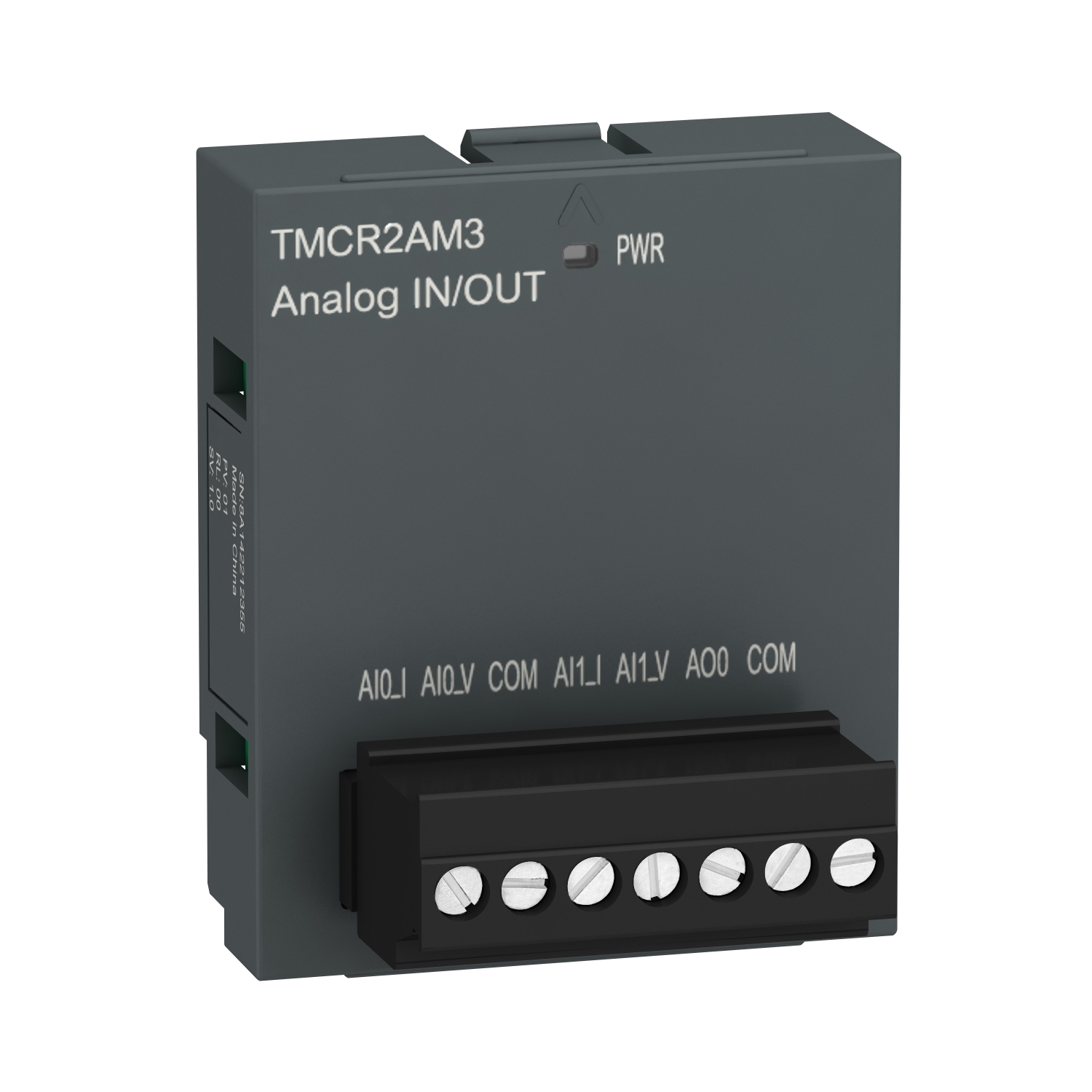

This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 IO. This optional cartridge provides 2 additional analog inputs and 1 analog output. The analog IOs can be configured as current 4mA to 20mA or 0mA to 20mA, or voltage 0V to 10V or 0V to 5V. This IO cartridge provides additional analog IOs (16bits resolution) to the controller. The data conversion time is 2ms, the sampling duration is 1ms. The IOs are wired with twisted shielded pairs cable on the screw terminal block of the cartridge. It is 41mm high, 15mm deep, and 35mm wide. It weighs 0.024kg. This optional cartridge provides 2 additional analog inputs and 1 analog ouput to the controller. This product is marqued CE, and certified by IEC/EN 61131-2, UL 508, and IEC/EN 61010-2-201. This cartridge is an optional part of Modicon M200 logic controller. It installs in a specific slot on controller, when removing the cartridge cover. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.
