Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

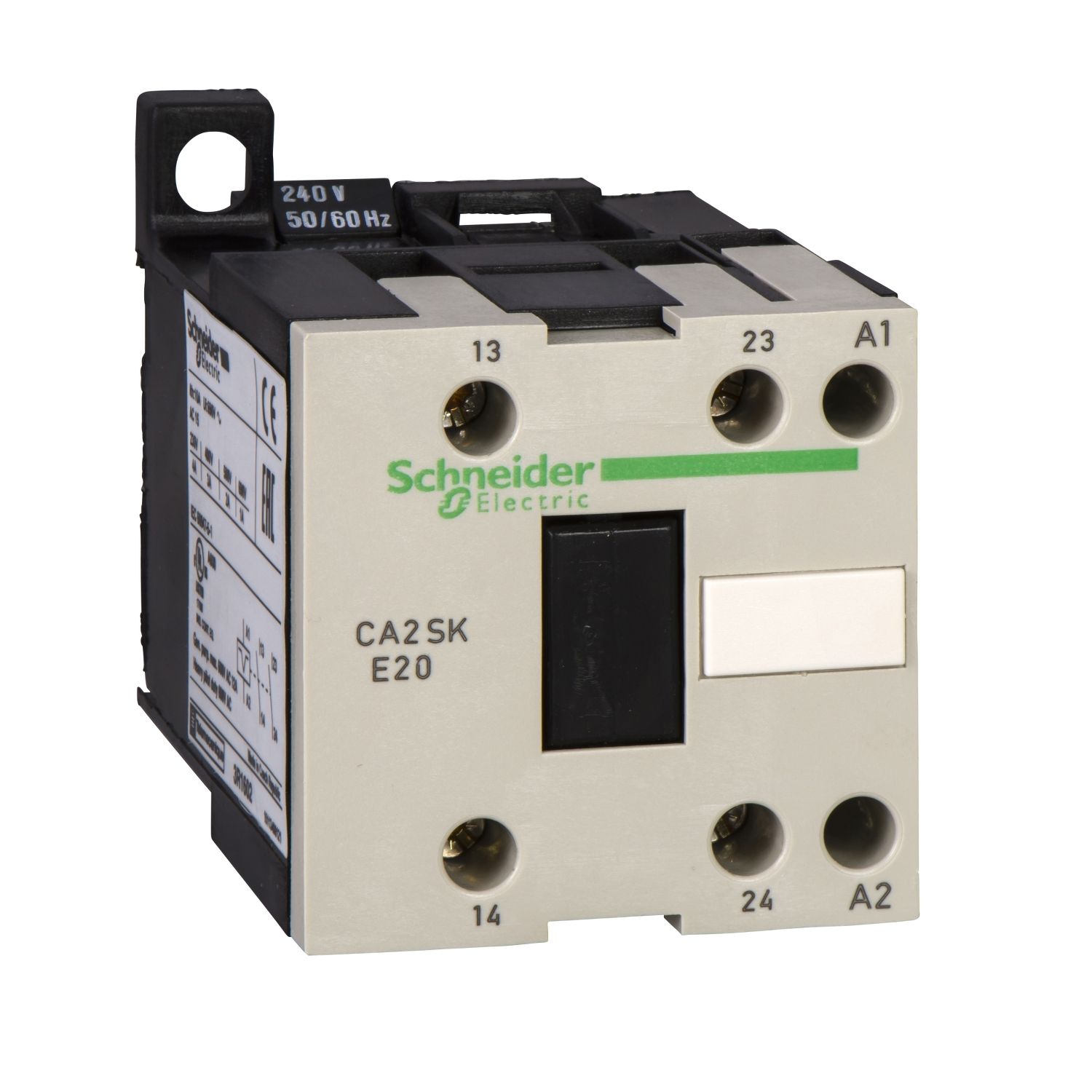

| Device short name | CA2SKE |
| Utilisation category | DC-13, AC-15 |
| Pole contact composition | 2 NO |
| Range | TeSys |
| Product name | TeSys CASK |
| Product or component type | control relay |
| Contactor application | control circuit |
| [Uc] control circuit voltage | 240 V AC 50/60 Hz |
| Control circuit type | AC at 50/60 Hz |
| Range of product | TeSys SK control relay |
| [Ue] rated operational voltage | <= 690 V <= 400 Hz |
| Complementary | |
| Heat dissipation | 1.5-1.5 W |
| [Ui] rated insulation voltage | 690 V conforming to CSA C22.2 No 14, 690 V conforming to UL 508, 690 V conforming to BS 5424, 690 V conforming to VDE 0110 group C, 690 V conforming to IEC 60947 |
| Depth | 68 mm |
| Width | 45 mm |
| Operating time | 7...14 ms coil energisation and NO closing, 6...8 ms coil de-energisation and NO opening |
| Hold-in power consumption in VA | 4.9-4.9 VA (at 20 °C) |
| Compatibility code | CA2SKE |
| Mechanical durability | 10 Mcycles |
| Tightening torque | 0.8 N.m - on screw clamp terminals pozidriv No 1 screw head |
| Maximum operating rate | 1200 cyc/h |
| Connections - terminals | screw clamp terminals 2 cable(s) 0.35-2.5 mm²flexible without cable end, screw clamp terminals 2 cable(s) 0.35-1.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.35-6 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.5-6 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1.5-4 mm²solid, screw clamp terminals 1 cable(s) 1.5-6 mm²solid |
| Inrush power in VA | 23-23 VA (at 20 °C) |
| Net weight | 0.132 kg |
| Associated fuse rating | 10 A gL conforming to IEC 60947, 10 A gL conforming to VDE 0660 |
| Mounting support | plate, rail |
| [Ith] conventional free air thermal current | 10 A (at 55 °C) |
| Control circuit voltage limits | operational: 0.85...1.1 Uc (at <50 °C), drop-out: 0.2...0.75 Uc (at <50 °C) |
| Height | 58 mm |
| Environment | |
| Operating altitude | 2000 m without derating |
| IP degree of protection | IP2X |
| Protective treatment | TC conforming to IEC 60068 |
| Ambient air temperature for storage | -50-70 °C |
| Standards | CSA C22.2 No 60947-5-1, UL 60947-5-1, EN/IEC 60947-5-1 |
| Ambient air temperature for operation | -20-50 °C |
| Product certifications | UKCA, CE, EAC, cULus, CB Scheme |
