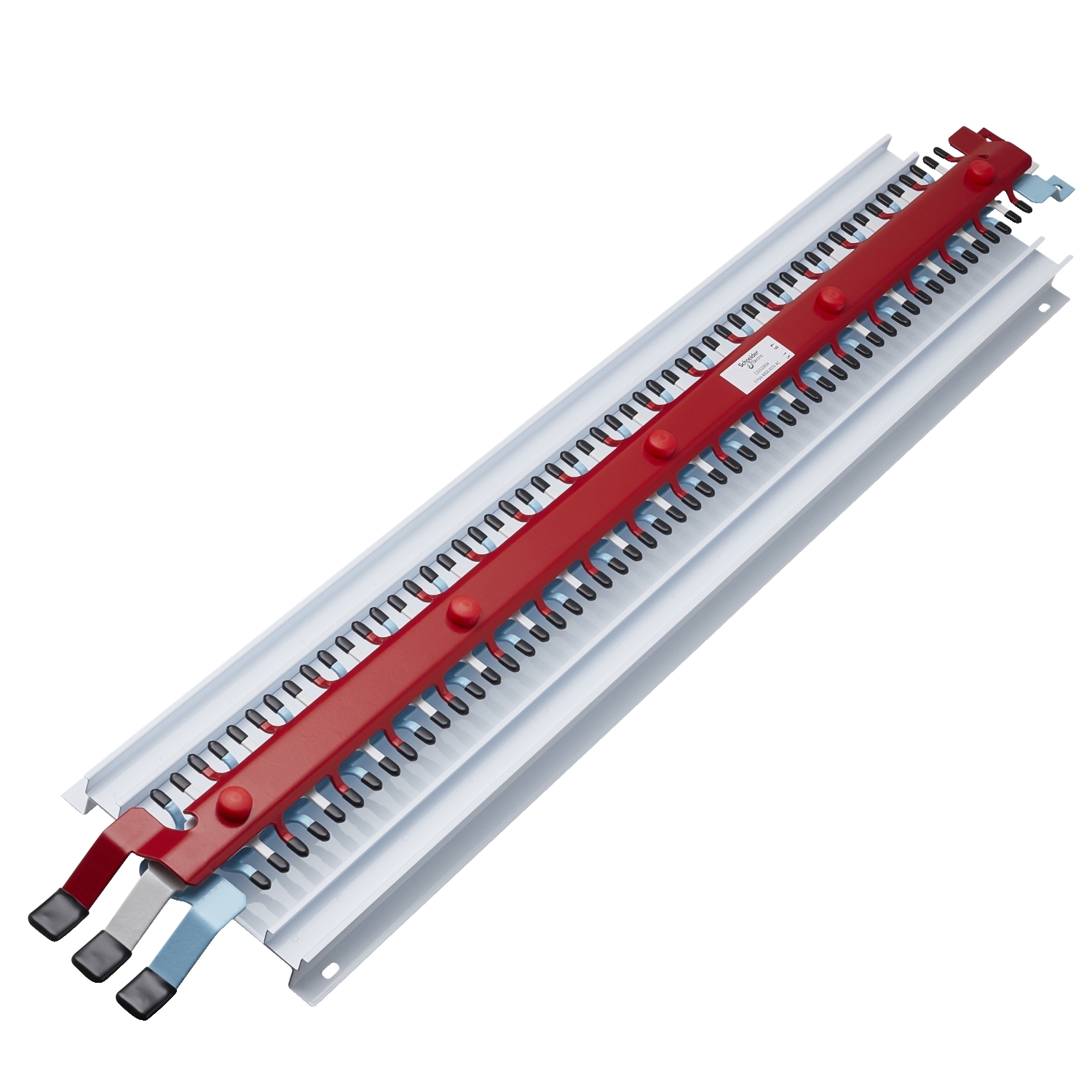

This Acti9 MSC 3-phase chassis product is a pan assembly which can be installed in Acti9 Isobar B distribution board. The chassis features 1 incomer way (3-pole) and 108 outgoing ways. The chassis is rated for 400A and can[Icw] rated short-time withstand current of 25 kA. supports dual feed configurations for flexible load management.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range | Acti9 |
| Device short name | MSC 18 |
| Device application | distribution |
| Product or component type | chassis |
| Complementary | |
| Length | 974 mm |
| [In] rated current | 400 A |
| Range compatibility | Acti 9 Acti9 Isobar B distribution board |
| Number of ways | 108 (outgoer), 1 way (incomer) - 3P |
| Number of poles | 108 x 18 mm |
| Busbar pitch | 27 mm |
| [Icw] rated short-time withstand current | 25 kA |
