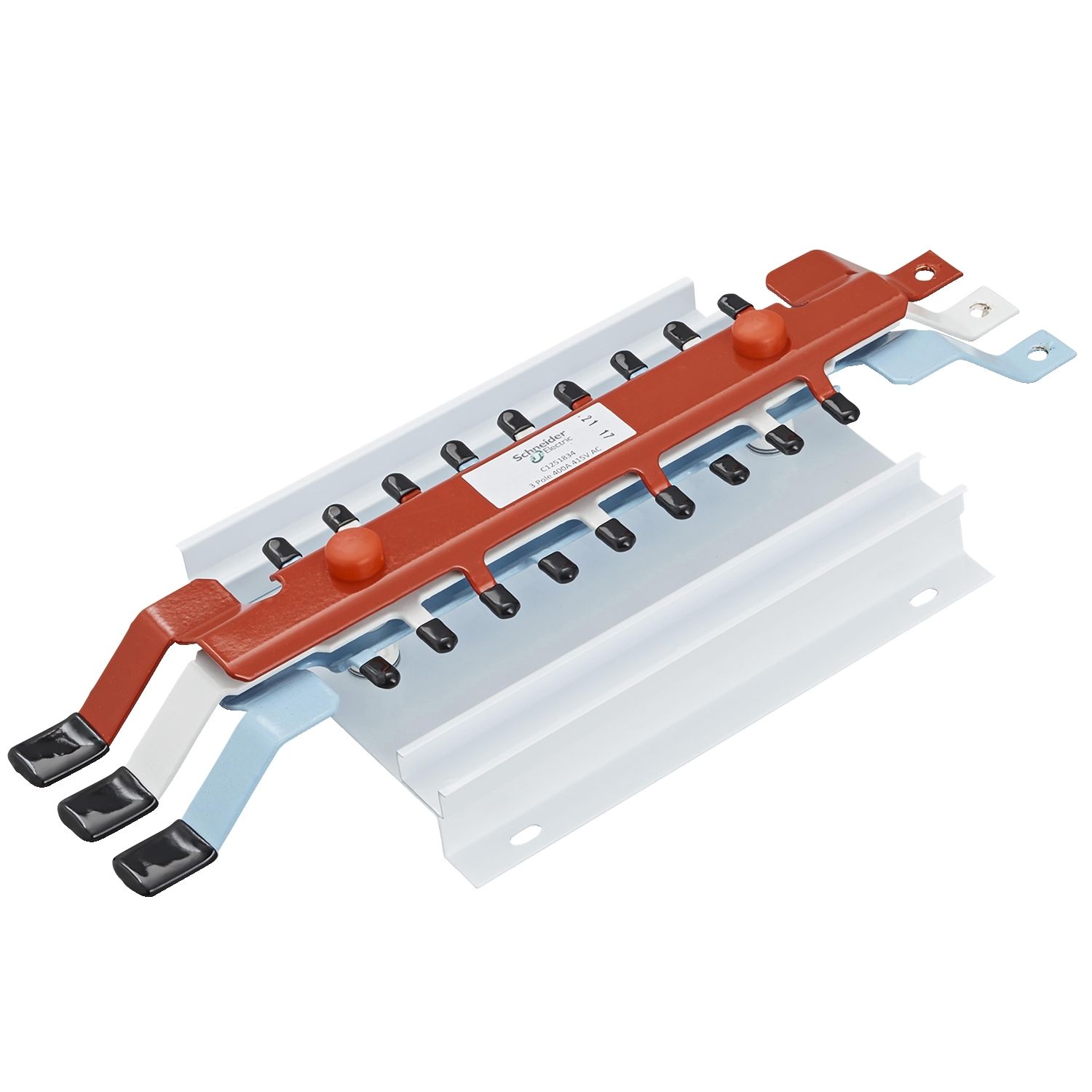

This Acti9 MSC 3-phase chassis product is a pan assembly which can be installed in Acti9 Isobar B distribution board. The chassis features 1 incomer way (3-pole) and 42 outgoing ways. The chassis is rated for 250A and can[Icw] rated short-time withstand current of 25 kA. supports top feed configurations for flexible load management.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range | Acti9 |
| Device short name | MSC 27 |
| Device application | distribution |
| Product or component type | chassis |
| Complementary | |
| Length | 569 mm |
| Width | 215 mm |
| Location of connection | top |
| [In] rated current | 250 A |
| Range compatibility | Acti 9 Acti9 Isobar B distribution board |
| Number of ways | 42 (outgoer), 1 way (incomer) - 3P |
| Number of poles | 42 x 27 mm |
| Short-circuit withstand | 25 kA 0.1 s |
| [Icw] rated short-time withstand current | 25 kA |
