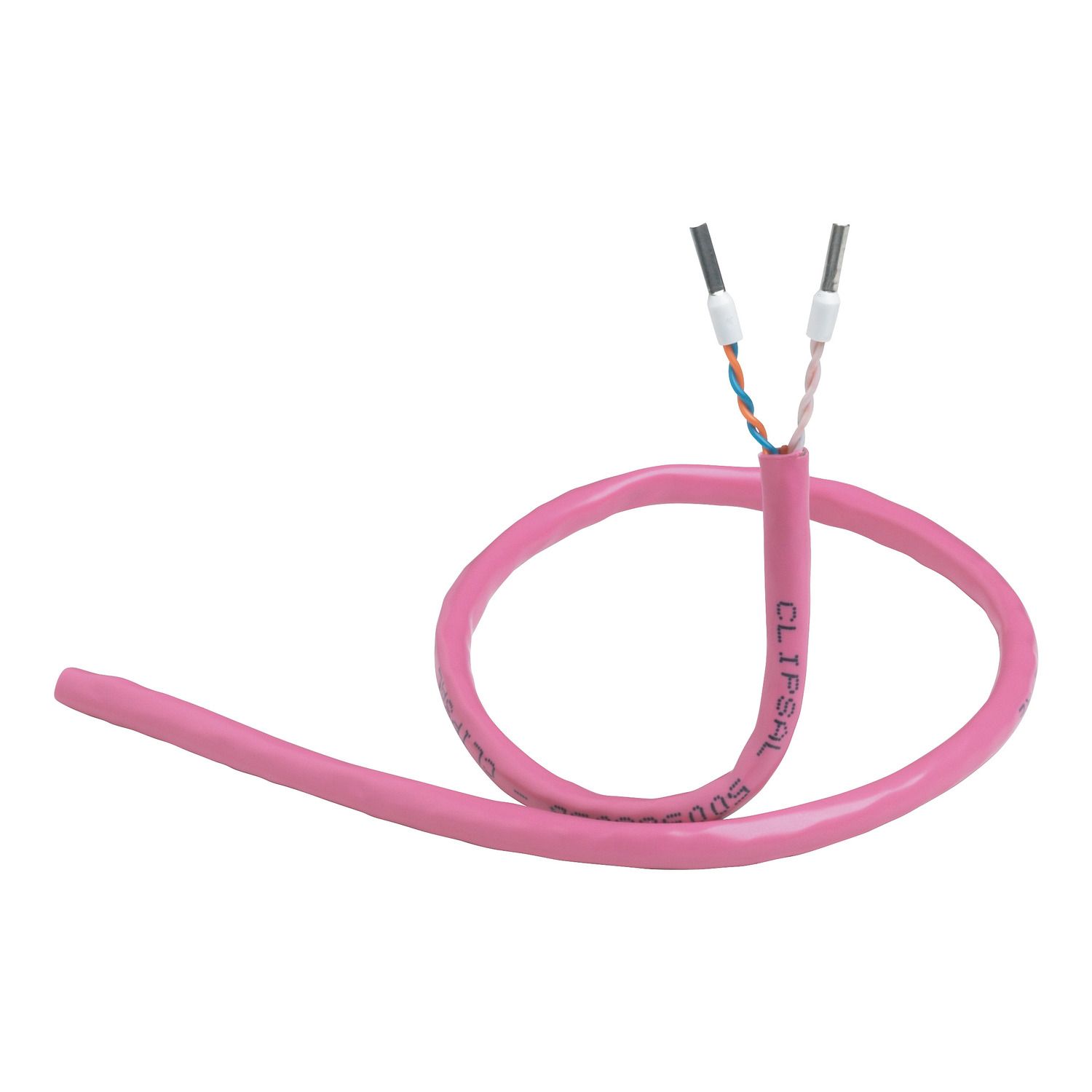

The C-Bus data cable is a Cat 5e, U/UTP, low smoke zero halogen cable which is certified for C-Bus Home and Automation System. The cable has a mains rated pink outer sheath making it easy to distinguish from other voice and data cables in the installation, preventing miswiring between systems.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | communication |
| Colour | pink |
| Range | C-Bus |
| Type of packing | carton |
| Product or component type | cable |
| Product brand | Clipsal |
| Complementary | |
| Cable stiffness | solid class 1 |
| Bending radius | 4 x overall diameter |
| AWG gauge | AWG 24 |
| Communication network category | 5e |
| Length | 305 m |
| Cable shielding type | U/UTP |
| Type of cable | 4 twisted-pairs cable |
| Net weight | 8.54 kg |
| Material | rip cord: polyester multi yarn, jacket: , insulation: polyolefin, conductor: bare copper |
| Communication port protocol | PoE+ (Power over Ethernet) conforming to IEEE 802.3at, PoE (Power over Ethernet) conforming to IEEE 802.3af, 1000BASE-T conforming to IEEE 802.3u |
| Cable outer diameter | 5 mm +/- 0.2 mm |
| Transmission frequency | 100 MHz |
| Pulling force | 110 N |
| Environment | |
| Ambient air temperature for storage | -20-60 °C |
| Ambient air temperature for installation | 0-60 °C |
| Directives | 2006/95/EC - low voltage directive |
| Product certifications | CE |
| Standards | IEC 60754-2, IEC 61034-2, IEC 61034-1, IEC 60332-1-2, IEC 61156-5:ed. 2, ISO/IEC 11801:ed. 2.2, ANSI/TIA-568-C.2:2009 |
| Ambient air temperature for operation | -20-60 °C |
