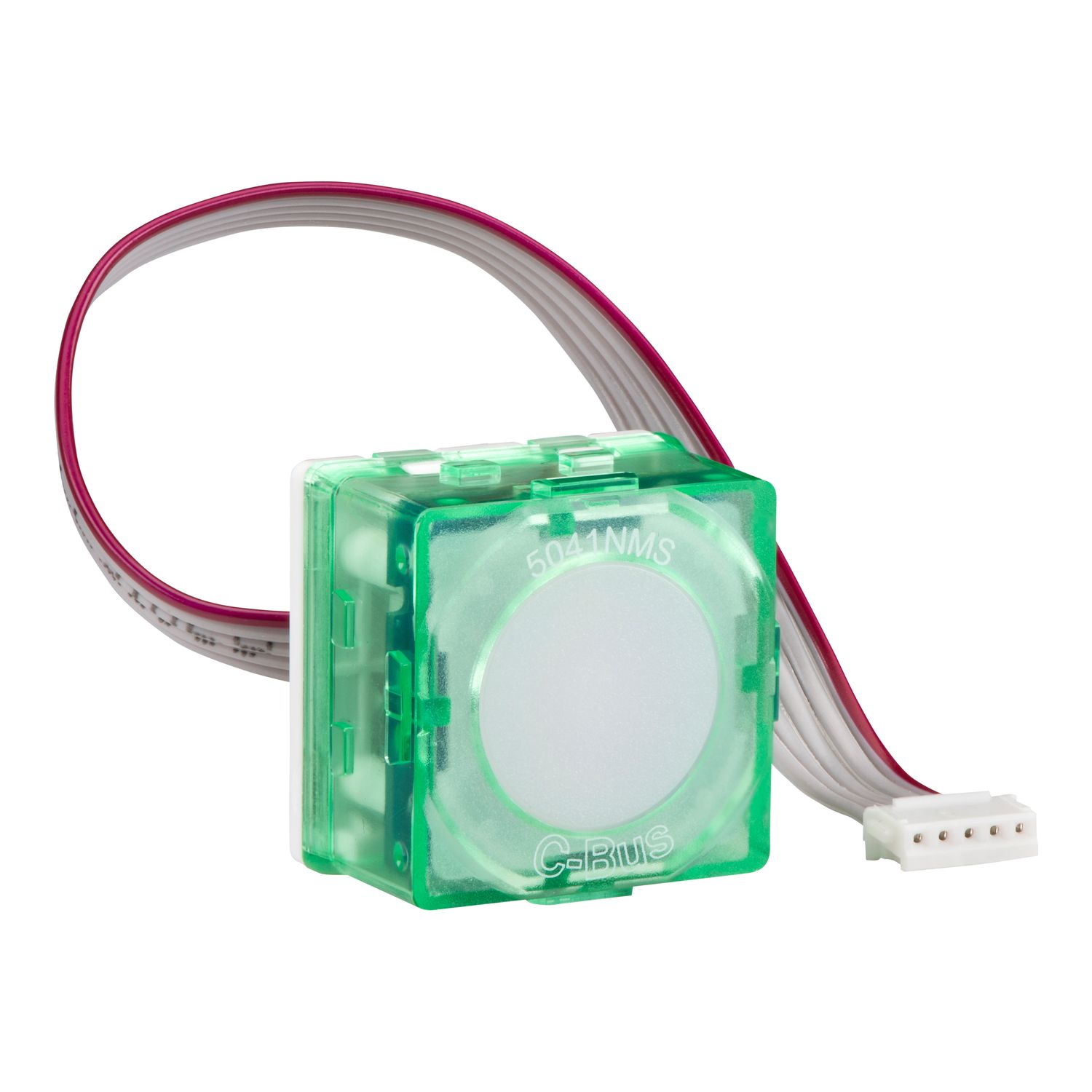

Slave Module, C-Bus, 40 Series

Manufacturer: Clipsal

SKU: 5041NMS

GTIN: 9311554805883

Circularity Profile

User guide

Environmental Disclosure

Instruction sheet

Brochure

Old price: $37.62 inc GST

Price: $54.17 inc GST

Qty:

Supported cards

Products specifications

Attribute name	Attribute value
Main
Switch application	blind control, fan speed control, shutter control, bell switch, scene control, timer, dimming up/down control, load switching
Device application	control
Colour	transparent green
Range	C-Bus
Product name	Series 40M
Product or component type	push-button interface
Product brand	Clipsal
Complementary
Device mounting	wall mounted by Series 40M grid
Depth	14.5 mm
Width	22.8 mm
Communication network type	C-Bus via 40 series master module
Type of cable	twisted unshielded pairs cable category 5e
Local signalling	LED (red/blue) for status
Method of access	slave
Time delay range	1s...18h12m15s
Dimmer control	255 possible levels
Isolation voltage	3.75 kV from C-Bus to mains
Input impedance	100 kOhm at 1-1 kHz
Control type	push-button
Current consumption	18 mA
Net weight	0.007 kg
Material	plastic
Starting time	5 s
Range compatibility	Pro Series wall plate, Iconic wall plate, C-Bus
[Ue] rated operational voltage	15...36 V DC
Module configuration	programmed with C-Bus software, programmed with learn mode
Height	22.8 mm
Environment
Relative humidity	10-95 % non-condensing
Standards	AS/NZS 60669.2.1, AS/NZS CISPR 14-1, AS/NZS CISPR 15
Ambient air temperature for operation	0-45 °C
Product certifications	RCM
