Ball Valve Assembly, DN20, 24V, 3Nm, modulating

Manufacturer: Schneider Electric

SKU: BVA220-3M

GTIN: 3606486800522

PDF

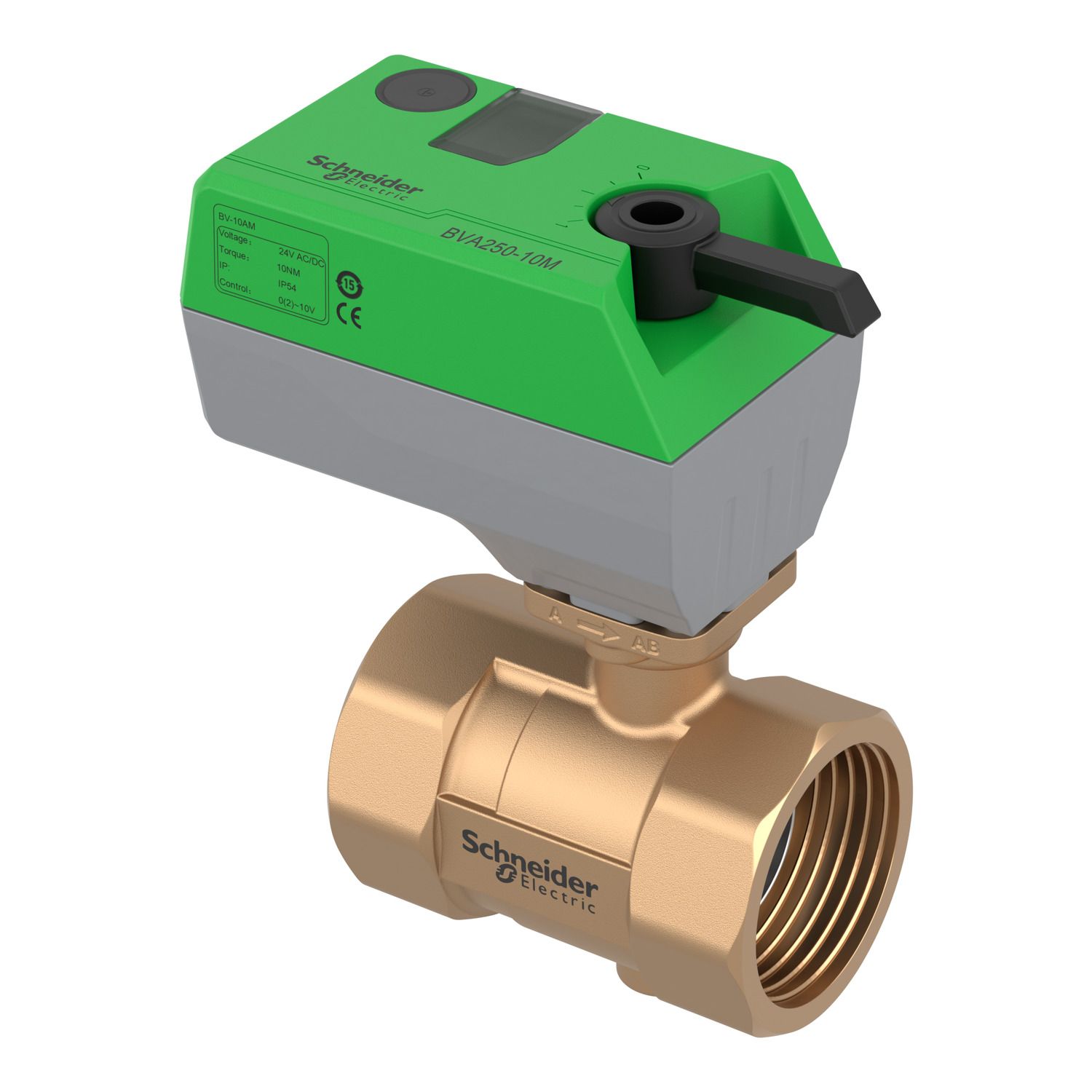

Image of product

Instruction sheet

Declaration of conformity

The product is a robust reliable assembly for the control of the ball valves. This version can be connected on Low Voltage networks rated 24 VAC/VDC.

Availability: Out of stock

Old price: $303.79 inc GST

Price: $401.76 inc GST

Qty:

Supported cards

Products specifications

Attribute name	Attribute value
Main
Actuator	rotary
Spring return timing	30 s
Close-off pressure	1400 kPa
Product or component type	valve-actuator assembly
Material	stainless steel: stem, PC: actuator
Power input voltage DC tolerance	+ 15 %
Ambient air temperature for operation	-15-55 °C
Torque value	3 N.m
Seat leakage	Class IV (0.01 %)
Power input voltage AC tolerance	+ 15 %
Product destination	ball valves
[Us] rated supply voltage	24 V AC/DC
Ambient air temperature for storage	-15-55 °C
Relative humidity	0-95 %
IP degree of protection	IP54
Switch function	No
Body material	brass
Operating fluid temperature	-15-55 °C
Contractual warranty
Warranty	18
