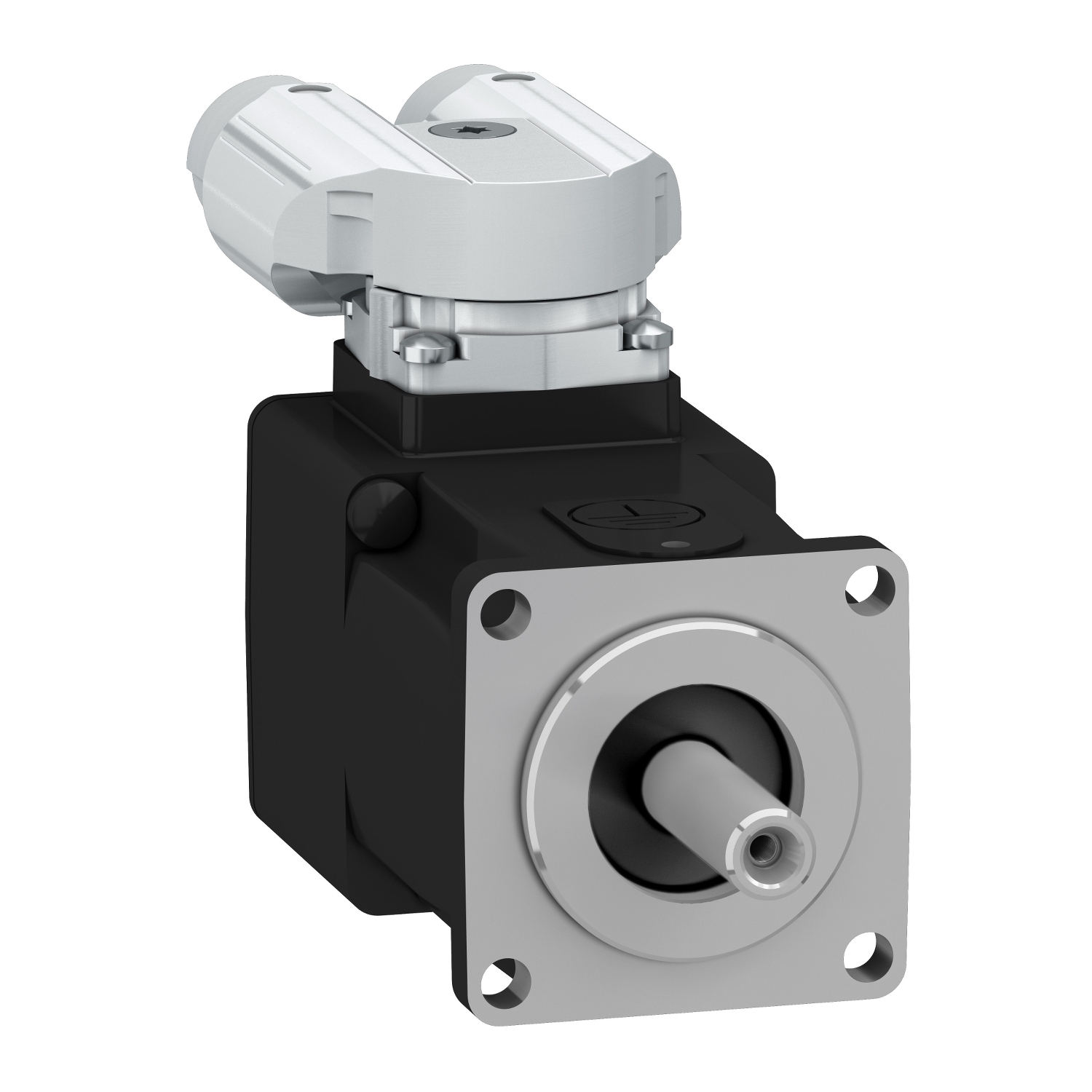

This product is part of the Lexium 32 range, an offer of servo drives paired with motors for motion control. This AC servo motor features a maximum mechanical speed of 10000RPM, a smooth shaft end, and no holding brake. It is equipped with an absolute single-turn encoder, 16 sinusoidal periods per turn. This servo motor is suitable for high-efficiency applications. It is a servo motor with a rated supply voltage of 400V and a continuous stall current of 1.12A. It is furnished with rotatable right-angle connectors for electrical connection and is an IP54-rated product; its shaft end is IP50-rated. Its flange is 40x40mm, and it is a 1-stack length, and it weighs 4.3kg. This servo motor is suitable for motion and speed applications required in printing, packaging, handling, clamping and material processing. This motor is certified by EN 61800-5-1 2007, EN 60034-1 201O, AC 2010 standards, and conforms to UL. It is compatible with Lexium 32 servo drives, type LXM32nU45M2 and LXM32nU60N4, and pre-assembled cables with connectors, type VW3M5nnnn. It is sold individually. It supports the international standard 40mm flange mount with a natural convection cooling system. Lexium 32 is a servo drive range that provides a drive and motor combination that has exactly the right power, performance, and functionality.
