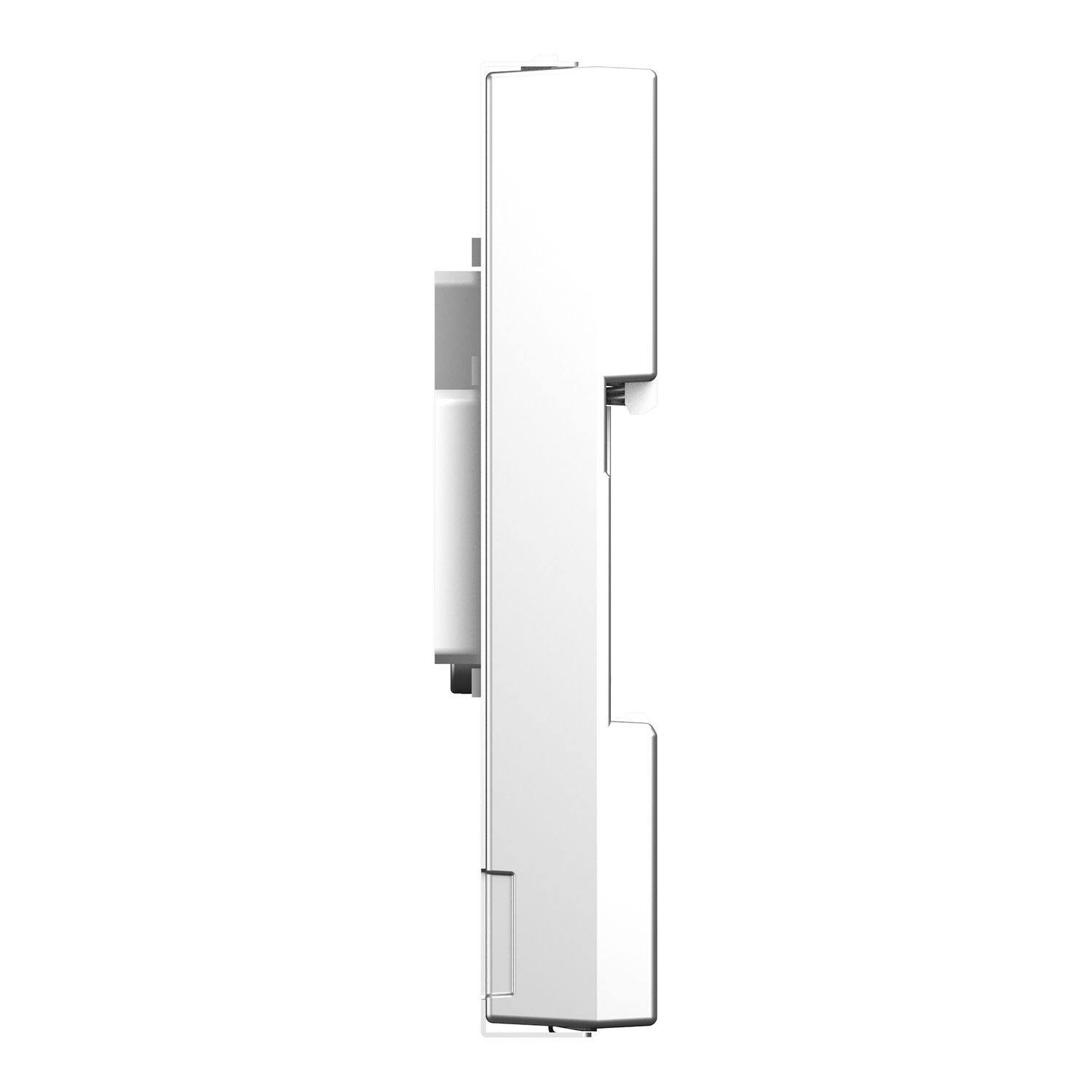

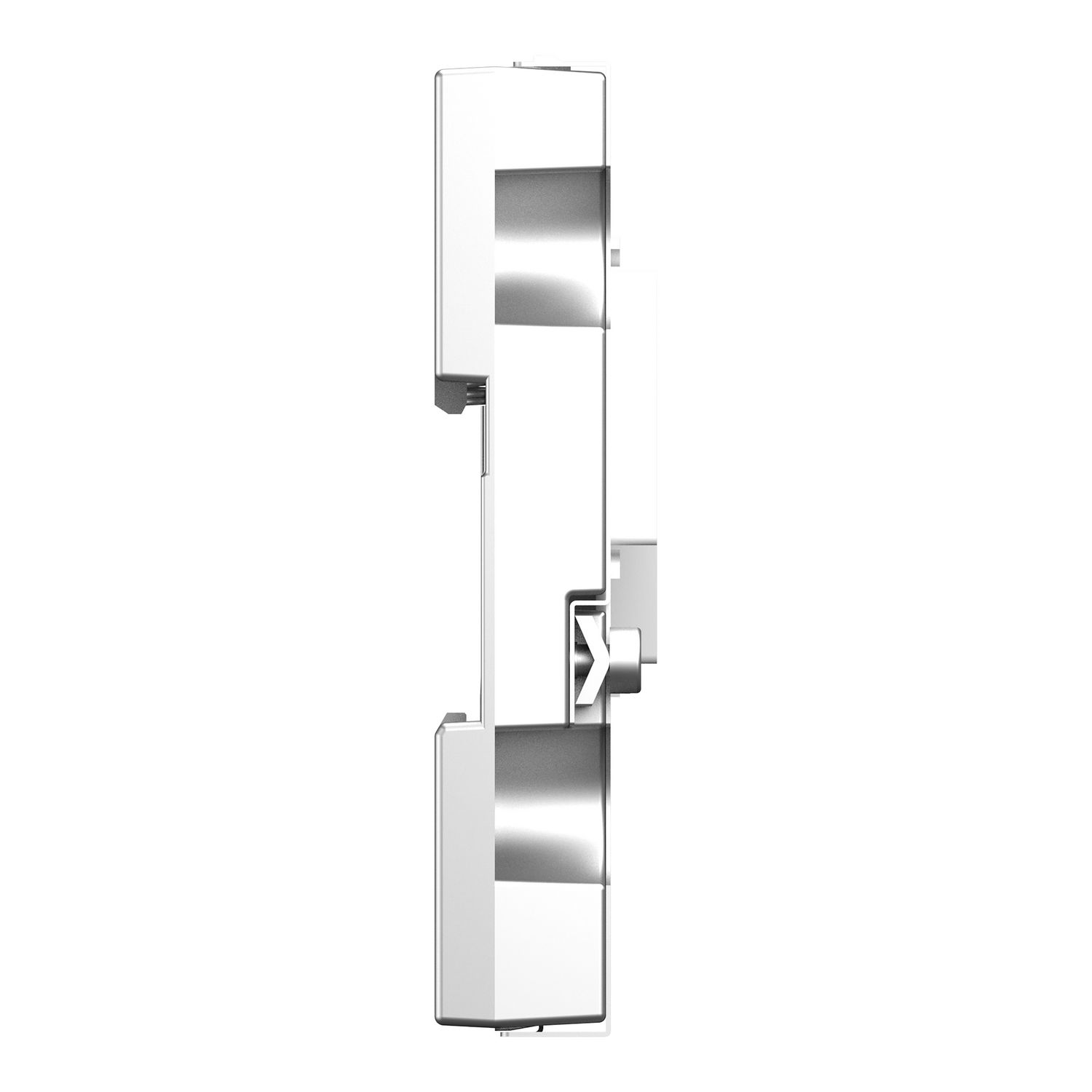

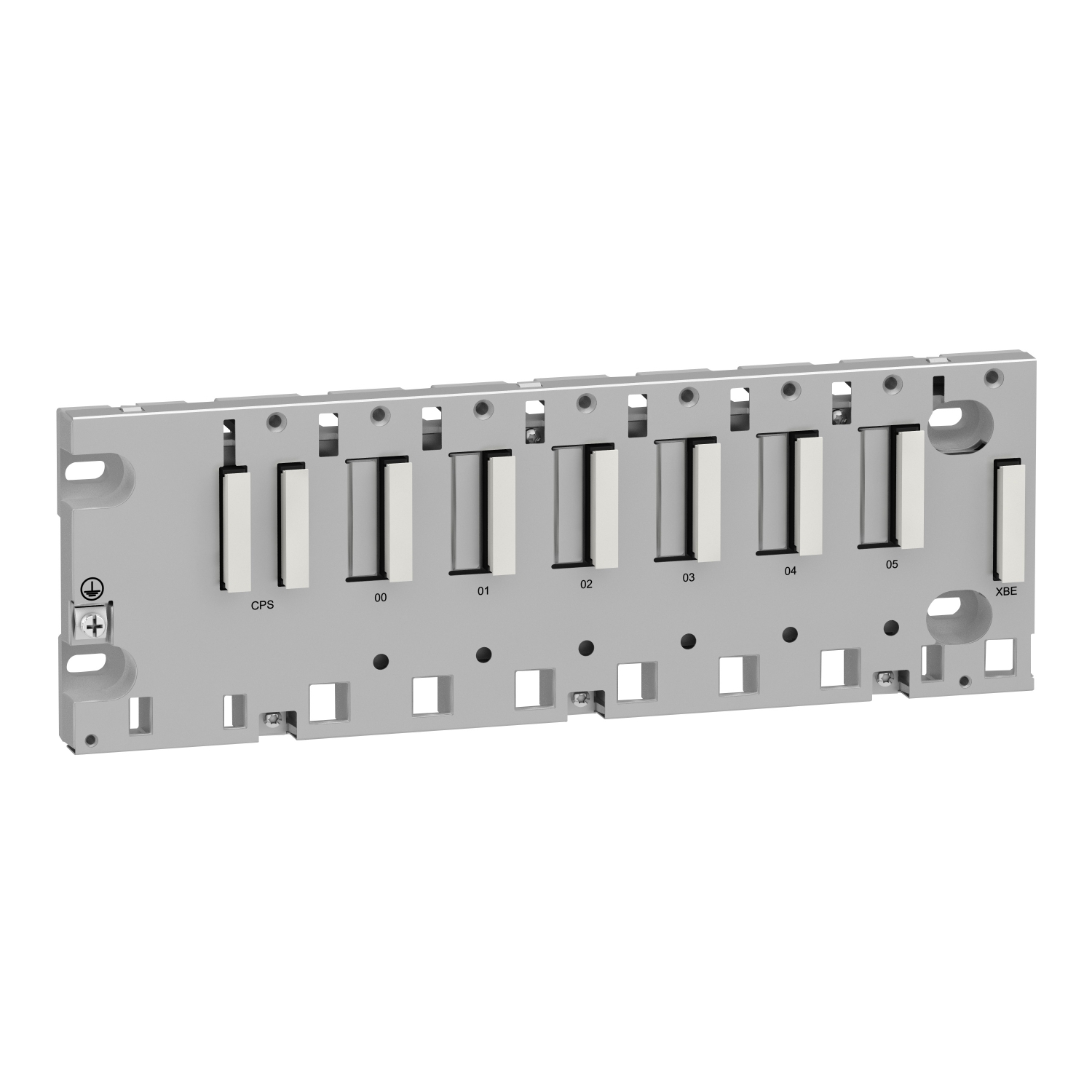

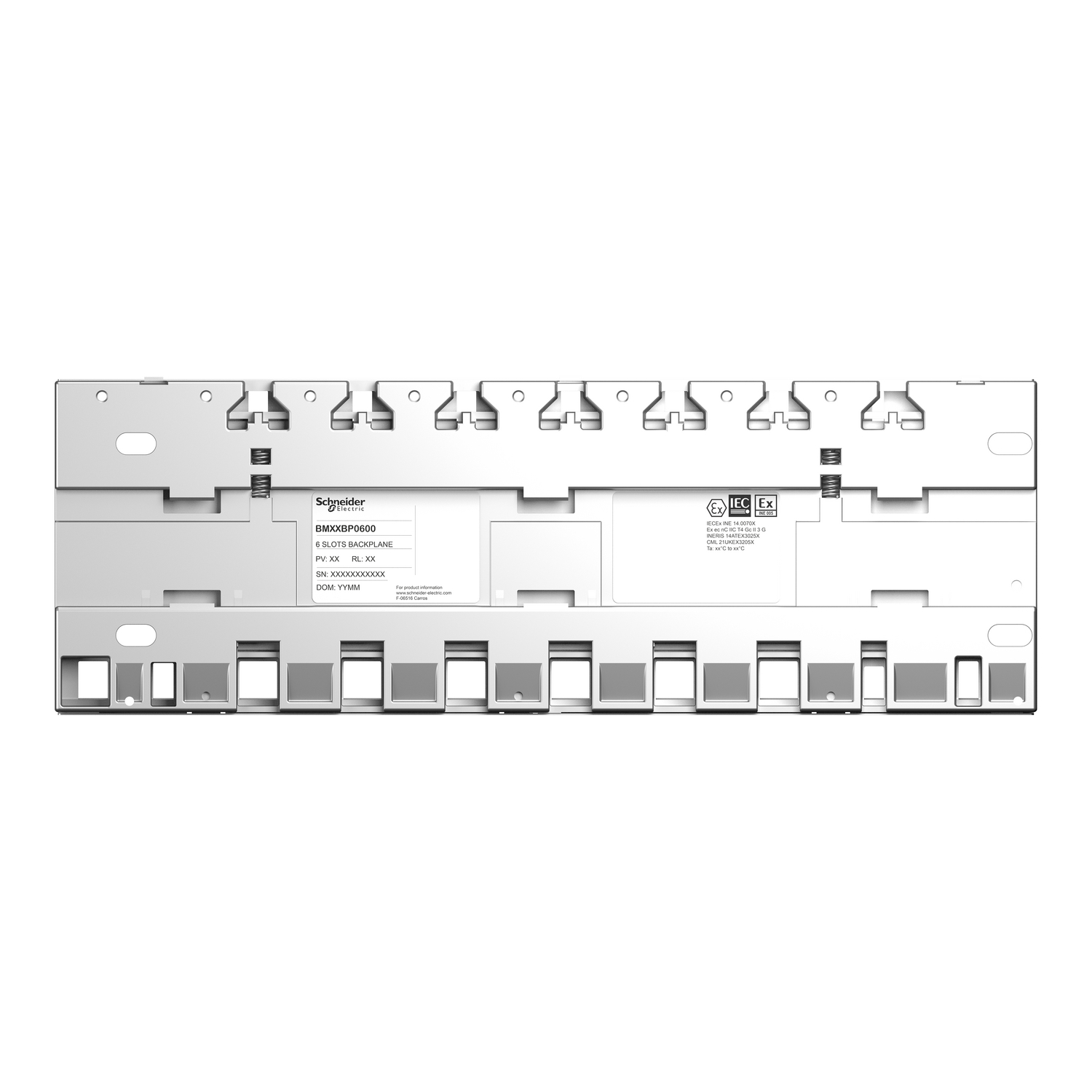

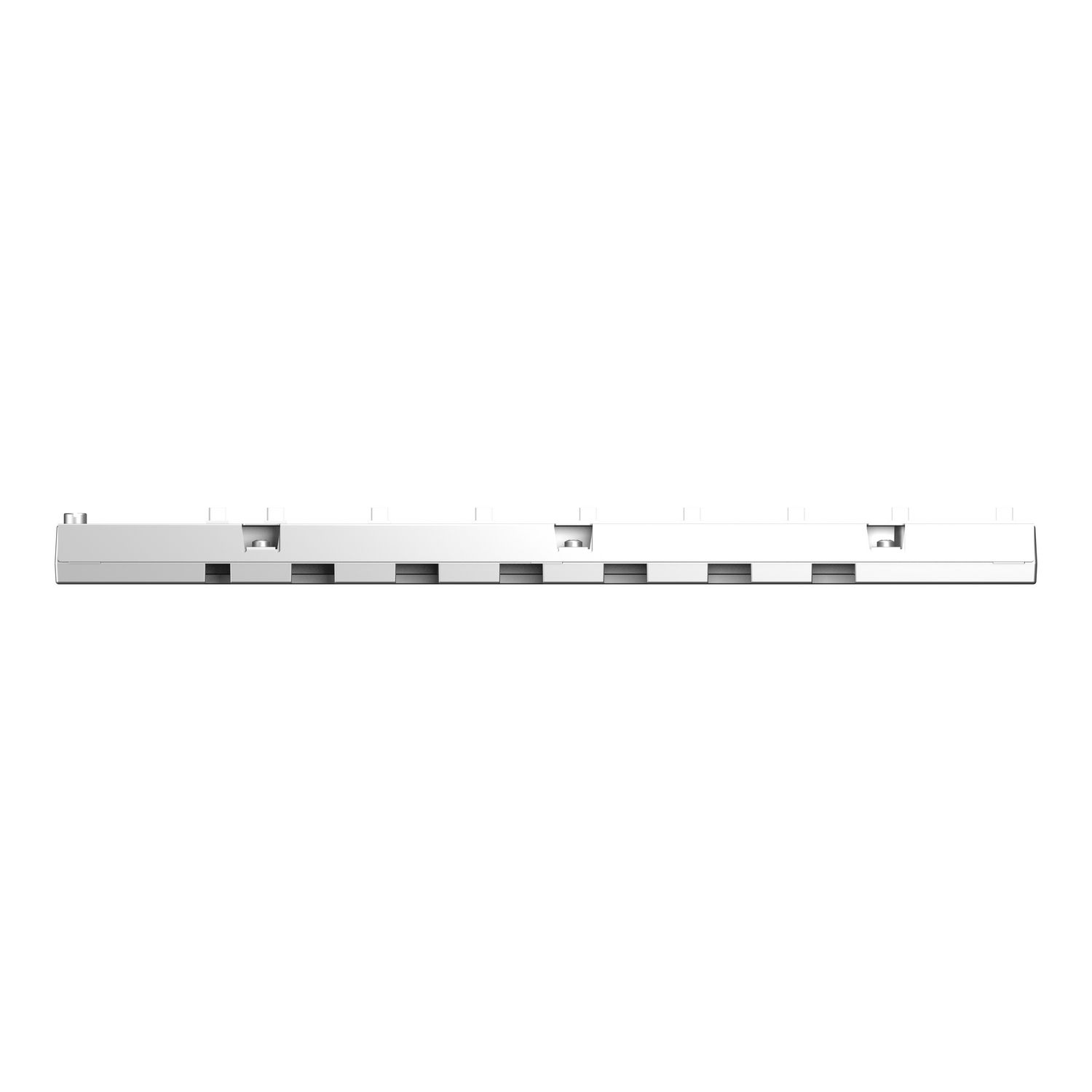

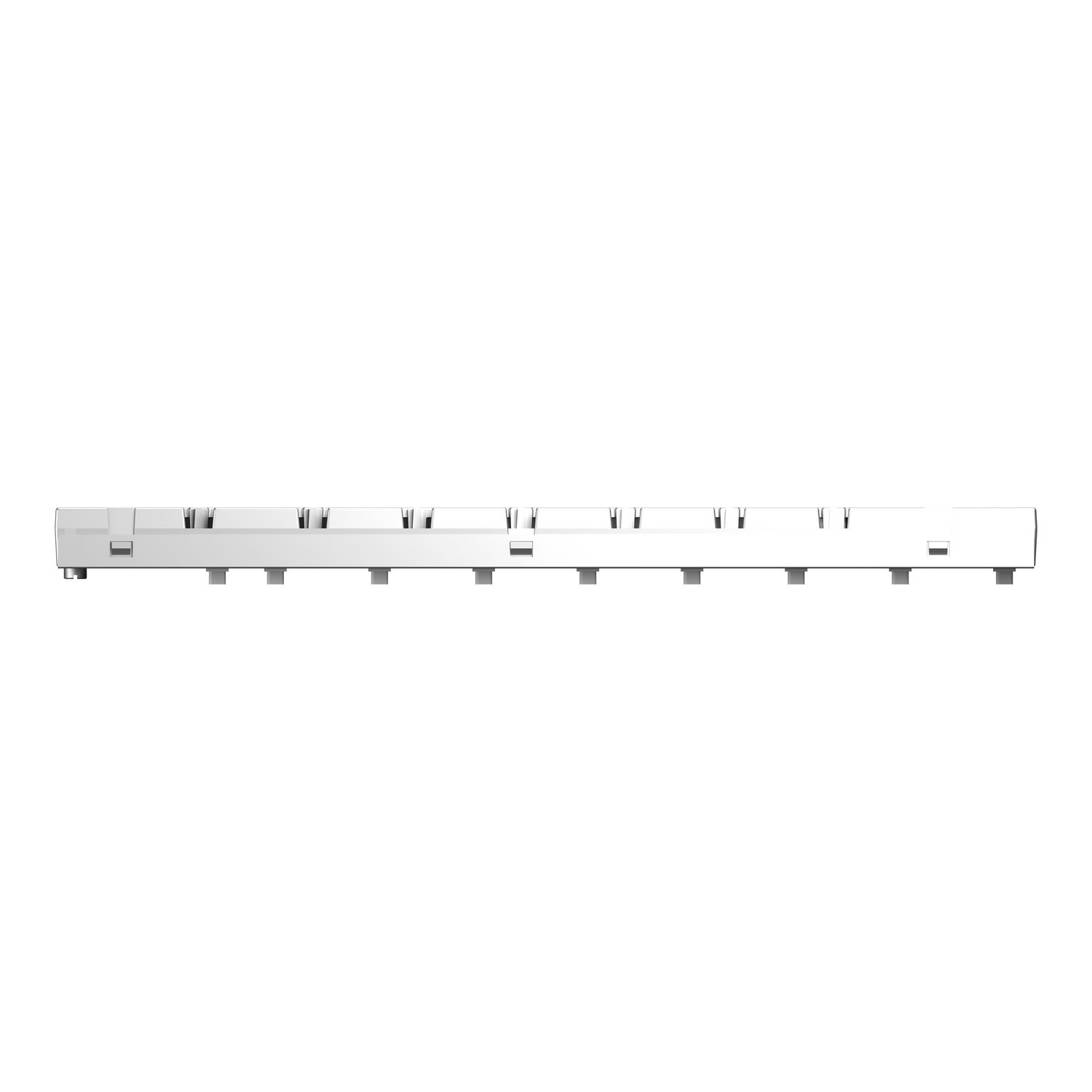

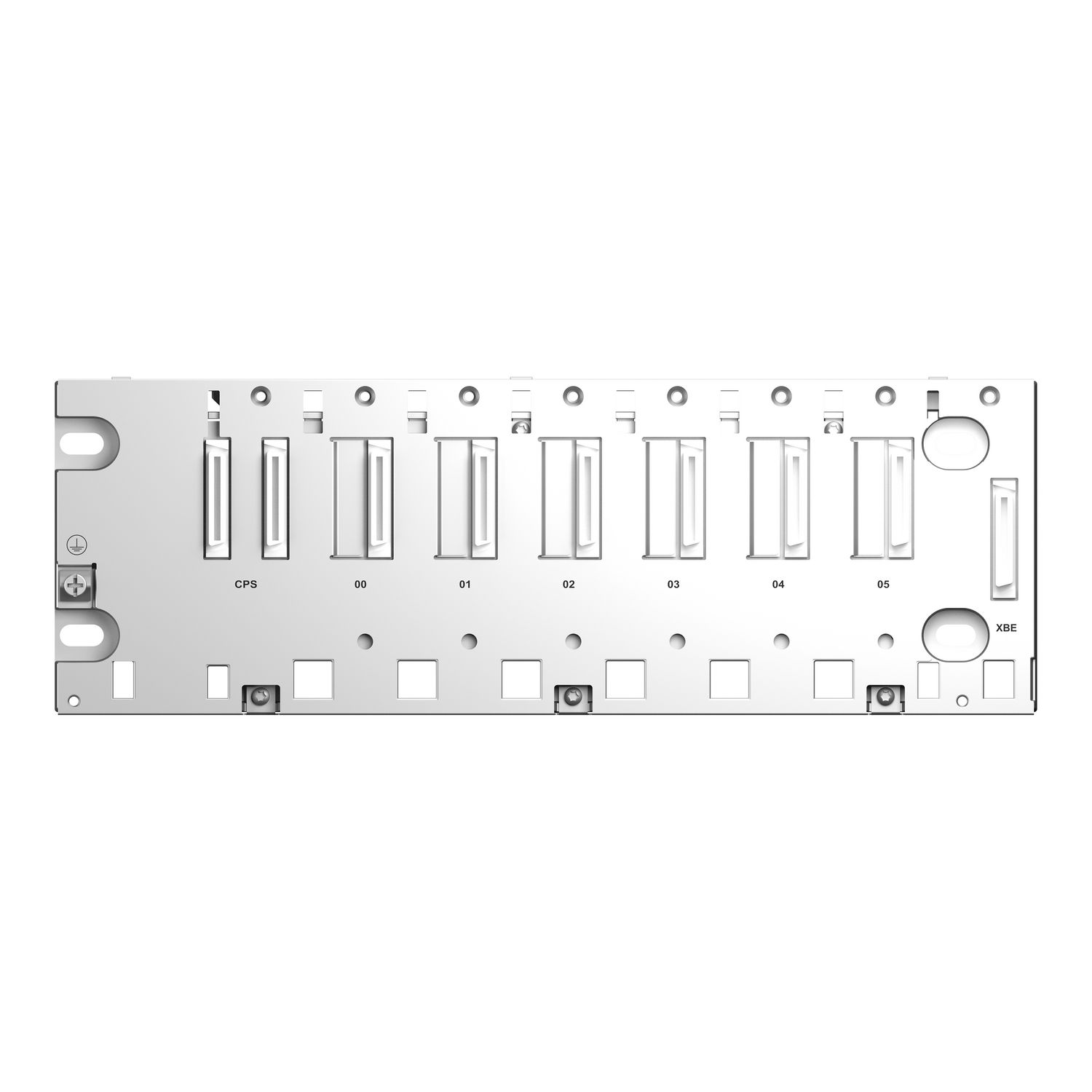

This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of M340 processor. This X-bus backplane provides 6 bus X slots. This product is robust, high quality and based on the latest innovative technology. It is an Ethernet backplane rack with a power of 1.5W. It is furnished with 1 connector (XBE) expansion module for electrical connection. It is an IP20 rated product. It weighs 0.79kg. It is suitable for medium to large process applications. This Ethernet backplane rack is compatible with BMXP34 processor, I/O module, specific application module and BMXCPS power supply. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Modicon X80 |
| Product or component type | backplane |
| Complementary | |
| Product compatibility | specific application module, I/O module, BMXCPS power supply, BMXP34 processor |
| Power consumption in W | 1.68 W |
| Height | 103.7 mm |
| Fixing mode | by clips, mounting on 35 mm symmetrical DIN rail, by 4 M4/M5/M6 screws, mounting on mounting plate, by 4 M4/M5/M6 screws, mounting on panel |
| Depth | 19 mm |
| Width | 307.6 mm |
| Net weight | 0.79 kg |
| Number of slots | 6 bus X |
| Electrical connection | 1 connector (XBE) expansion module |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 10-95 % without condensation |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Product certifications | Merchant Navy, UKCA, EAC, RCM, CSA, UL, CE |
| Standards | EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2 |
| Ambient air temperature for operation | 0-60 °C |
