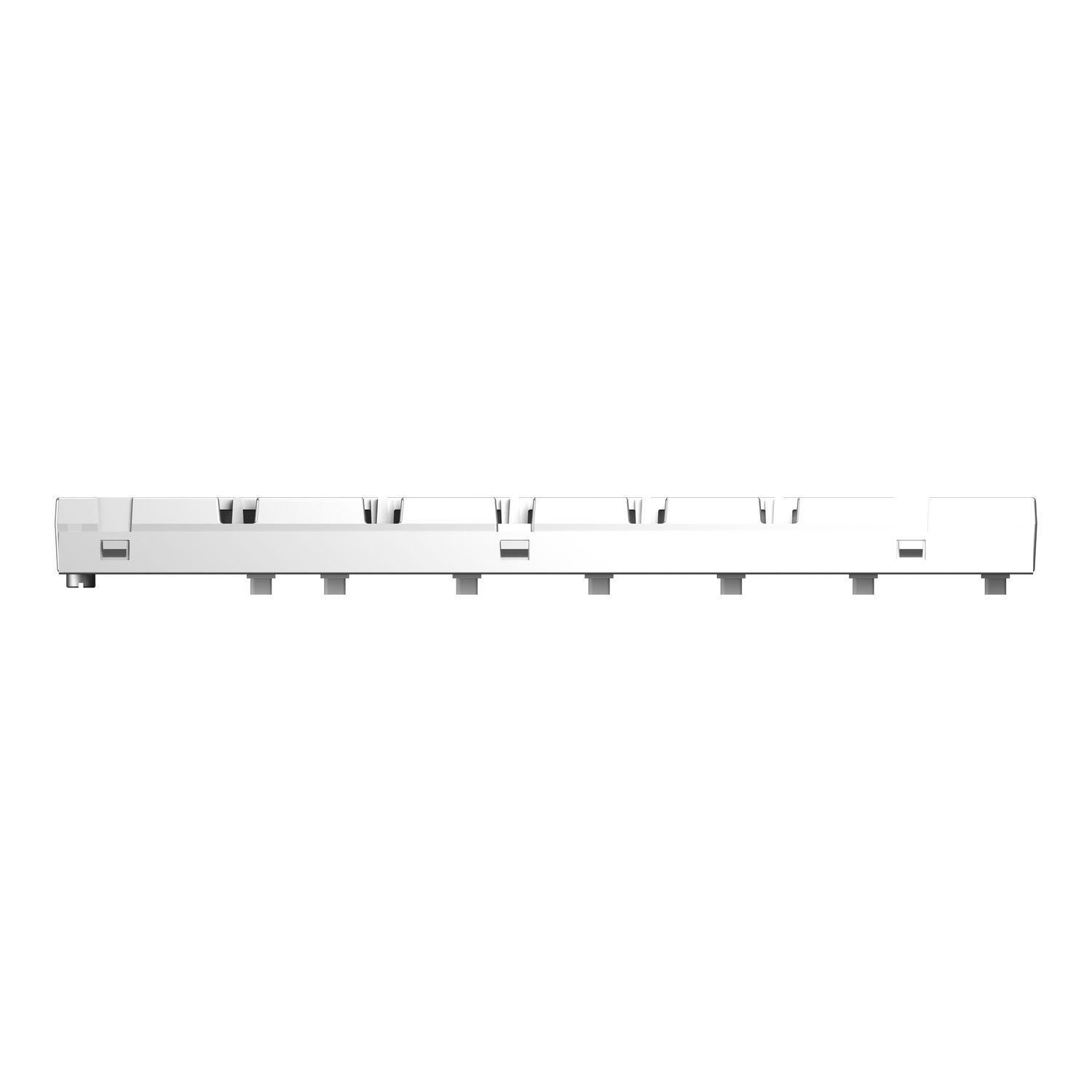

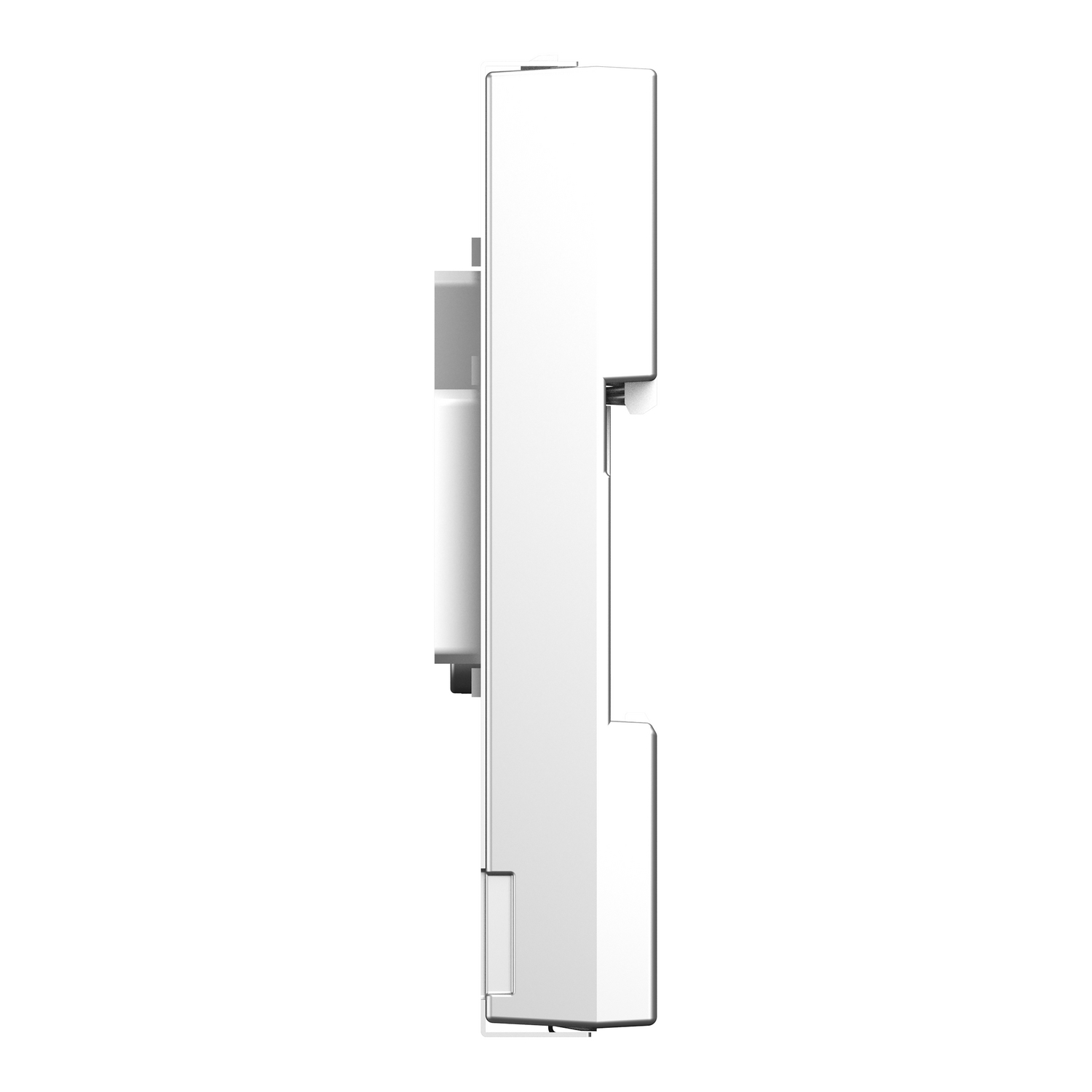

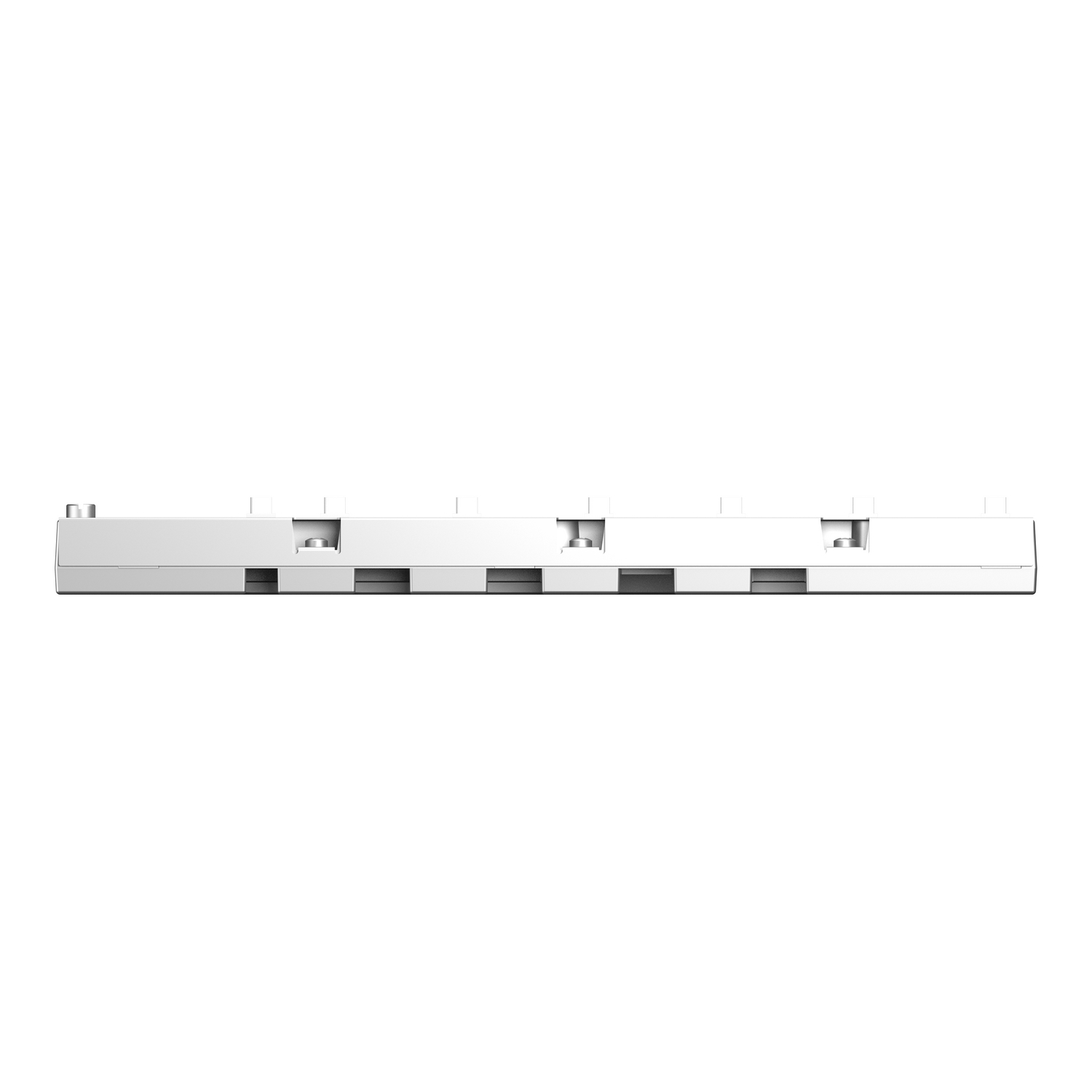

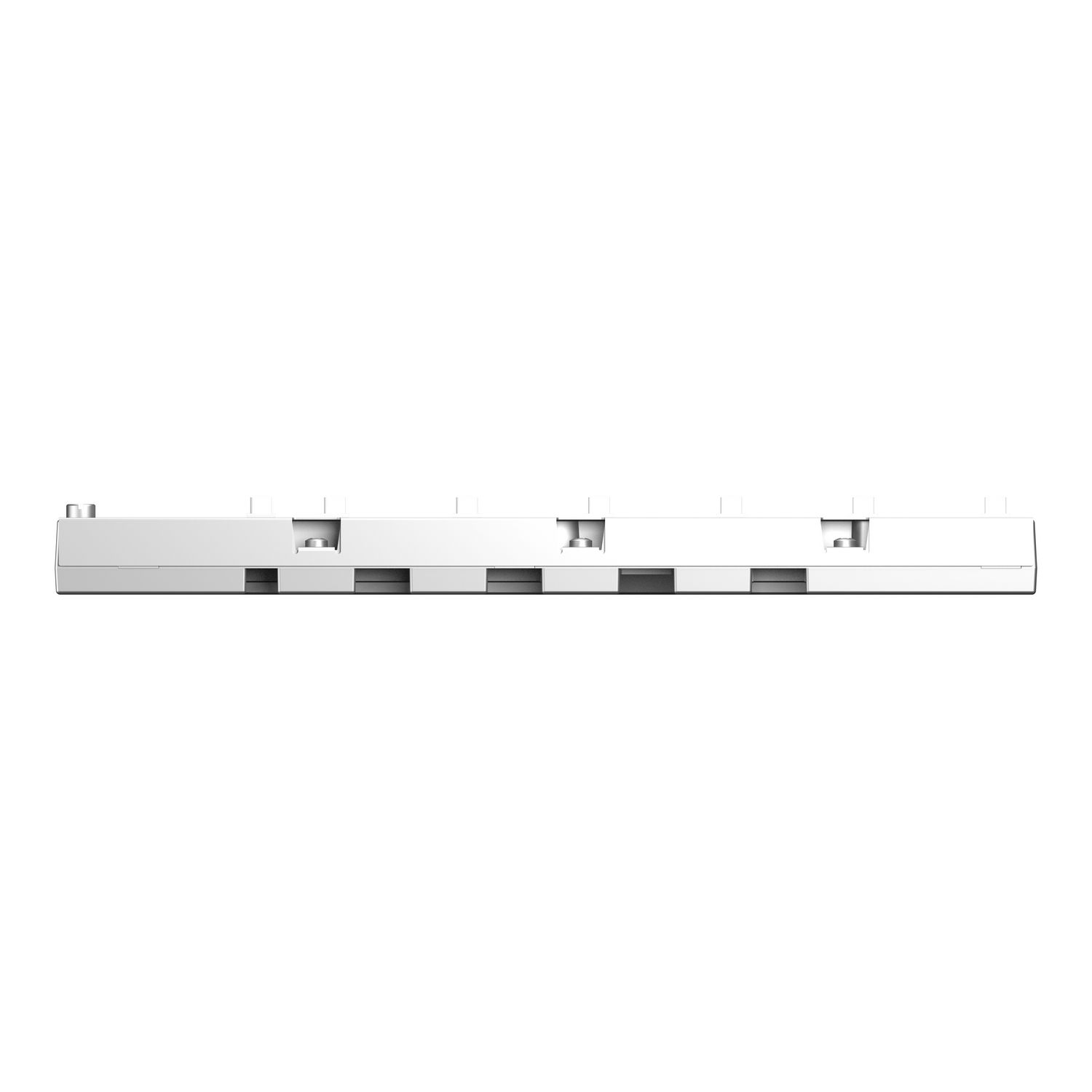

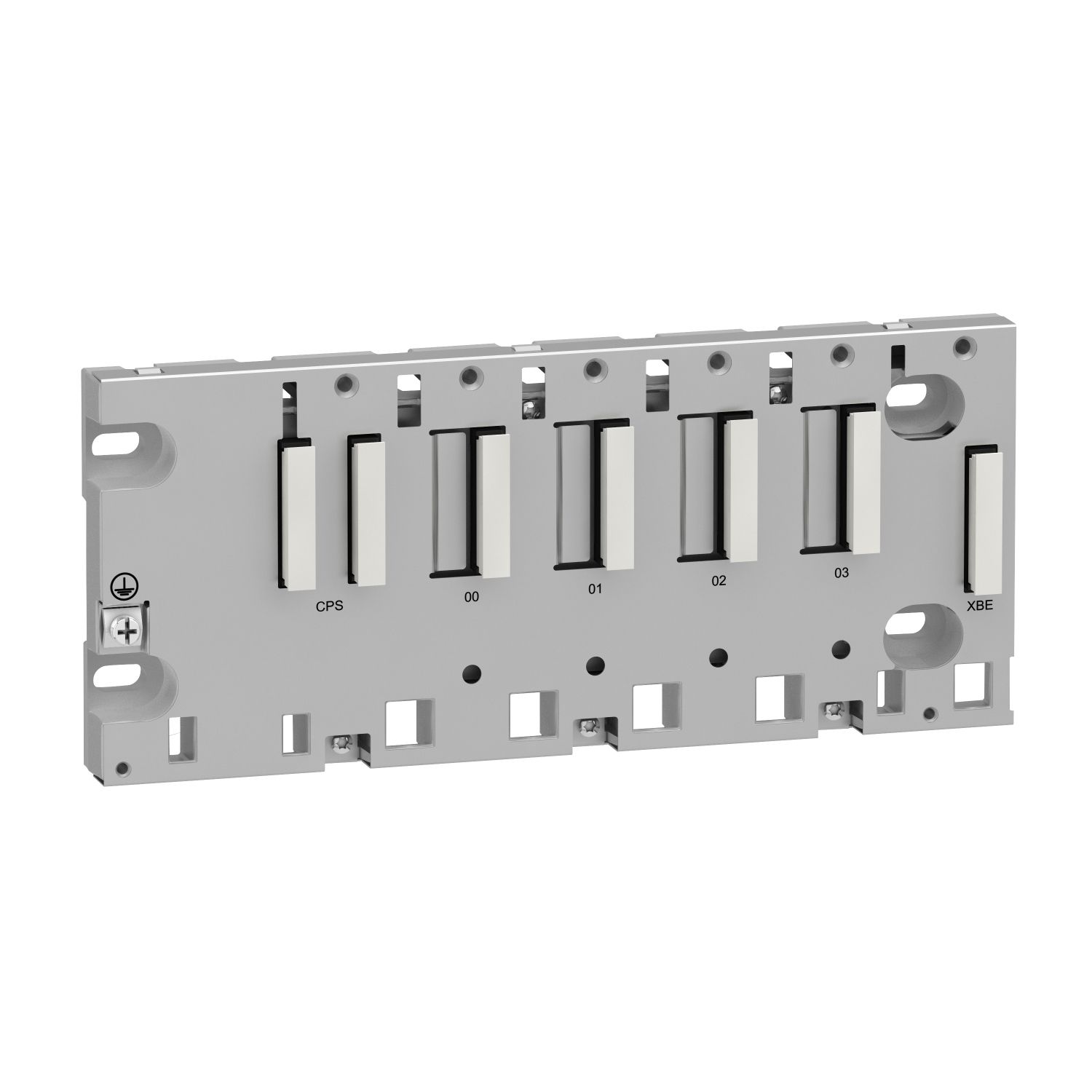

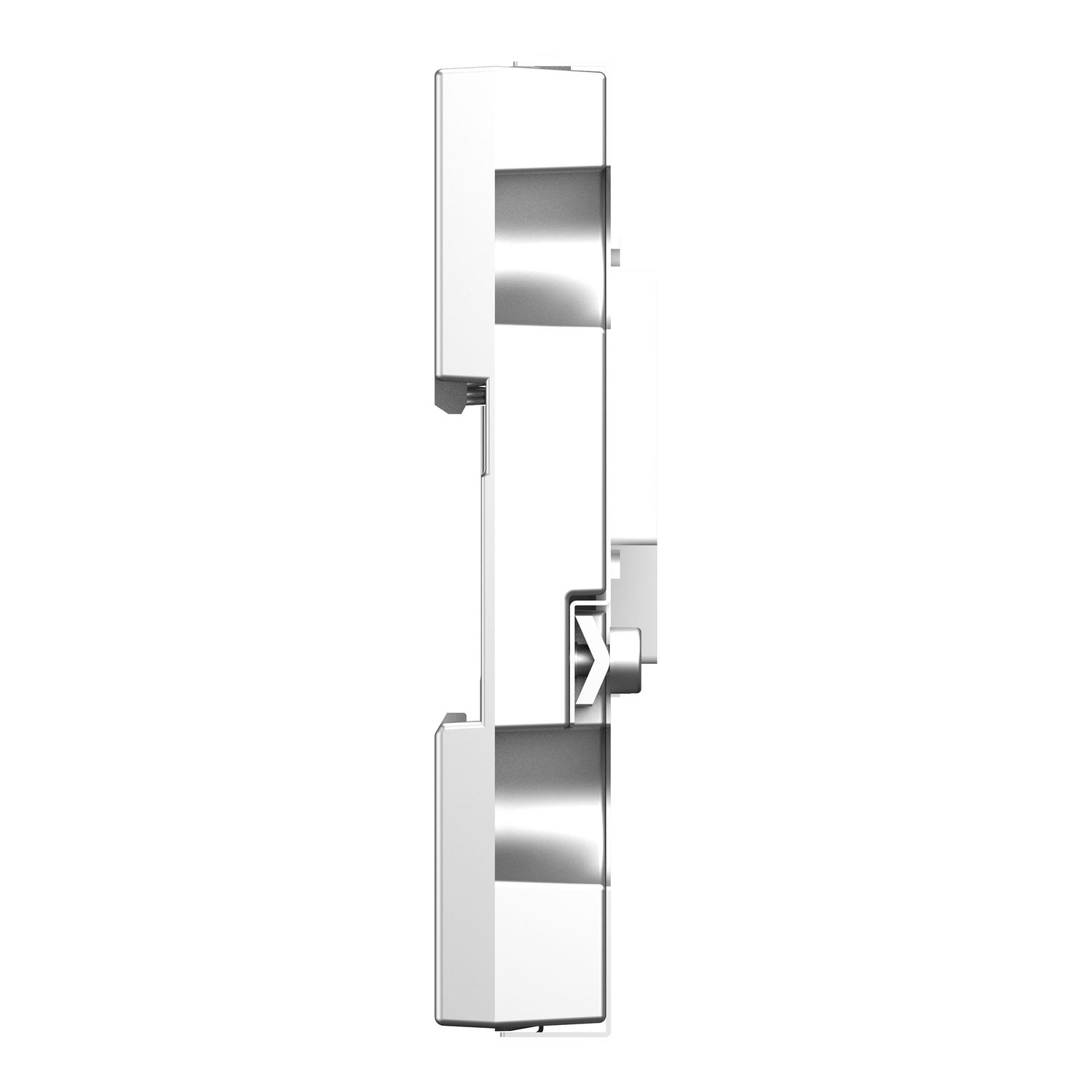

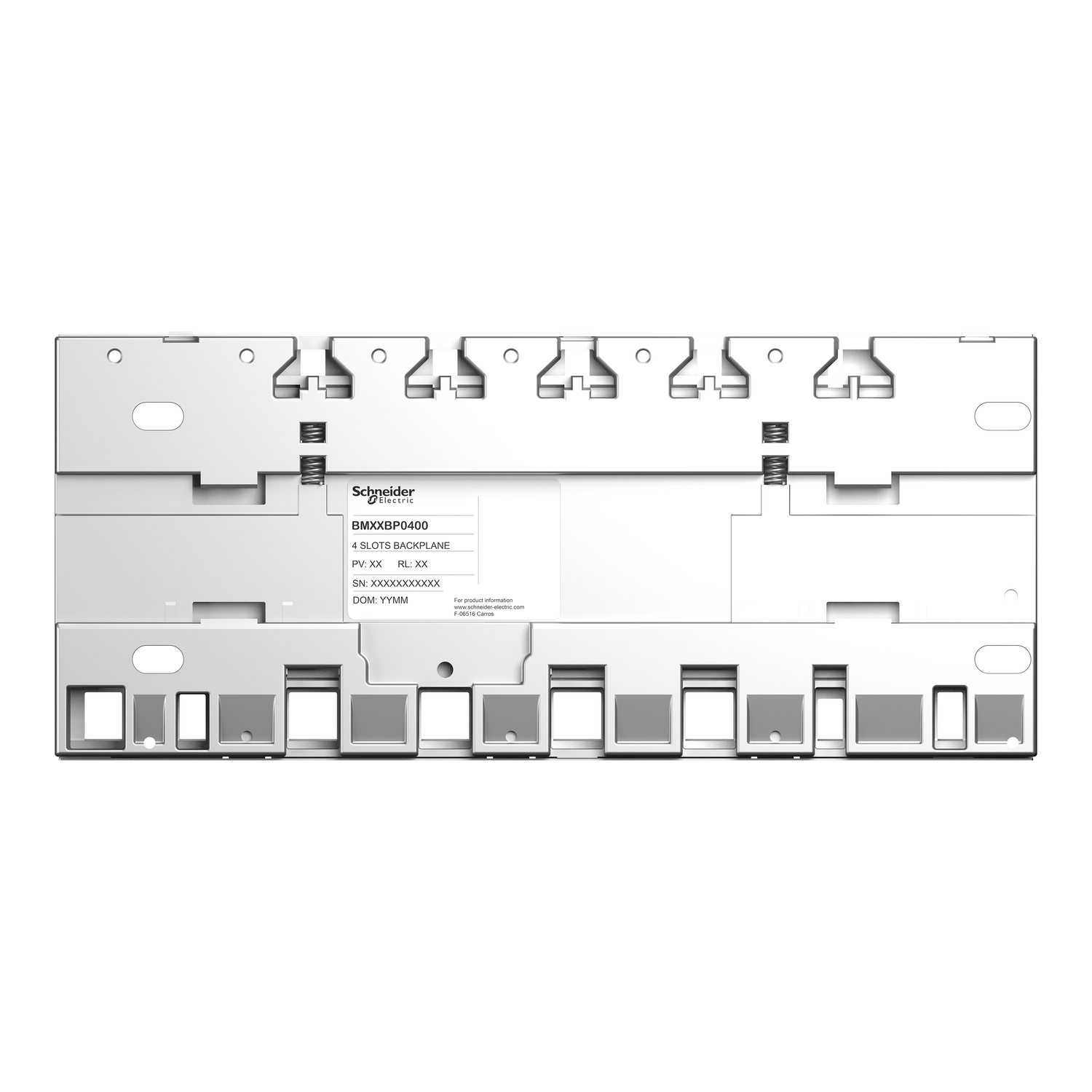

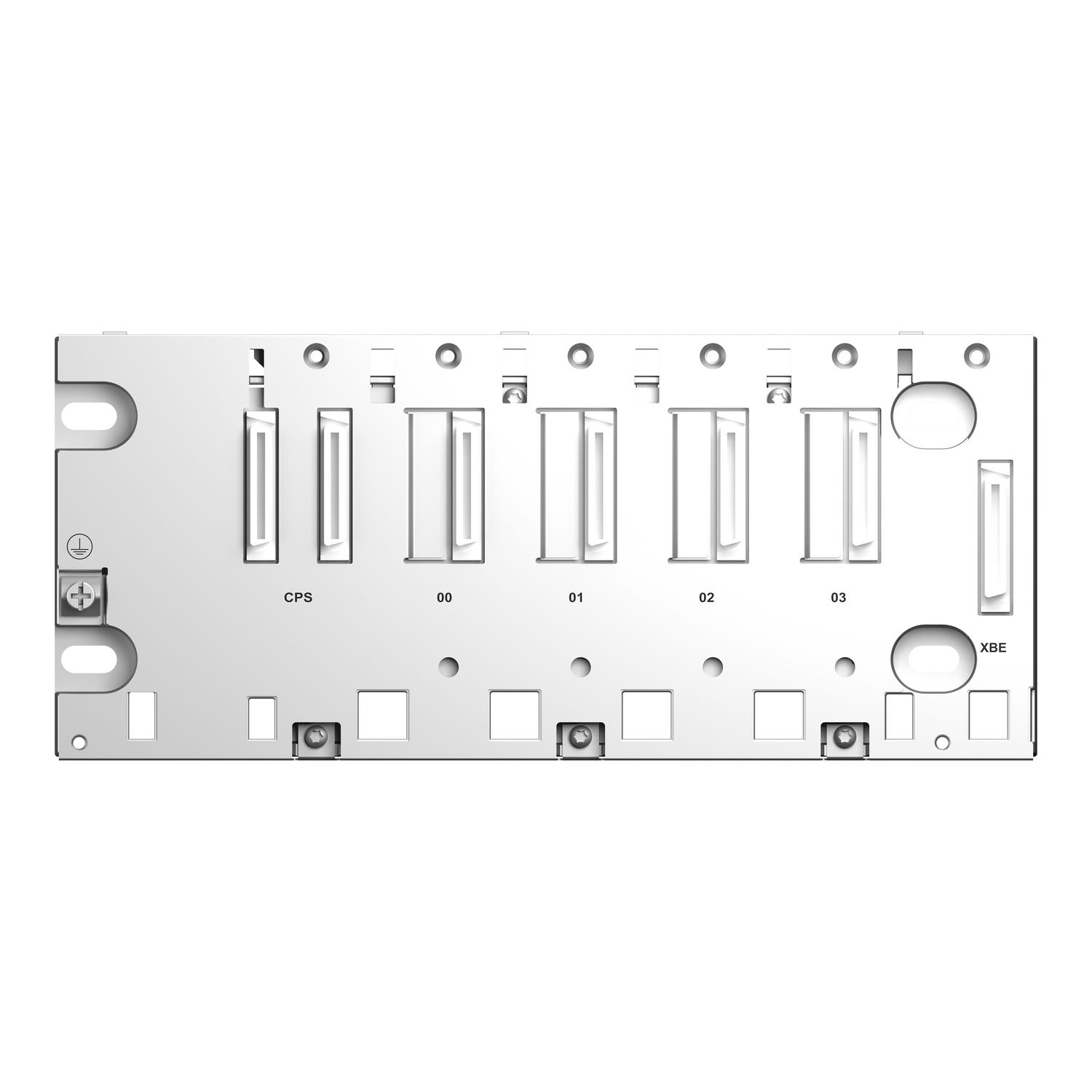

This 4 slots X-bus rack is part of the Modicon X80 modules. Number of slots comprises processor, I/O, communication and application-specific modules (excluding power supply module). It can be mounted on DIN rail and its weight is 0.630kg.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Modicon X80 |
| Product or component type | backplane |
| Complementary | |
| Product compatibility | specific application module, I/O module, BMXCPS power supply, BMXP34 processor |
| Power consumption in W | 1.12 W |
| Height | 103.7 mm |
| Fixing mode | by clips, mounting on 35 mm symmetrical DIN rail, by 4 M4/M5/M6 screws, mounting on mounting plate, by 4 M4/M5/M6 screws, mounting on panel |
| Depth | 19 mm |
| Width | 242.4 mm |
| Net weight | 0.63 kg |
| Number of slots | 4 bus X |
| Electrical connection | 1 connector (XBE) expansion module |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 10-95 % without condensation |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Product certifications | Merchant Navy, UKCA, EAC, RCM, CSA, UL, CE |
| Standards | EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2 |
| Ambient air temperature for operation | 0-60 °C |
