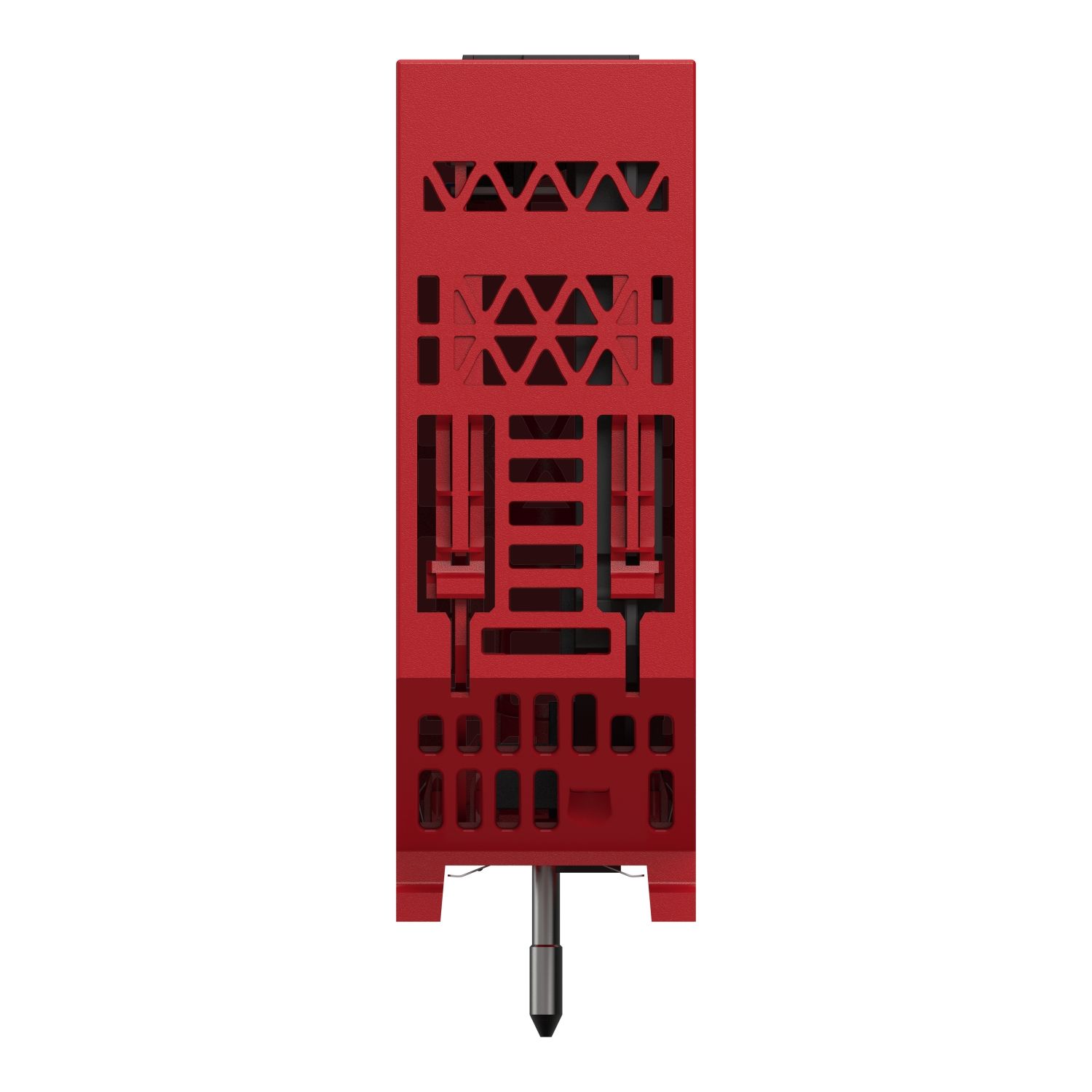

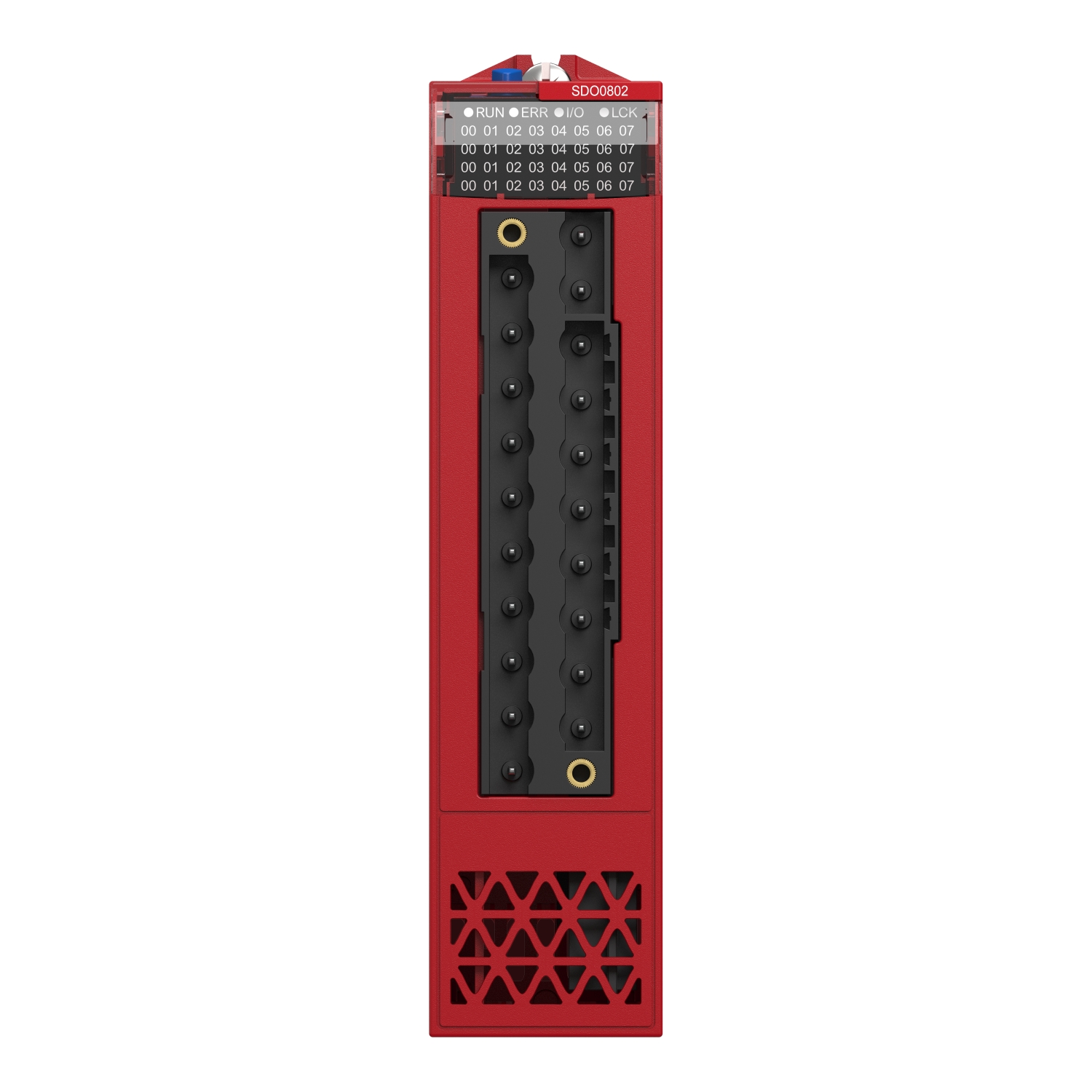

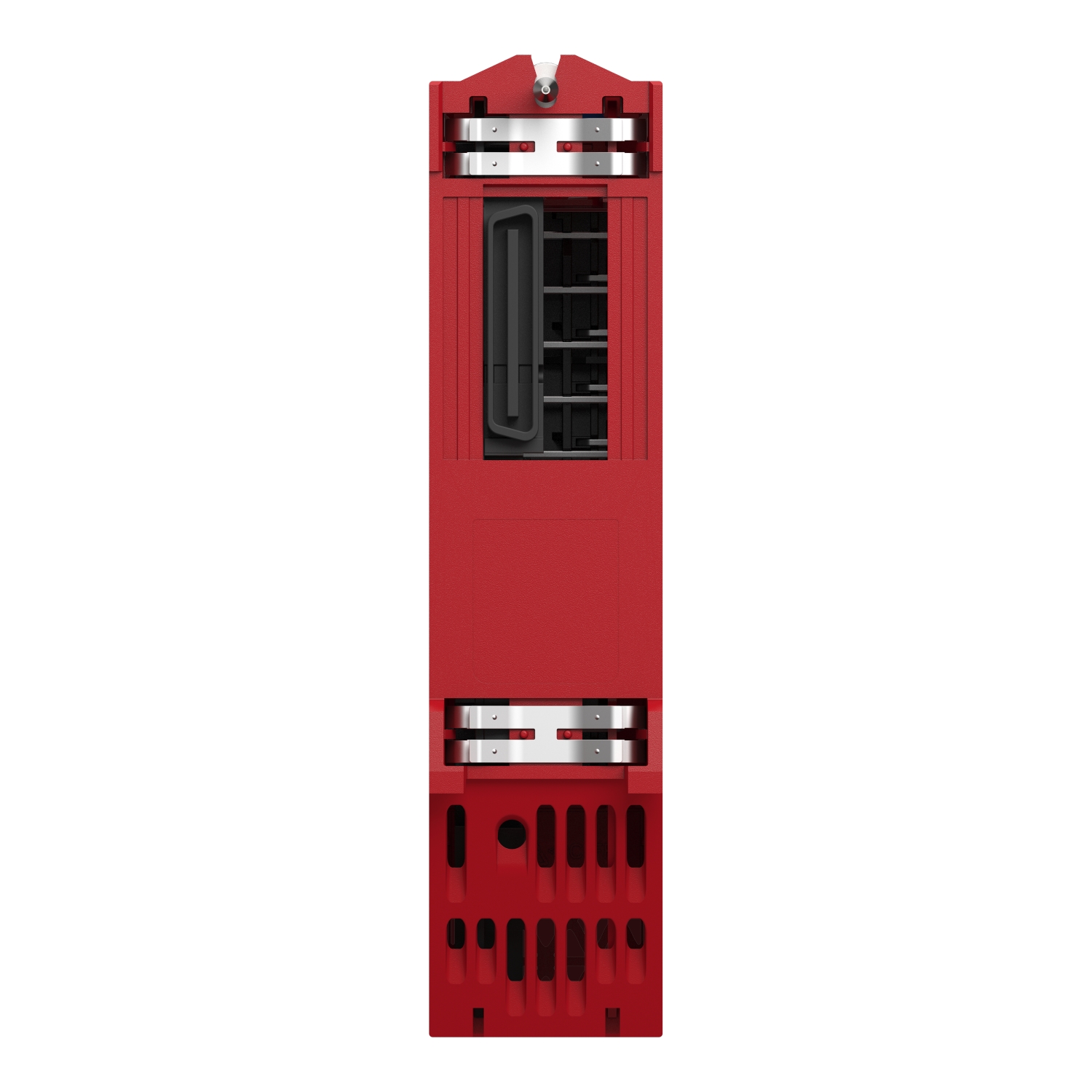

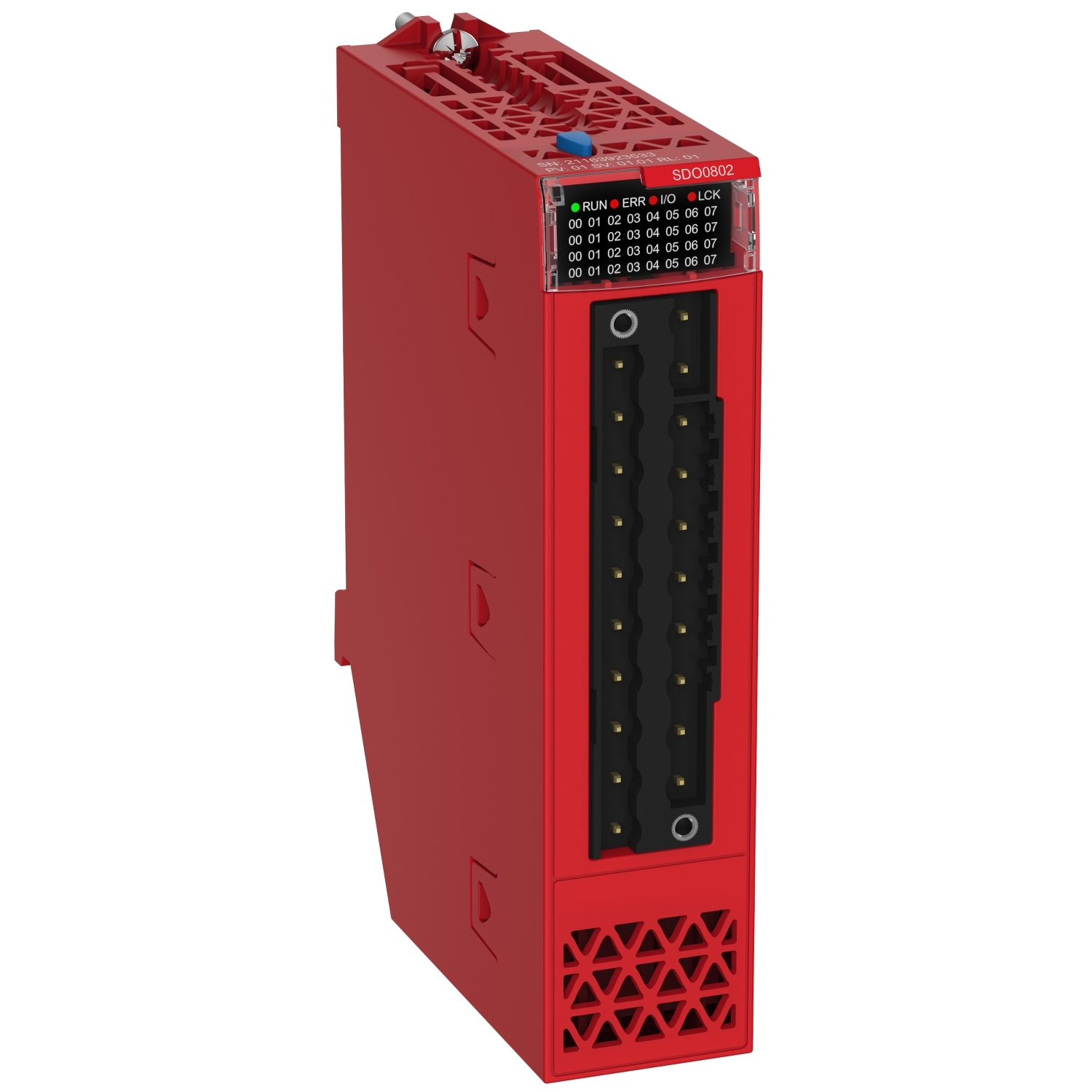

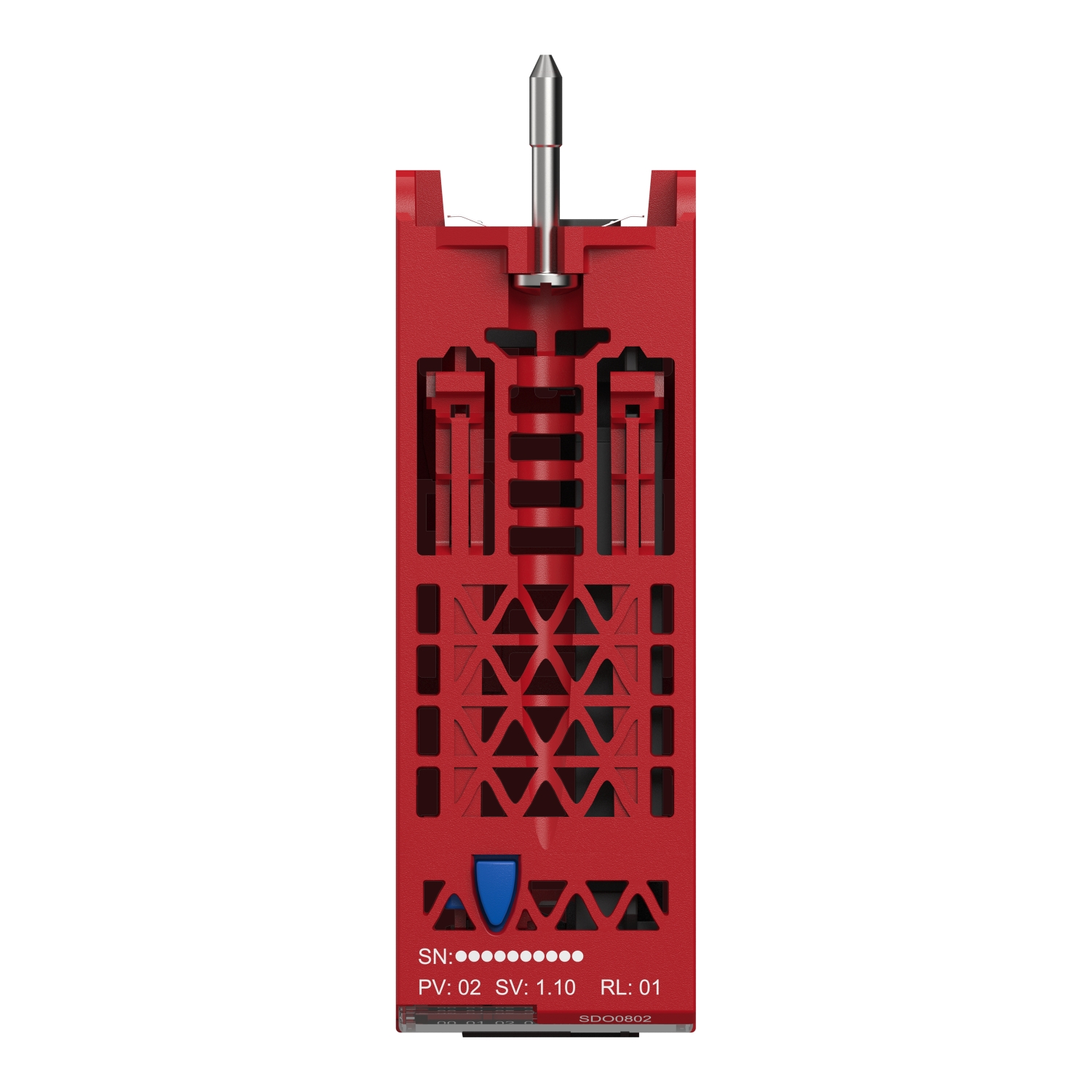

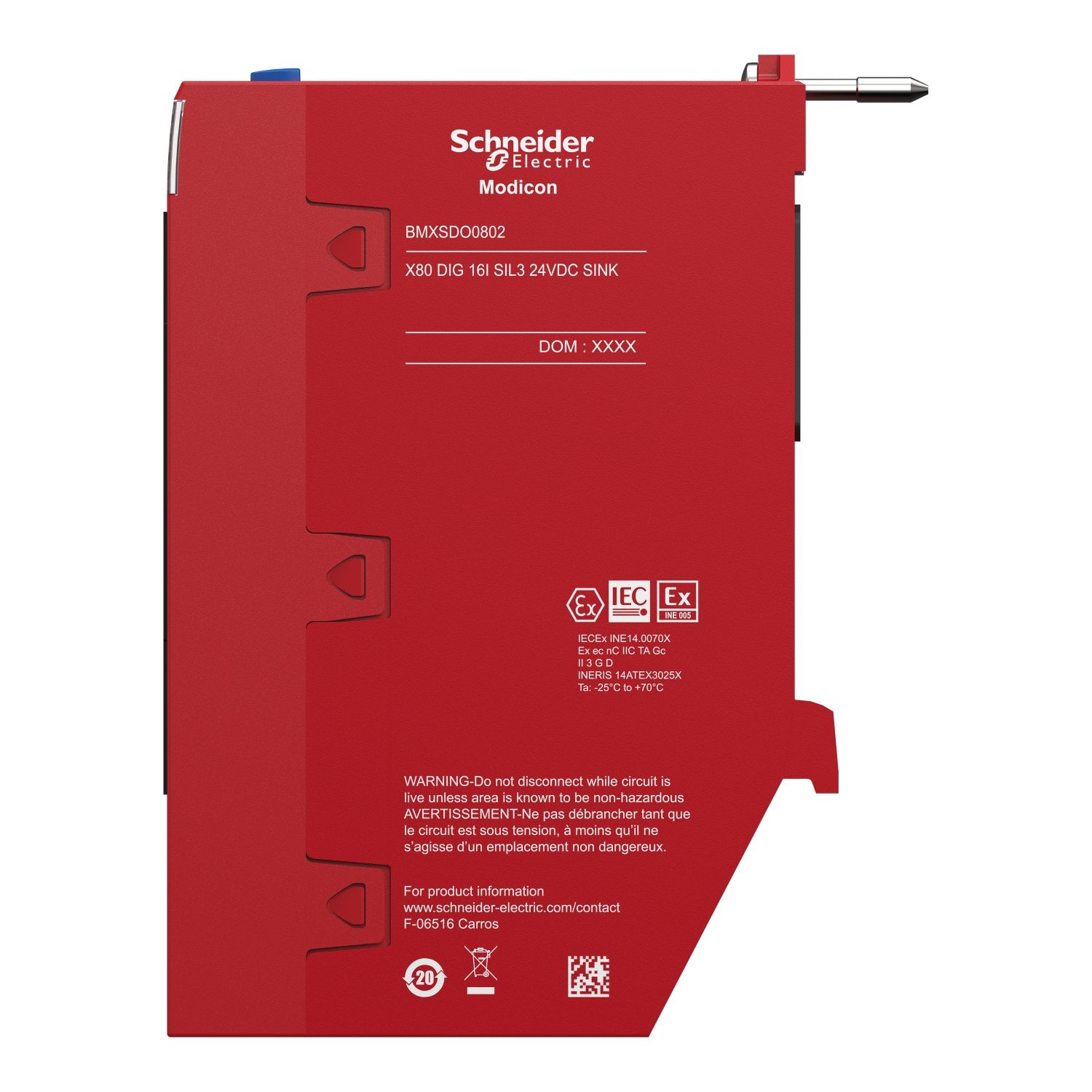

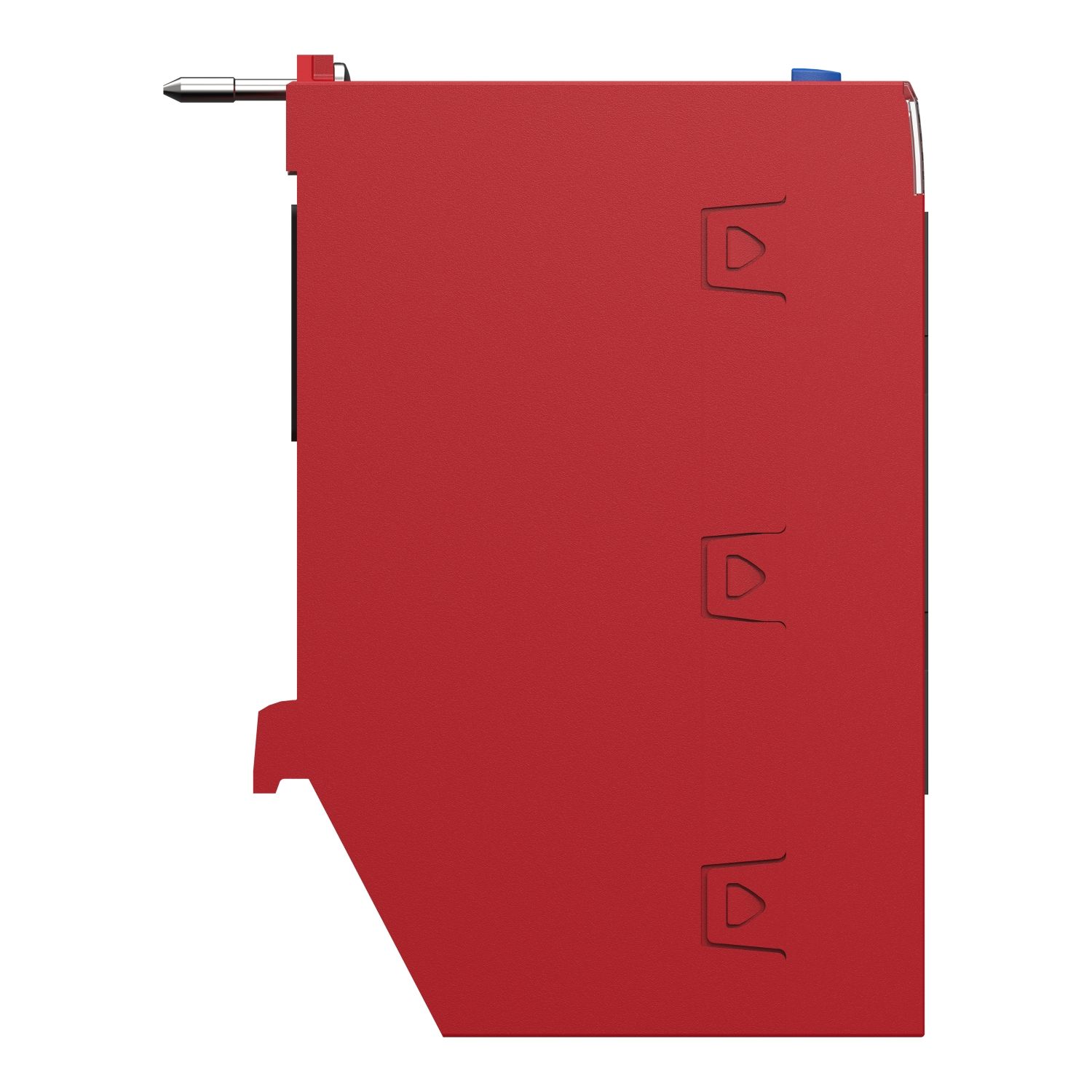

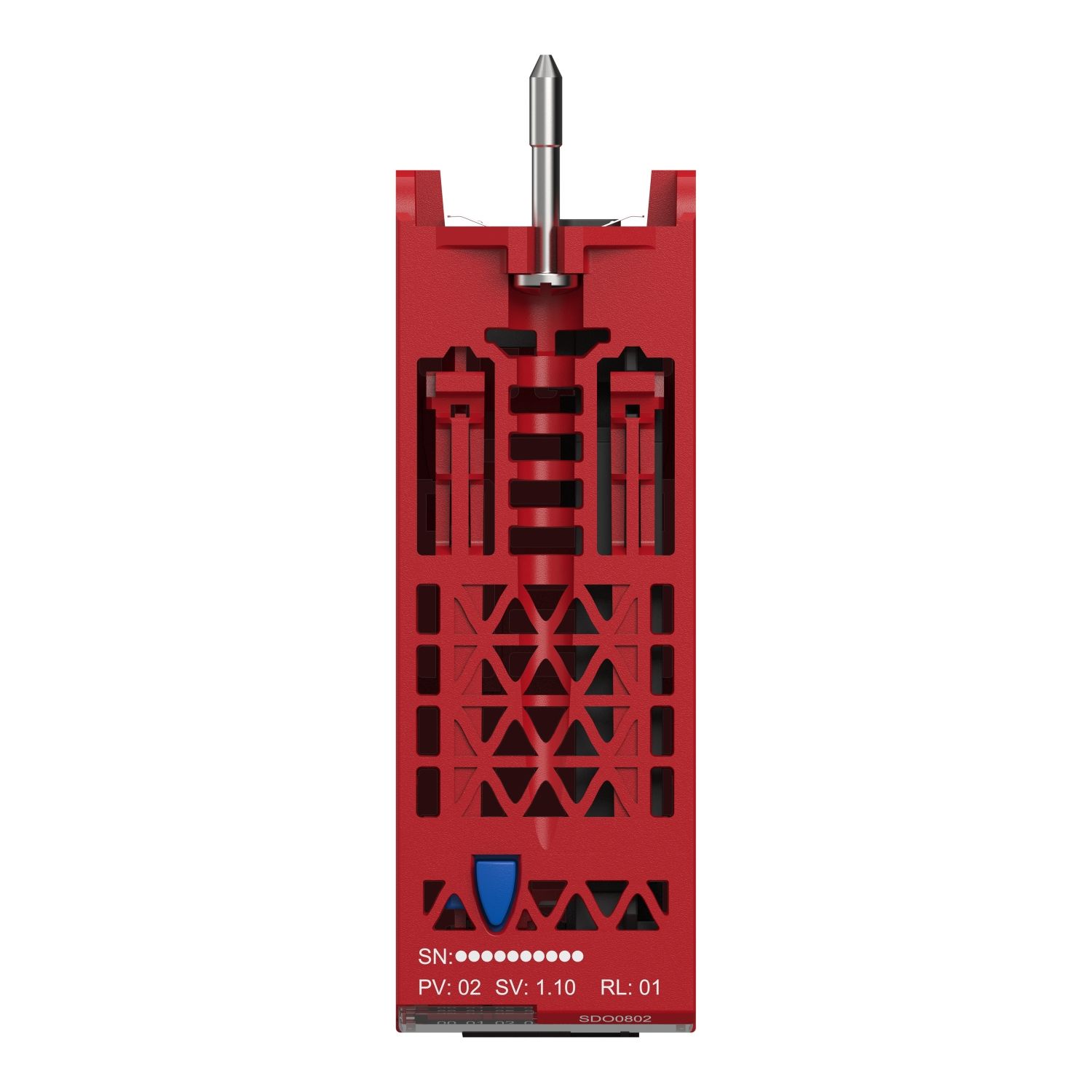

This cord set is part of the Modicon X80 range, an offer of common modules and installation accessories for M580 and M340 automation platforms. This discrete output module offers 8 positive discrete output logic. It offers discrete output voltage ranges from 19V DC to 30V DC, 24V DC with solid state and not isolated discrete output. It is an IP20 rated product. It weighs 0.12kg. It is to be used with BMXFTB2010 screw clamp type terminal block. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock. The Modicon X80 range is one important part of EcoStruxure Plant, an open, flexible, reliable, sustainable, safe and secure architecture.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete output current | 0.5 A |
| Product or component type | discrete output module |
| Discrete output voltage | 24 V 19...30 V DC |
| Output compatibility | IEC 61131-2 type 3 DC input, not IEC 61131-2 DC input |
| Discrete output logic | positive |
| Discrete output number | 8 conforming to EN/IEC 61131-2 |
| Range of product | Modicon X80 |
| Discrete output type | not isolated, solid state |
| Complementary | |
| Response time on output | 1.2 ms |
| Reverse polarity protection | reverse mounted diode |
| Maximum tungsten load | 6 W |
| Output overload protection | with electronic circuit breaker 1.5 In < Id < 2 In, with current limiter |
| Output short-circuit protection | with 2 A external fuse |
| Output overvoltage protection | with transil diode |
| Typical current consumption | 15 mA at 24 V, 264 mA at 3.3 V DC |
| Paralleling of outputs | yes : 2 maximum |
| Load impedance ohmic | >= 48 Ohm |
| Maximum leakage current | 0.5 mA at state 0 |
| Net weight | 0.12 kg |
| Power dissipation in W | 4.4 W |
| Protection type | short-circuit protection, overvoltage protection, overload protection, reverse polarity protection |
| Insulation resistance | > 10 MOhm 500 V DC |
| Maximum voltage drop | <1.2 V at state 1 |
| Voltage detection threshold | > 18 V DC sensor OK, < 14 V DC sensor fault |
| Current per channel | 0.625 A |
| Status LED | 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN) |
| Switching frequency | 0.5/LI² Hz |
| Maximum current per module | 10 A |
| MTBF reliability | 383000 H |
| Environment | |
| IP degree of protection | IP20 |
| Protective treatment | conformal coating |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Vibration resistance | 3 gn |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 minute, output/internal logic, 1500 V AC at 50/60 Hz 1 minute, output/ground |
| Environmental characteristic | fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx |
| Shock resistance | 15 gn |
| Ambient air temperature for operation | -25-60 °C |
