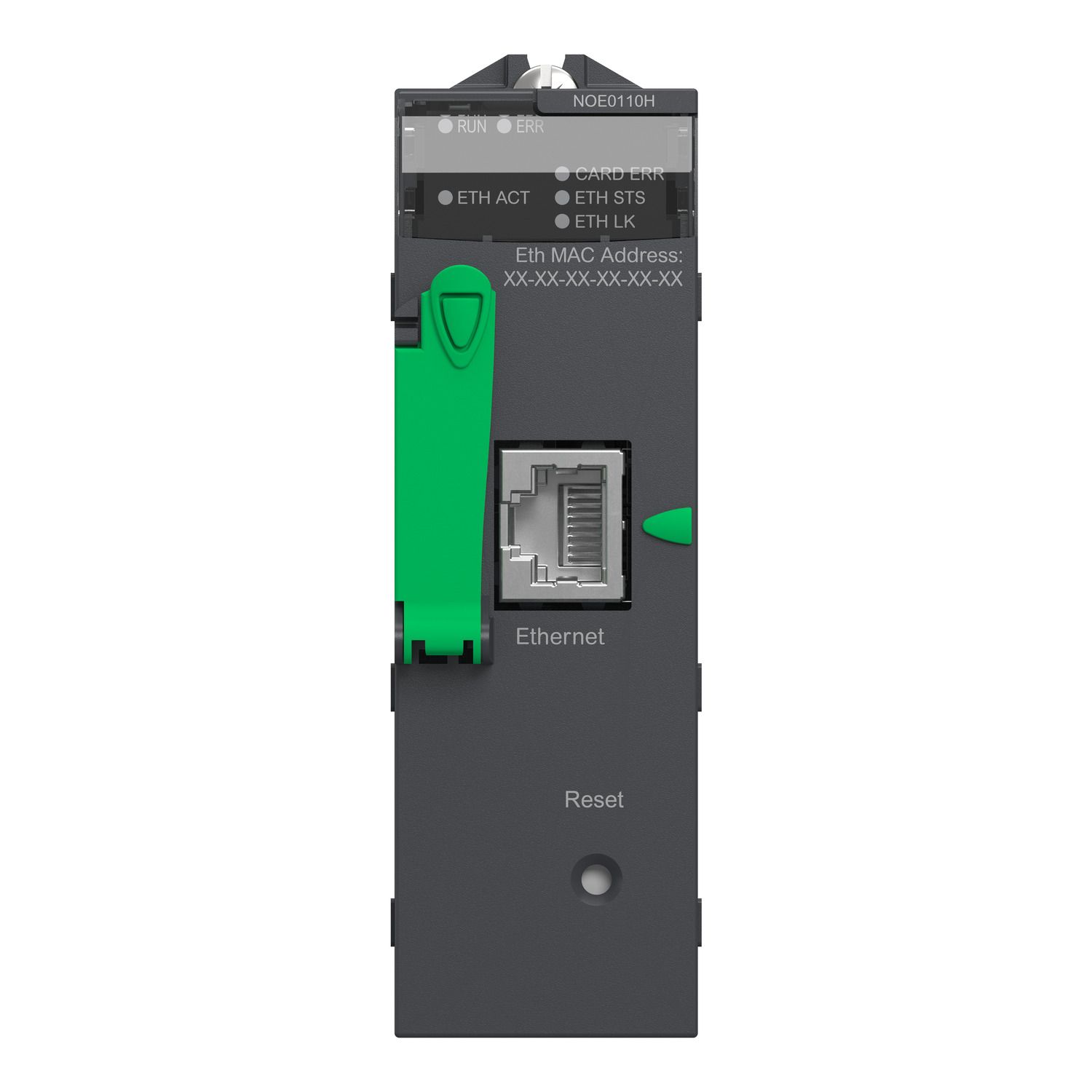

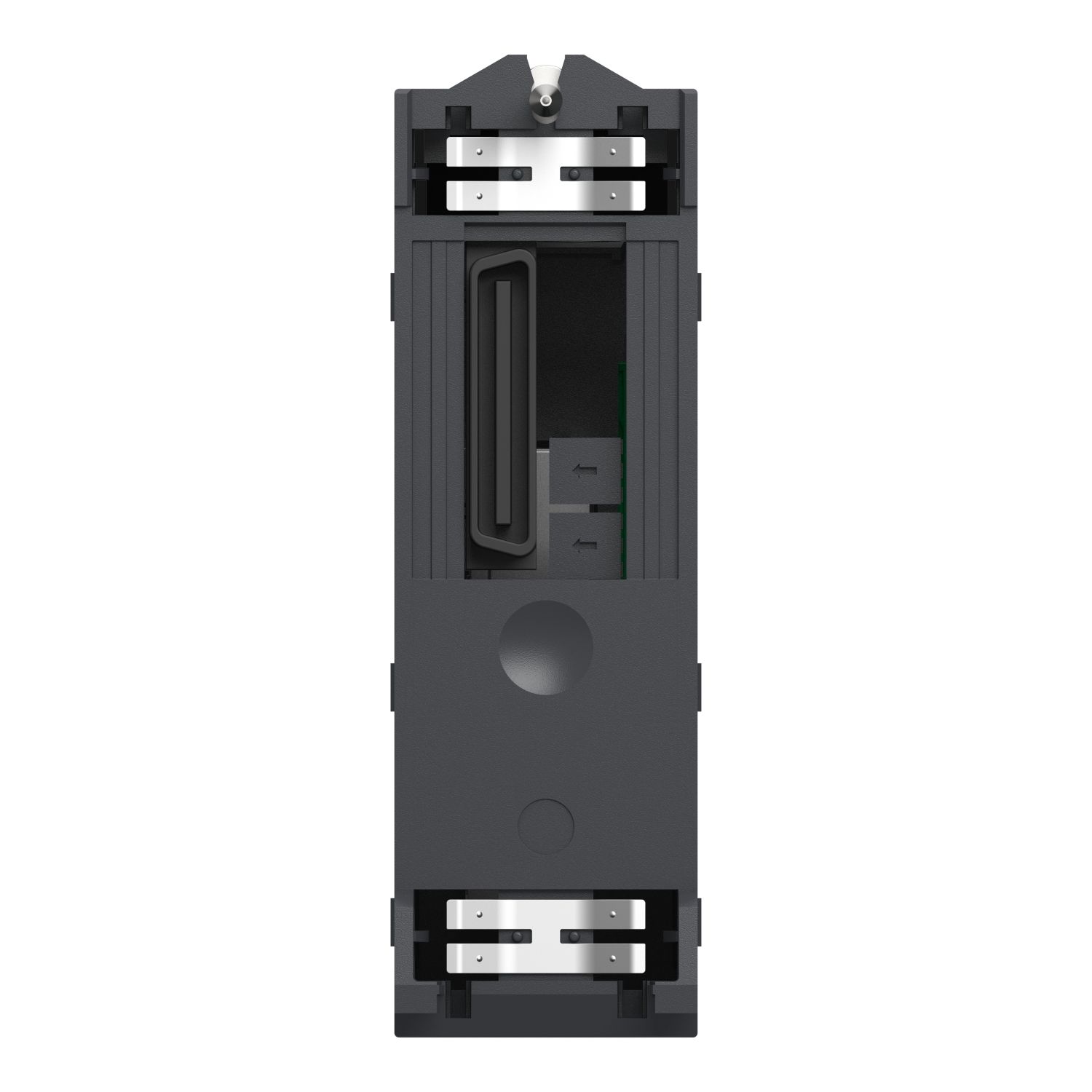

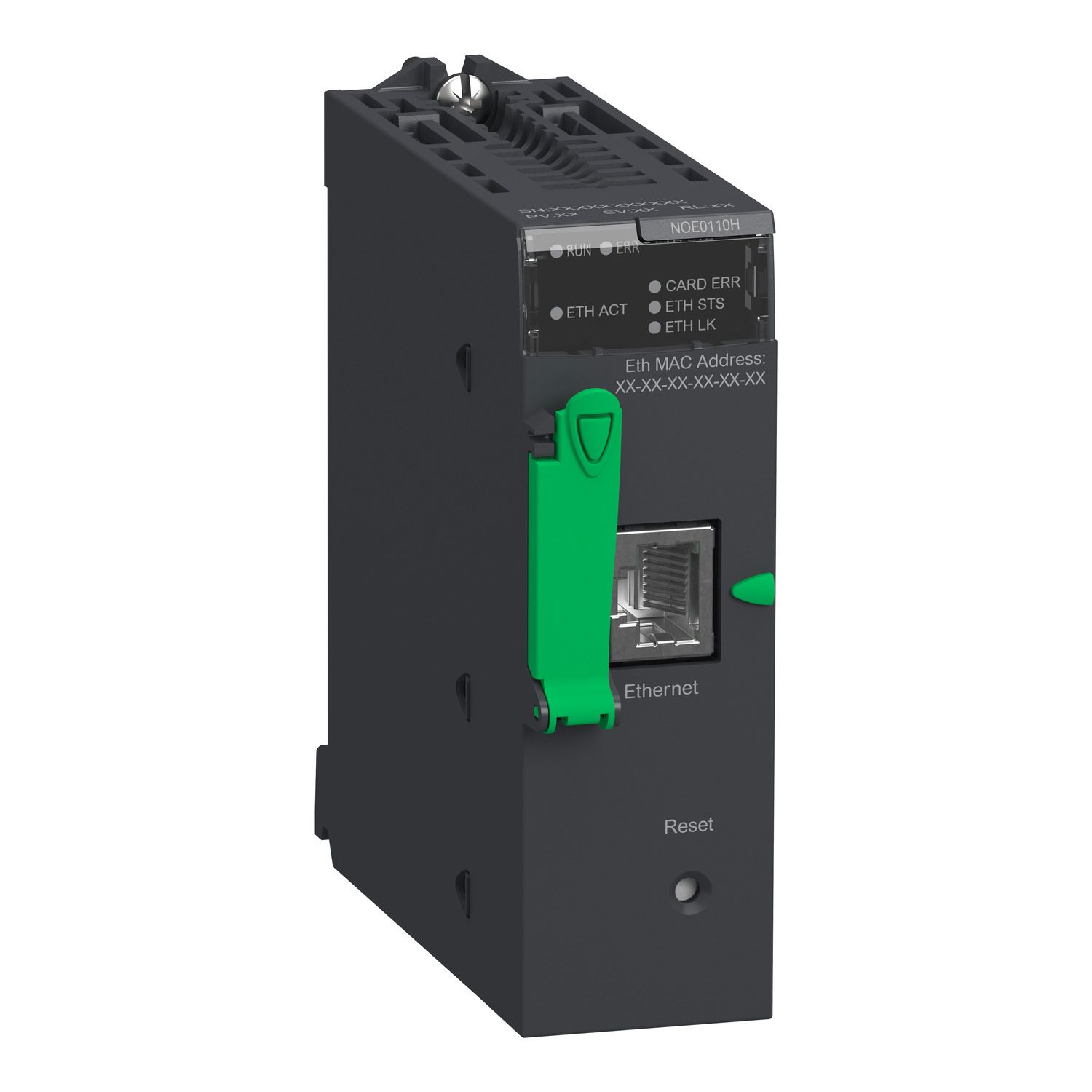

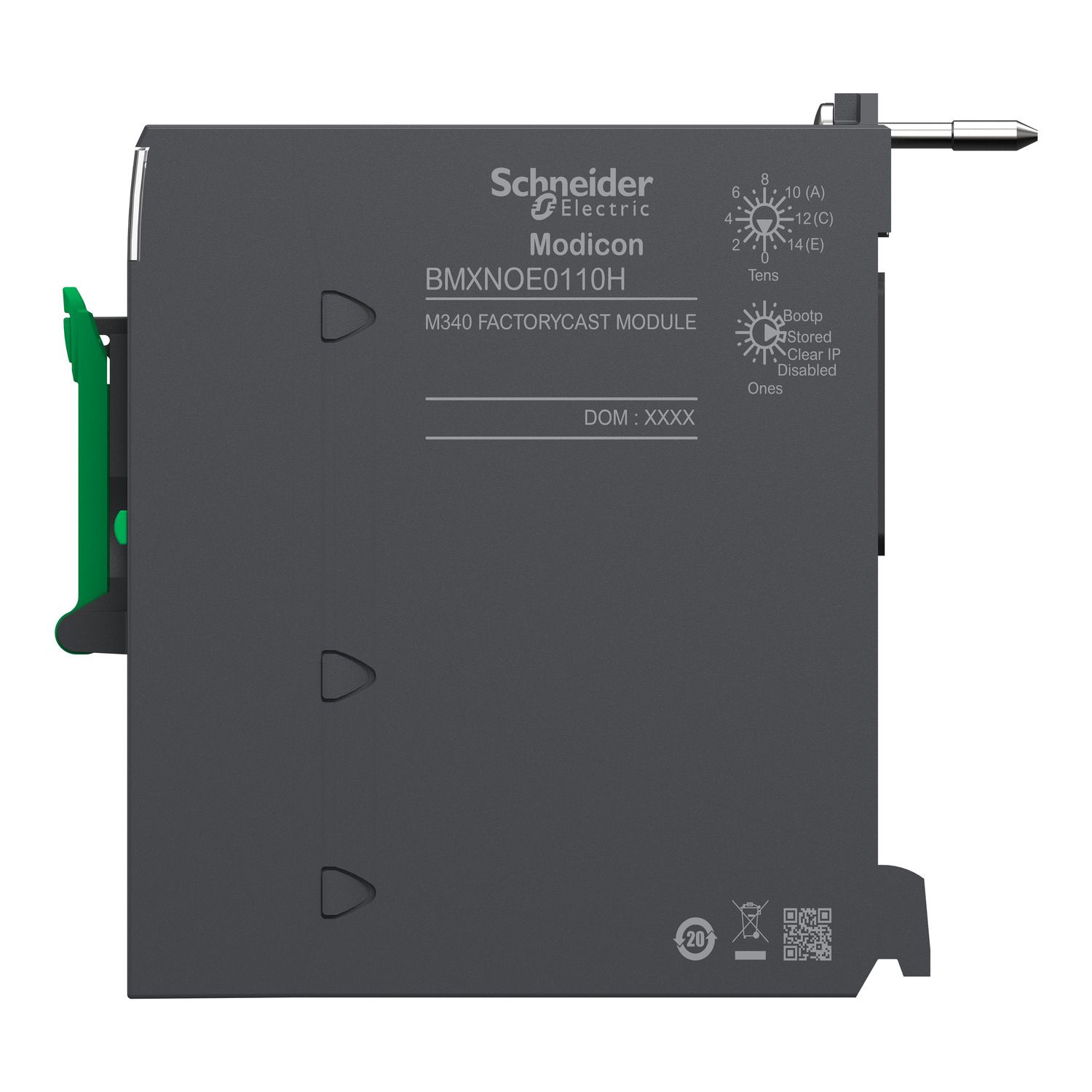

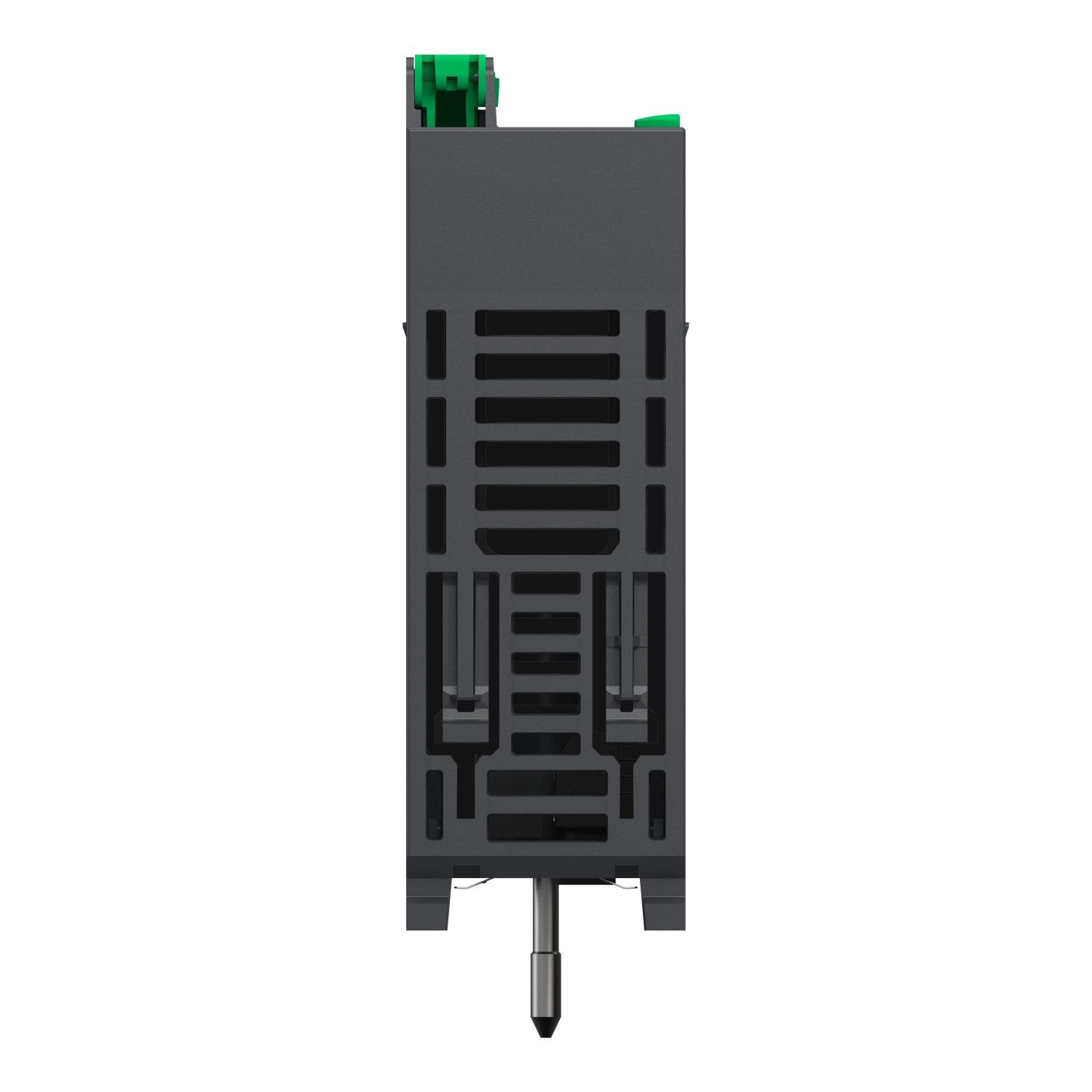

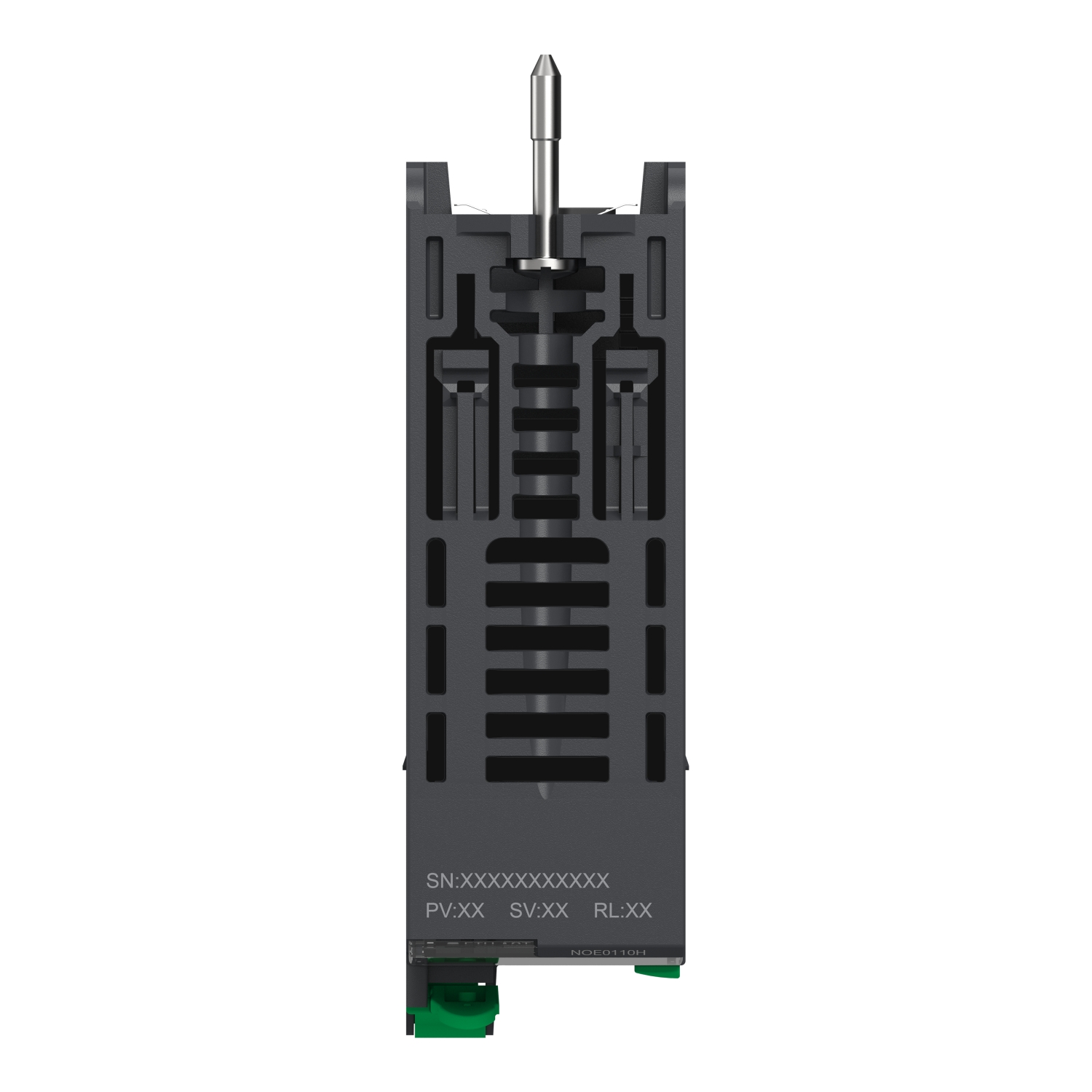

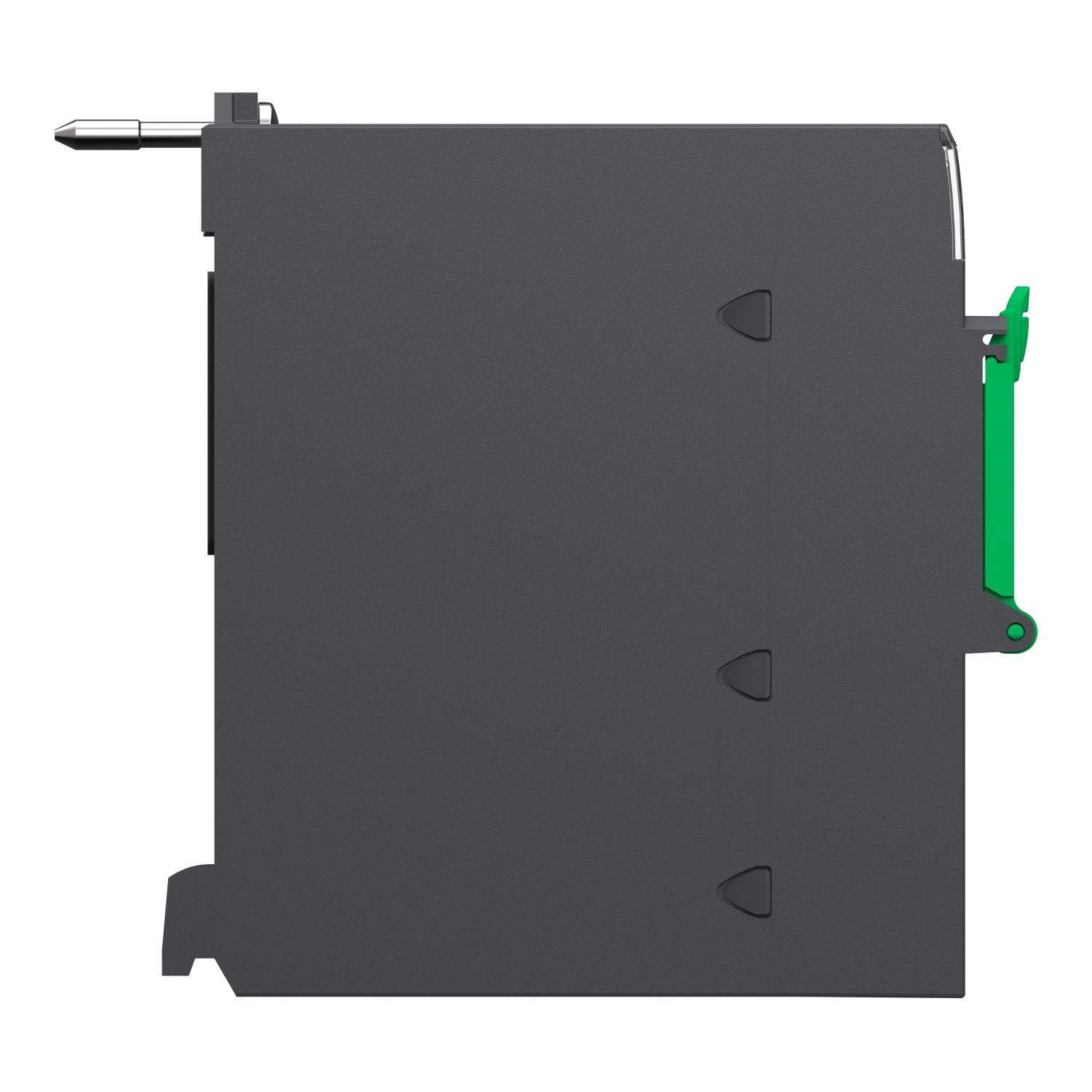

This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet TCP/IP network module supports RJ45 10/100 connection. It is a network module with a current consumption of 90mA at 24V DC, works with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It has reset push-button cold control. It is an IP20 rated product. Communication services are bandwidth management, data editor (via PC, pocket PC or PDA terminal), FDR server, rack viewer, SNMP network administrator, global data, I/O scanning, Modbus TCP messaging, web server configurable etc. It weighs 0.2kg. It is suitable for standard and severe environment applications. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Concept | Transparent Ready |
| Protective treatment | conformal coating |
| Product specific application | for severe environments |
| Integrated connection type | Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30 |
| Product or component type | Ethernet TCP/IP network module |
| Range of product | Modicon M340 automation platform |
| Complementary | |
| Memory usage | application saving: supplied Flash memory card (BMXRWSC016M), activating the standard web server: supplied Flash memory card (BMXRWSC016M), user web page size: internal RAM |
| Memory description | internal RAM 16000 kB, supplied Flash memory card (BMXRWSC016M) |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Module format | standard |
| Local signalling | 1 LED (red) for processor or system fault (ERR), 1 LED (red) for memory card fault (CARD ERR), 1 LED (red) for data rate (ETH 100), 1 LED (green) for status of Ethernet network (ETH STS), 1 LED (green) for processor running (RUN), 1 LED (green) for activity on Ethernet network (ETH ACT) |
| Communication service | SOAP XML Web service (server), Data Editor (via PC, pocket PC or PDA terminal), web server configurable, Modbus TCP messaging, I/O scanning, Global Data, SNMP network administrator, Rack Viewer, FDR server, bandwidth management |
| Control type | RESET push-button cold restart |
| Net weight | 0.2 kg |
| Marking | CE |
| Current consumption | 90 mA at 24 V DC |
| Supply | internal power supply via rack |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 10-95 % without condensation |
| Directives | 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Environmental characteristic | hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04 |
| Product certifications | IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE |
| Standards | EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2 |
| Ambient air temperature for operation | -25-70 °C |
