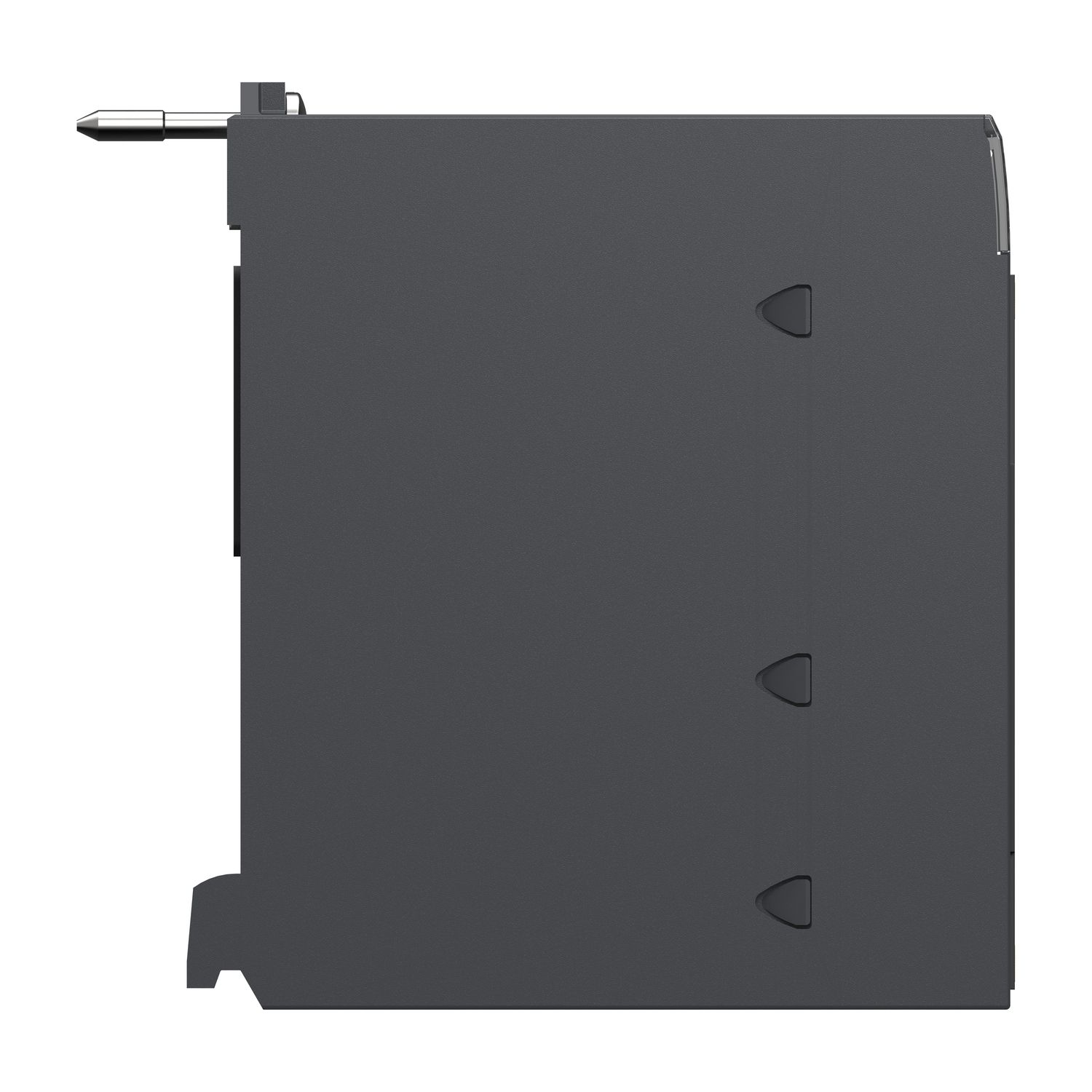

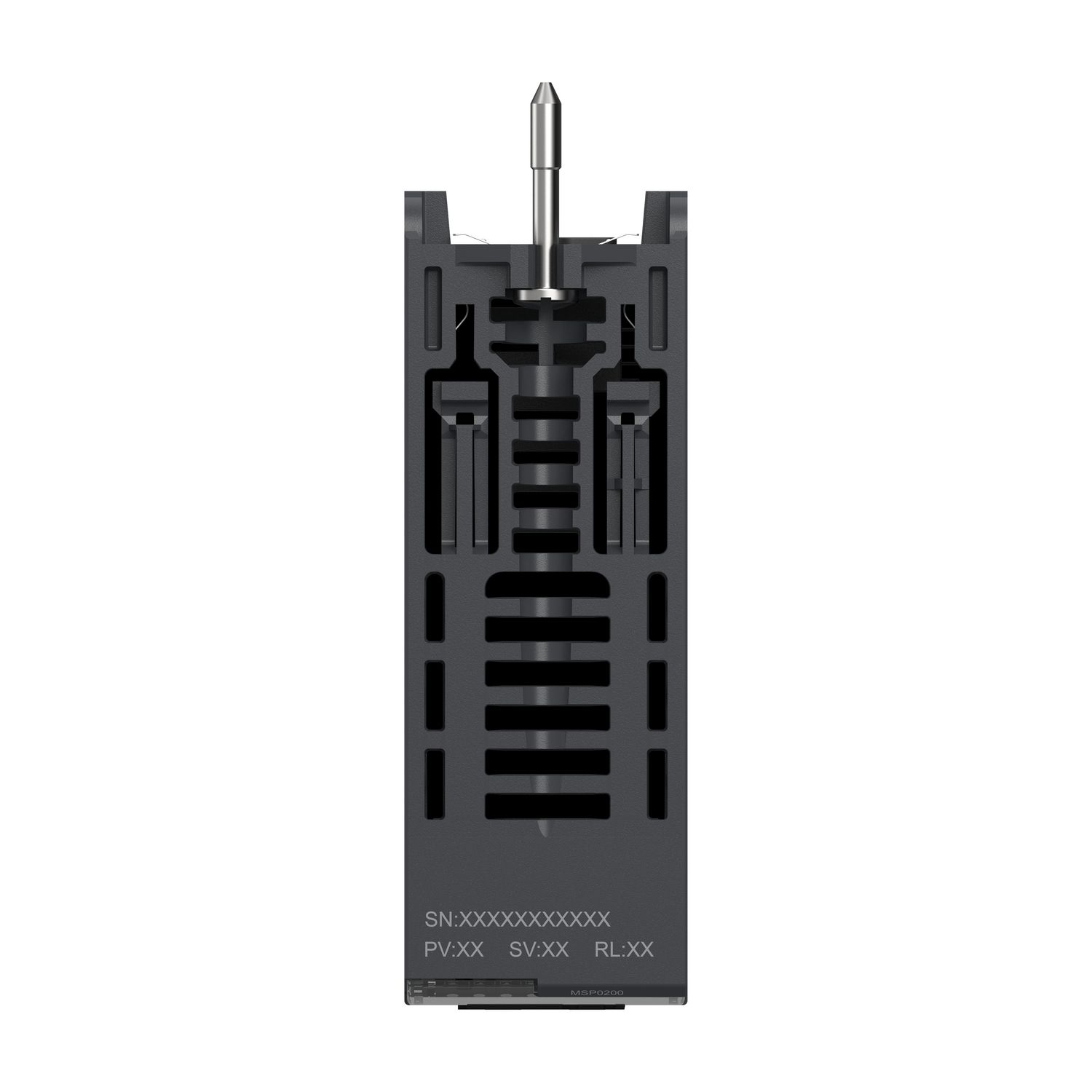

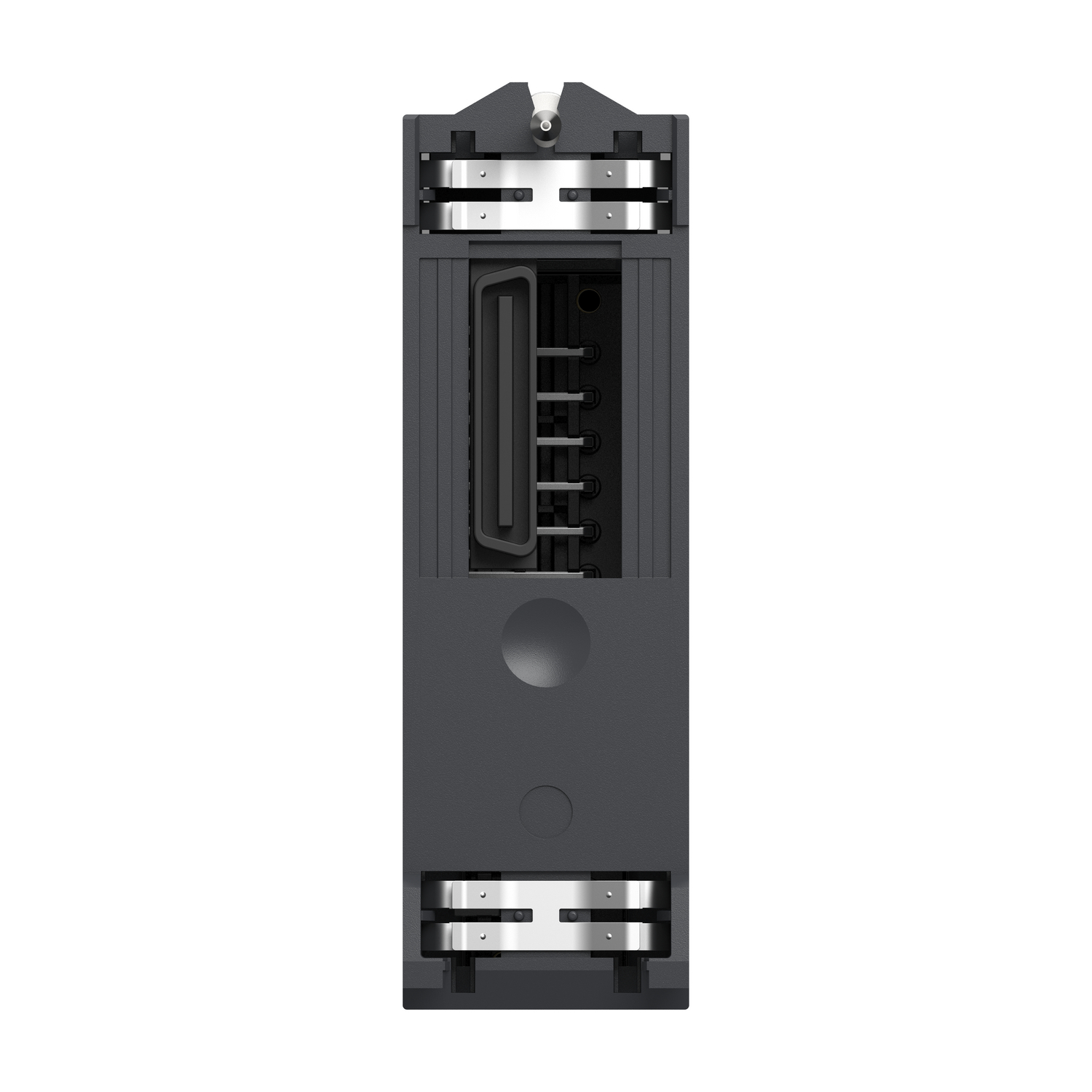

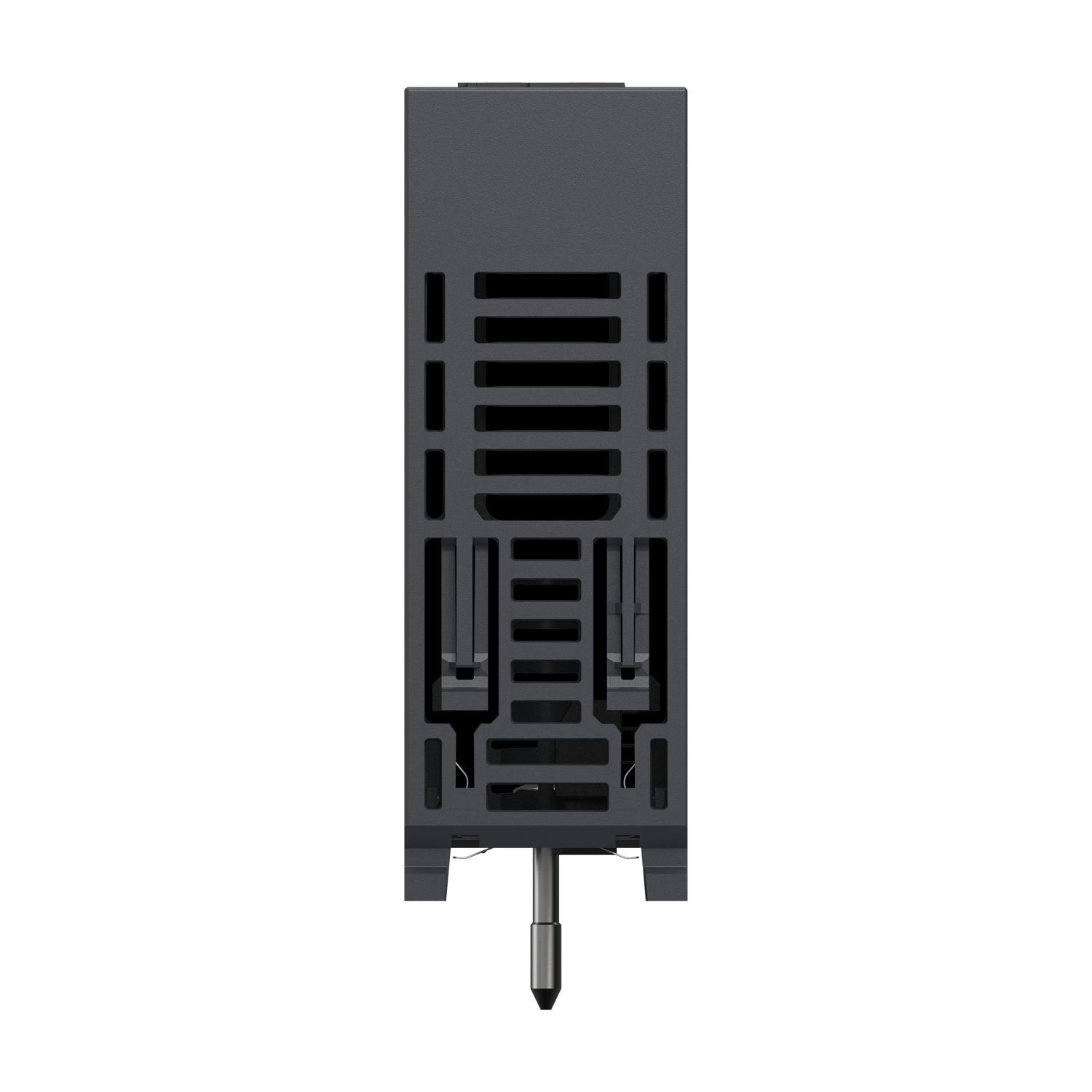

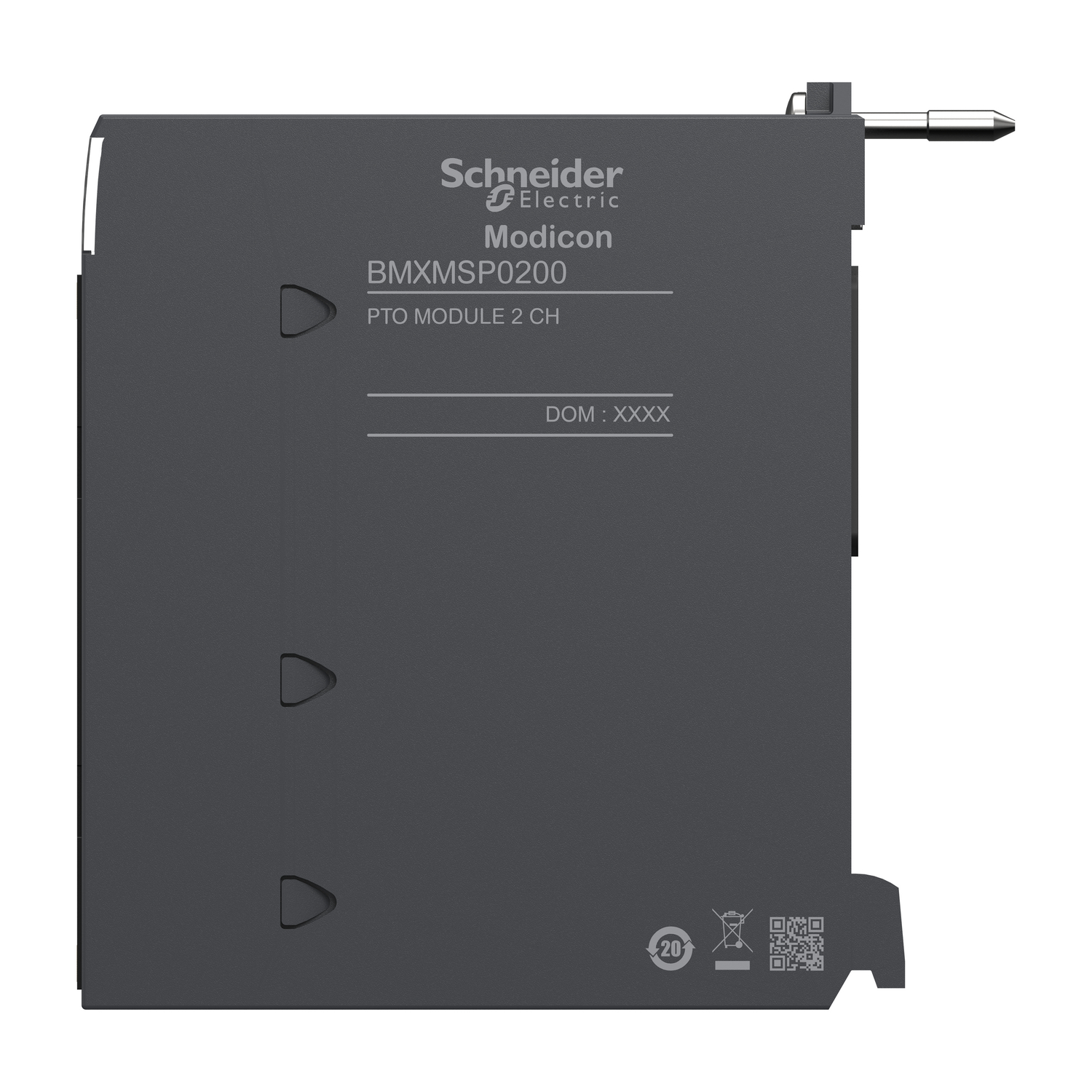

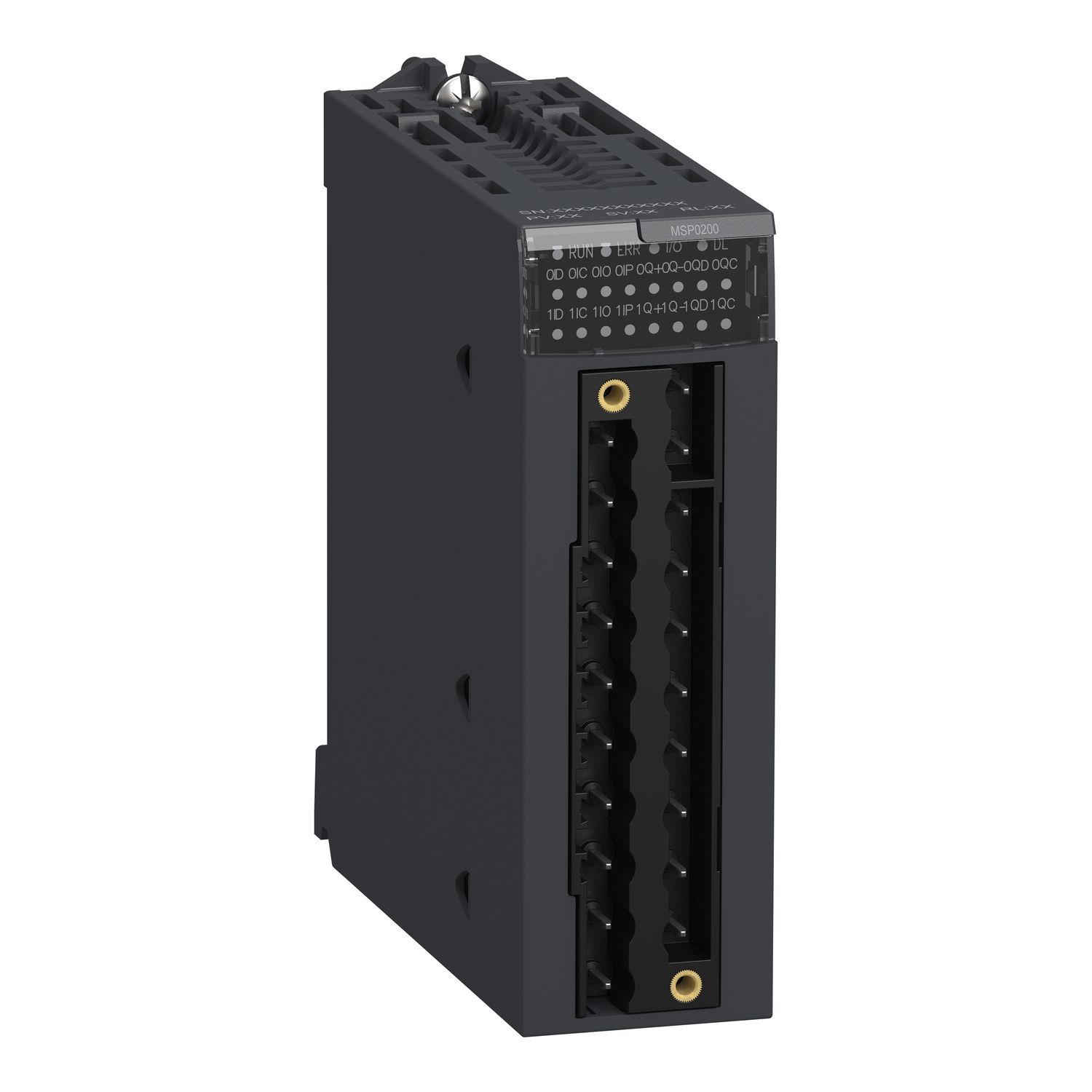

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This PTO module has 2 channels, 4 inputs with sink (positive) discrete logic. It is a PTO module with an input/output voltage 24V DC, an output current of 50mA and a maximum current consumption of 200mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It is furnished with two 28-way connectors for electrical connection. There is no insulation between channels. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This output compatible with signal converter (USIC), RS422, 7mA input and source input, 5V to 24V. Input compatible with 2-wire/3-wire proximity sensor 19.2V to 30V conforming to IEC 947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete input type | current sink or source drive ready, emergency input conforming to IEC 61131-2 type 3, current sink or source counter in position input conforming to IEC 61131-2 type 3, current sink yes proximity input and limit switch input conforming to IEC 61131-2 type 3, current sink yes origin input conforming to IEC 61131-2 type 3 |
| Number of channels | 2 |
| Input compatibility | 2-wire/3-wire proximity sensor 19.2-30 V conforming to IEC 947-5-2 |
| Output frequency | 200 kHz <10 m with the RS422 compatible circuits, 100 kHz <5 m with the normal source input circuit, 200 kHz <0.5 m with USIC and VW3M8210R05 |
| Product or component type | PTO module |
| Output compatibility | source input, 5 V to 24 V, RS422, 7 mA input, signal converter (USIC) |
| Number of inputs | 4 |
| Range of product | Modicon X80 |
| Complementary | |
| Voltage state 1 guaranteed | >= 11 V |
| Response time on output | 1.2...1.5 ms on disappearance, 1.2...1.5 ms on appearance |
| Preactuator voltage detection threshold | > 14 V no error preactuator voltage pulse output, > 14 V error preactuator voltage pulse output, < 8 V no error preactuator voltage auxiliary output, < 8 V error preactuator voltage auxiliary output |
| Maximum leakage current | 0.05 mA at state 0 |
| [Ures] residual voltage | 0.15 V at state 1 |
| Reverse polarity protection | integrated on input, by reverse mounting diode on output |
| Module format | standard |
| Output voltage | 24 V DC |
| Output overload protection | by current limiter and electronic circuit breaker |
| Local signalling | 8 LEDs (green) for channel status (CH01), 8 LEDs (green) for channel status (CH00), 1 LED (green) for download (DL), 1 LED (red) for internal fault, module failure (ERR), 1 LED (red) for external fault (I/O), 1 LED (green) for module operating (RUN) |
| Insul btwn prim and second | 1500 Vrms |
| Insulation between channels | no insulated |
| Input voltage | 24 V DC |
| Output short-circuit protection | by current limiter and electronic circuit breaker |
| Output voltage limits | 19...30 V |
| Operating threshold | > 8 V error supply voltage, > 12 V no error supply voltage |
| Current state 1 guaranteed | >= 2 mA |
| Input current | 4.3 mA |
| Load impedance ohmic | 15000 Ohm |
| Voltage state 0 guaranteed | 5 V |
| Current state 0 guaranteed | <= 1.5 mA |
| Discrete output current | 50 mA |
| Current consumption | 200 mA at 3.3 V DC maximum, 150 mA at 3.3 V DC typical, 35 mA at 24 V DC preactuator |
| Response time | < 60 µs for origin input and proximity input, < 200 µs for position completed input and drive ready input |
| Product certifications | IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE |
| Insulation resistance | > 10 MOhm |
| Number of outputs | 2 auxiliary output, 1 pulse output |
| Current per channel | 0.4 A |

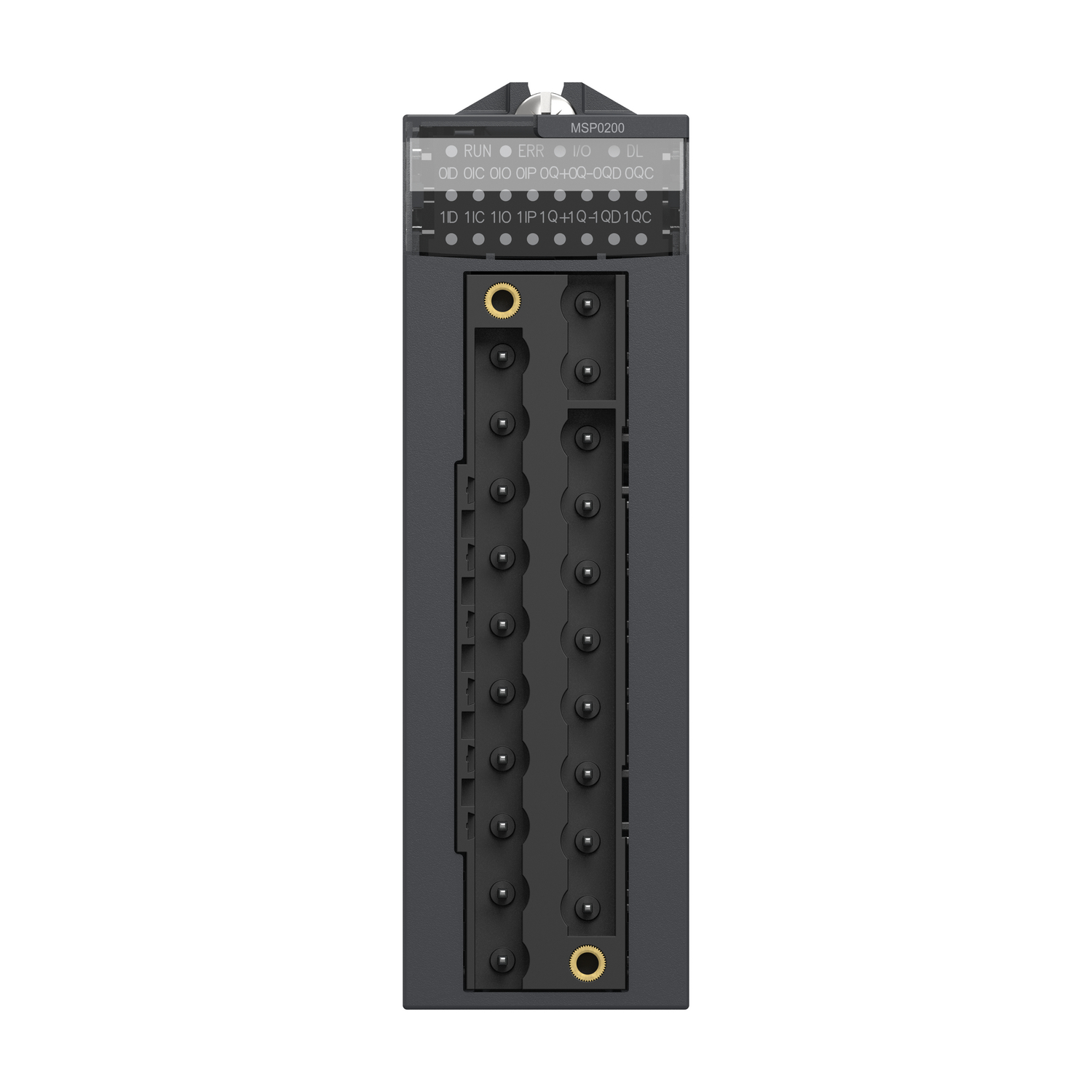

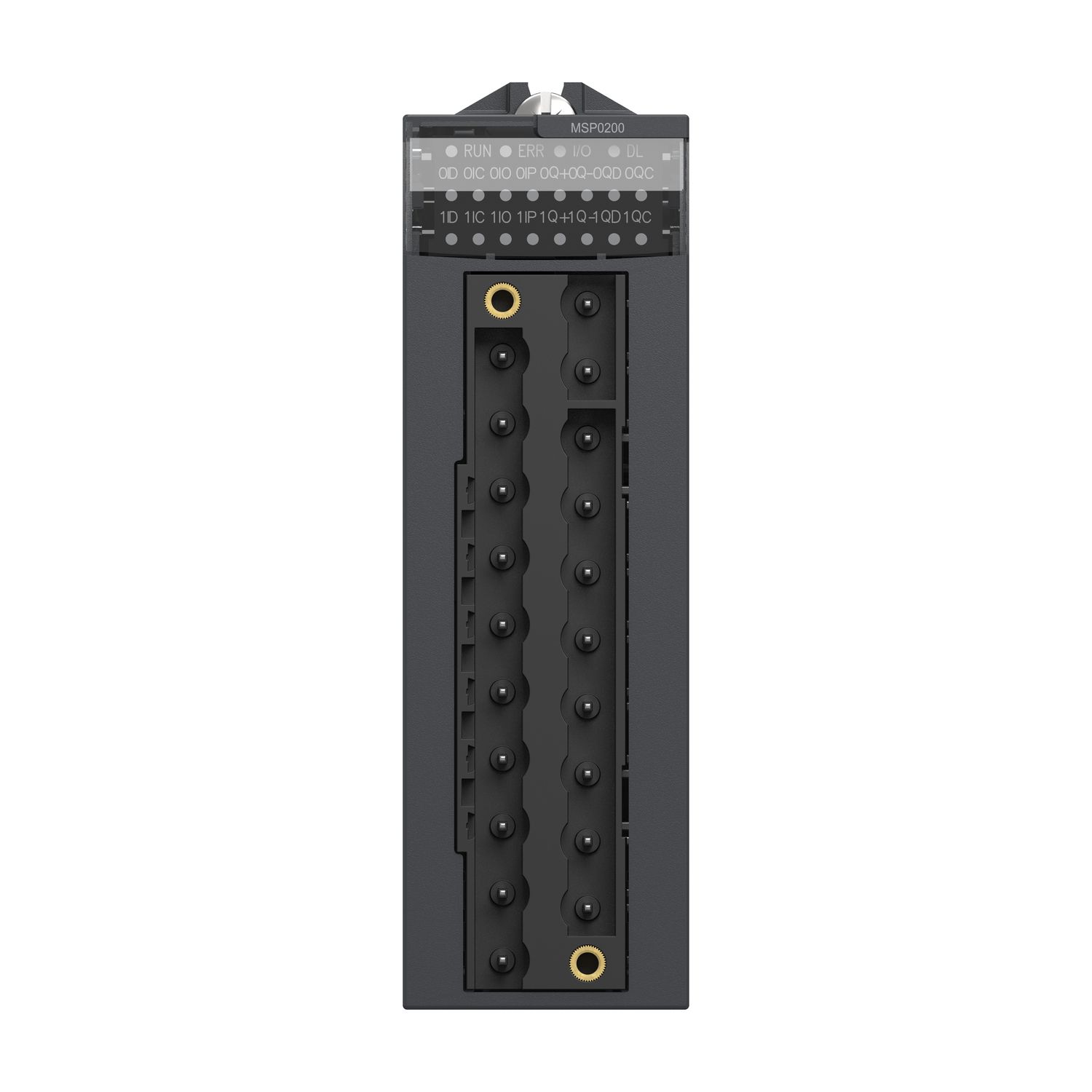

| Electrical connection | 2 connectors with 28 pins |
| Environment | |
| Derating factor | without |
| Directives | 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Environmental characteristic | hazardous location class I division 2 |
| Standards | EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2 |
| Ambient air temperature for operation | -25-70 °C |
