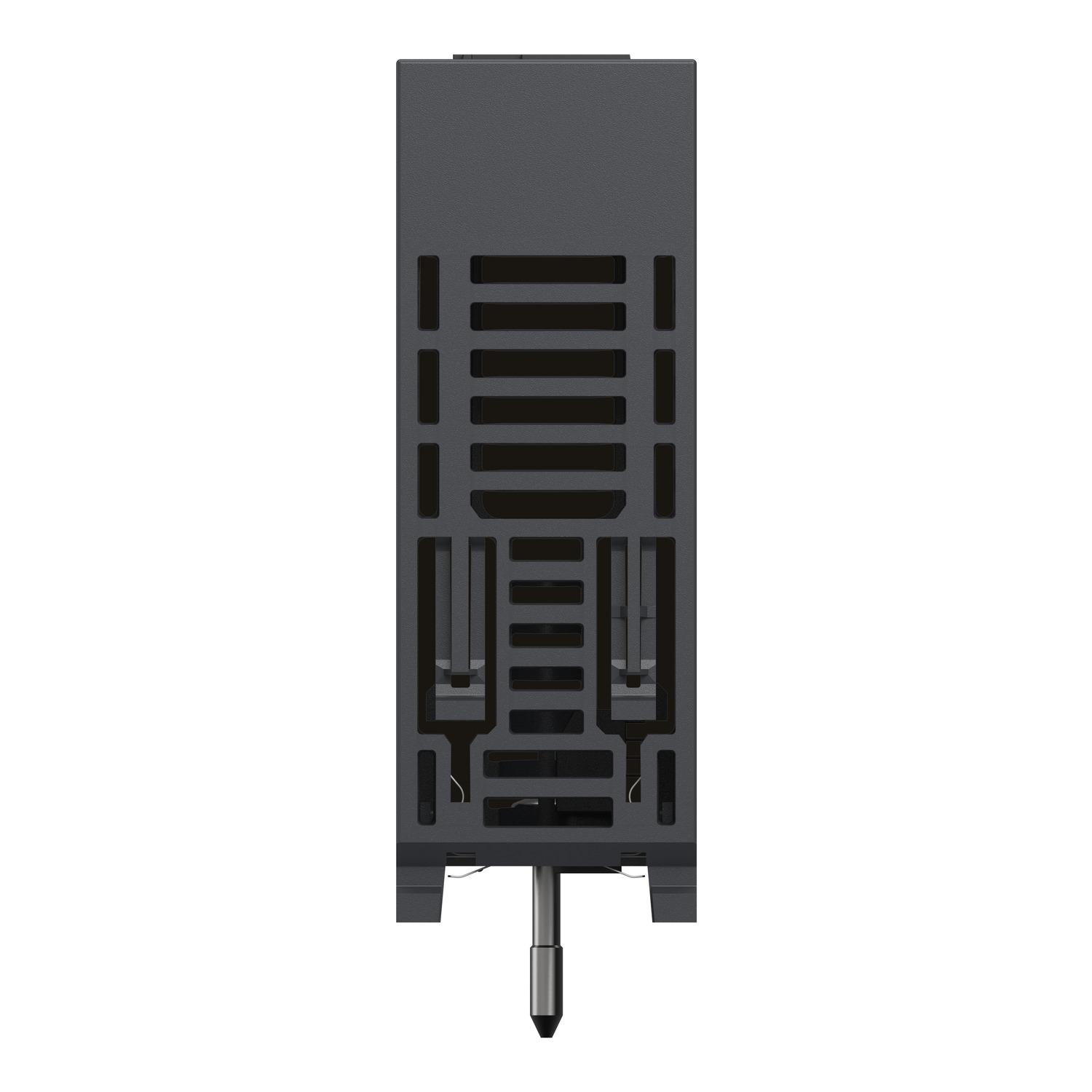

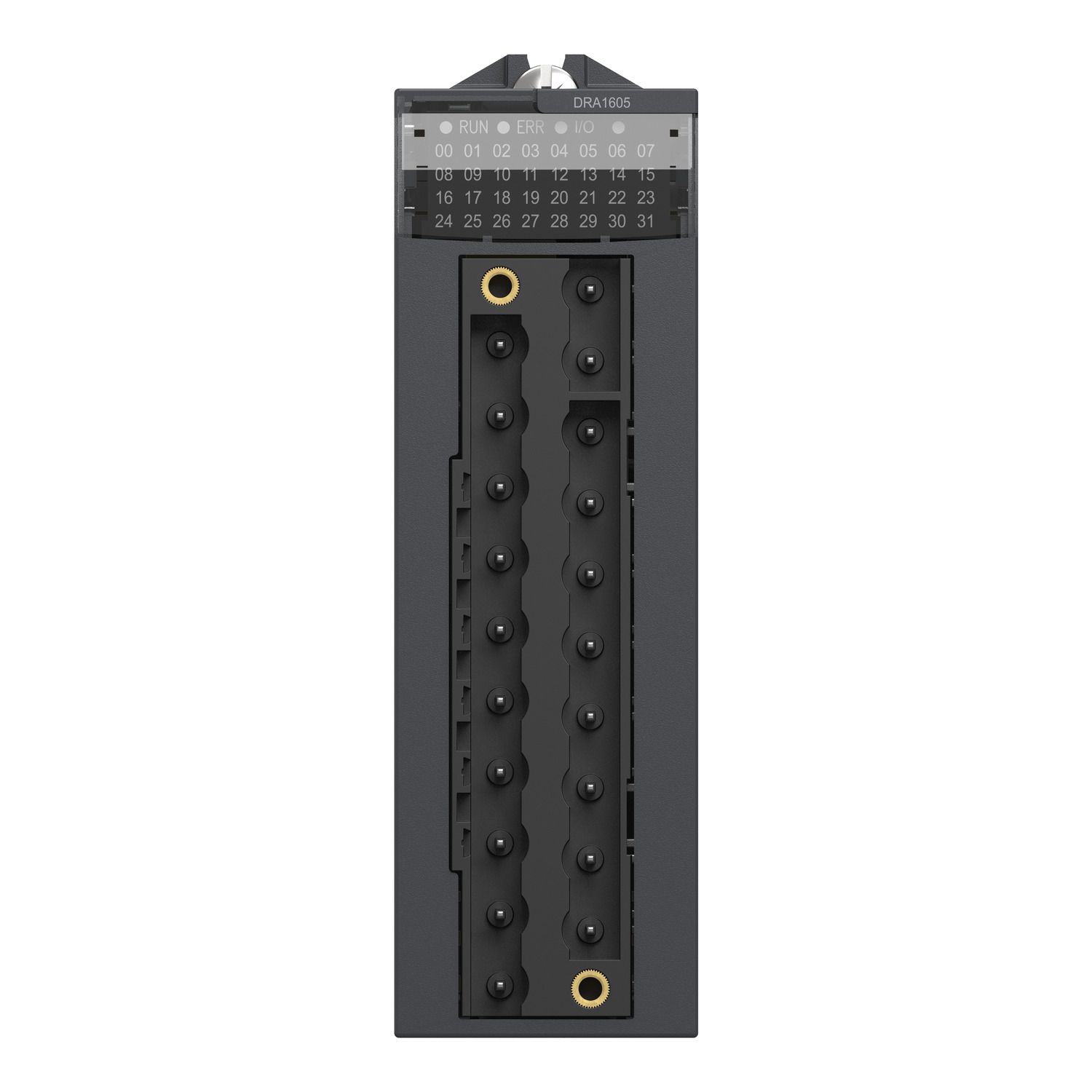

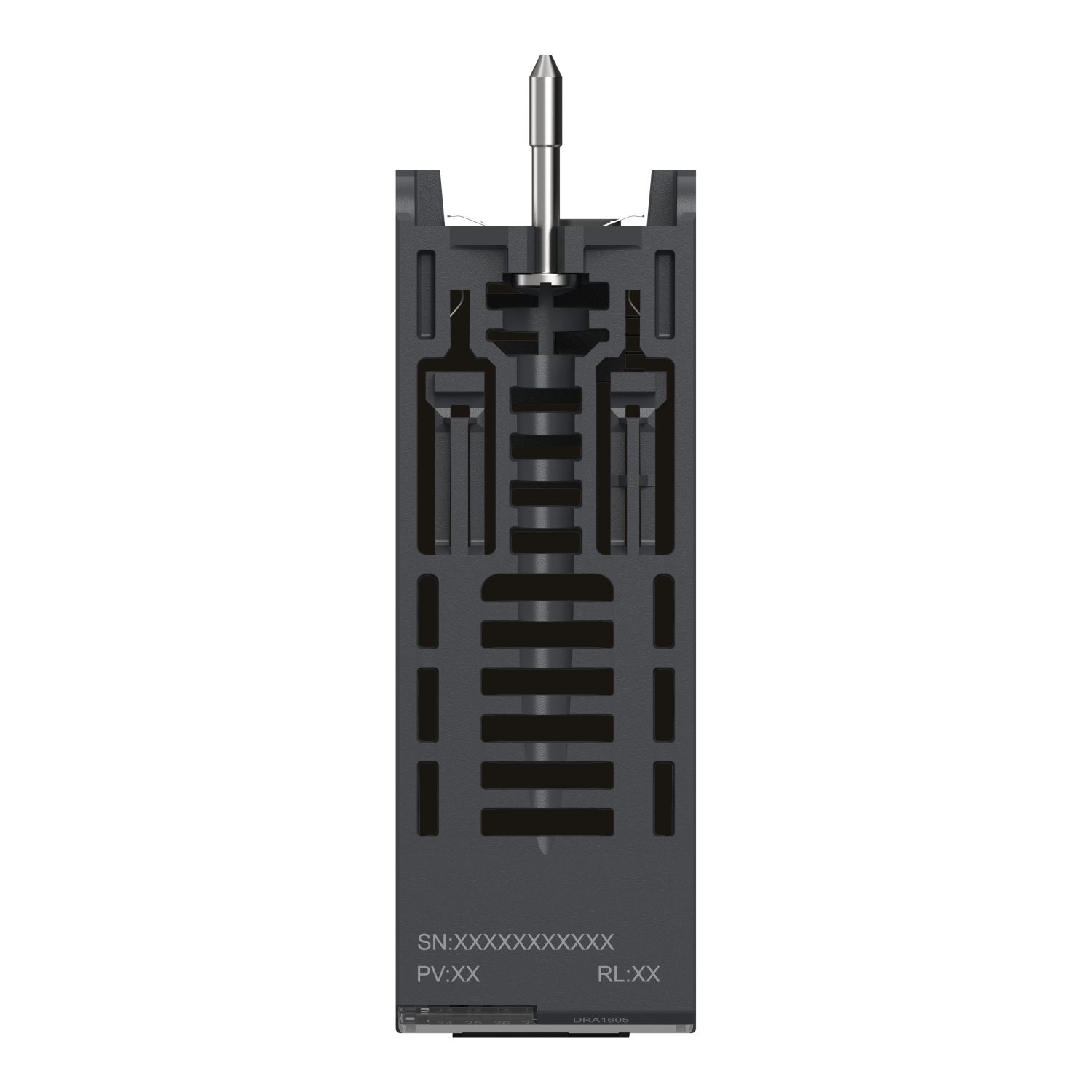

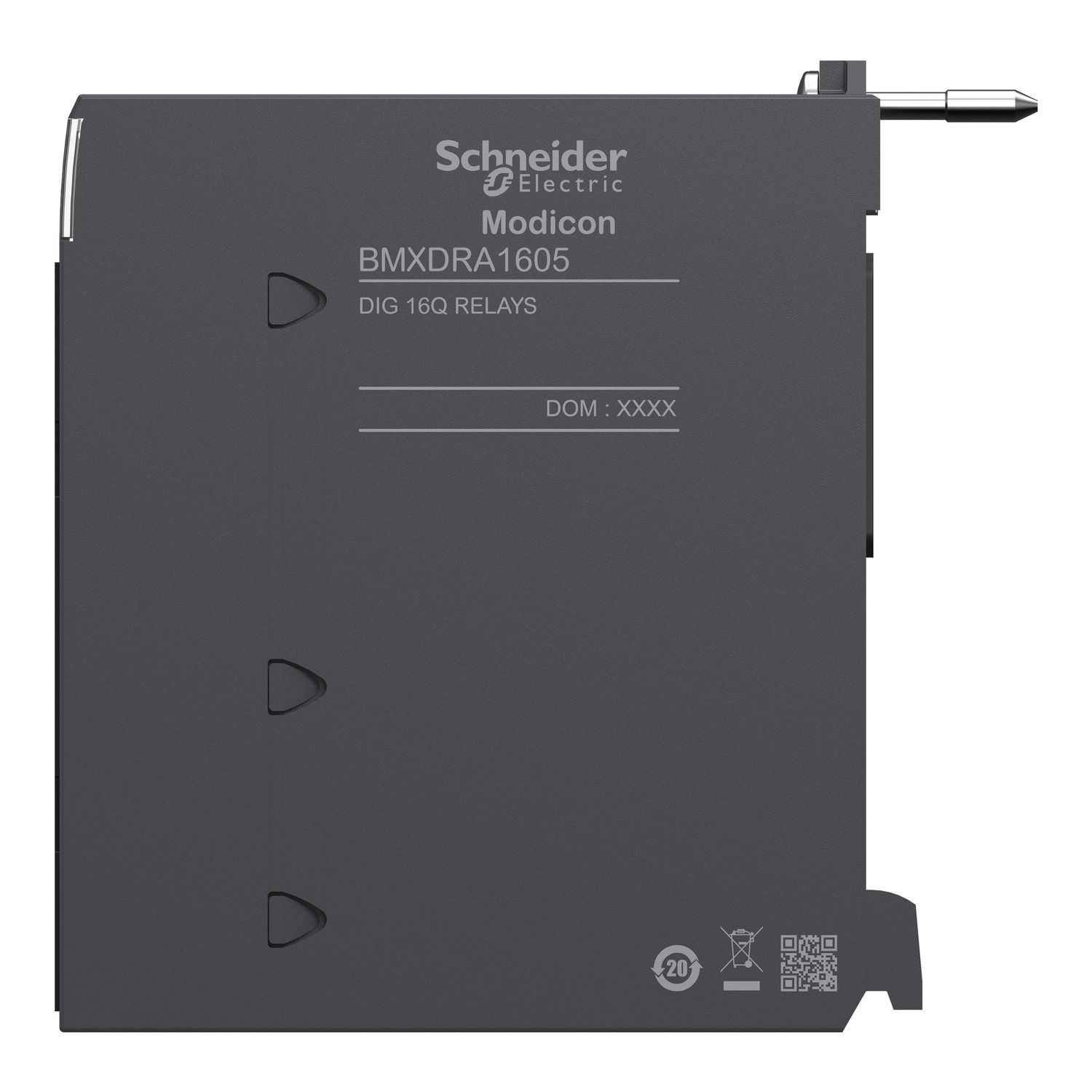

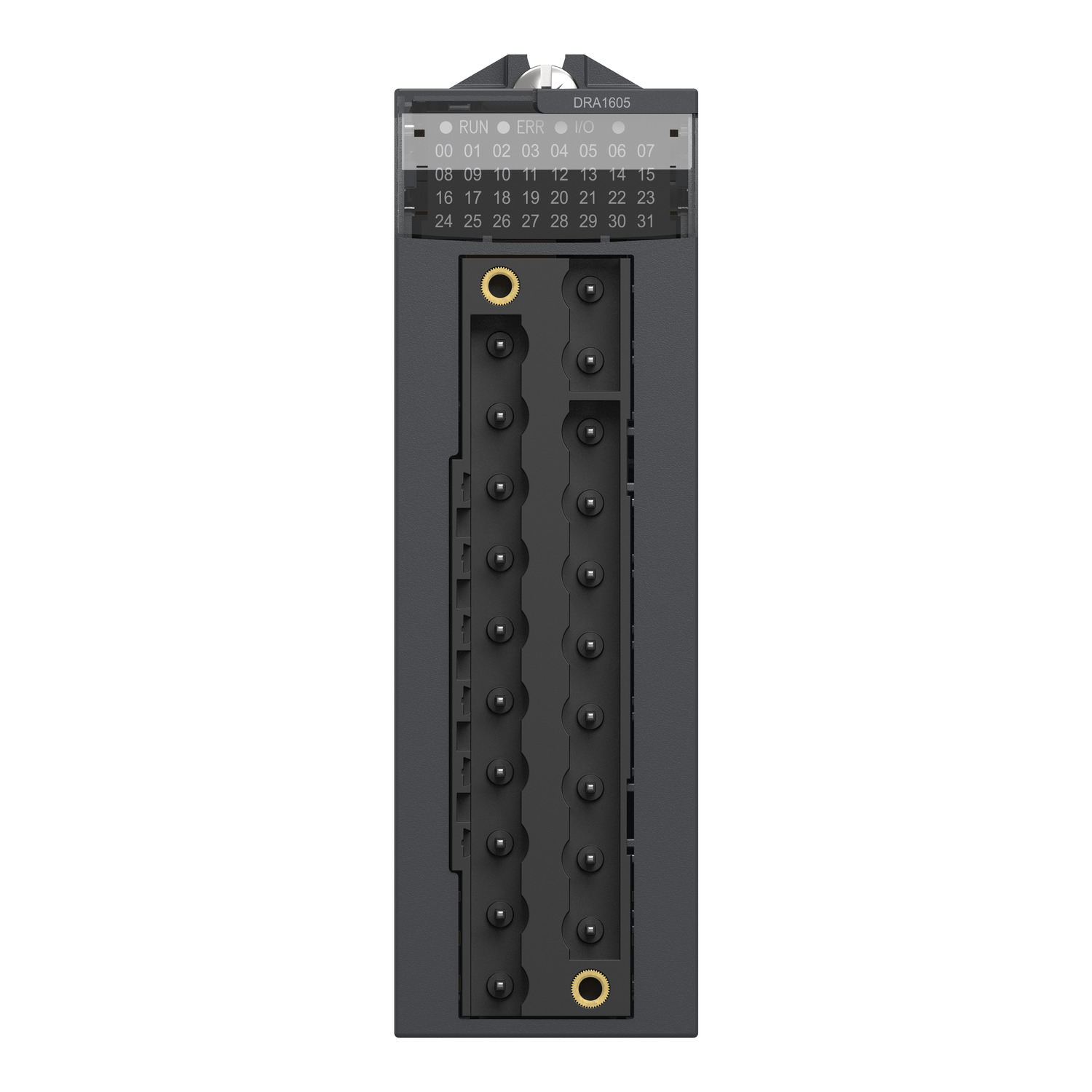

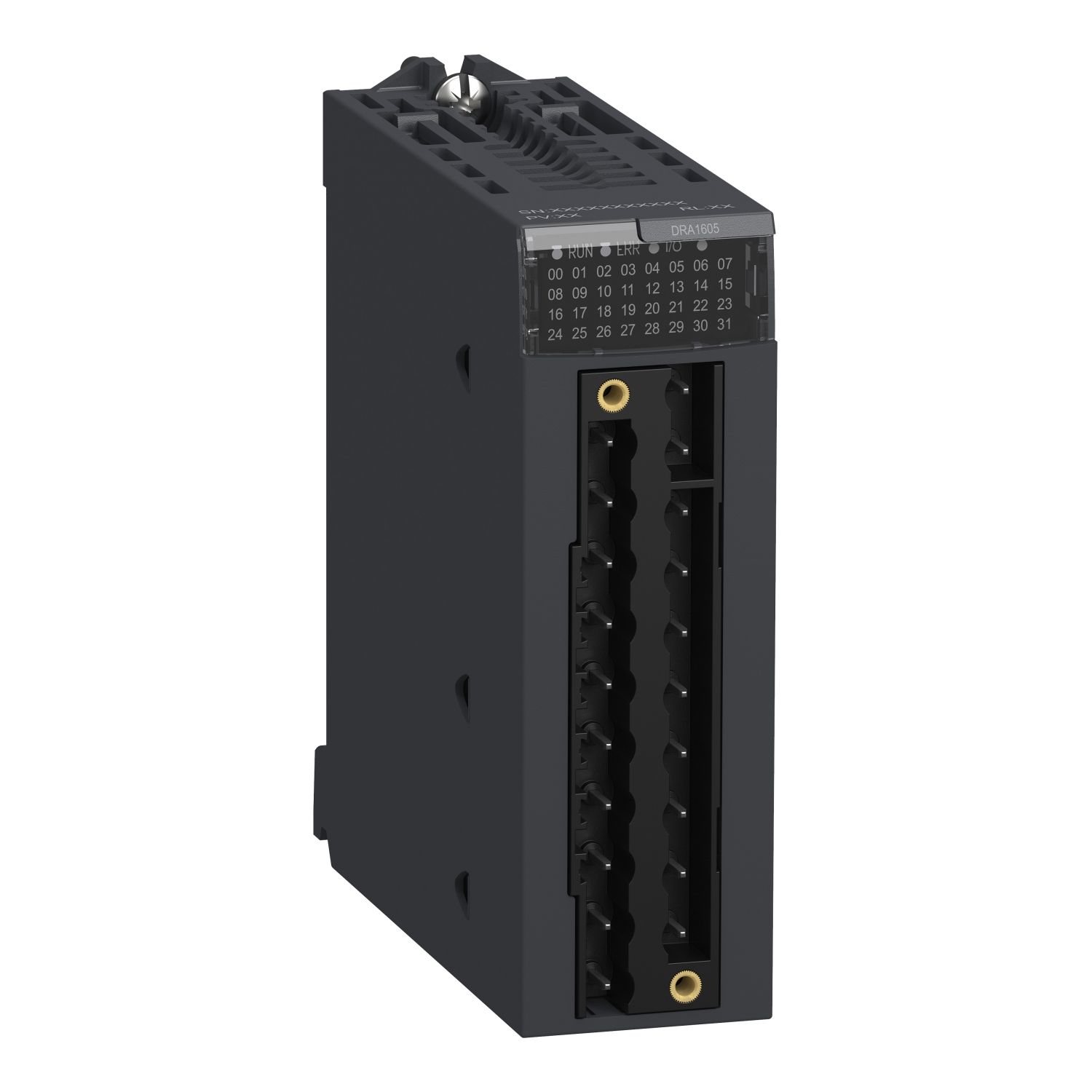

This discrete output module is part of the Modicon X80 modules. It has 16 relay non protected outputs, 24V DC / 24V to 240V AC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product or component type | discrete output module |
| Discrete output voltage | 24...240 V 19…264 V AC, 24...48 V 19...60 V DC |
| Discrete output number | 16 conforming to EN/IEC 61131-2 |
| Range of product | Modicon X80 |
| Discrete output type | relay |
| Complementary | |
| Response time on output | < 10 ms deactivation, < 8 ms activation |
| Output overload protection | use 1 fast blow fuse per channel or group of channel |
| Output short-circuit protection | use 1 fast blow fuse per channel or group of channel |
| Output overvoltage protection | use ZNO surge limiter on each output AC, use RC circuit on each output AC, use discharge diode on each output DC |
| Typical current consumption | 95 mA at 24 V DC, 100 mA at 3.3 V DC |
| Electrical durability | DC-12: 50000 cycles at 24 W 48 V, DC-13: 7000 cycles at 24 W 48 V, DC-13: 7000 cycles at 24 W 24 V, DC-13: 300000 cycles at 3 W 48 V, DC-13: 300000 cycles at 3 W 24 V, AC-15: 300000 cycles at 72 VA 24 V, AC-15: 300000 cycles at 36 VA 24 V, AC-15: 300000 cycles at 72 VA 48 V, AC-15: 300000 cycles at 36 VA 48 V, AC-15: 300000 cycles at 72 VA 100 V, AC-15: 300000 cycles at 36 VA 100 V, AC-12: 300000 cycles at 50 VA 48 V, AC-12: 300000 cycles at 80 VA 100 V, AC-12: 300000 cycles at 200 VA 200 V, AC-15: 300000 cycles at 36 VA 200 V (load factor 0.35 ), AC-15: 300000 cycles at 72 VA 200 V (load factor 0.7 ), DC-13: 100000 cycles at 10 W 48 V, DC-13: 100000 cycles at 10 W 24 V, DC-12: 100000 cycles at 24 W 24 V, AC-15: 100000 cycles at 120 VA 48 V, AC-15: 100000 cycles at 120 VA 24 V, AC-15: 100000 cycles at 120 VA 100 V, AC-12: 100000 cycles at 50 VA 24 V, AC-12: 100000 cycles at 80 VA 48 V, AC-12: 100000 cycles at 200 VA 100 V, AC-15: 100000 cycles at 120 VA 200 V (load factor 0.35 ), AC-15: 100000 cycles at 240 VA 200 V (load factor 0.7 ) |
| Net weight | 0.15 kg |
| Power dissipation in W | 3 W |
| [Ith] conventional free air thermal current | 2 A |
| Insulation resistance | > 10 MOhm 500 V DC |
| Status LED | 1 LED (red) I/O, 1 LED (red) ERR, 1 LED per channel (green) channel diagnostic, 1 LED (green) RUN |
| Minimum switching current | 1 mA 5 V DC |
| MTBF reliability | 2100000 H |
| Environment | |
| IP degree of protection | IP20 |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Vibration resistance | 3 gn |
| Dielectric strength | 2000 V AC at 50/60 Hz 1 min |
| Shock resistance | 30 gn |
| Ambient air temperature for operation | 0-60 °C |
