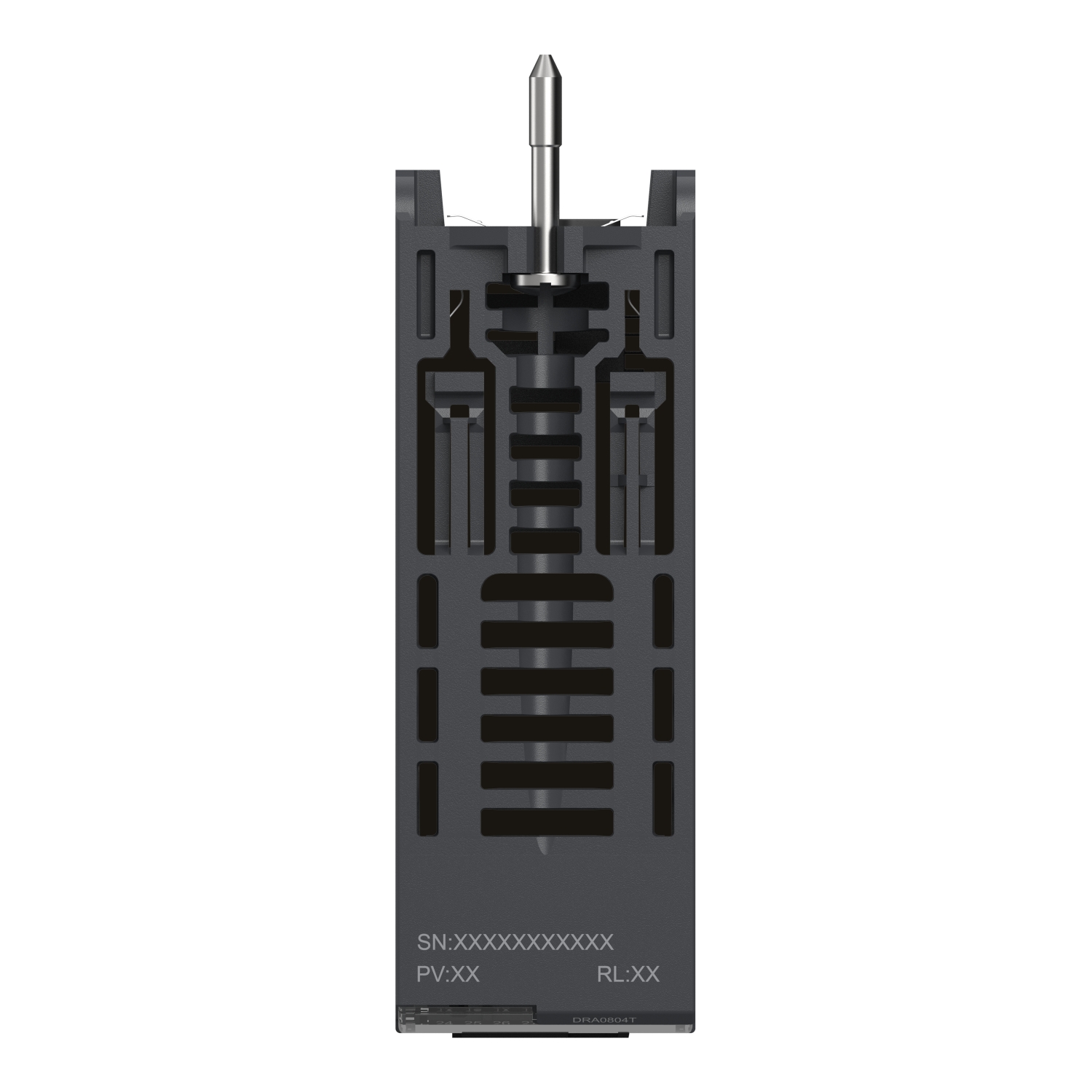

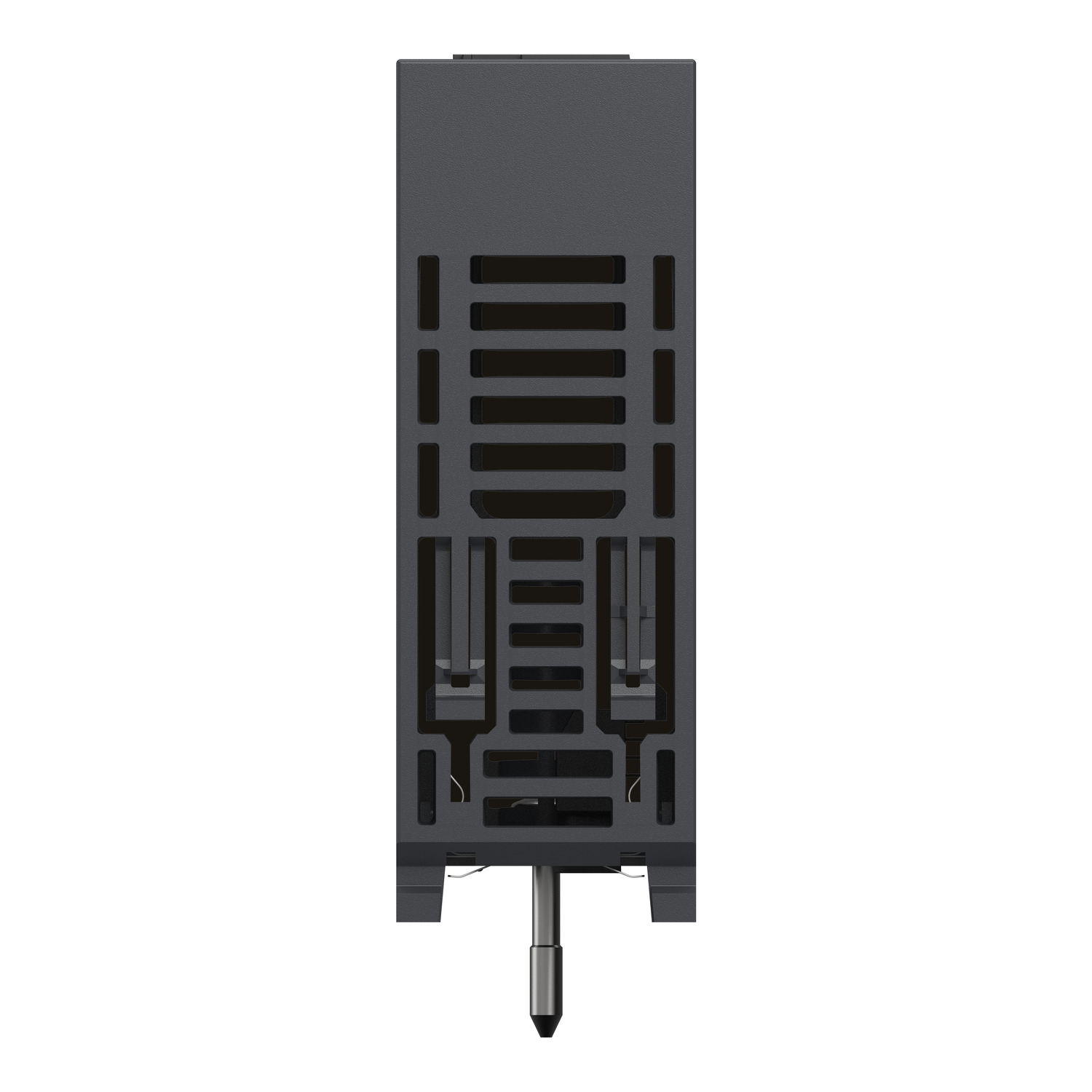

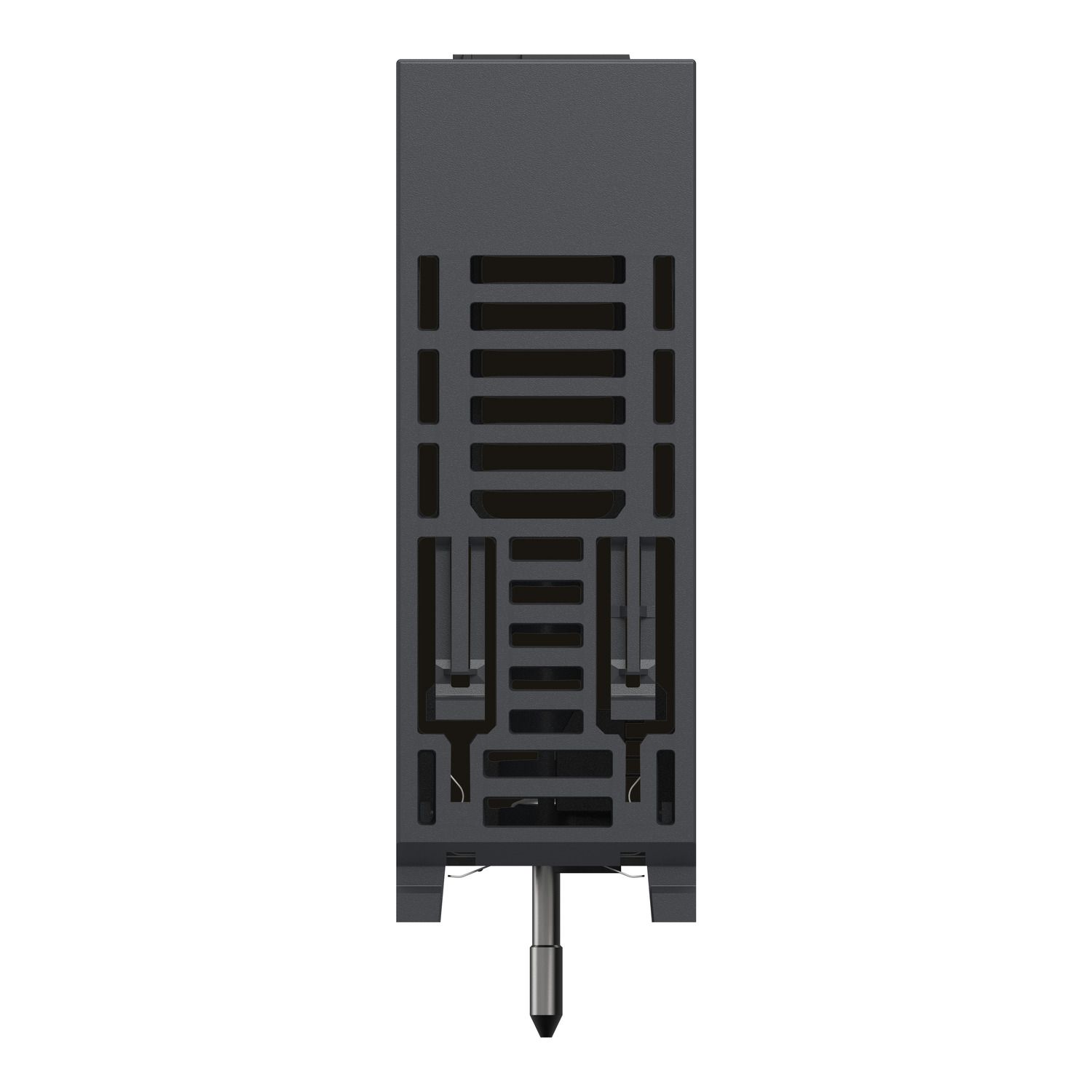

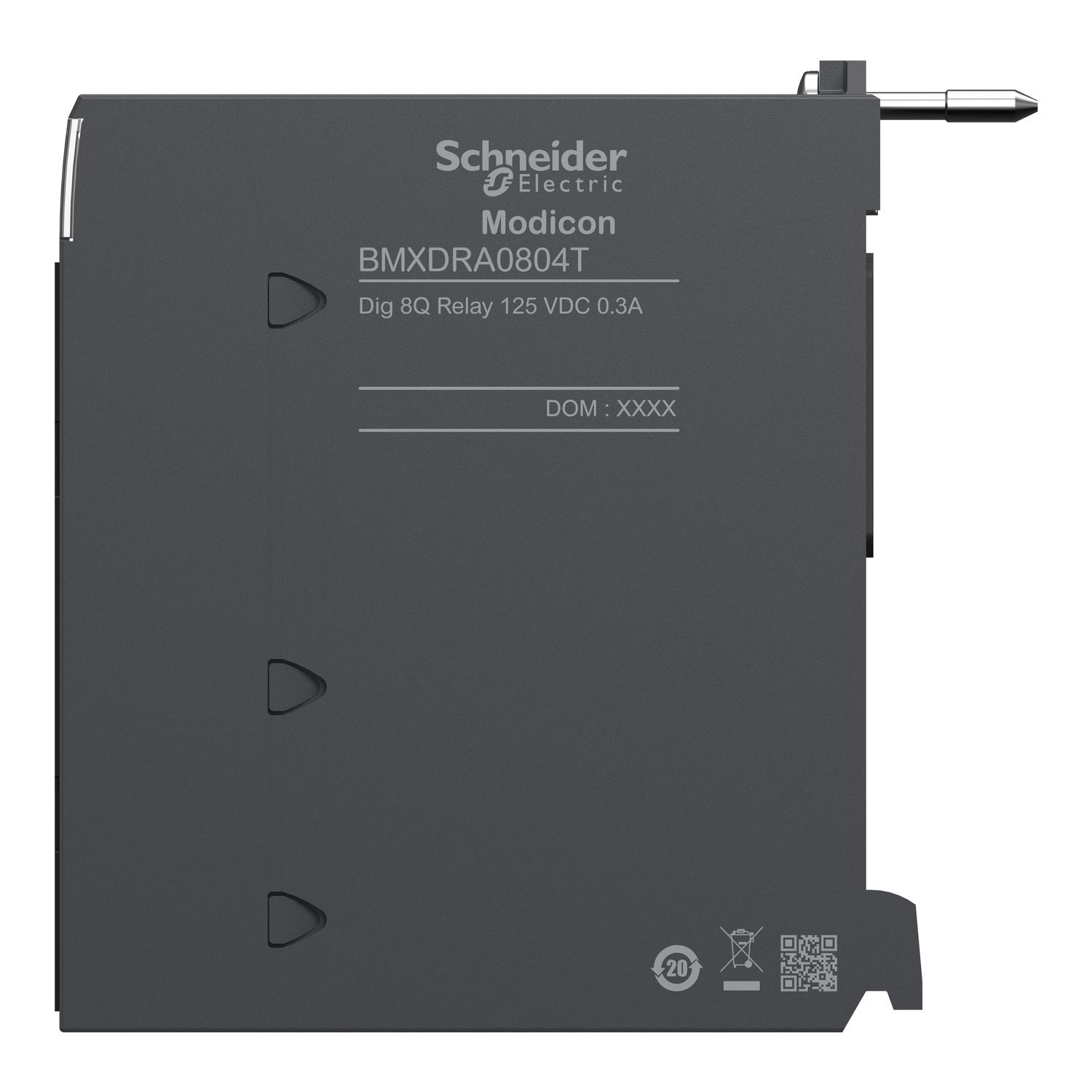

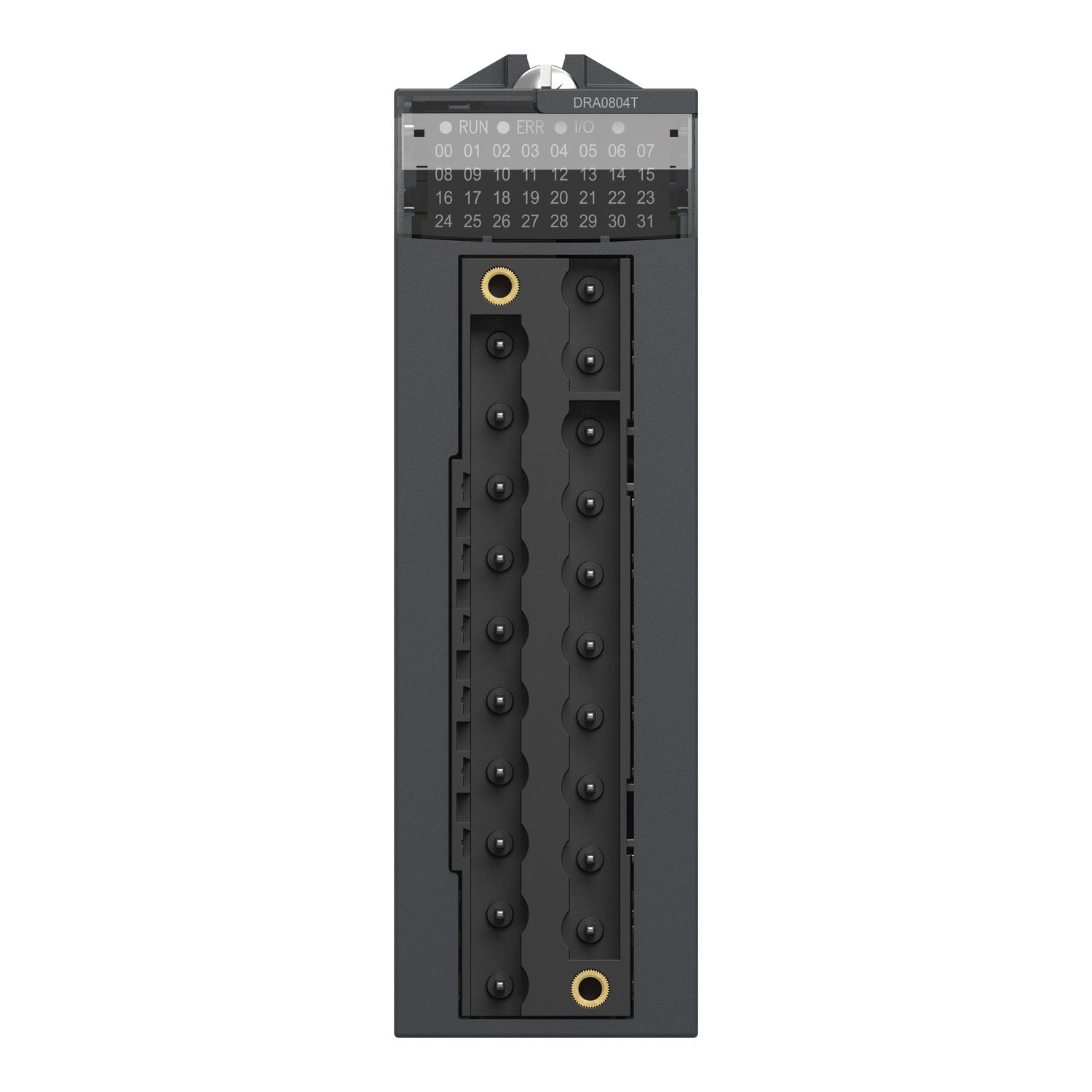

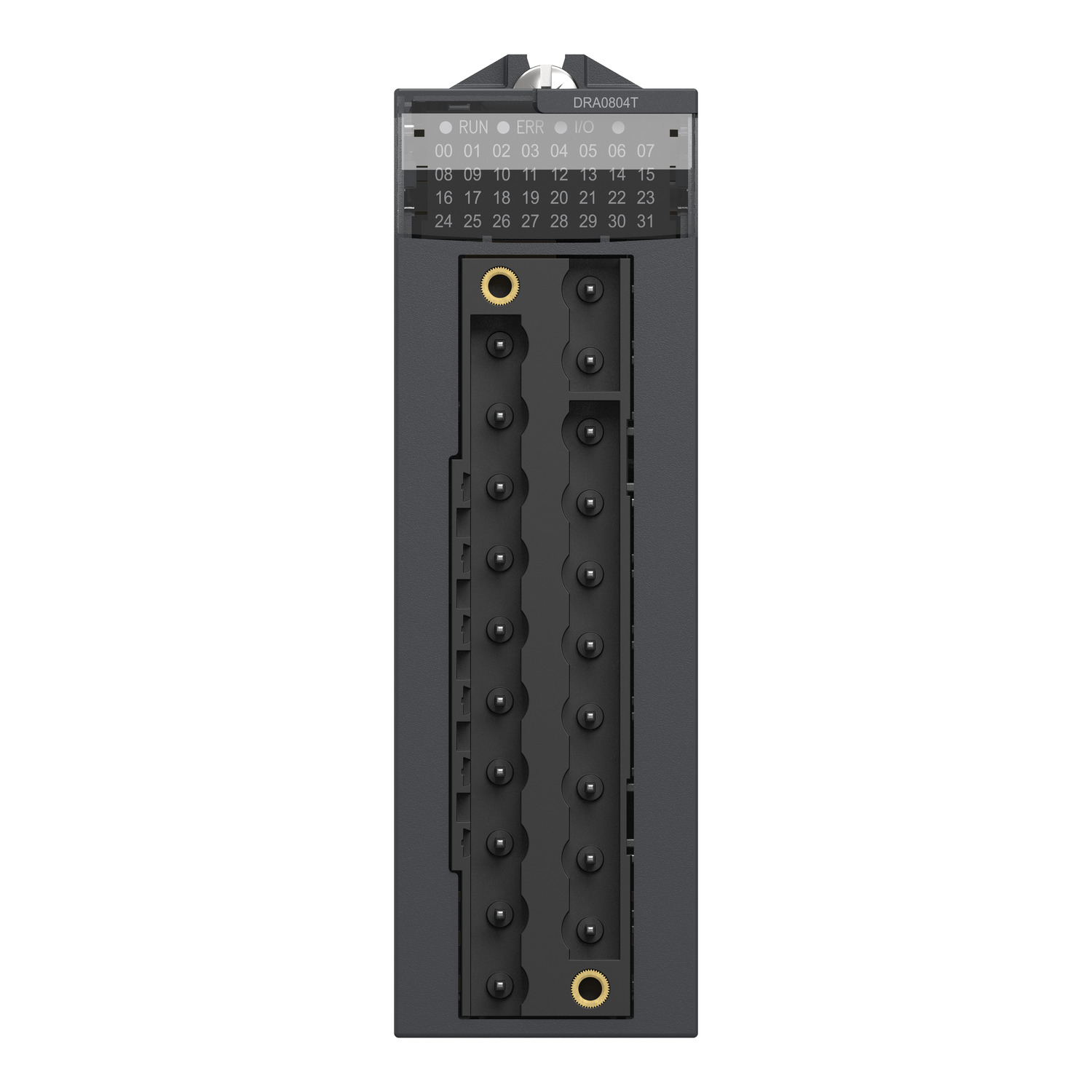

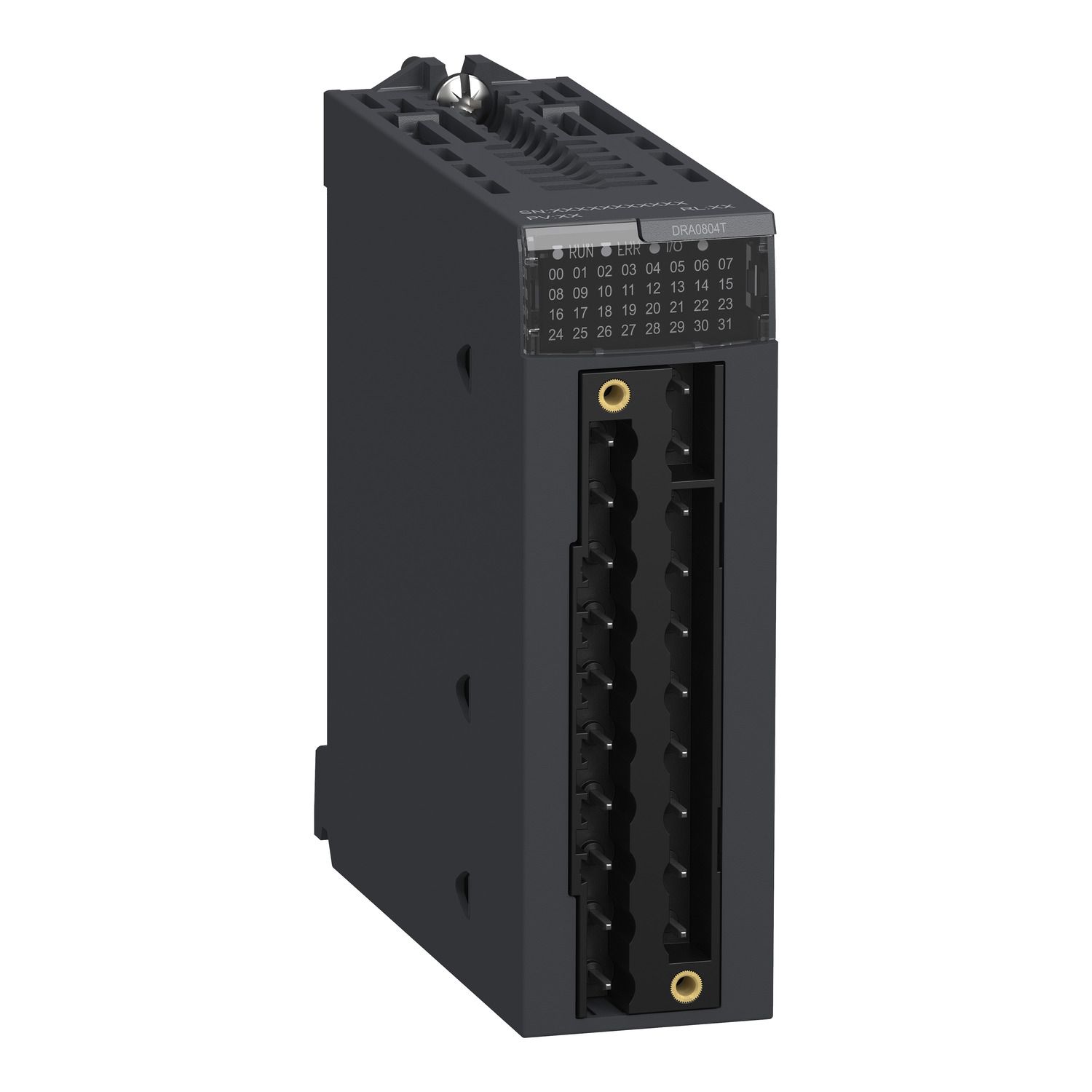

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 8 relay outputs. It is a discrete output module with an output voltage of 100V DC to 150V DC, a typical current consumption of 61mA at 3.3V DC, 104mA at 24V DC. This product is robust, high quality and based on the latest innovative technology. It offers electrical durability of 100000 cycles and mechanical durability of 20 million cycles. It is an IP20 rated product. It weighs 0.145kg. It is suitable for extended temperature, medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete output voltage | 100...150 V DC |
| Range of product | Modicon X80 |
| Discrete output type | relay |
| Product specific application | extended temperature |
| Product or component type | discrete output module |
| Discrete output number | 8 conforming to EN/IEC 61131-2 |
| Complementary | |
| Response time on output | < 10 ms deactivation, < 10 ms activation |
| Output overload protection | use 1 fast blow fuse per channel or group of channel |
| Mechanical durability | 20000000 cycles |
| Output short-circuit protection | use 1 fast blow fuse per channel or group of channel |
| Output overvoltage protection | use discharge diode on each output DC |
| Typical current consumption | 104 mA at 24 V DC, 61 mA at 3.3 V DC |
| Electrical durability | DC-13: 100000 cycles at 12 W 125 V, DC-12: 100000 cycles at 37 W 125 V |
| Power dissipation in W | 3.17 W |
| Maximum switching current | 0.3 A |
| Status LED | 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN) |
| MTBF reliability | 2800000 H |
| Net weight | 0.145 kg |
| Insulation resistance | > 10 MOhm 500 V DC |
| Current consumption | <= 117 mA at 24 V DC, <= 112 mA at 3.3 V DC |
| Minimum switching current | 100 mA 5 V DC |
| Environment | |
| IP degree of protection | IP20 |
| Protective treatment | conformal coating |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Ambient air temperature for operation | -25-70 °C |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Vibration resistance | 3 gn |
| Dielectric strength | 2000 V AC at 50/60 Hz 1 min |
| Environmental characteristic | fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx |
| Shock resistance | 30 gn |
