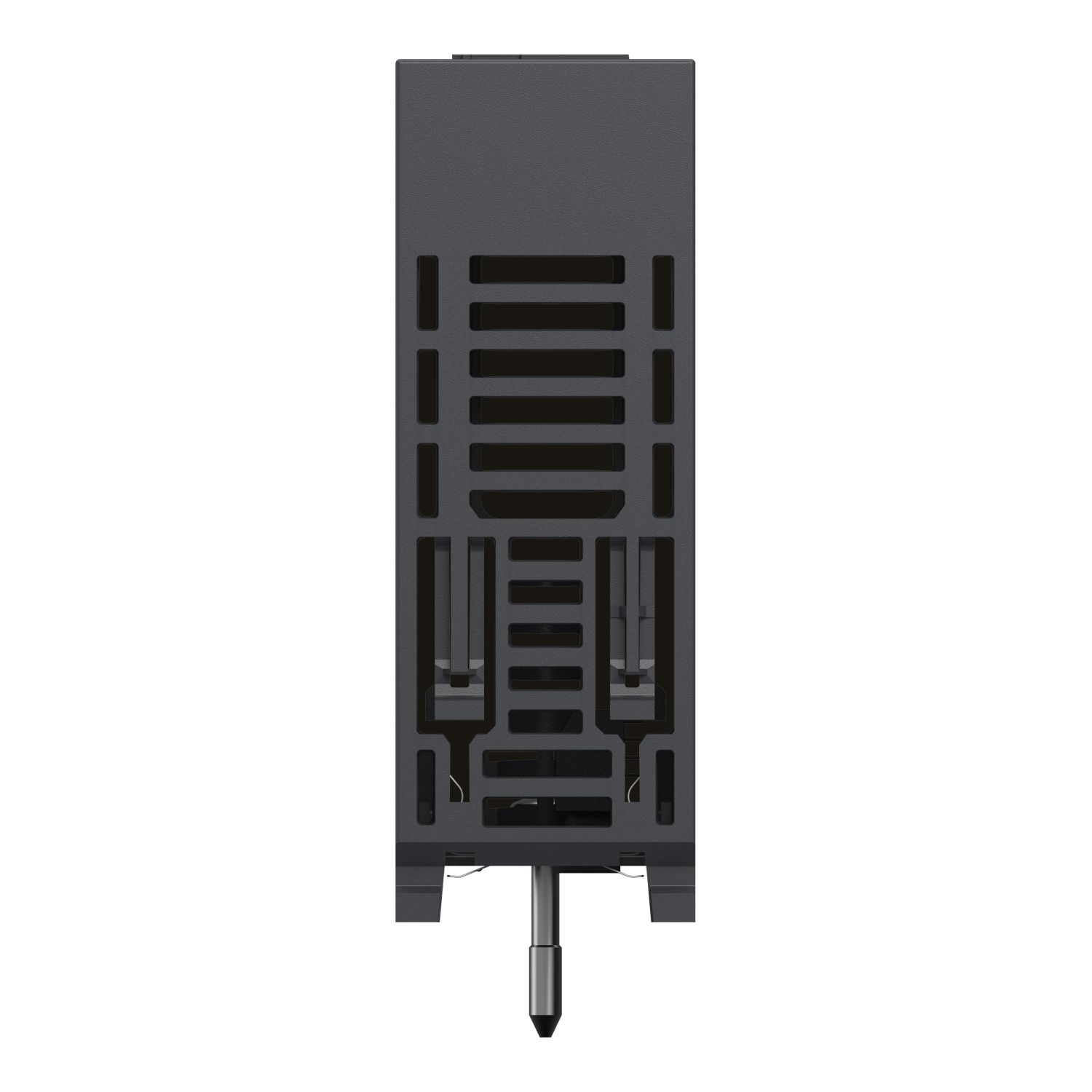

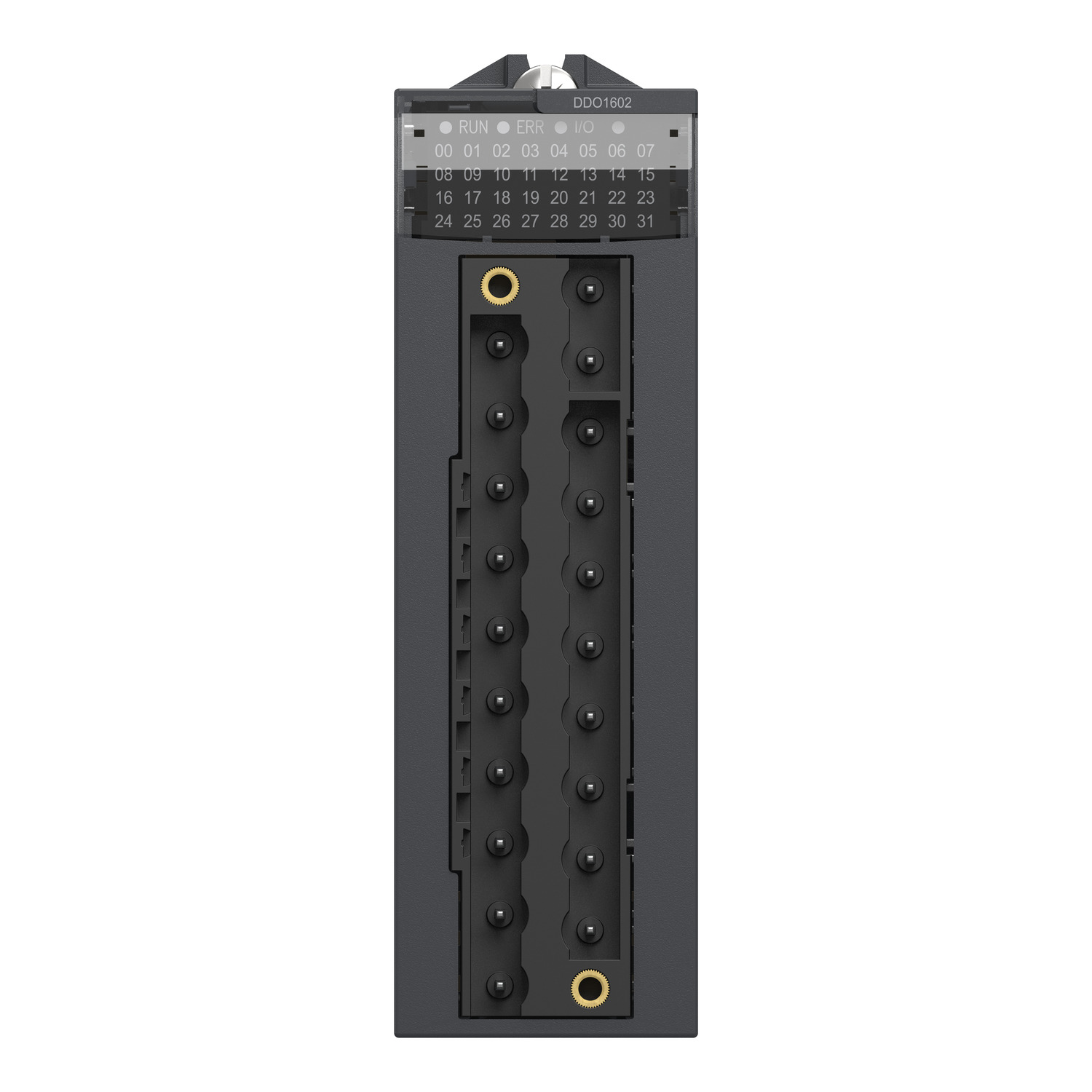

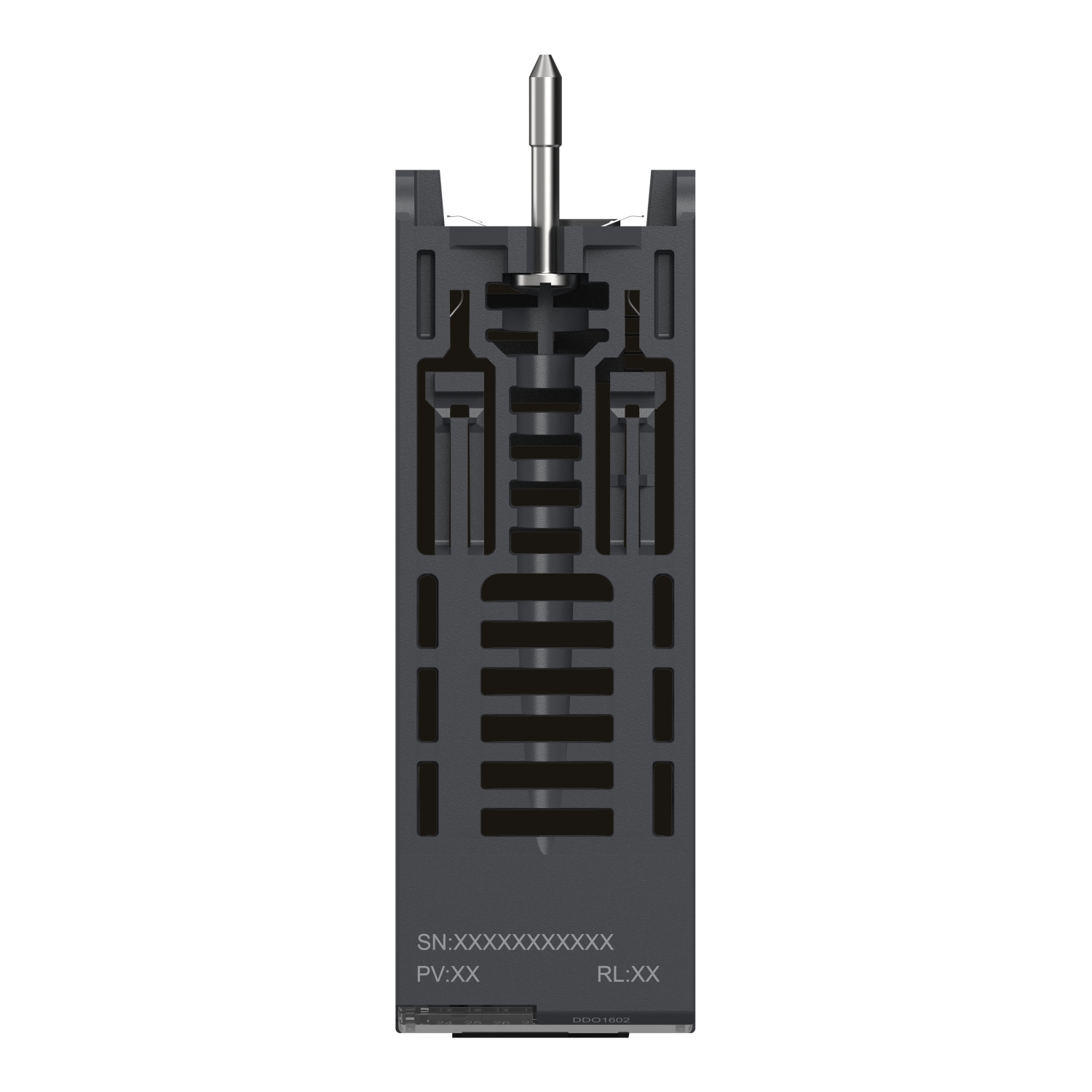

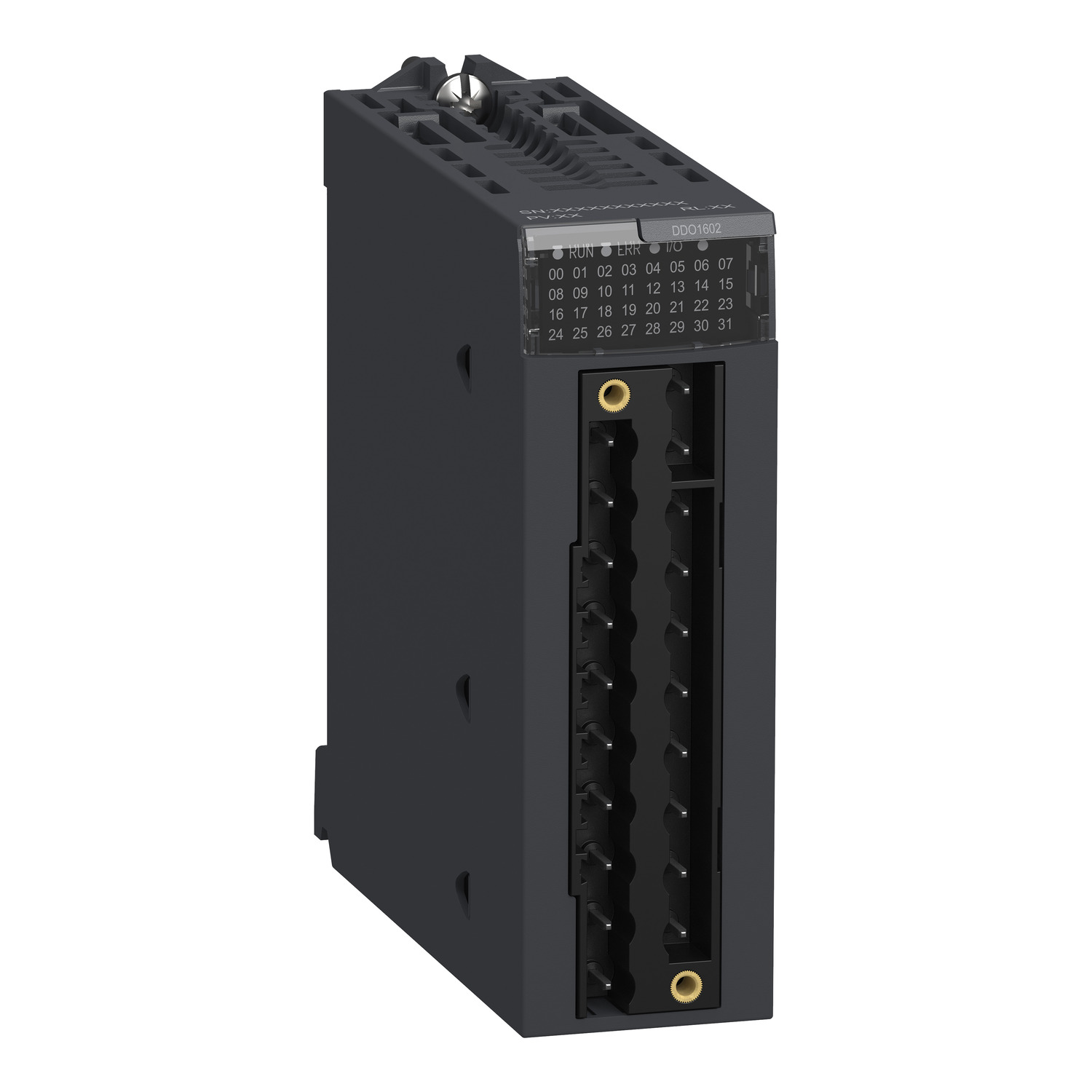

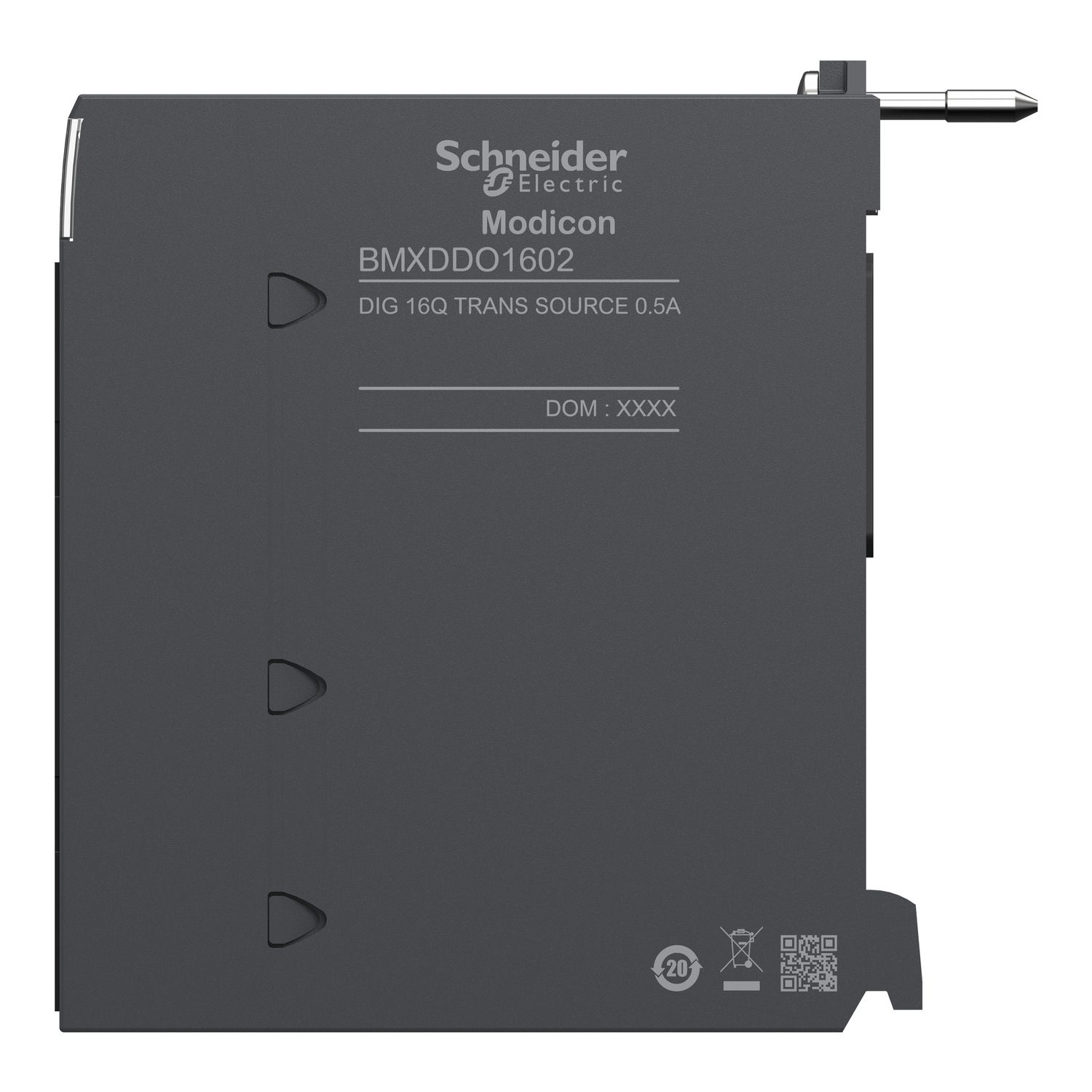

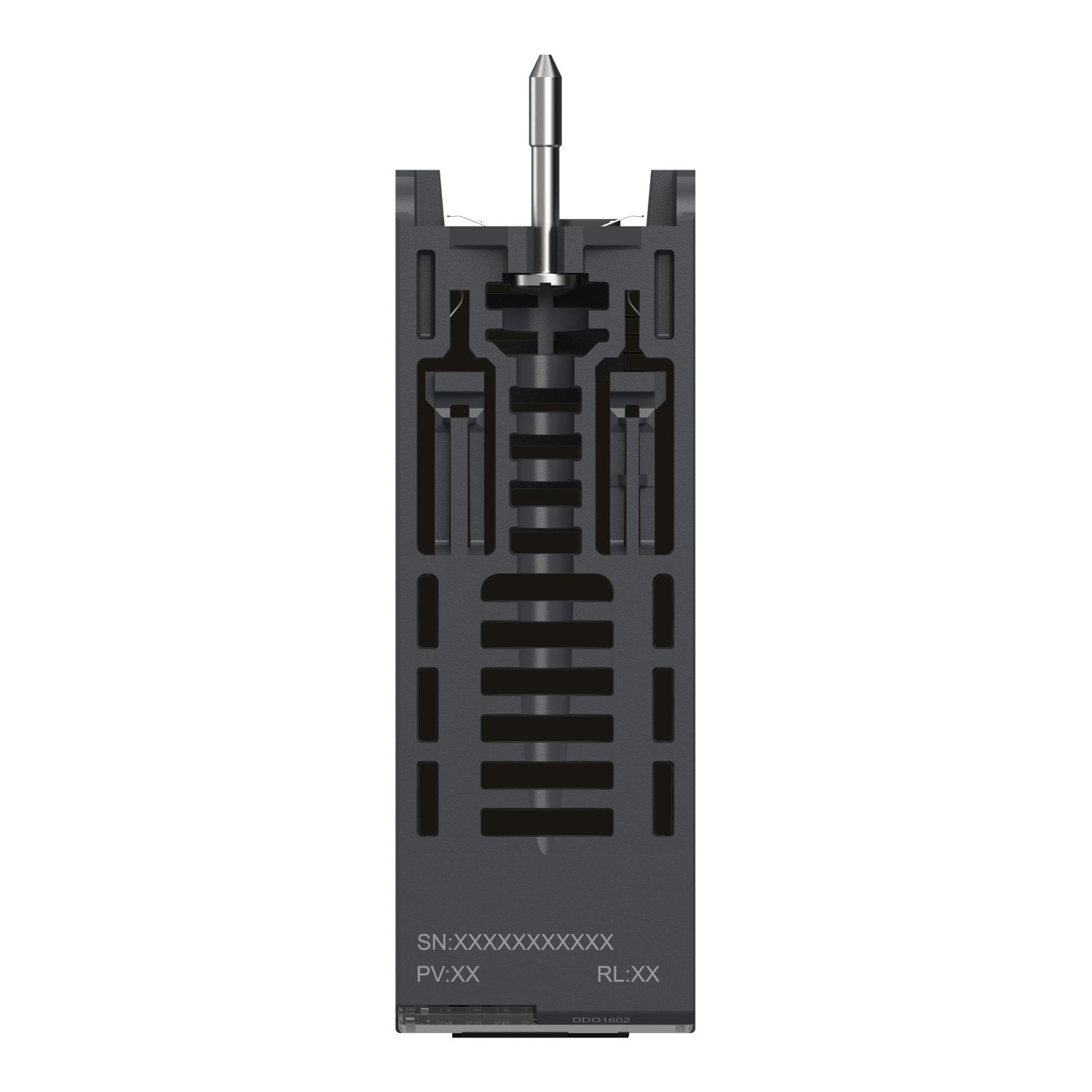

This discrete output module is part of the Modicon X80 modules. It has 16 transistor protected outputs, 24V DC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete output current | 0.5 A |
| Discrete output voltage | 24 V 19...30 V DC |
| Discrete output logic | positive |
| Range of product | Modicon X80 |
| Discrete output type | solid state |
| Product or component type | discrete output module |
| Discrete output number | 16 conforming to EN/IEC 61131-2 |
| Complementary | |
| Response time on output | 1.2 ms |
| Output overload protection | with current limiter, with electronic circuit breaker 1.5 In < Id < 2 In |
| Output short-circuit protection | with 2 A external fuse |
| Output overvoltage protection | with transil diode |
| Typical current consumption | 79 mA at 3.3 V DC |
| Power dissipation in W | 4 W |
| Protection type | overvoltage protection, overload protection, short-circuit protection, external fuse reverse polarity protection |
| Maximum voltage drop | <1.2 V at state 1 |
| Voltage detection threshold | > 18 V DC preactuator at state 0, < 14 V DC preactuator fault |
| Current per channel | 0.625 A |
| Status LED | 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN) |
| Switching frequency | 0.5/LI² Hz |
| Maximum current per module | 10 A |
| MTBF reliability | 410000 H |
| Reverse polarity protection | reverse mounted diode |
| Maximum tungsten load | 6 W |
| Paralleling of outputs | yes : 2 maximum |
| Load impedance ohmic | > 48 Ohm |
| Maximum leakage current | 0.5 mA at state 0 |
| Net weight | 0.12 kg |
| Insulation resistance | > 10 MOhm 500 V DC |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Ambient air temperature for operation | 0-60 °C |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Vibration resistance | 3 gn |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 minute, output/internal logic, 1500 V AC at 50/60 Hz 1 minute, output/ground |
| Shock resistance | 30 gn |
