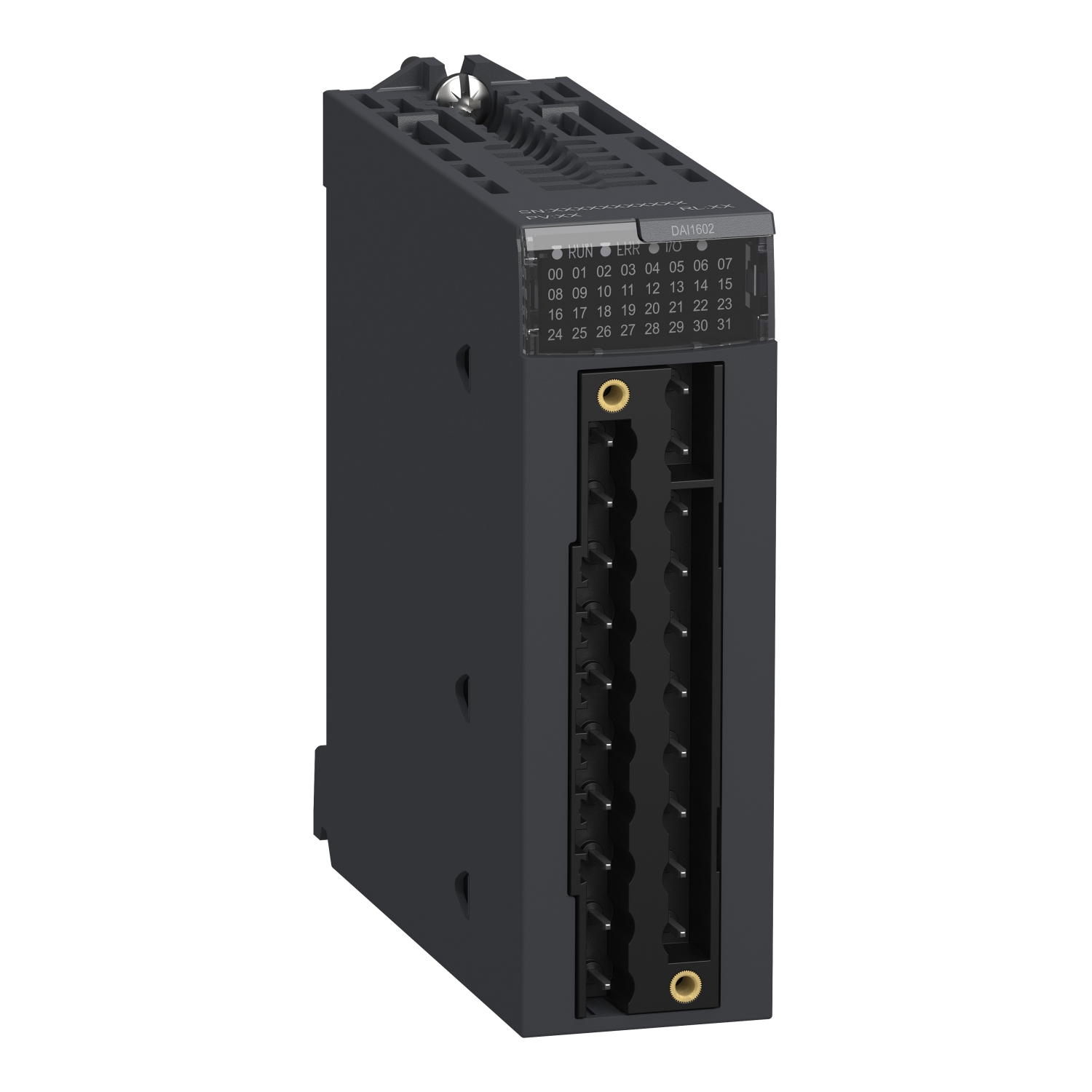

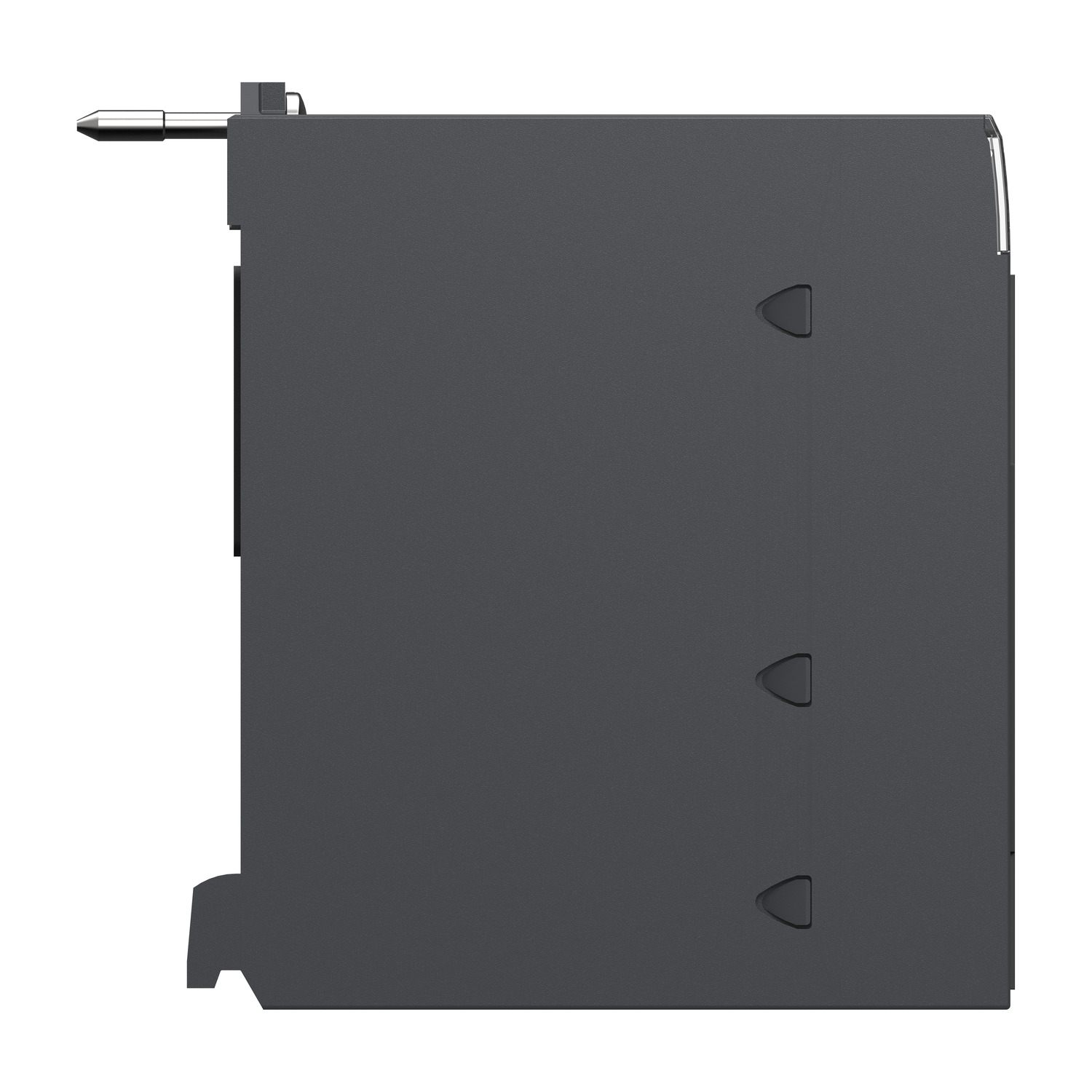

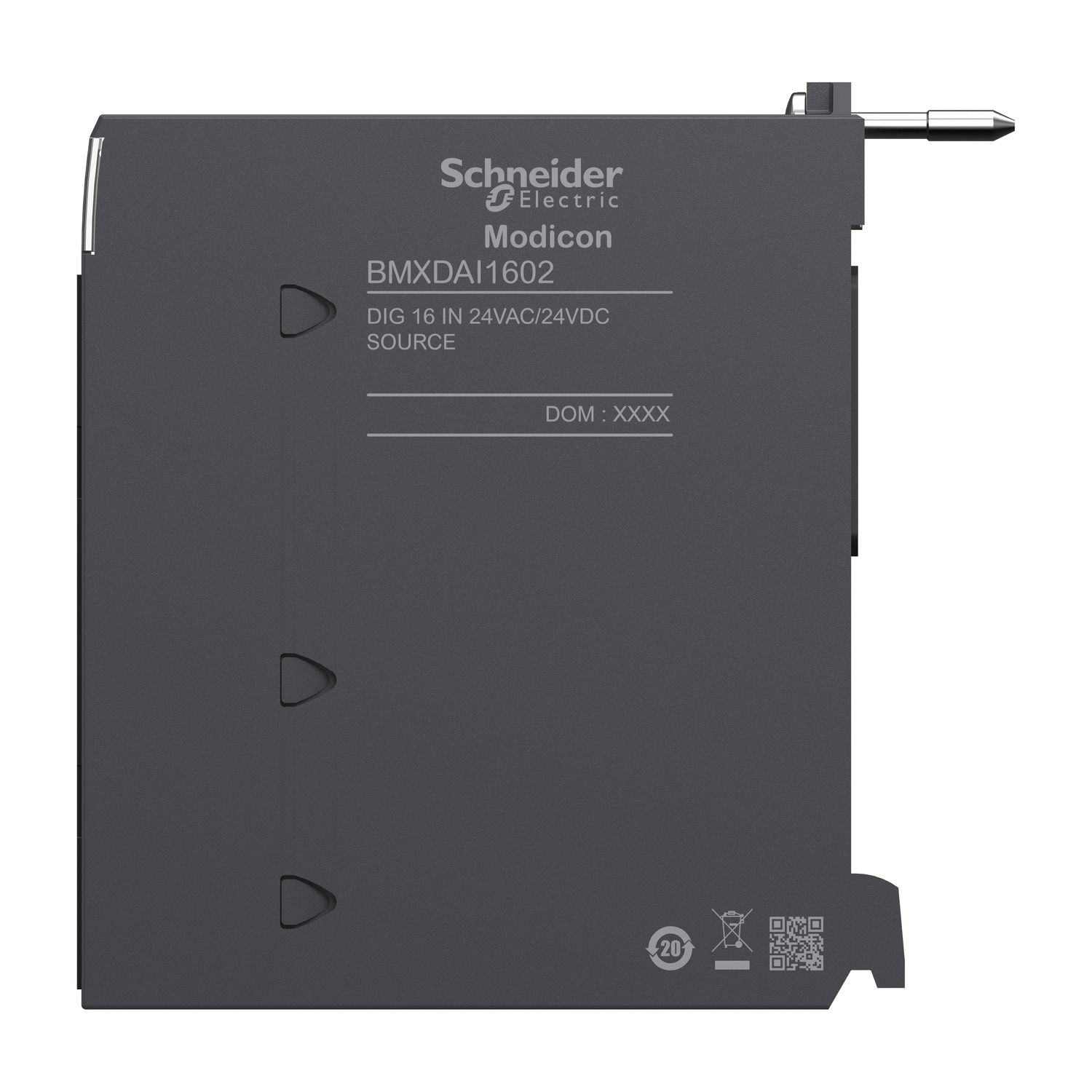

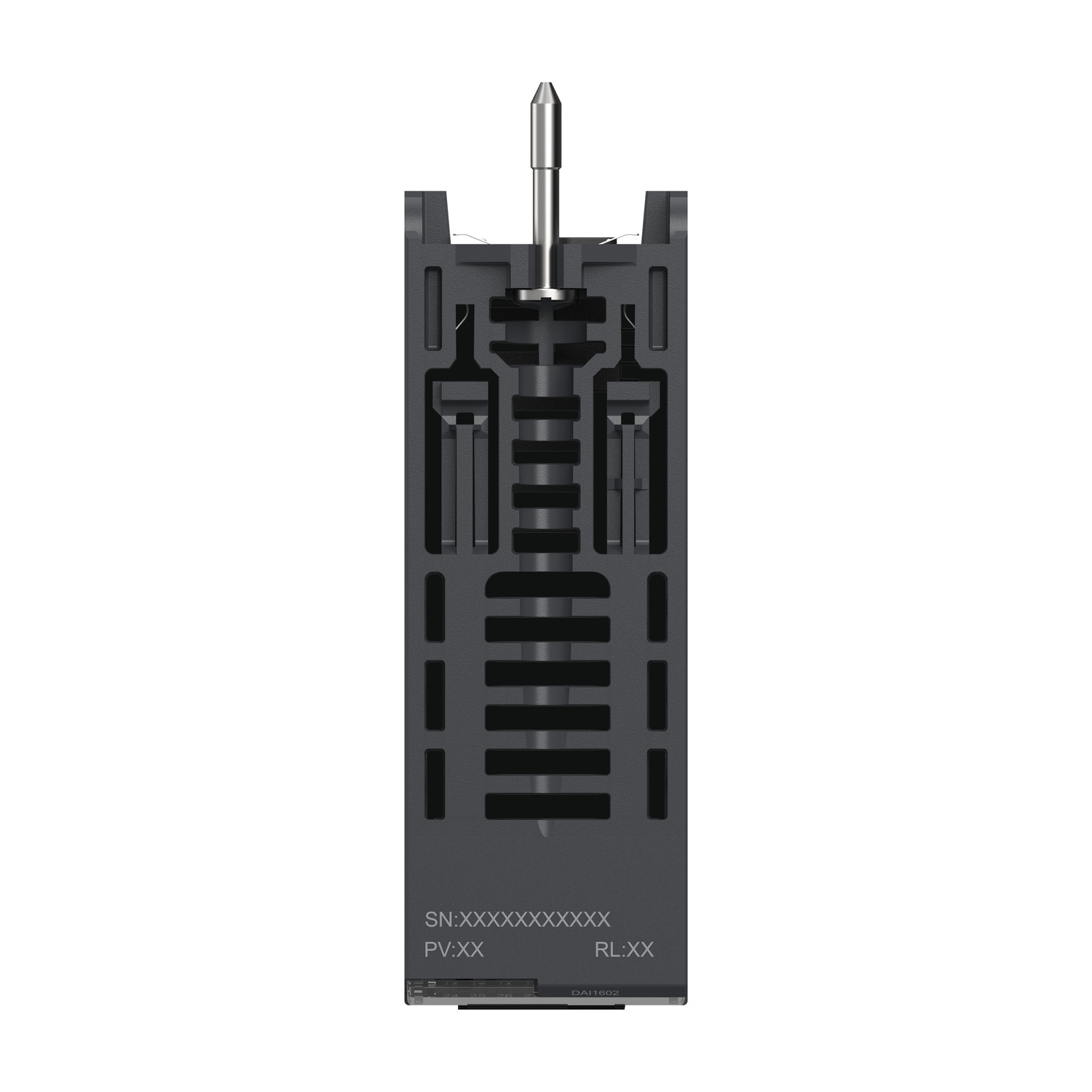

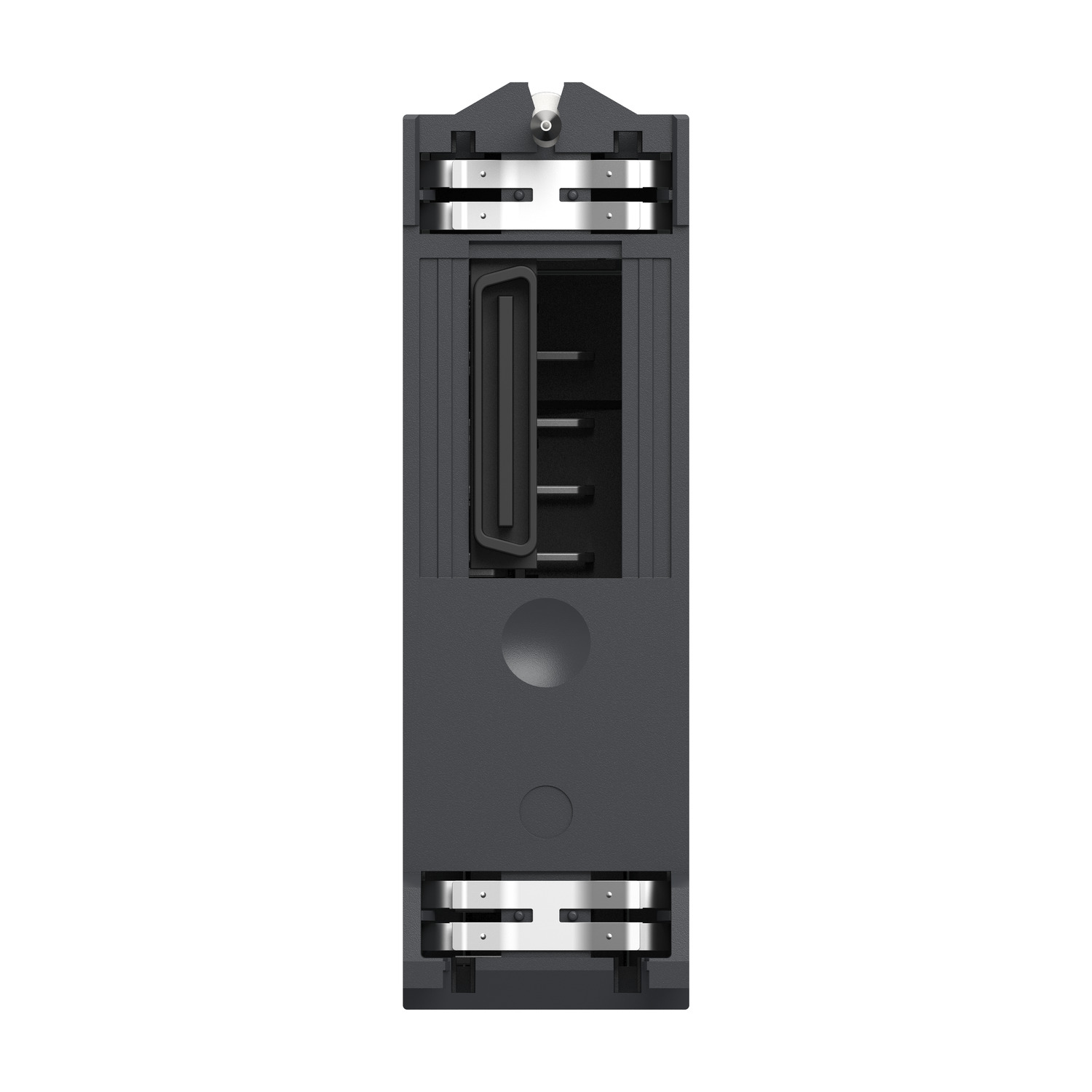

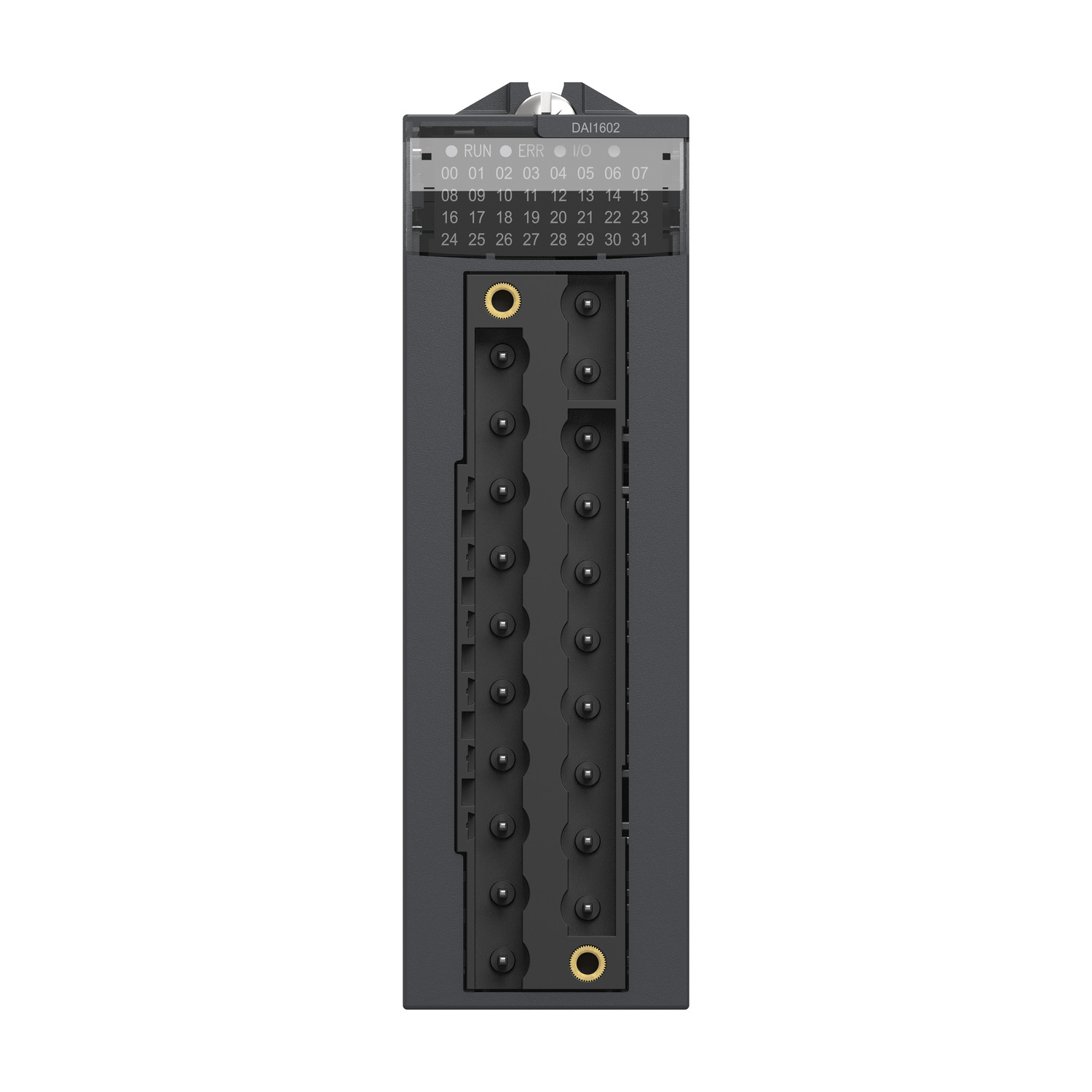

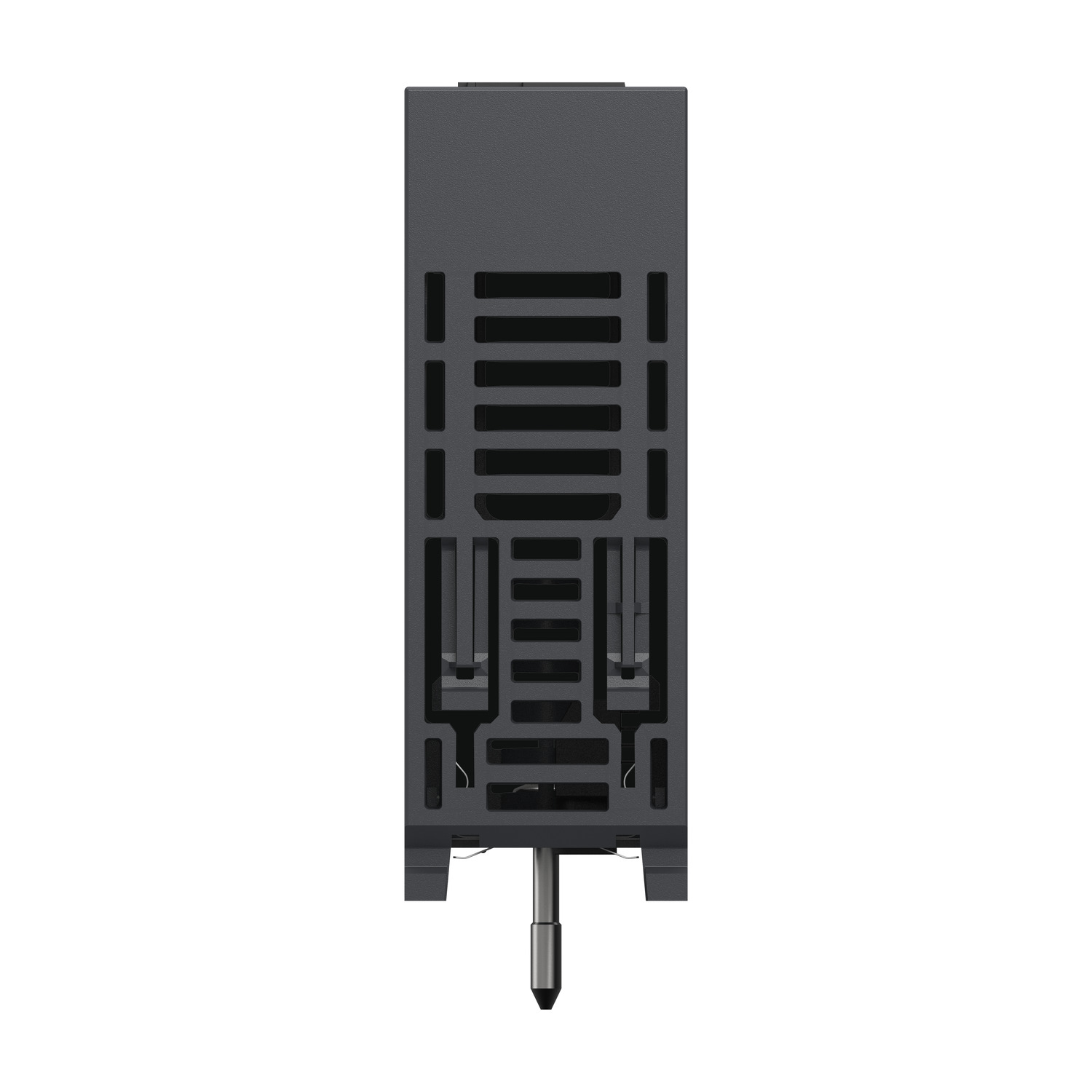

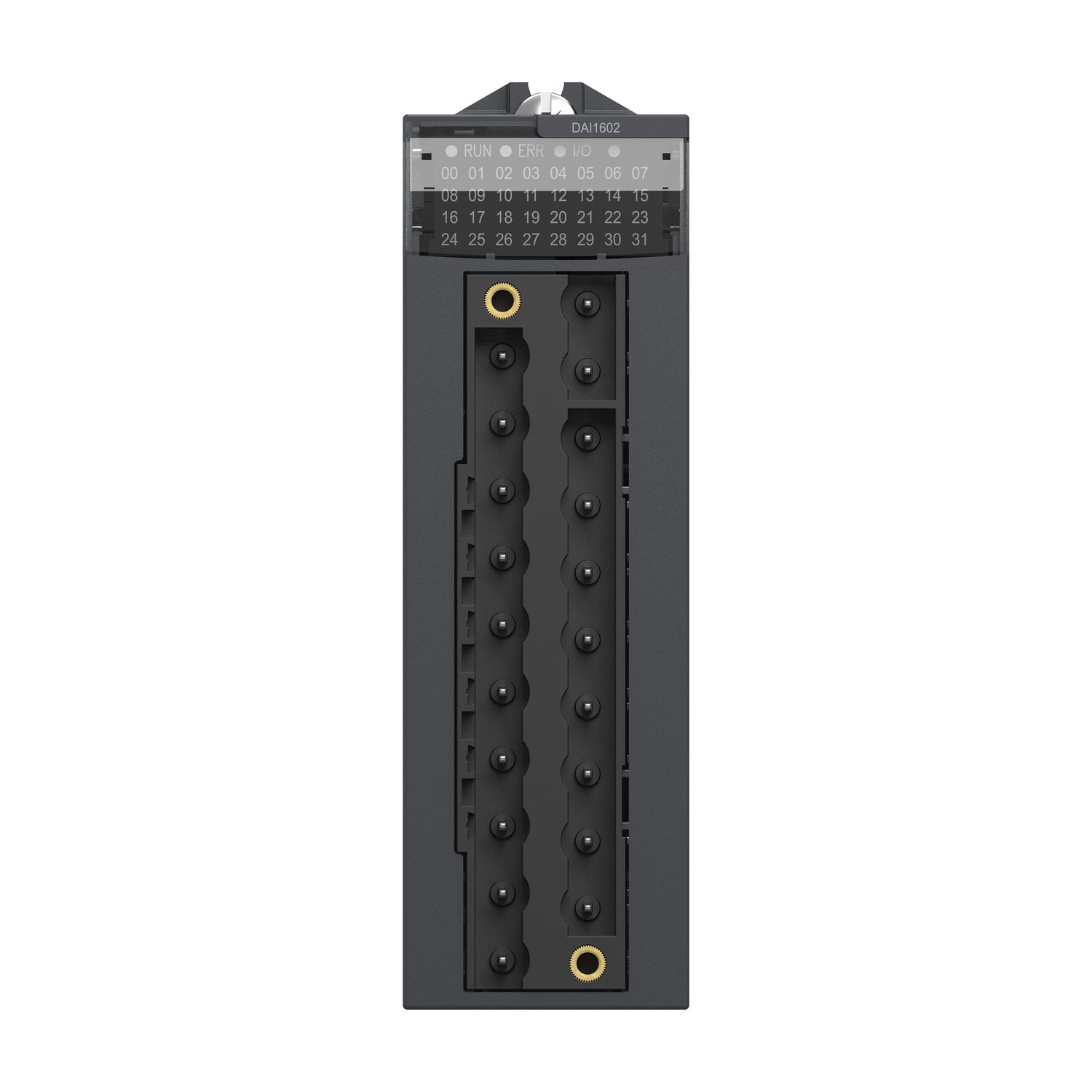

This discrete input module is part of the Modicon X80 modules. It has 16 isolated inputs and it is supplied with 24V AC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete input type | isolated |
| Discrete input voltage | 24 V AC, 24 V DC, discrete input logic: positive or negative |
| Range of product | Modicon X80 |
| Discrete input current | 3.9 mA at 24 V DC, 3 mA at 24 V AC |
| Discrete input number | 16 |
| Input type | resistive |
| Product or component type | discrete input module |
| Complementary | |
| Current state 0 guaranteed | <= 0.5 mA DC, <= 1 mA AC |
| Typical current consumption | 76 mA at 3.3 V DC |
| Input compatibility | with 2-wire/3-wire proximity sensors AC conforming to IEC 61131-2 Type 1, with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2 |
| Power dissipation in W | 3 W |
| Protection type | 1 external fuse per group of channel0.5 A fast blow |
| Network frequency limits | 47-63 Hz |
| Voltage detection threshold | > 18 V AC/DC sensor OK, < 14 V AC/DC sensor fault |
| Status LED | 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN) |
| MTBF reliability | 1125000 H |
| Input impedance | 6 kOhm |
| AC deactivation filtering time | 20 ms |
| Paralleling of inputs | no |
| Net weight | 0.115 kg |
| Current state 1 guaranteed | >= 2 mA DC, >= 2 mA AC |
| Insulation resistance | > 10 MOhm 500 V DC |
| AC activation filtering time | 15 ms |
| Voltage range | 19...30 V DC, 20...26 V AC |
| Network frequency | 50/60 Hz |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Ambient air temperature for operation | 0-60 °C |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Vibration resistance | 3 gn |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 minute, primary/secondary |
| Shock resistance | 30 gn |
