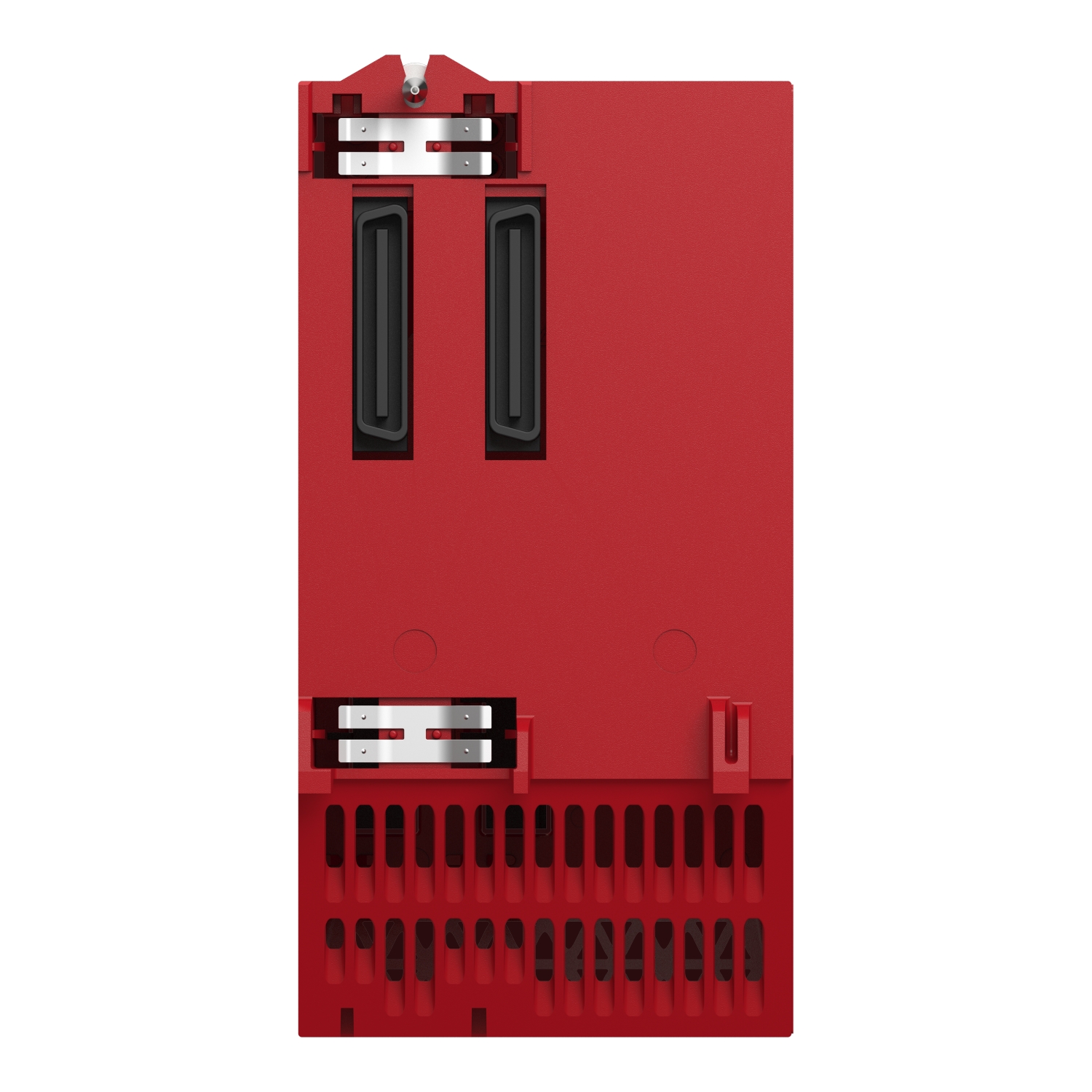

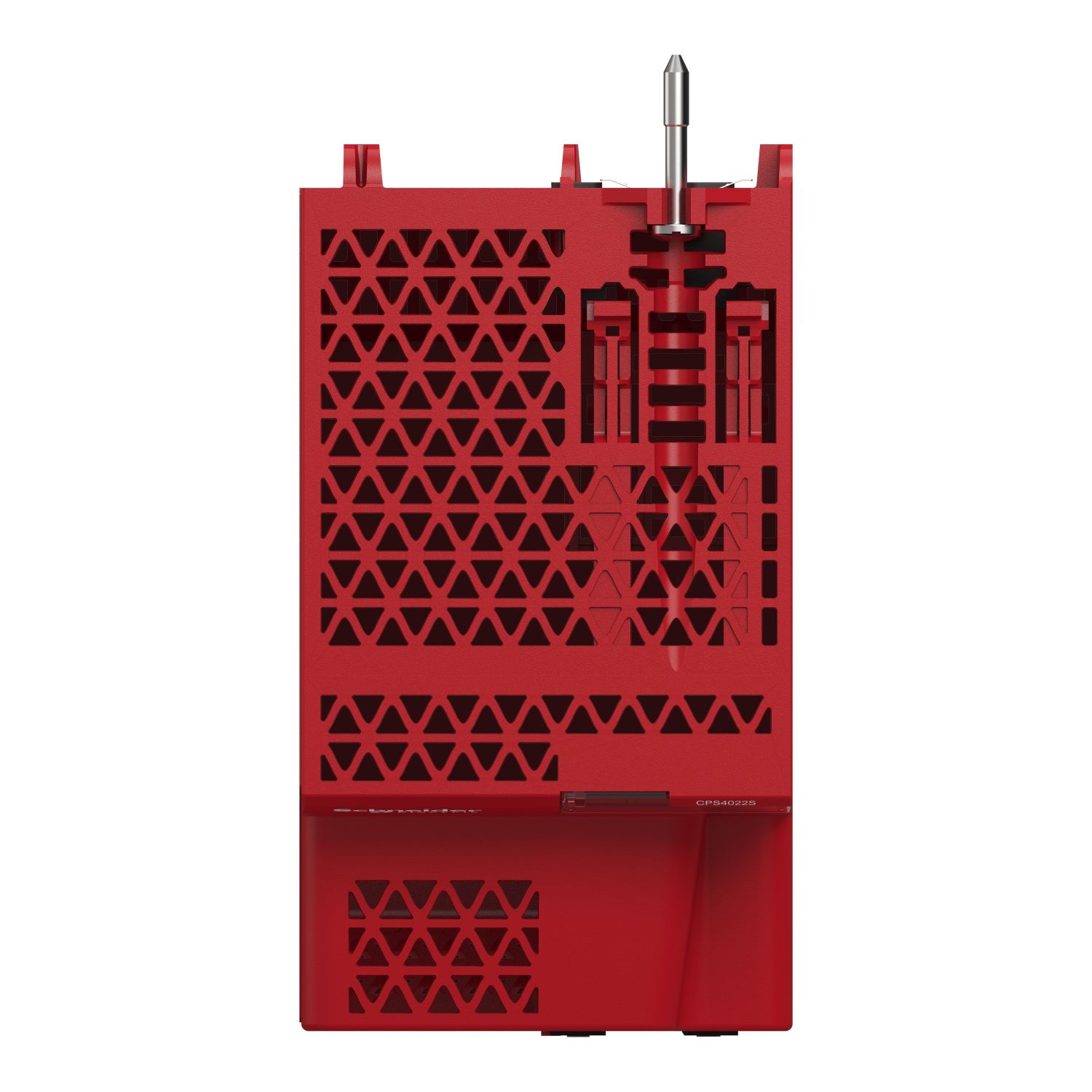

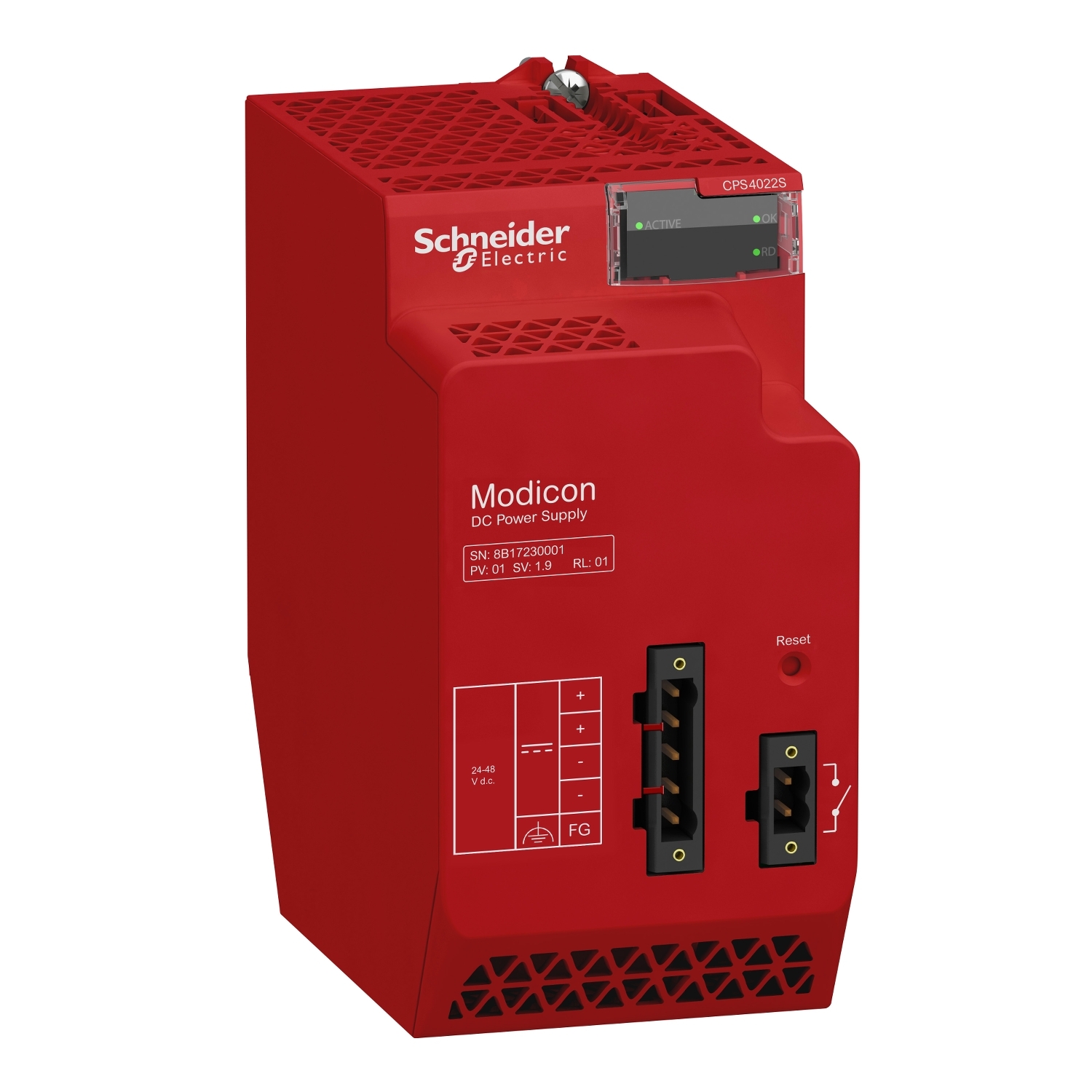

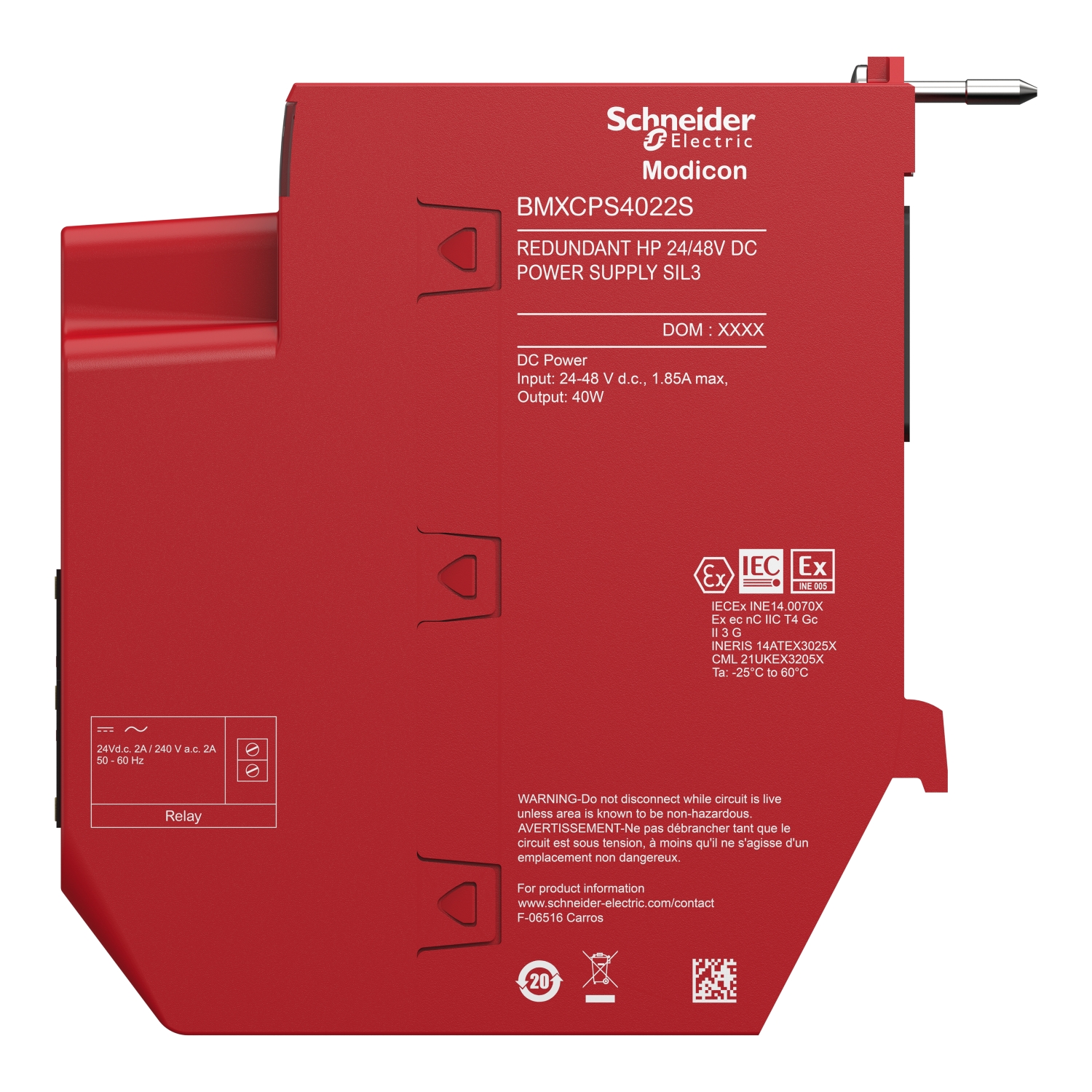

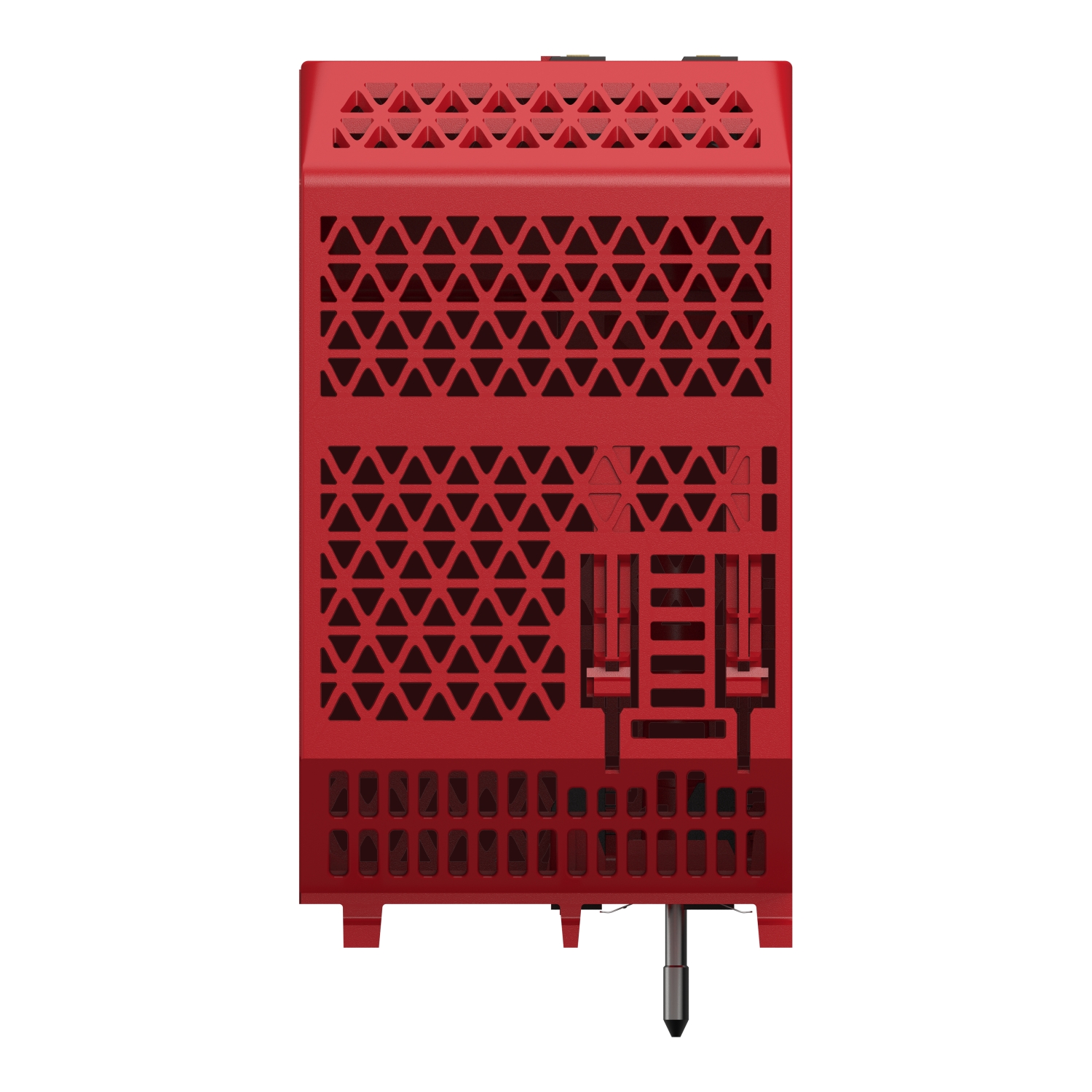

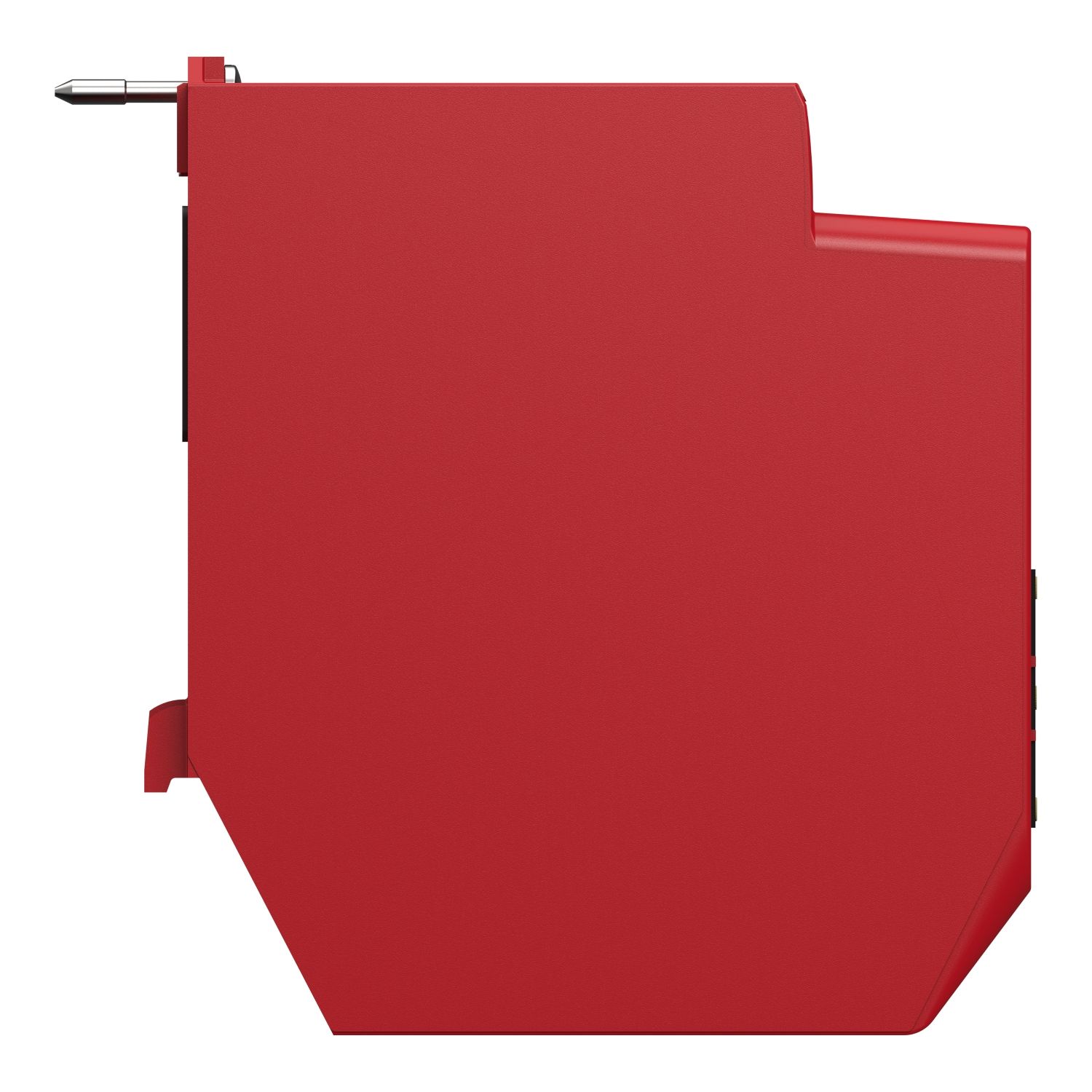

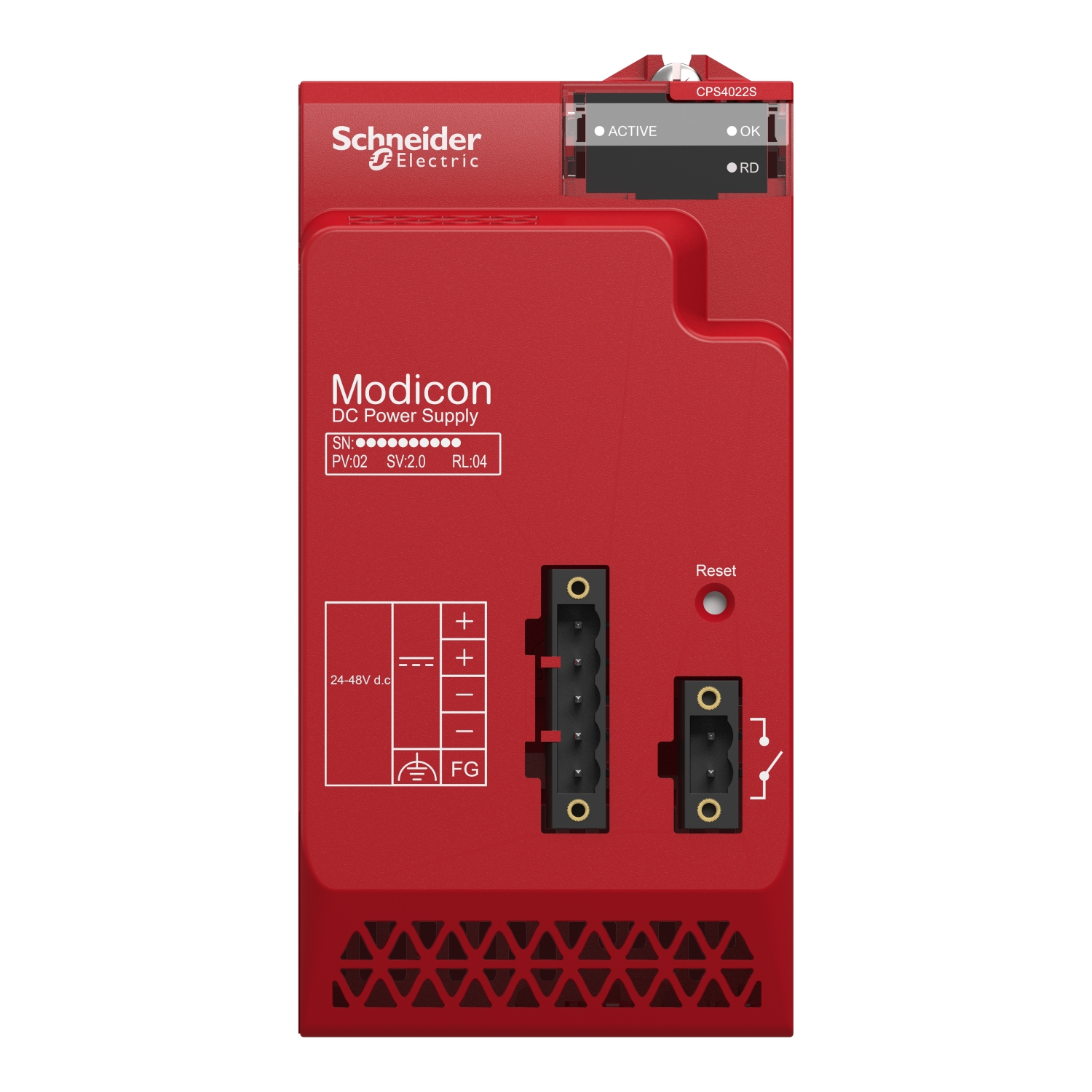

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). On the front face of the power supply, 2 connectors (2-way and 5-way) can take a removable terminal block. It converts 24…48 V DC current into 24 V DC and 3.3 V DC output voltages, distributed over the backplane. This safety power supply can provide advanced diagnostics that simplify maintenance by predicting when to replace power supply before it fails. It detects overvoltage, overload, and short-circuit conditions on 24 V DC and 3.3 V DC backplane lines. It can be installed in any rack, main or extended local rack, main or extended remote rack. It has a red coating specific to Safety products. For high-availability applications, two independent redundant power supplies can be used to increase the security of the power supply. This product is certified by CE and UL, and also by ATEX and IECEx for use in explosive atmospheres. The safety power supply is provided with Set of two caged removable terminal blocks. A set of two caged removable terminal blocks (5-way and 2-way) is included in the power supply package. The power supply has to be inserted in the leftmost dedicated slots on each rack (marked CPS). Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | all backplane |
| Supply circuit type | DC |
| Secondary power | 40 W 24 V DC at -25-60 °C I/O module power supply and processor if 3.3 V not loaded, 18 W 3.3 V DC at -25-60 °C I/O module logic power supply |
| Function available | uptime duration, temperature sensing, remaining lifetime, redundancy test, redundancy information |
| Product or component type | power supply module |
| Range of product | Modicon X80 |
| Primary voltage | 24...48 V |
| Complementary | |
| Protection type | short-circuit protection for secondary circuit, overvoltage protection for secondary circuit, overload protection for secondary circuit, internal fuse not accessible for primary circuit |
| Inrush current | 60 A 48 V, 60 A 24 V |
| Electrical connection | 1 connector 5 pin(s)line supply, protective earth, 1 connector 2 pin(s)alarm relay |
| Maximum power dissipation in W | 8.5 W |
| Control type | RESET push-button cold restart |
| Net weight | 0.81 kg |
| Insulation resistance | >= 100 MOhm primary/secondary, >= 100 MOhm primary/ground |
| Current at secondary voltage | 5 A 3.3 V DC I/O module power supply and processor, 1.67 A 24 V DC I/O module logic power supply |
| Input current | 1 A 48 V, 1.9 A 24 V |
| I²t on activation | 3 A².s 48 V, 1 A².s 24 V |
| Status LED | 1 LED (green) power supply status, 1 LED (green) redundancy OK, 1 LED (green) presence of voltages (OK) |
| It on activation | 0.4 A.s 48 V, 0.3 A.s 24 V |
| Primary voltage limit | 18...62.4 V |
| Maximum cable distance between devices | 15 m, 10 m |
| MTBF reliability | 721000 H |
| Environment | |
| Dielectric strength | 1500 V primary/secondary, 1500 V primary/ground |
| IP degree of protection | IP20 |
| Protective treatment | conformal coating |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/34/EU - ATEX directive, 2006/42/EC - machinery, 2014/30/EU - electromagnetic compatibility |
| Vibration resistance | 3 gn |
| Environmental characteristic | fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04, hazardous location class I division 2 |
| Shock resistance | 15 gn |
| Product certifications | TÜV, IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE |
| Standards | IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61010-2-201, IEC 61131-2 |
| Immunity to microbreaks | 1 ms |
| Ambient air temperature for operation | -25-60 °C |
