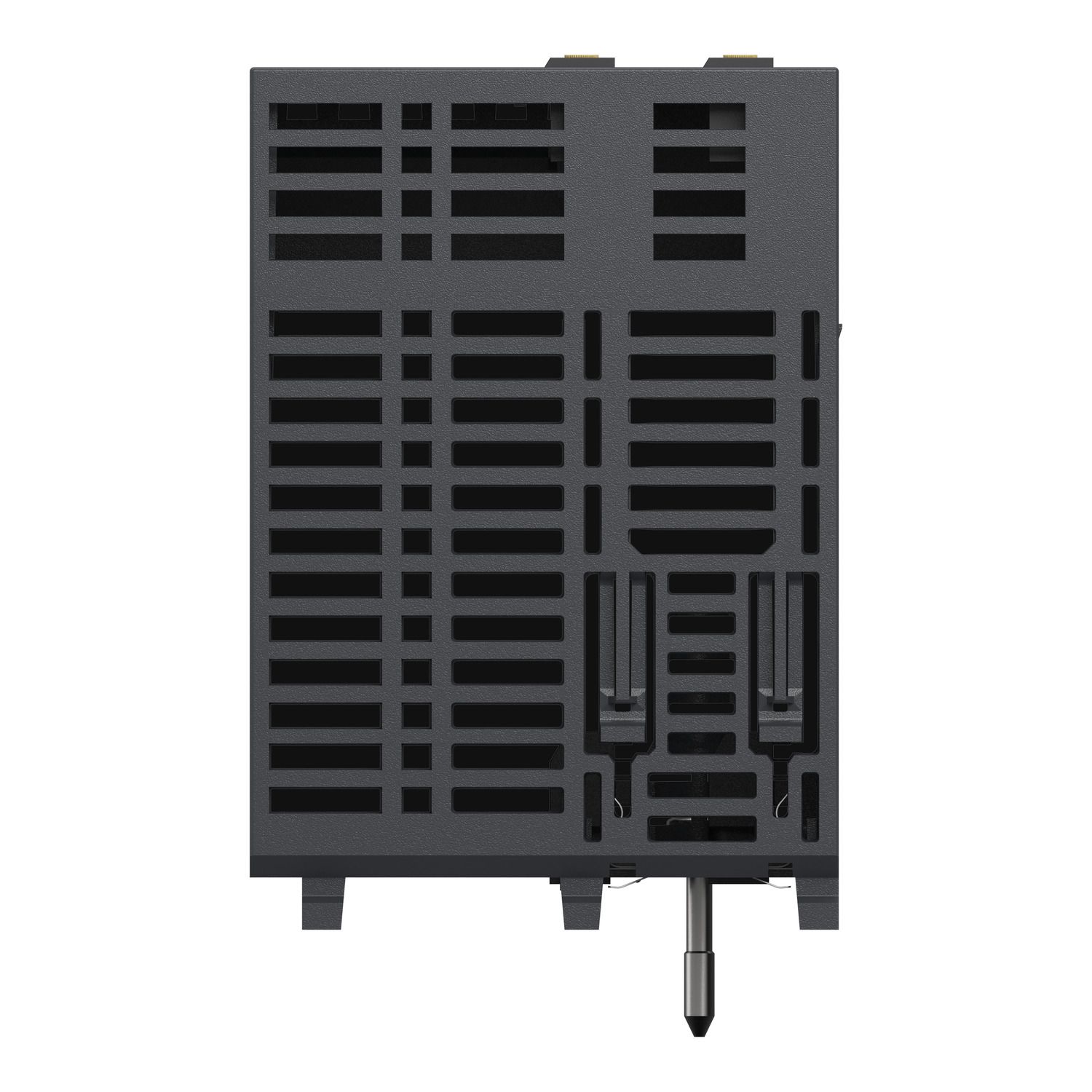

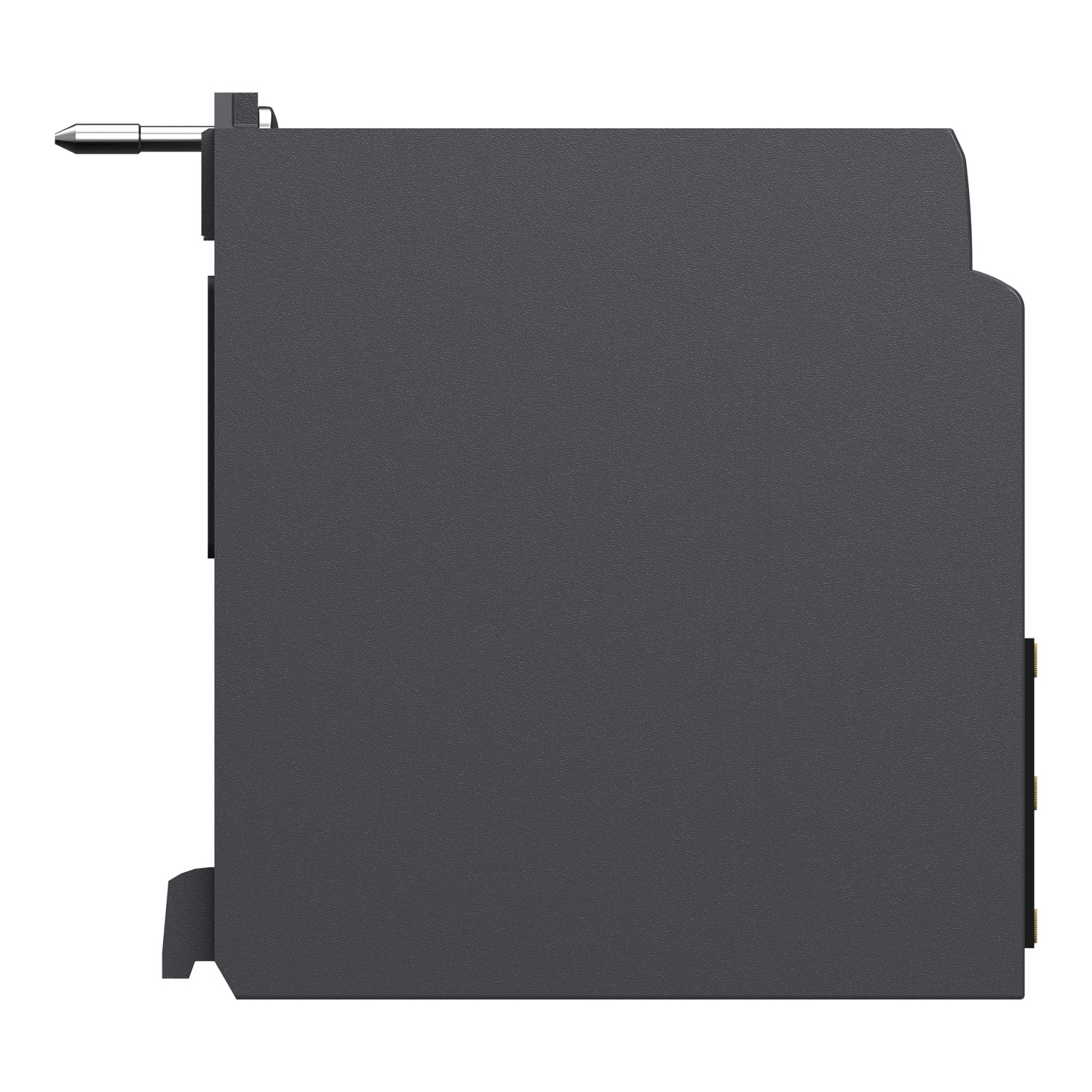

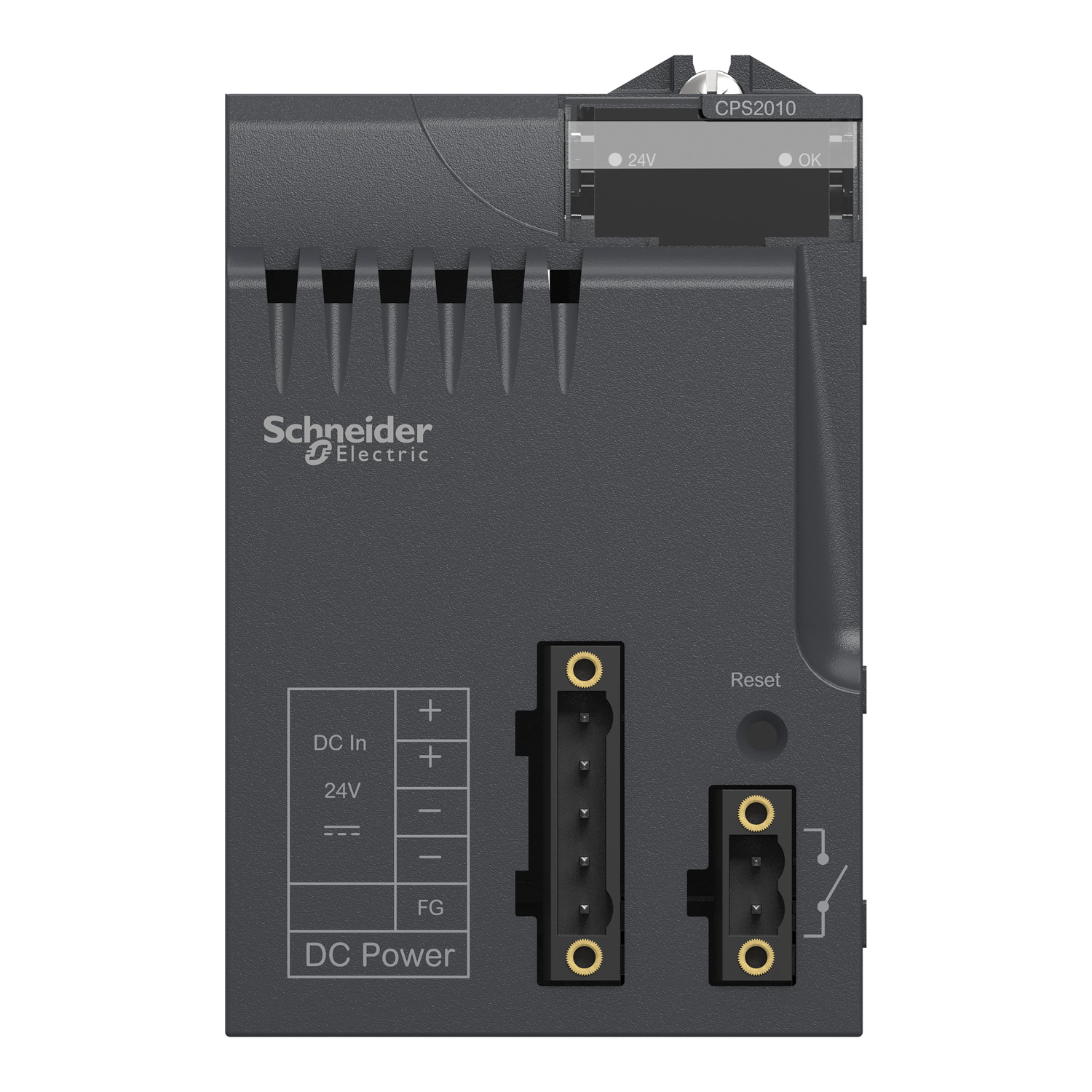

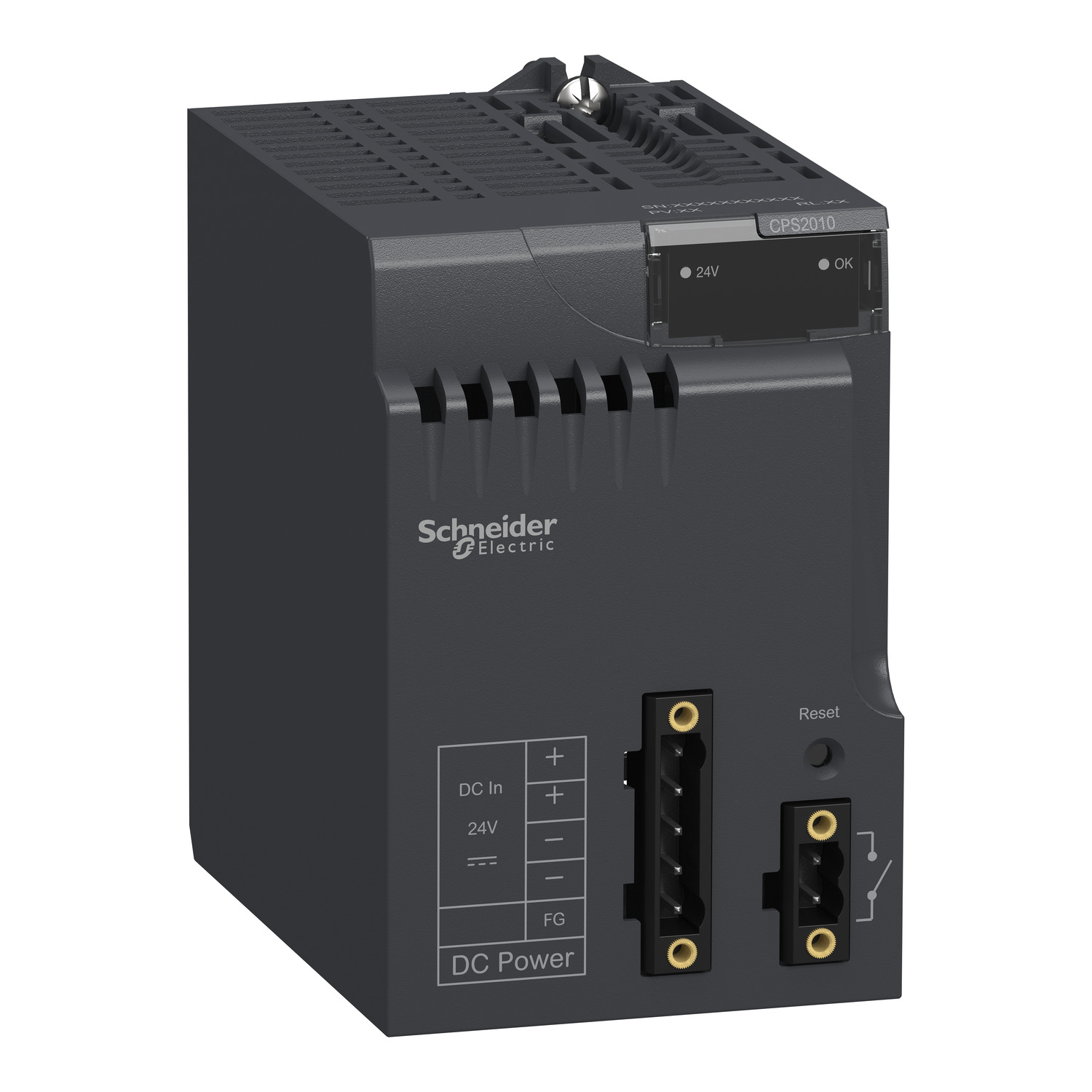

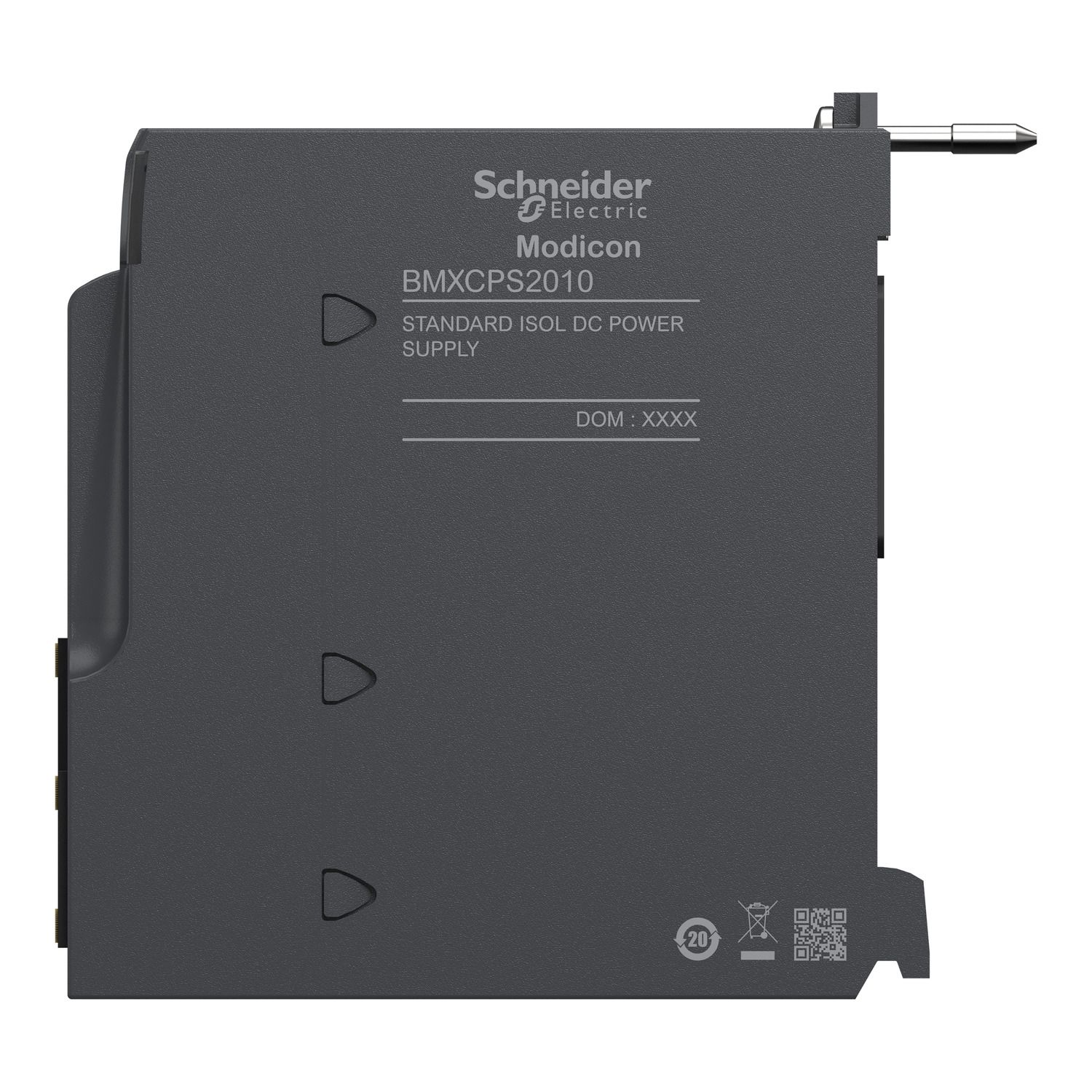

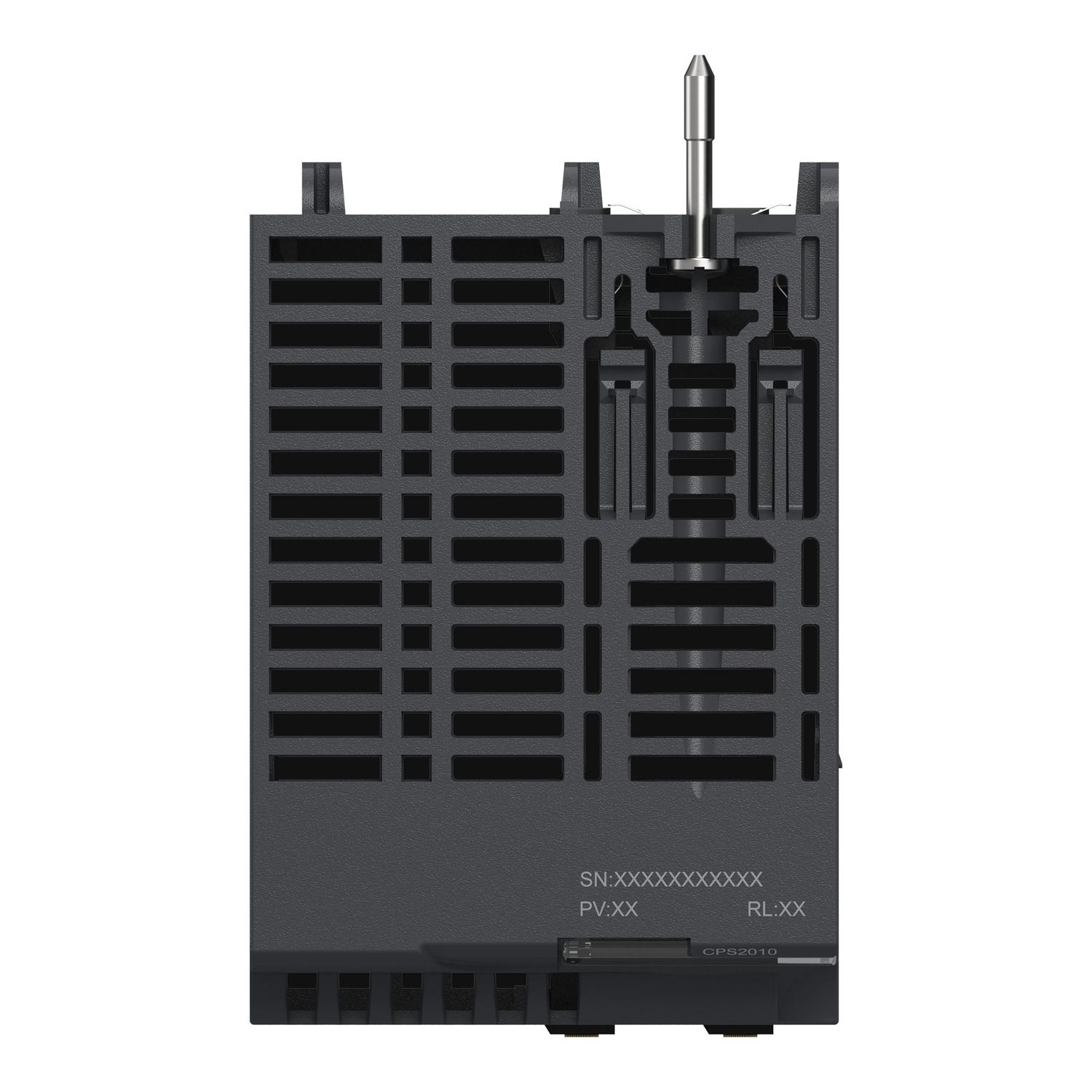

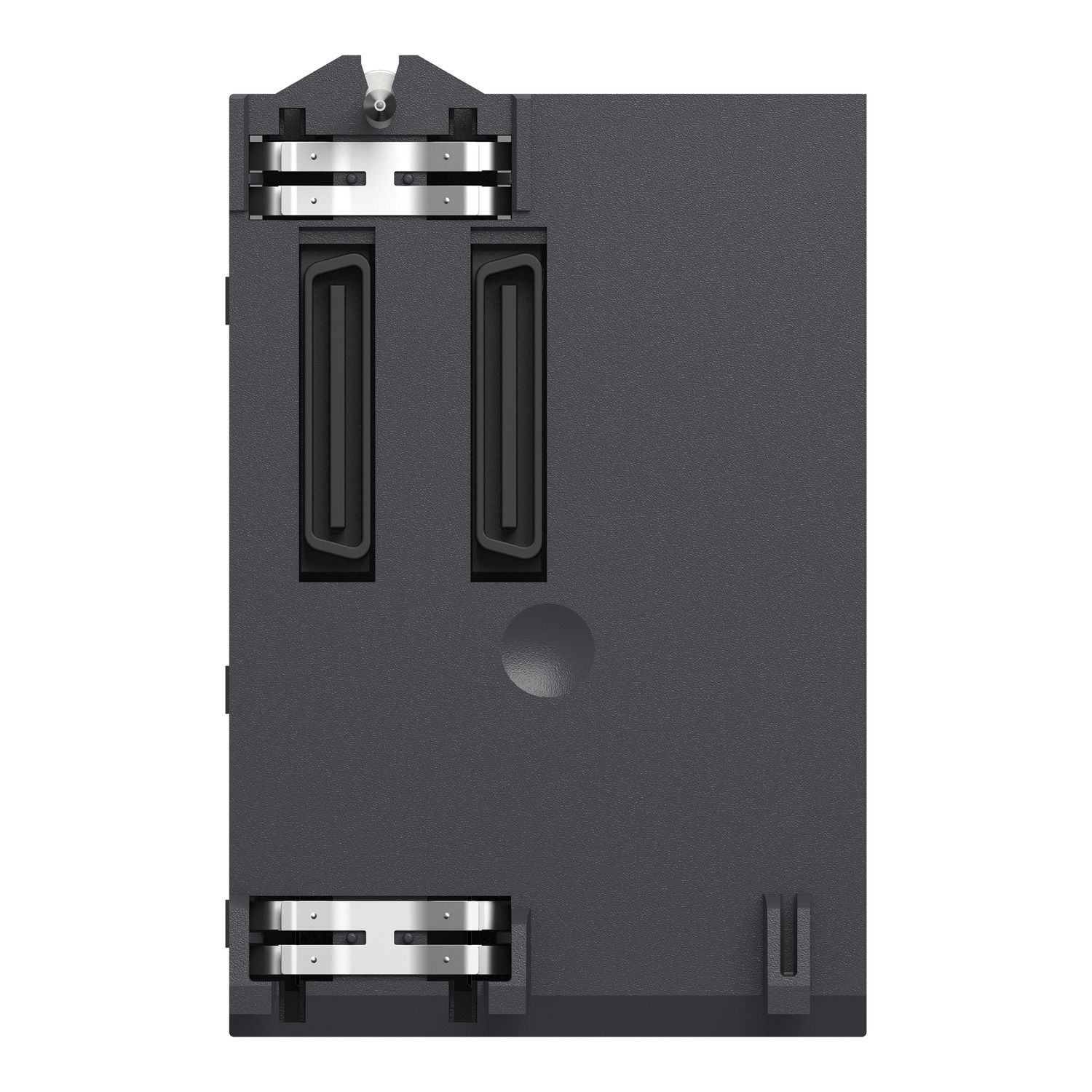

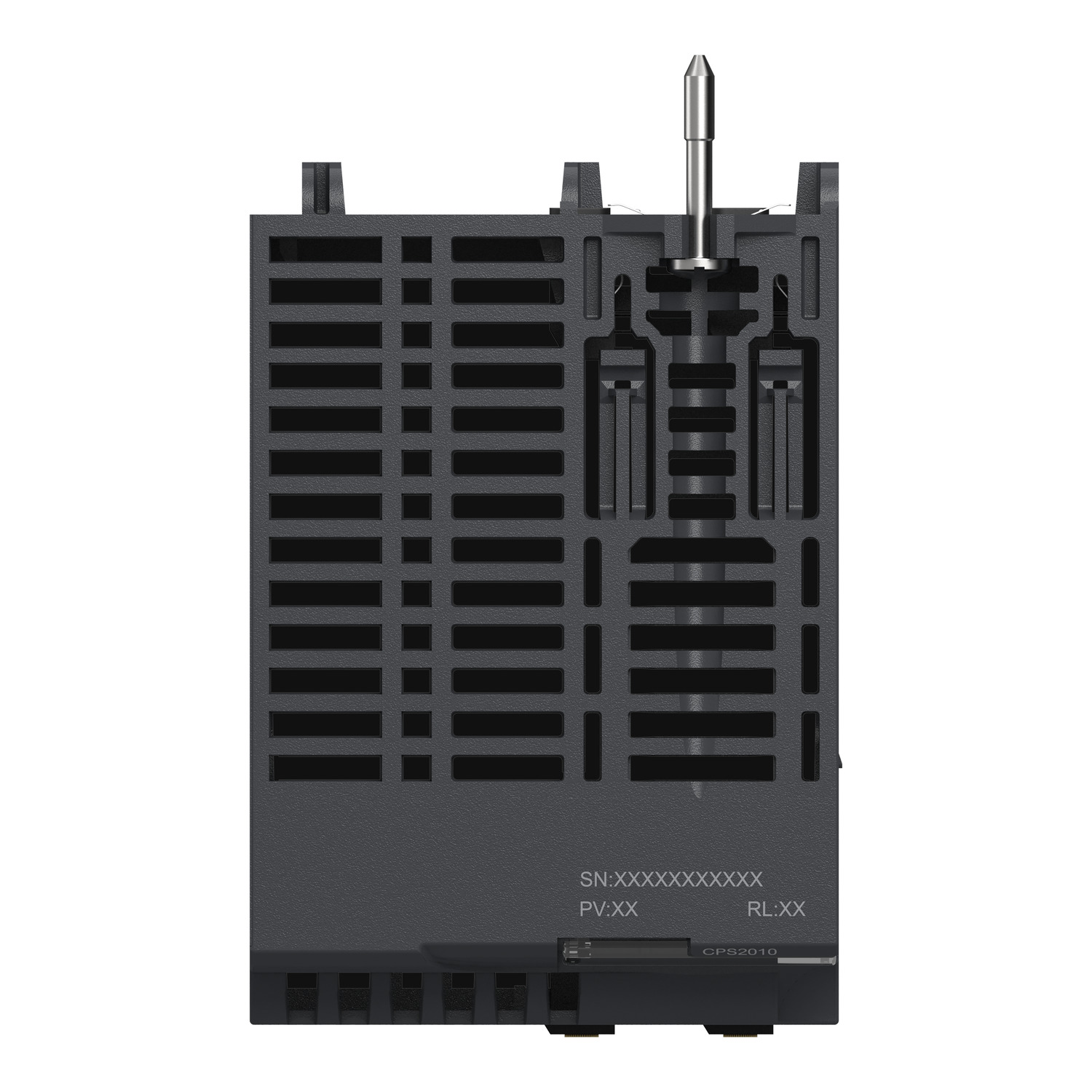

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has an isolated voltage of 24V DC. It is a power supply module with a secondary power of 16.8W at 24V DC, a current at secondary voltage of 2.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth, 24V DC input sensor for electrical connection. It is an IP20 rated product. It weighs 0.29kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | not compatible with BMEXBP..02 |
| Supply circuit type | DC |
| Secondary power | 8.3 W 3.3 V DC I/O module logic power supply, 16.8 W 24 V DC I/O module power supply and processor |
| Product or component type | power supply module |
| Range of product | Modicon X80 |
| Primary voltage | 24 V isolated |
| Complementary | |
| Protection type | short-circuit protection for secondary circuit, 24 V sensor power supply, overvoltage protection for secondary circuit, 24 V sensor power supply, overload protection for secondary circuit, 24 V sensor power supply, internal fuse not accessible for primary circuit |
| Inrush current | 30 A 24 V |
| Electrical connection | 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor, 1 connector 2 pin(s)alarm relay |
| Maximum power dissipation in W | 8.5 W |
| Control type | RESET push-button cold restart |
| Net weight | 0.29 kg |
| Insulation resistance | >= 10 MOhm primary/secondary, >= 10 MOhm primary/ground |
| Current at secondary voltage | 2.5 A 3.3 V DC I/O module logic power supply, 0.7 A 24 V DC I/O module power supply and processor |
| Input current | 1 A 24 V |
| I²t on activation | 0.6 A².s 24 V |
| Status LED | 1 LED (green) rack voltage OK |
| It on activation | 0.15 A.s 24 V |
| Primary voltage limit | 18...31.2 V |
| Maximum cable distance between devices | 30 m power supply cable copper 2.5 mm², 20 m power supply cable copper 1.5 mm² |
| MTBF reliability | 4886000 H |
| Environment | |
| Dielectric strength | 1500 V primary/secondary, 1500 V primary/ground |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Immunity to microbreaks | 1 ms |
| Ambient air temperature for operation | 0-60 °C |
