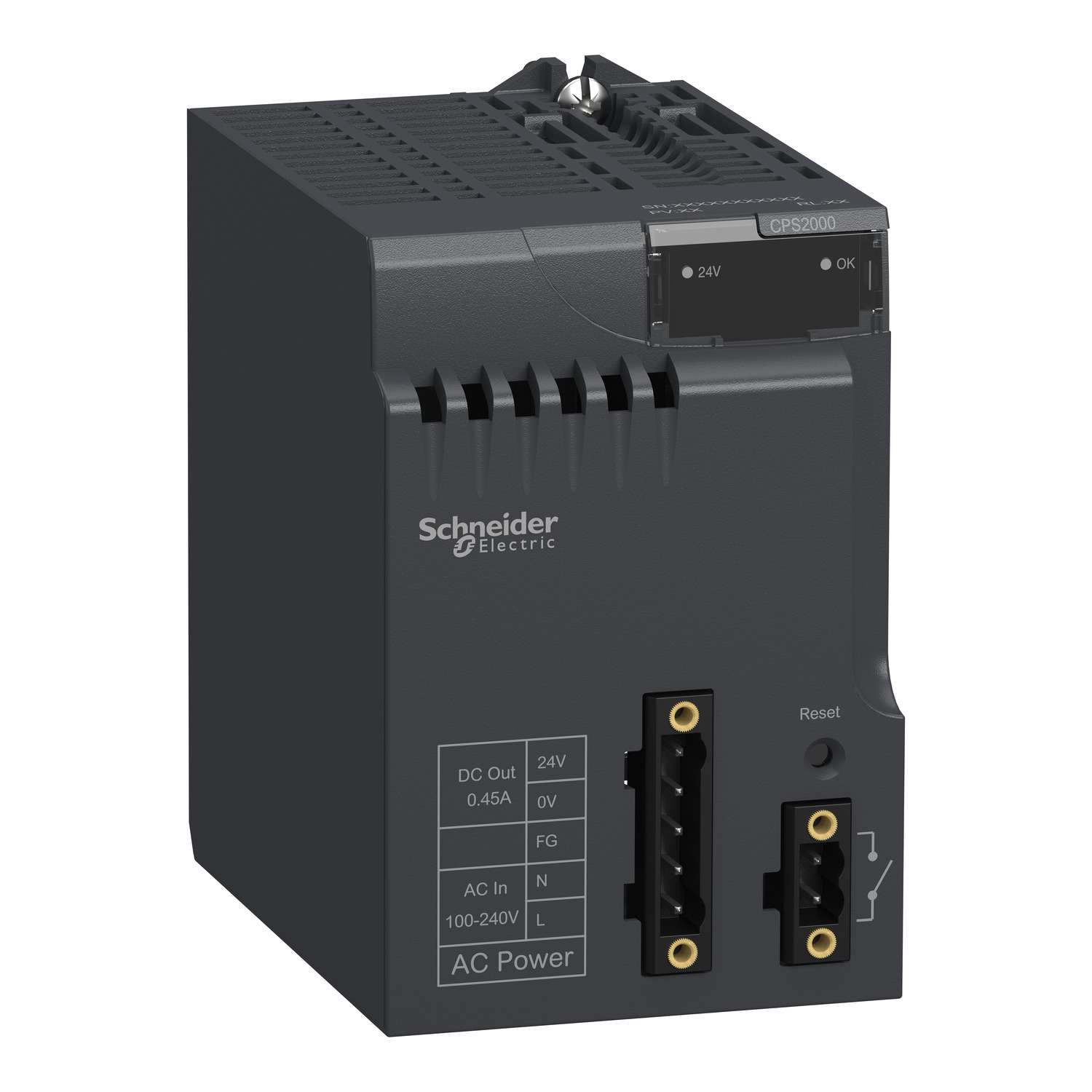

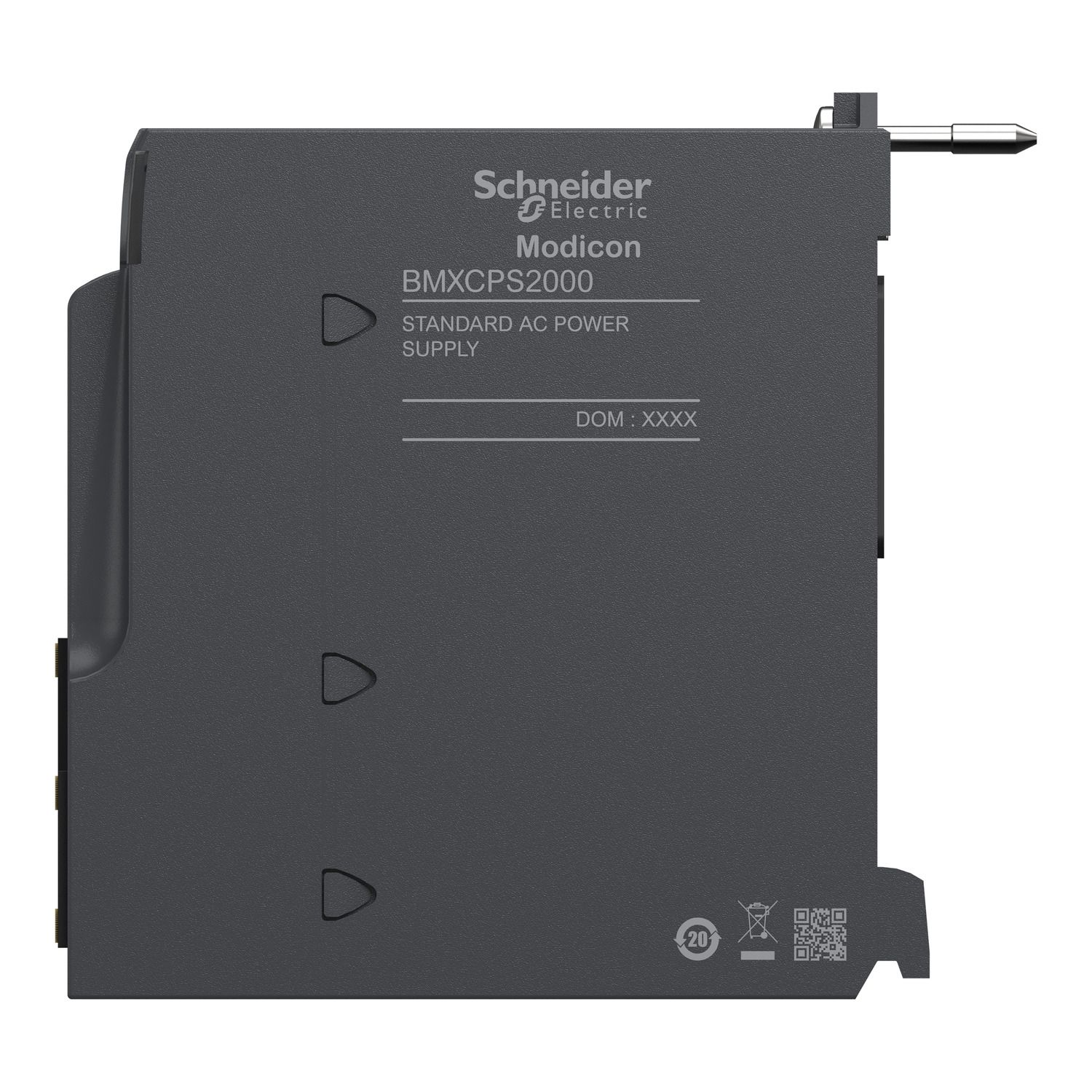

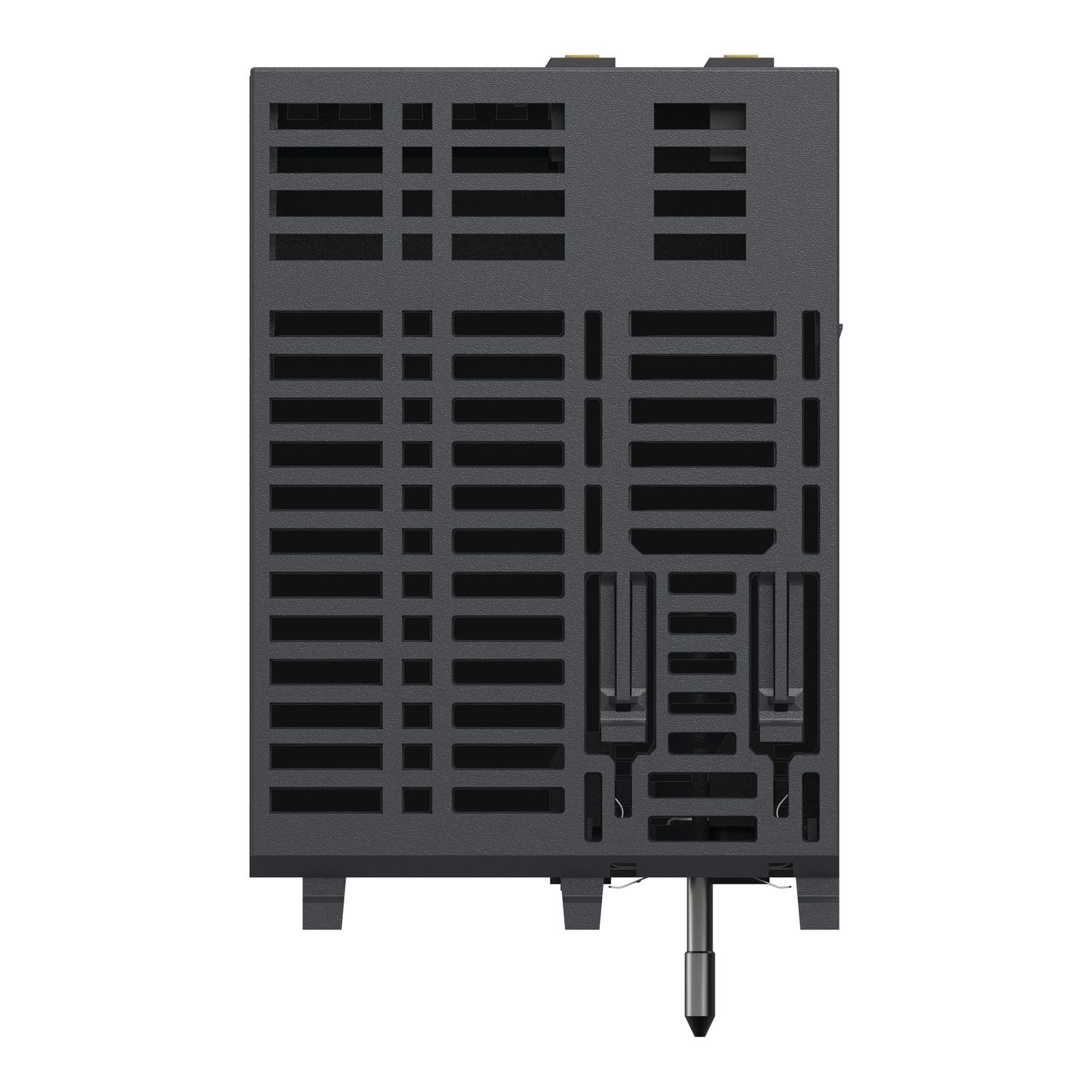

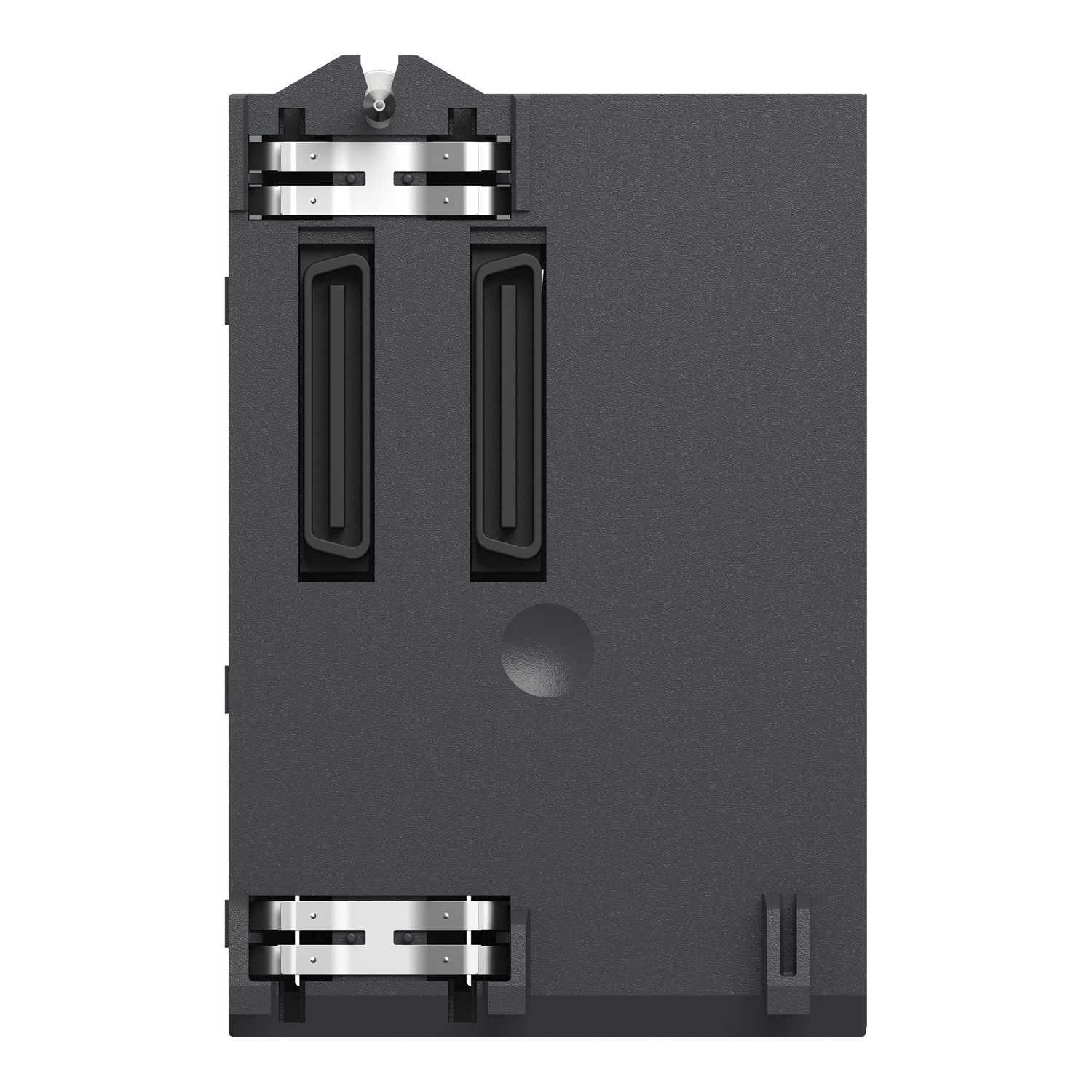

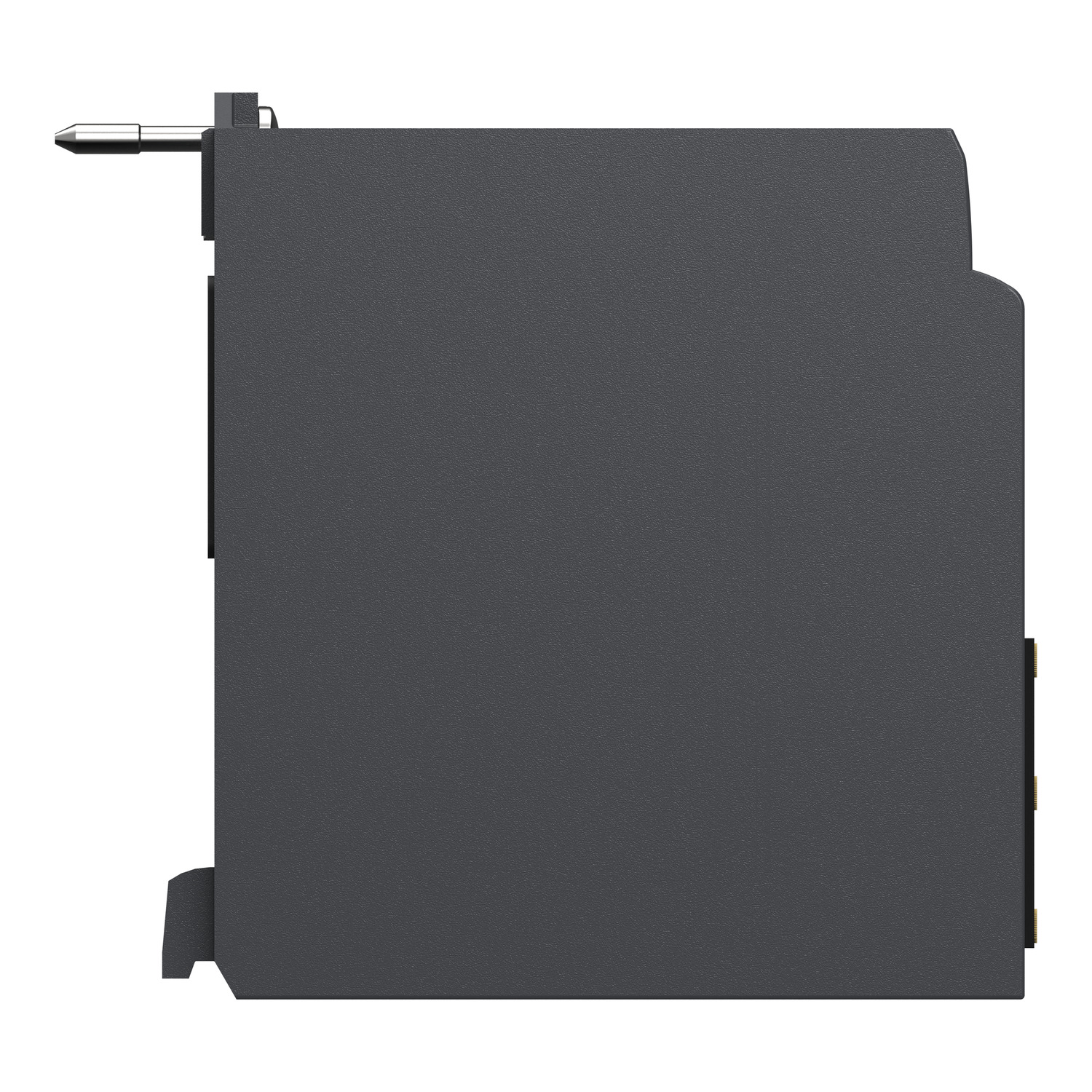

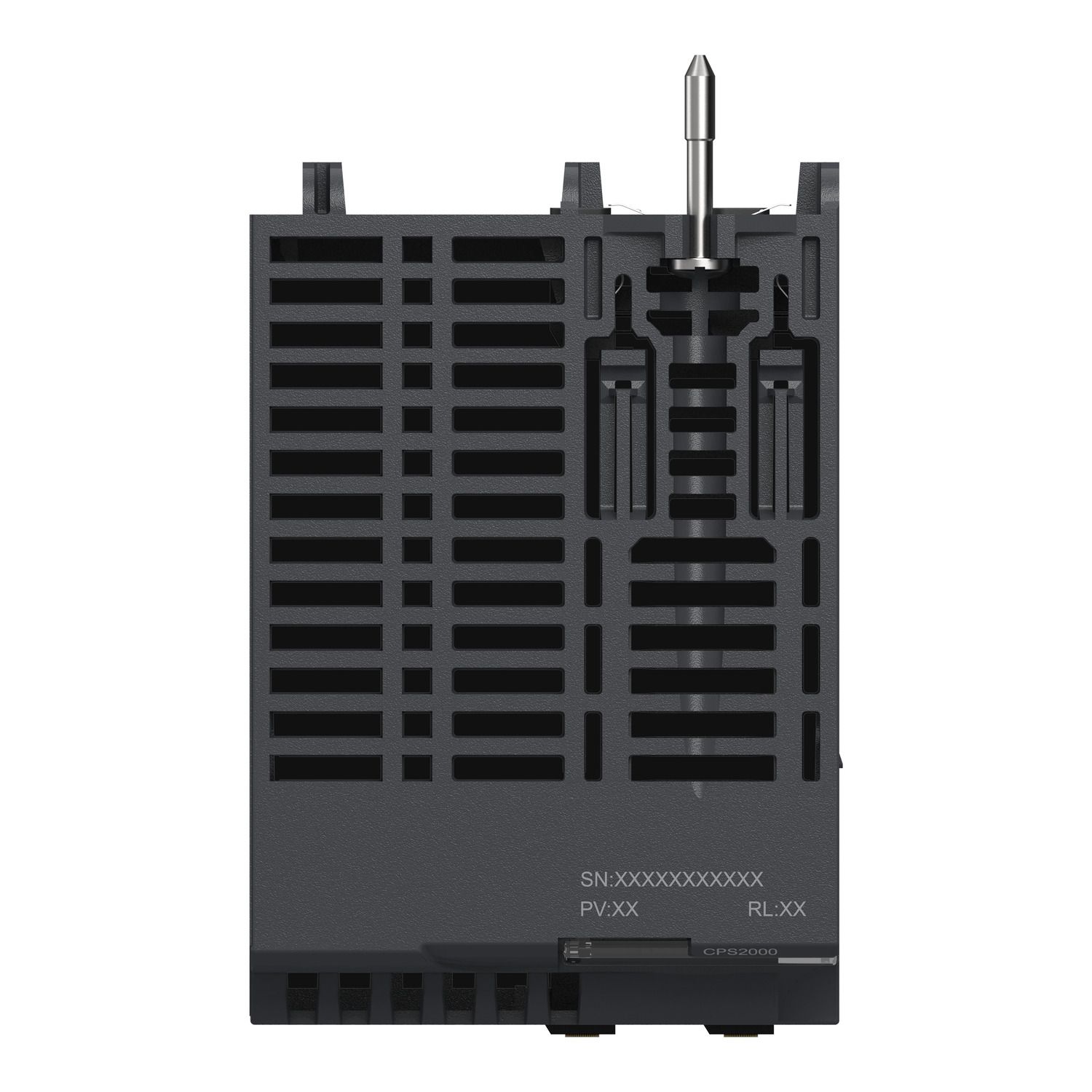

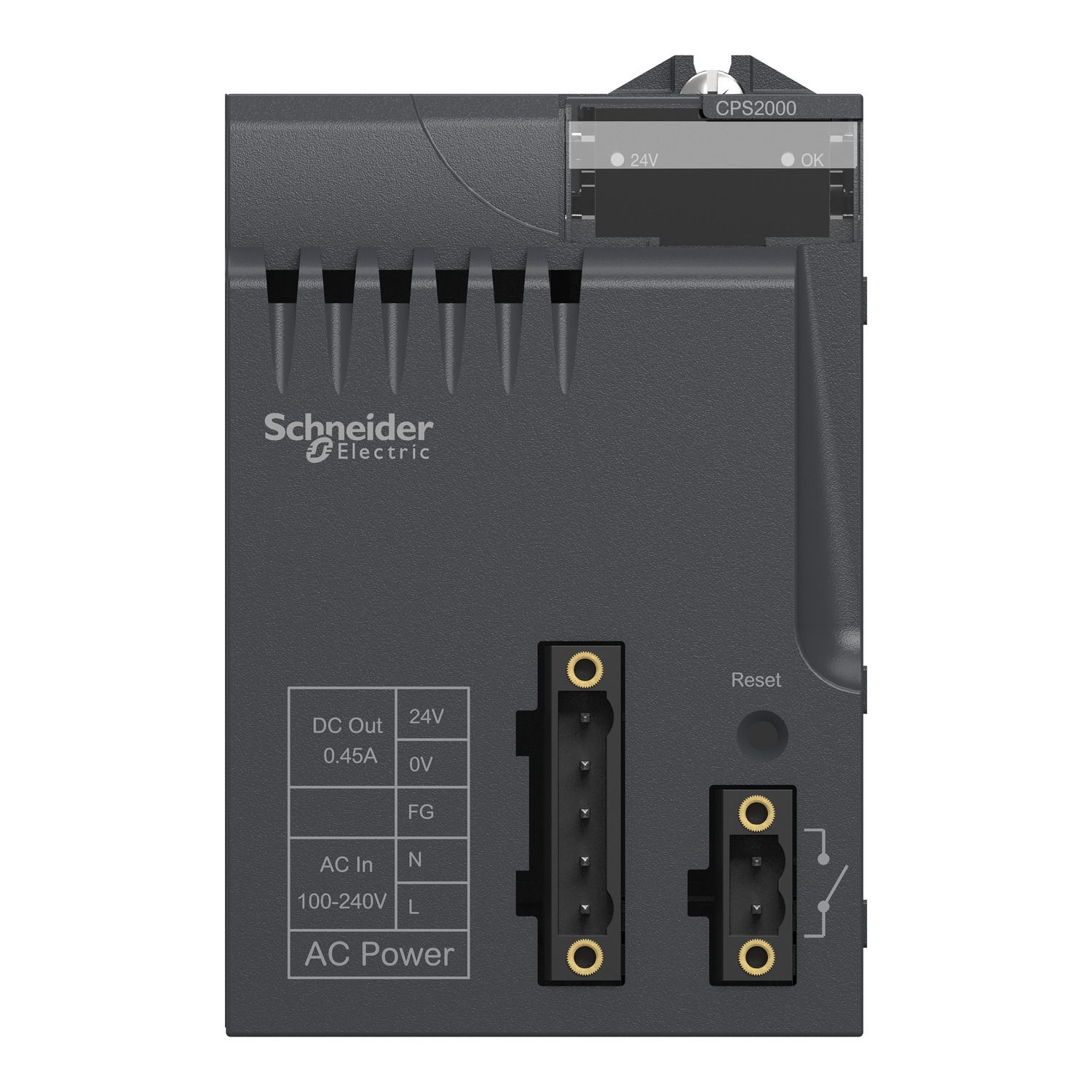

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a primary voltage of 100V to 240V AC. It is a power supply module with a secondary power of 16.8W at 24V DC, a current at secondary voltage of 2.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. It is an IP20 rated product. It weighs 0.3kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | not compatible with BMEXBP..02 |
| Supply circuit type | AC |
| Secondary power | 8.3 W 3.3 V DC I/O module logic power supply, 16.8 W 24 V DC I/O module power supply and processor, 10.8 W 24 V DC sensor power supply |
| Product or component type | power supply module |
| Range of product | Modicon X80 |
| Primary voltage | 100...240 V |
| Complementary | |
| Protection type | short-circuit protection for secondary circuit, overvoltage protection for secondary circuit, overload protection for secondary circuit, internal fuse not accessible for primary circuit |
| Inrush current | 60 A 240 V, 30 A 120 V |
| Electrical connection | 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor, 1 connector 2 pin(s)alarm relay |
| Apparent power | 0.07 kVA |
| Maximum power dissipation in W | 8.5 W |
| Control type | RESET push-button cold restart |
| Net weight | 0.3 kg |
| Network frequency limits | 47-63 Hz |
| Insulation resistance | >= 100 MOhm primary/secondary, >= 100 MOhm primary/ground |
| Current at secondary voltage | 2.5 A 3.3 V DC I/O module logic power supply, 0.7 A 24 V DC I/O module power supply and processor, 0.45 A 24 V DC sensor power supply |
| Input current | 0.61 A 115 V, 0.31 A 240 V |
| I²t on activation | 12 A².s 240 V |
| Status LED | 1 LED (green) sensor voltage, 1 LED (green) rack voltage OK |
| It on activation | 0.03 A.s 120 V, 0.06 A.s 240 V |
| Primary voltage limit | 85...264 V |
| Network frequency | 50/60 Hz |
| MTBF reliability | 4638000 H |
| Environment | |
| Dielectric strength | 500 V 24 V sensor output/ground, 1500 V primary/ground, 2300 V primary/secondary sensor power supply, 1500 V primary/secondary I/O module power supply and processor, 1500 V primary/secondary I/O module logic power supply |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Immunity to microbreaks | 1 ms |
| Ambient air temperature for operation | 0-60 °C |
