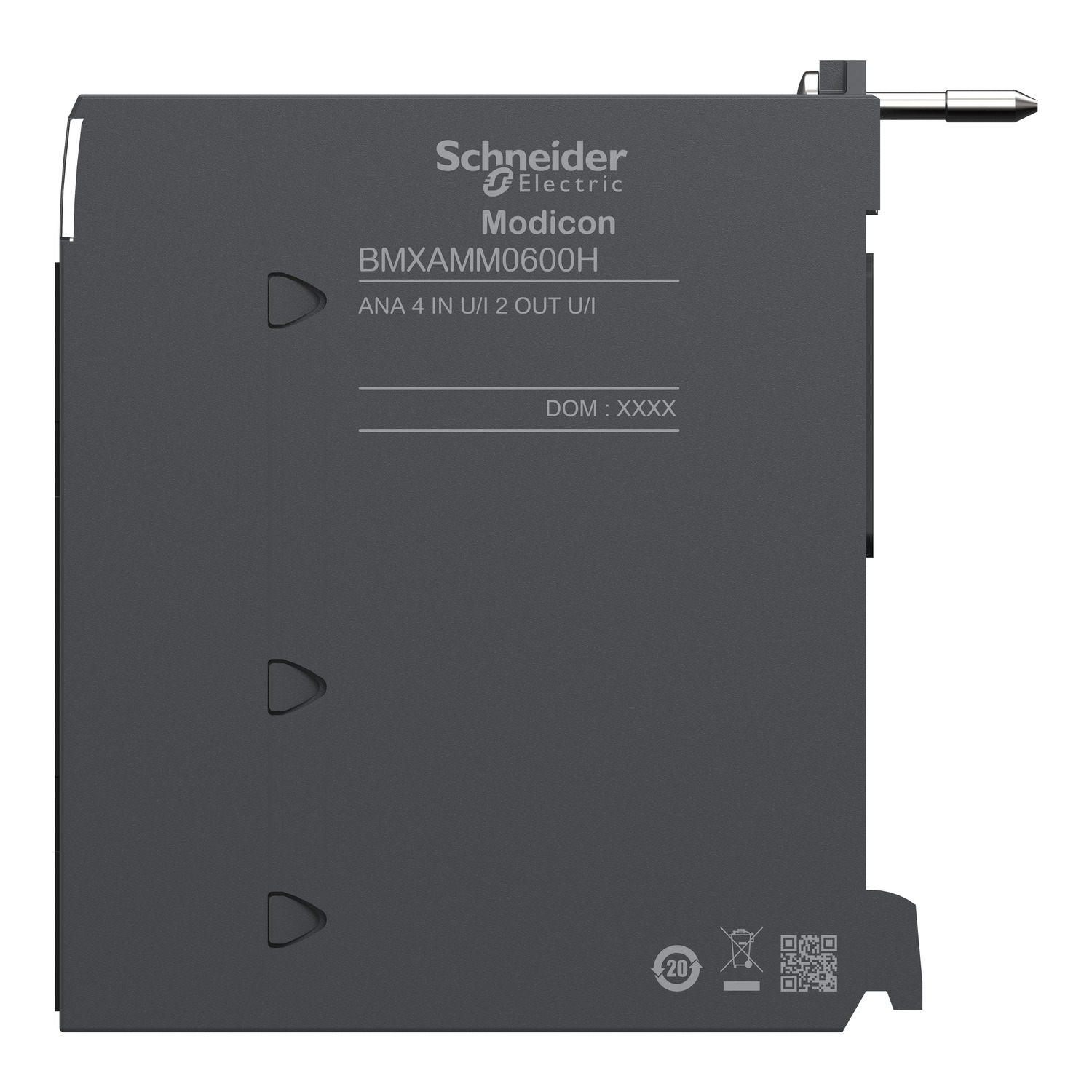

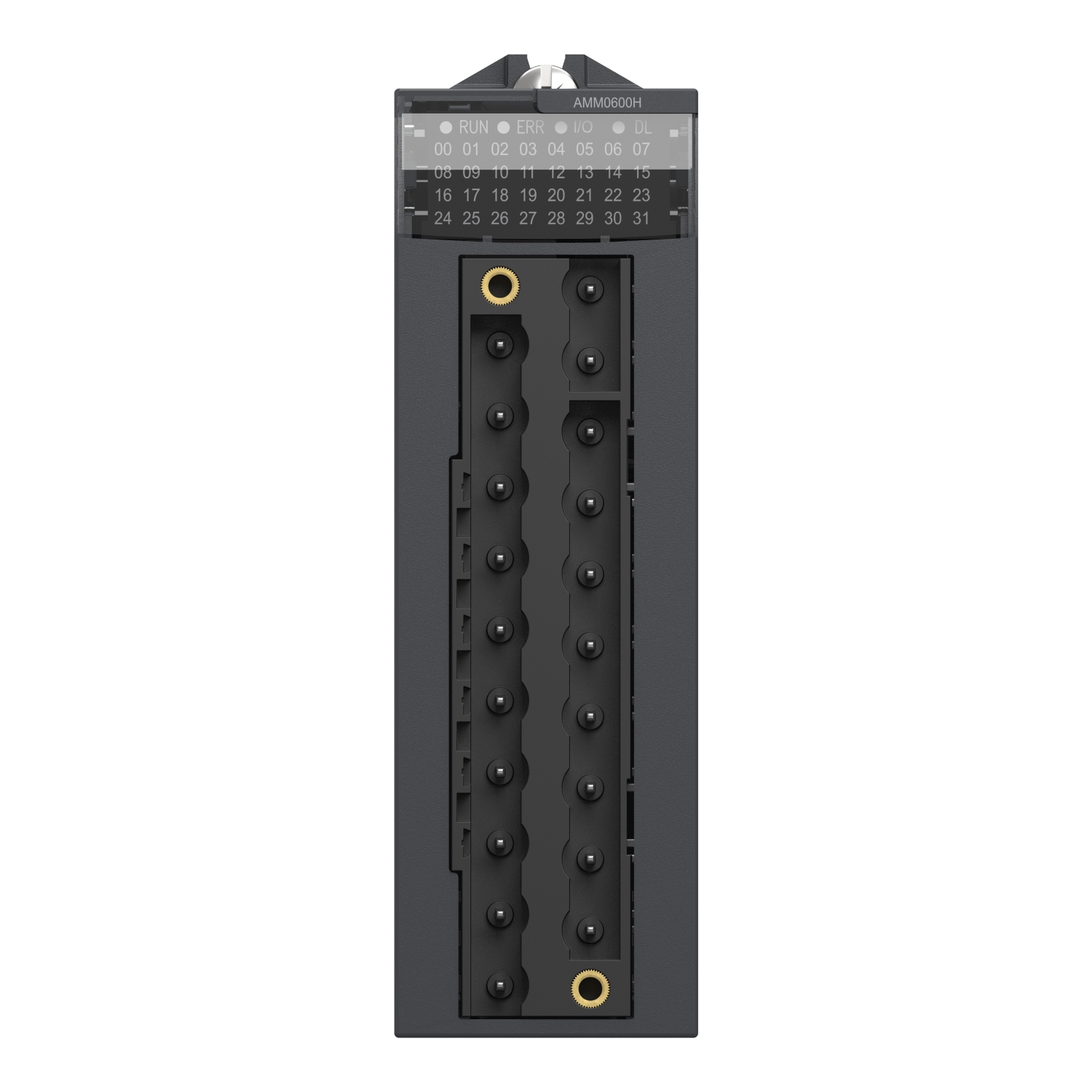

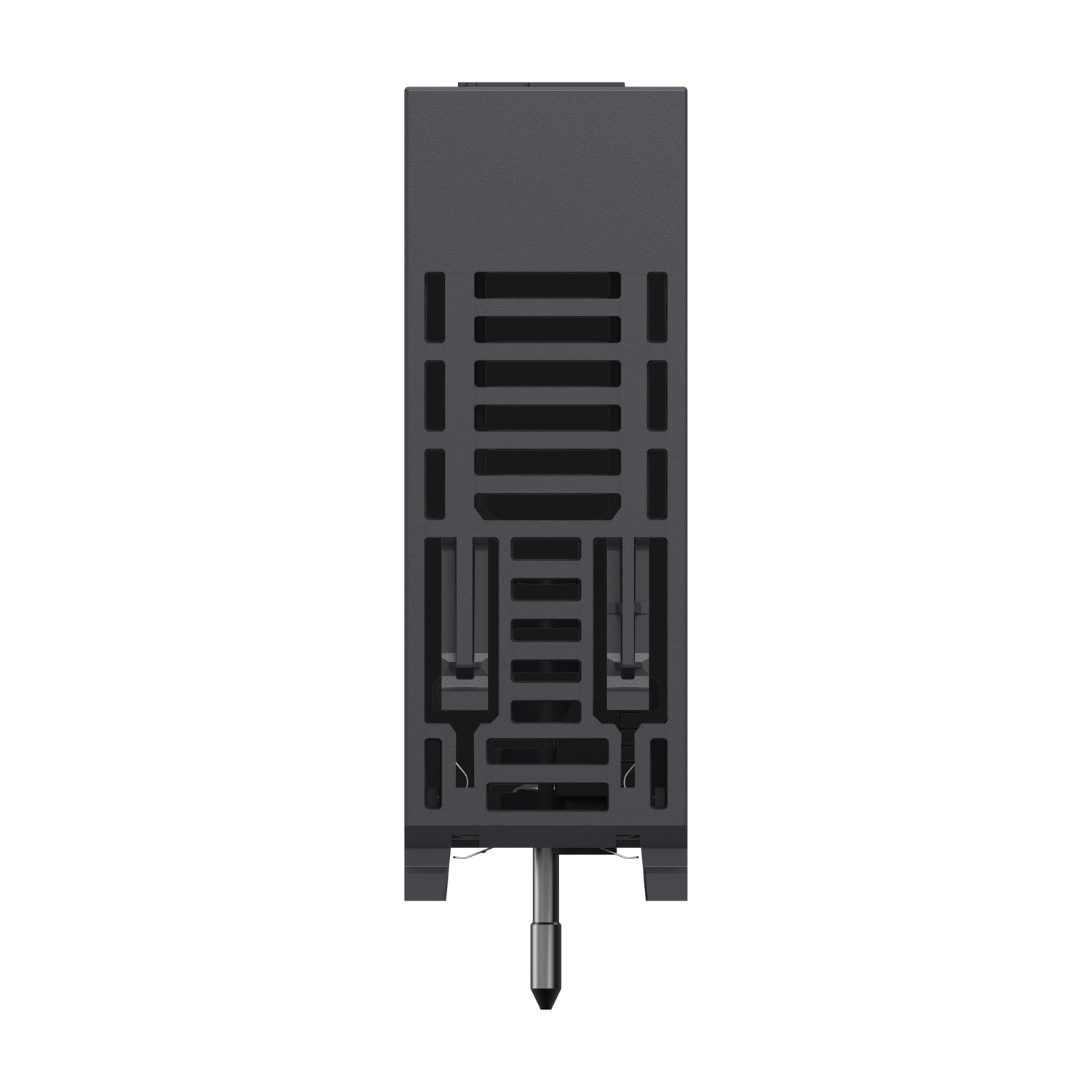

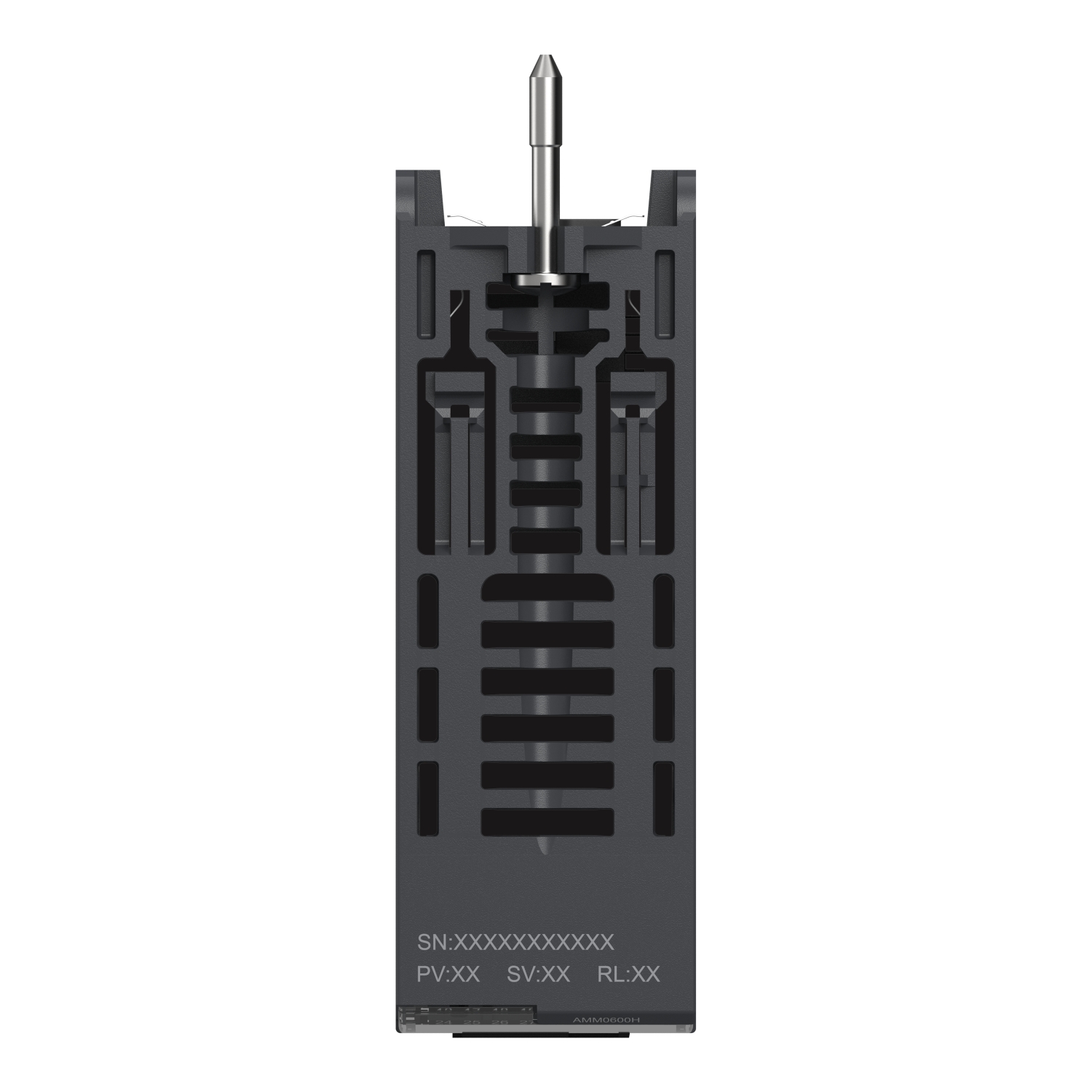

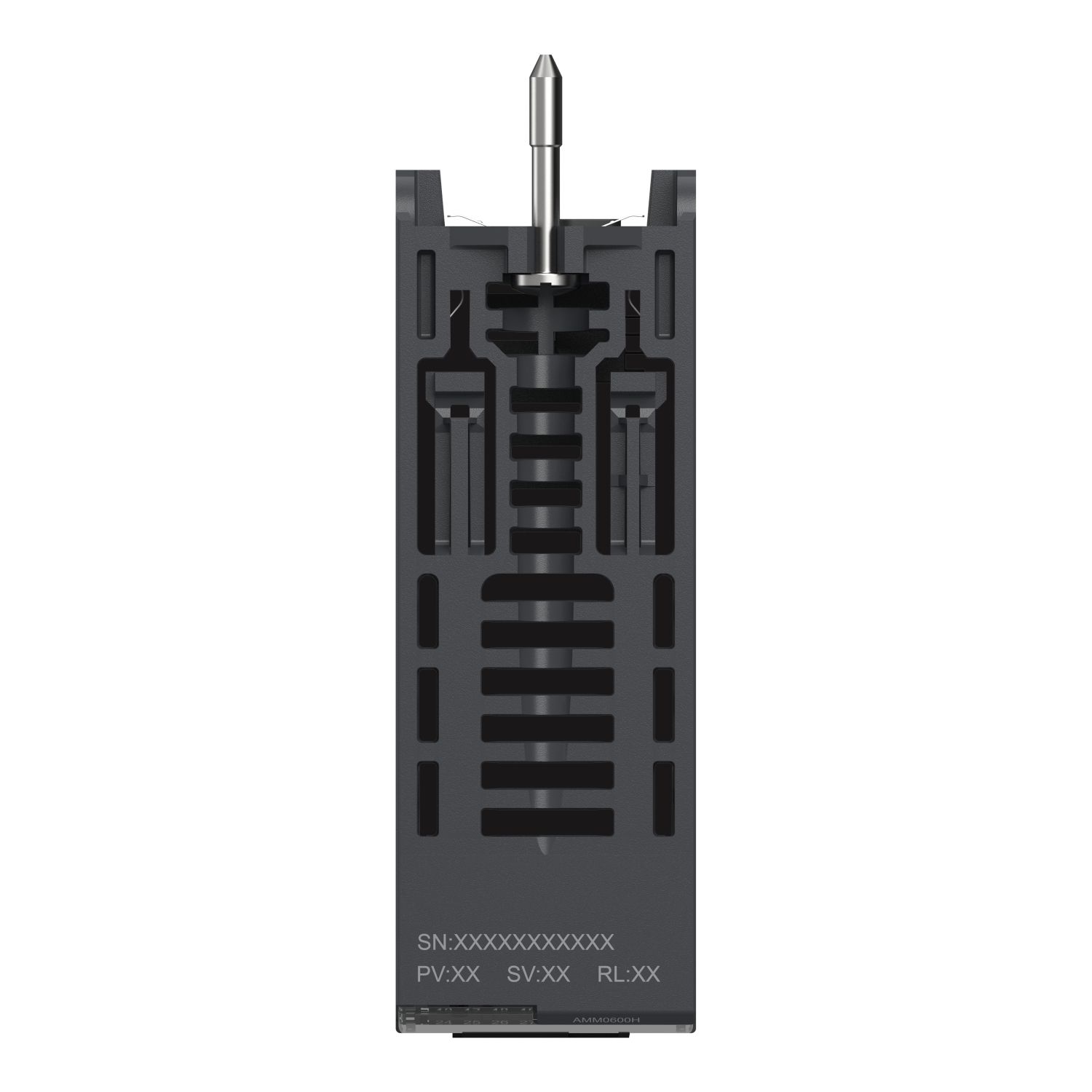

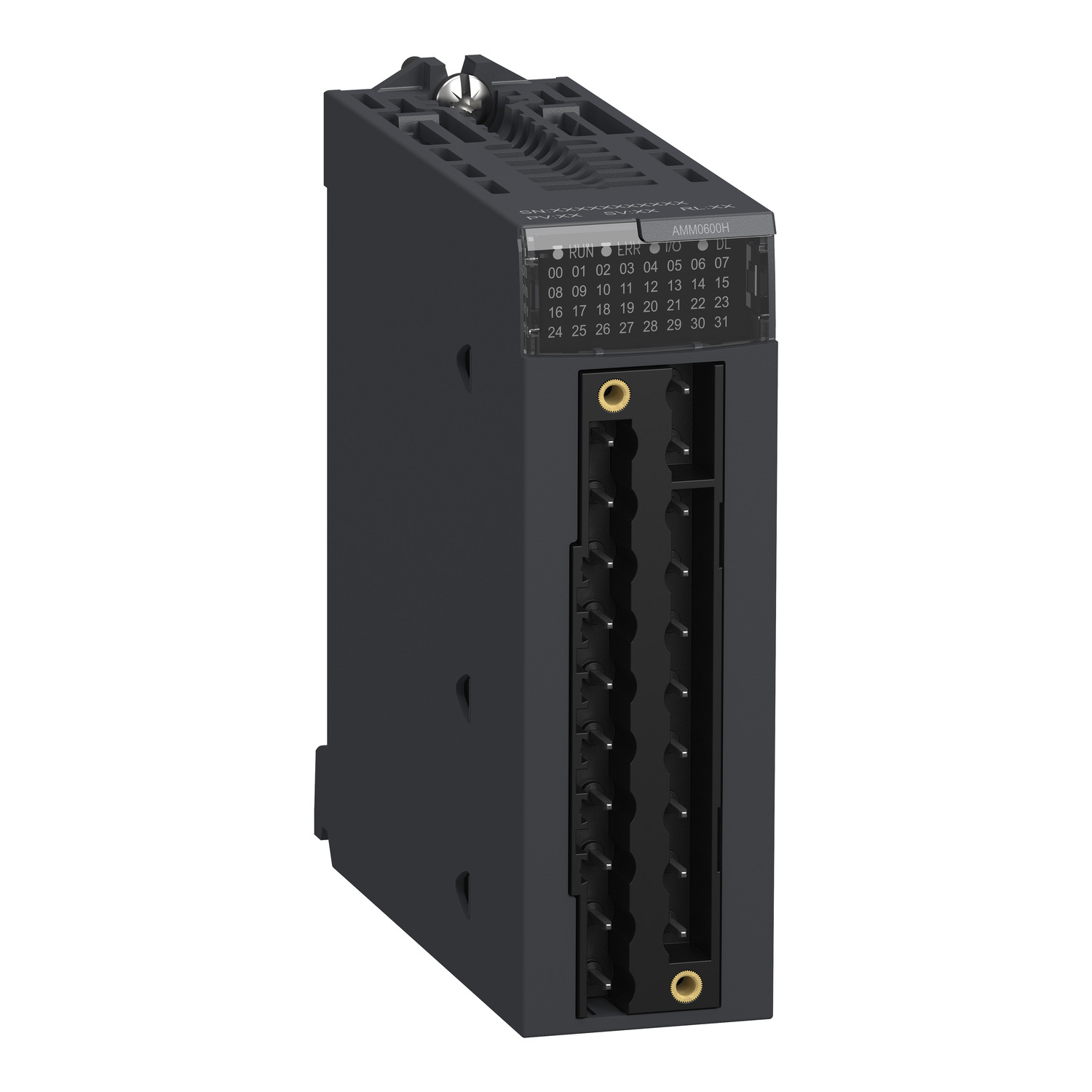

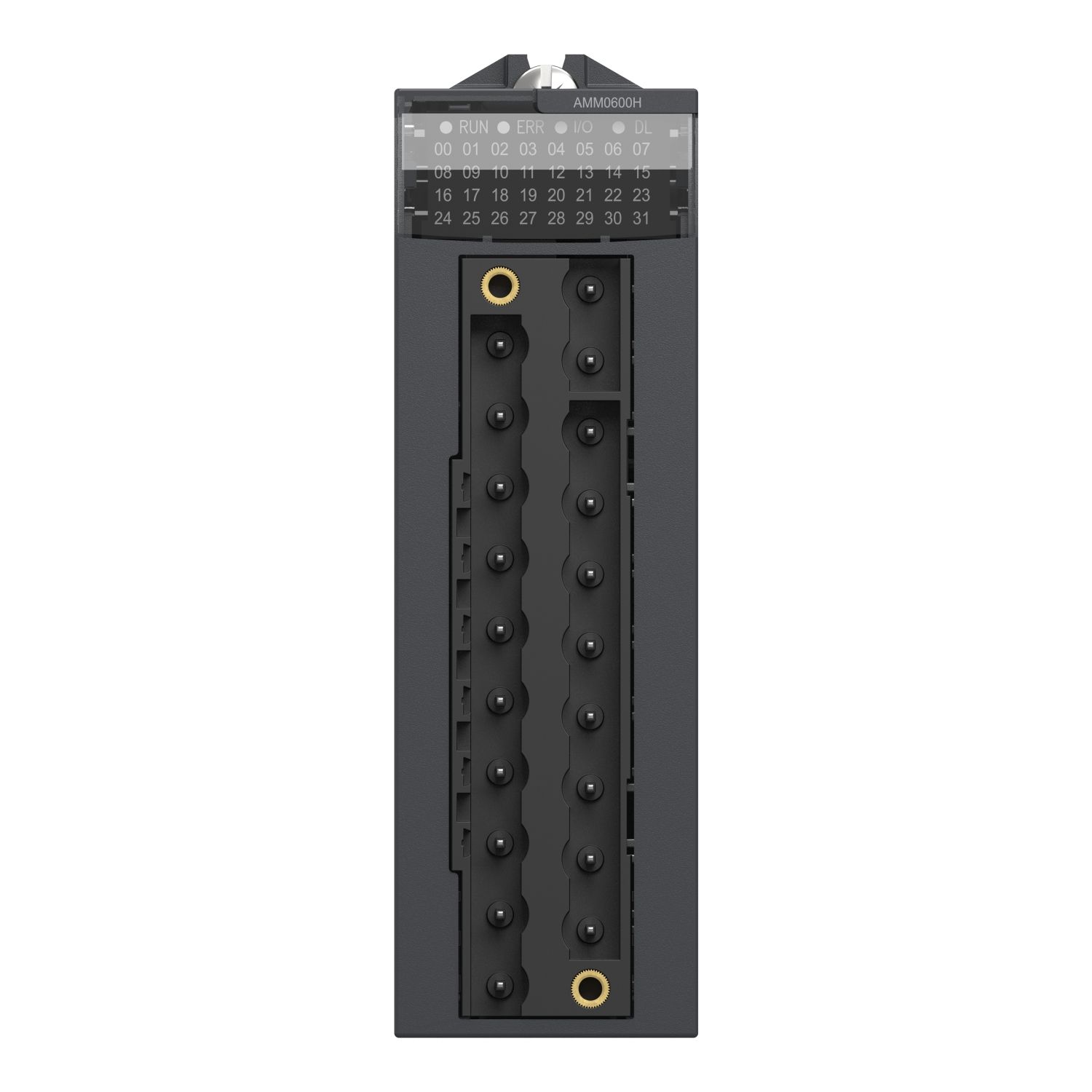

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This mixed analogue I/O module has 4 input channels, 2 output channels with 12bit, 13bit, 14bit resolution. It is an analogue I/O module with a power consumption of 2.8W at 24V DC. There is no isolation channels between channels and ground at 1400V DC, channels and bus at 1400V DC and group of I/O channels at 750V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 20-way connector for electrical connection. There is no isolation channels between channels and ground at 1400V DC, channels and bus at 1400V DC and group of I/O channels at 750V DC. It is an IP20 rated product. It weighs 0.155kg. It is suitable for severe environments, medium to large process applications. This product is certified by IEC-Ex, ATEX, Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Analogue input type | voltage 1...5 V, voltage 0...5 V, voltage 0...10 V, voltage +/- 10 V, current 4...20 mA, current 0...20 mA |
| Product specific application | for severe environments |
| Analogue input number | 4 |
| Input output isolation | non isolated |
| Electrical connection | 20 ways 1 connector |
| Input level | high level |
| Product or component type | mixed analog I/O module |
| Range of product | Modicon X80 |
| Complementary | |
| Permitted overload on inputs | +/- 30 V 1...5 V, +/- 30 V 0...5 V, +/- 30 V 0...10 V, +/- 30 V +/- 10 V, +/- 30 mA 4...20 mA, +/- 30 mA 0...20 mA |
| Conversion time | <= 2 ms |
| Analogue output resolution | 12 bits, +/- 10 V, 11 bits, 4...20 mA, 11 bits, 0...20 mA |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Nominal read cycle time | 5 ms for 4 channels |
| Power consumption in W | 0.48 W 3.3 V DC maximum, 0.35 W 3.3 V DC typical, 3.2 W 24 V DC maximum, 2.6 W 24 V DC typical |
| Analogue output number | 2 |
| Fast read cycle time | 1 ms + 1 ms x number of channels used |
| Isolation voltage | 750 V DC between group of I/O channels, 1400 V DC between channels and bus, 1400 V DC between channels and ground |
| Input impedance | 250 Ohm |
| Net weight | 0.155 kg |
| Minimum crosstalk attenuation | 70 dB |
| Analogue input resolution | 14 bits +/- 10 V, 13 bits 0...10 V, 12 bits 4...20 mA, 12 bits 1...5 V, 12 bits 0...5 V, 12 bits 0...20 mA |
| Current consumption | 240 mA at 3.3 V DC |
| Output level | high level |
| Common mode rejection | 80 dB |
| Analogue output type | voltage: +/- 10 V, current: 4...20 mA, current: 0...20 mA |
| Recalibration | factory calibrated on outputs, internal on inputs |
| Temperature drift | 50 ppm/°C 4...20 mA input, 50 ppm/°C 0...20 mA input, 30 ppm/°C 1...5 V input, 30 ppm/°C 0...5 V input, 30 ppm/°C 0...10 V input, 30 ppm/°C +/- 10 V input, 100 ppm/°C 4...20 mA output, 100 ppm/°C 0...20 mA output, 100 ppm/°C +/- 10 V output |
| Precision of internal conversion resistor | 0.1 % - 15 ppm/°C |
| Status LED | 1 LED (red) I/O, 1 LED (red) ERR, 1 LED per channel (green) channel diagnostic, 1 LED (green) RUN |
| Type of filter | first order digital filtering by firmware |
| Maximum conversion value | 0...24 mA 4...20 mA output, 0...24 mA 0...20 mA output, +/- 11.25 V 1...5 V input, +/- 11.25 V 0...5 V input, +/- 11.25 V 0...10 V input, 0...30 mA 4...20 mA input, 0...30 mA 0...20 mA input, +/- 11.25 V +/- 10 V input, +/- 11.25 V +/- 10 V output |
| Measurement error | <= 0.8 % of full scale 4...20 mA - 25...70 °C output, <= 0.8 % of full scale 0...20 mA - 25...70 °C output, <= 0.8 % of full scale +/- 10 V - 25...70 °C output, <= 0.6 % of full scale 4...20 mA - 25...70 °C input, <= 0.6 % of full scale 0...20 mA - 25...70 °C input, <= 0.4 % of full scale 1...5 V - 25...70 °C input, <= 0.4 % of full scale 0...5 V - 25...70 °C input, <= 0.4 % of full scale 0...10 V - 25...70 °C input, <= 0.4 % of full scale +/- 10 V - 25...70 °C input, 0.35 % of full scale 4...20 mA 25 °C input, 0.35 % of full scale 0...20 mA 25 °C input, 0.25 % of full scale 1...5 V 25 °C input, 0.25 % of full scale 0...5 V 25 °C input, 0.25 % of full scale 0...10 V 25 °C input, 0.25 % of full scale +/- 10 V 25 °C input, 0.25 % of full scale +/- 10 V 25 °C output, 0.25 % of full scale 4...20 mA 25 °C output, 0.25 % of full scale 0...20 mA 25 °C output |
| Fallback mode | configurable, predefined |
| MTBF reliability | 1400000 H |
| Environment | |
| IP degree of protection | IP20 |
| Protective treatment | conformal coating |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Vibration resistance | 3 gn |
| Environmental characteristic | hazardous location, fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx |
| Shock resistance | 30 gn |
| Standards | CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61131-2, EN/IEC 61010-2-201 |
| Ambient air temperature for operation | -25-70 °C |
| Product certifications | IEC-Ex, ATEX, UL, Merchant Navy, EAC, CSA, RCM, CE |
