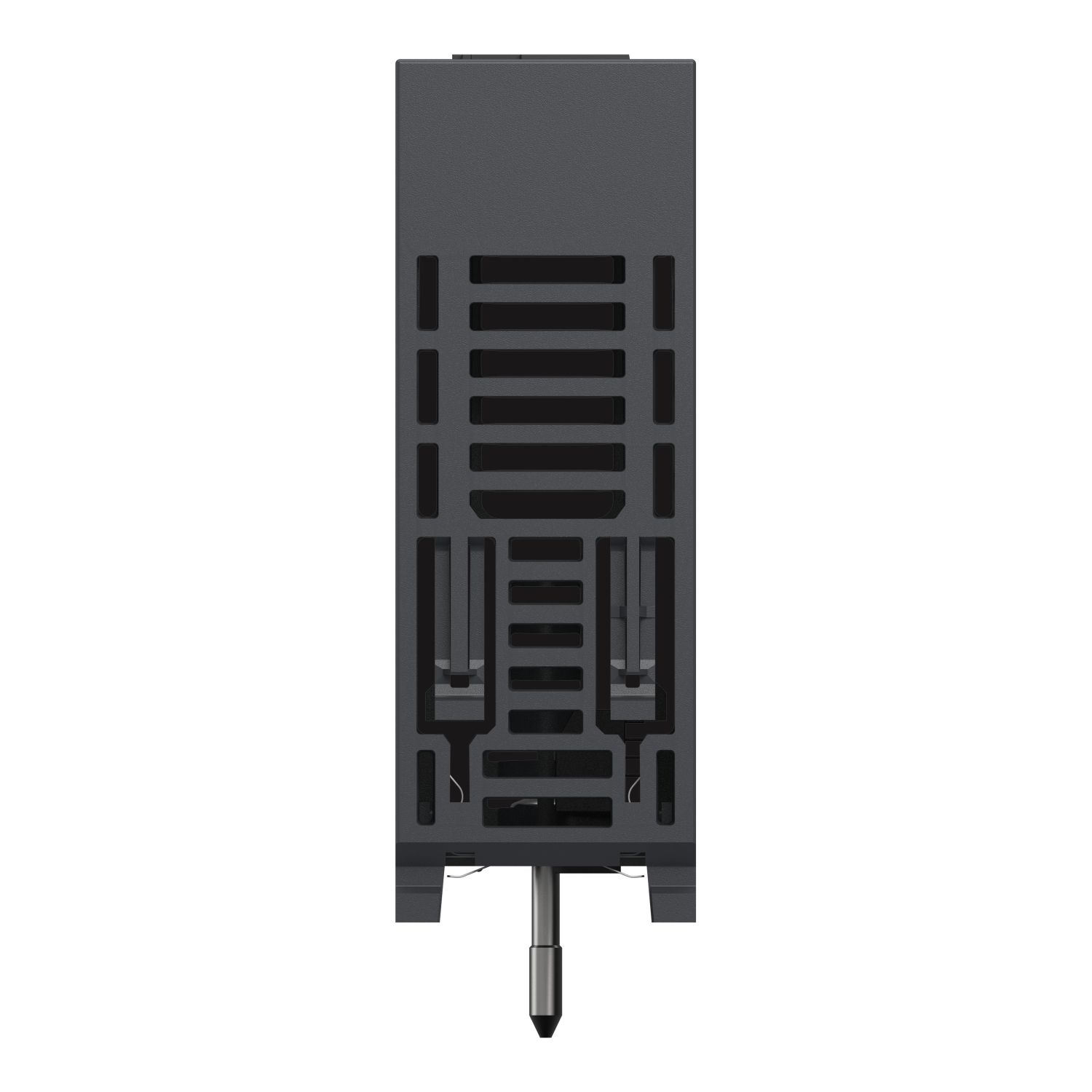

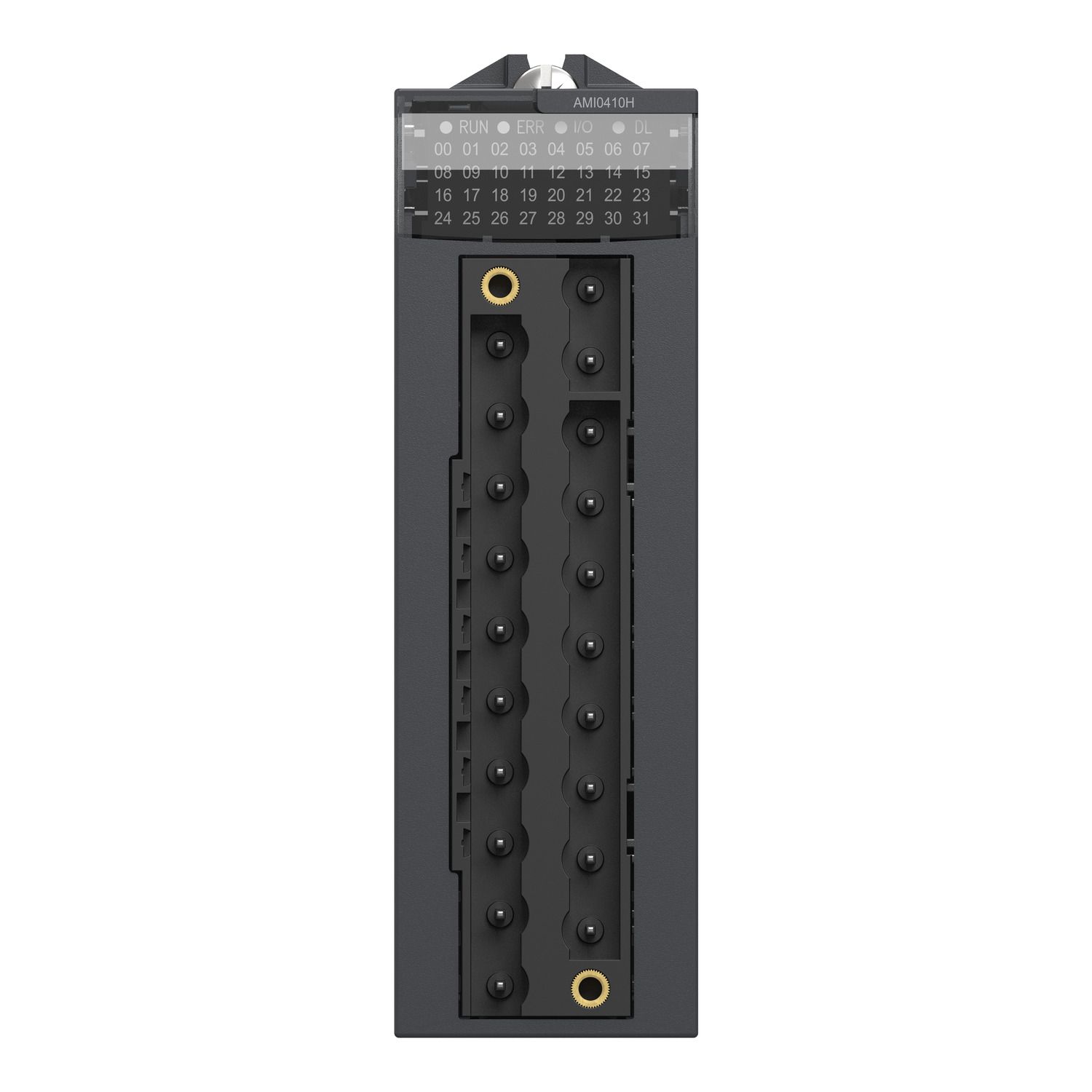

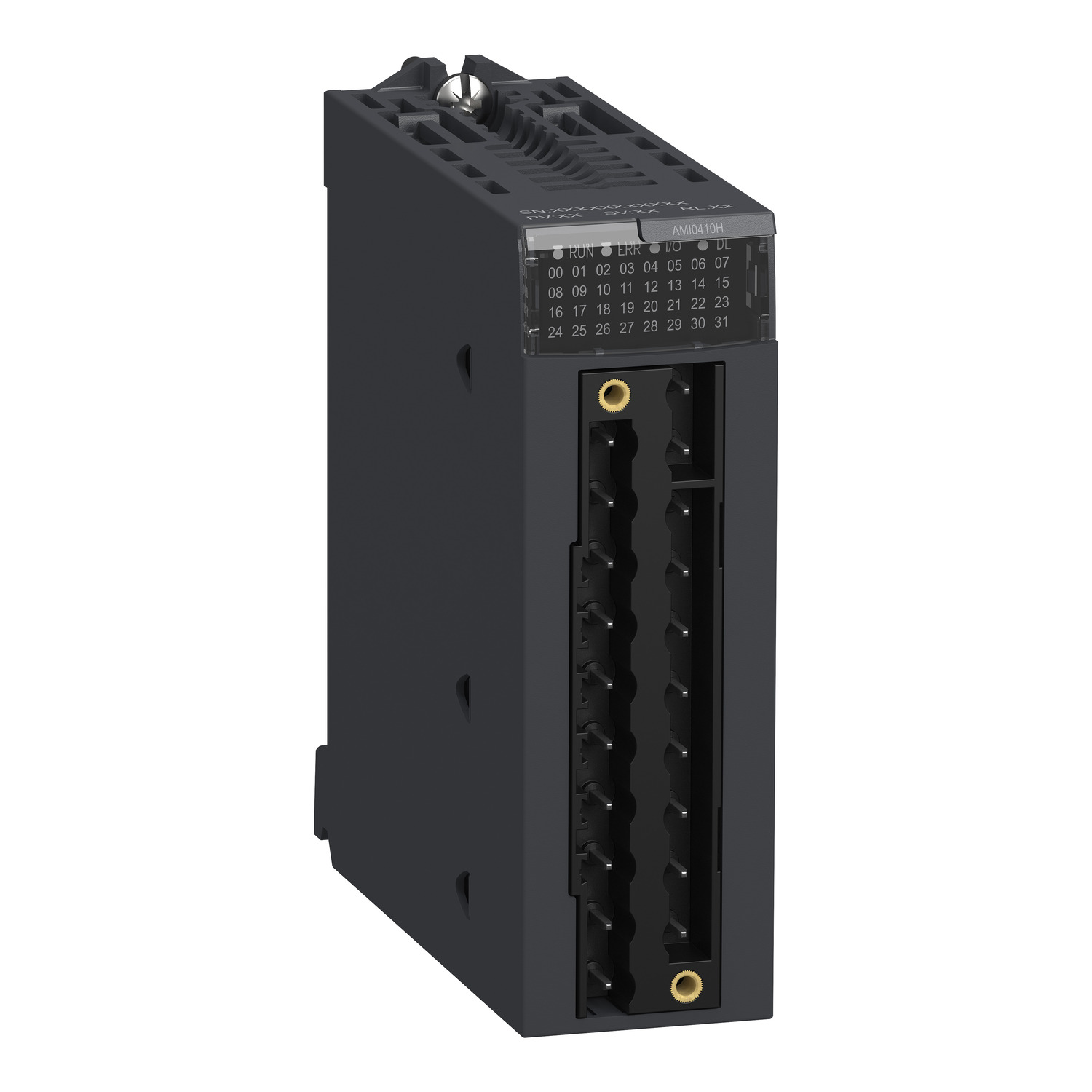

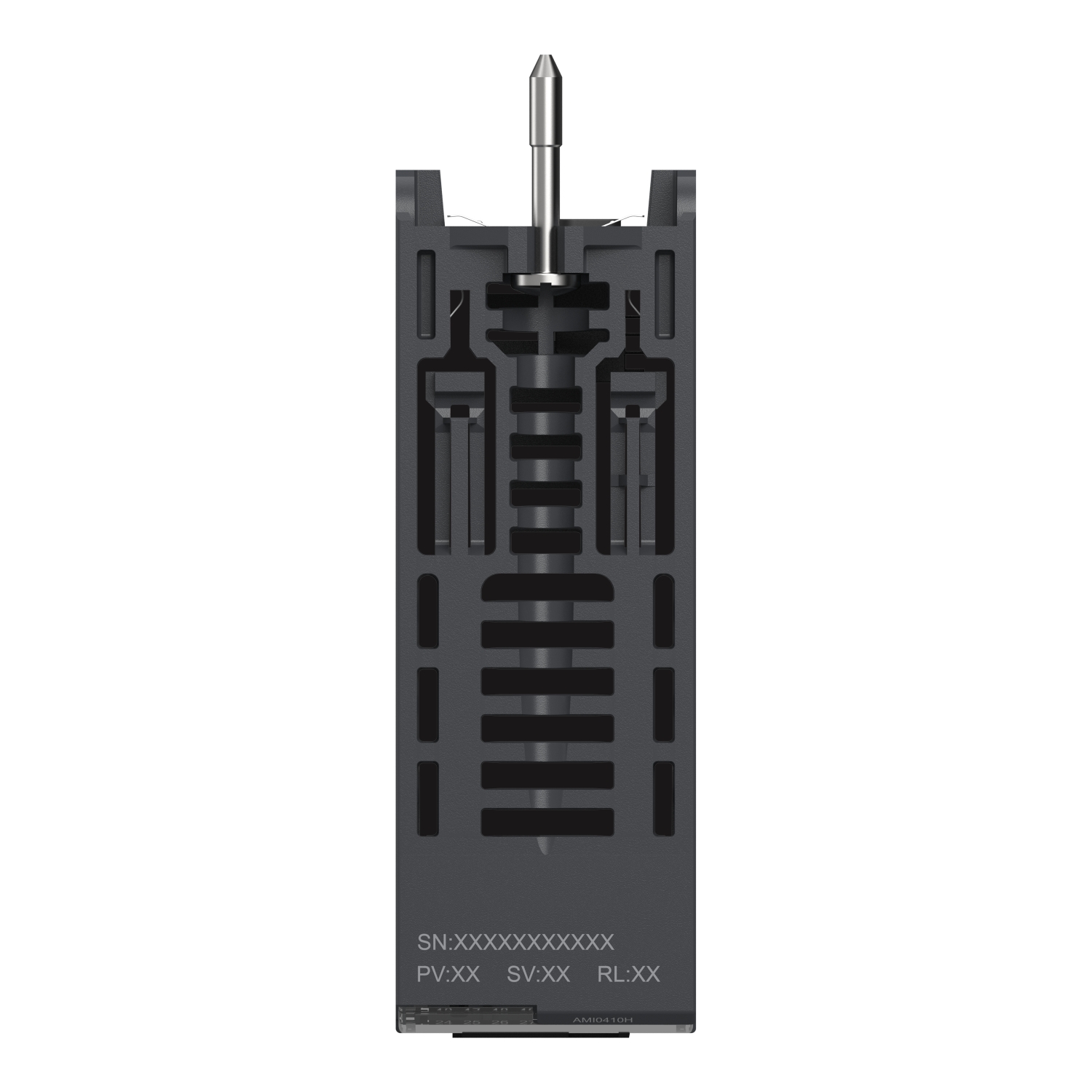

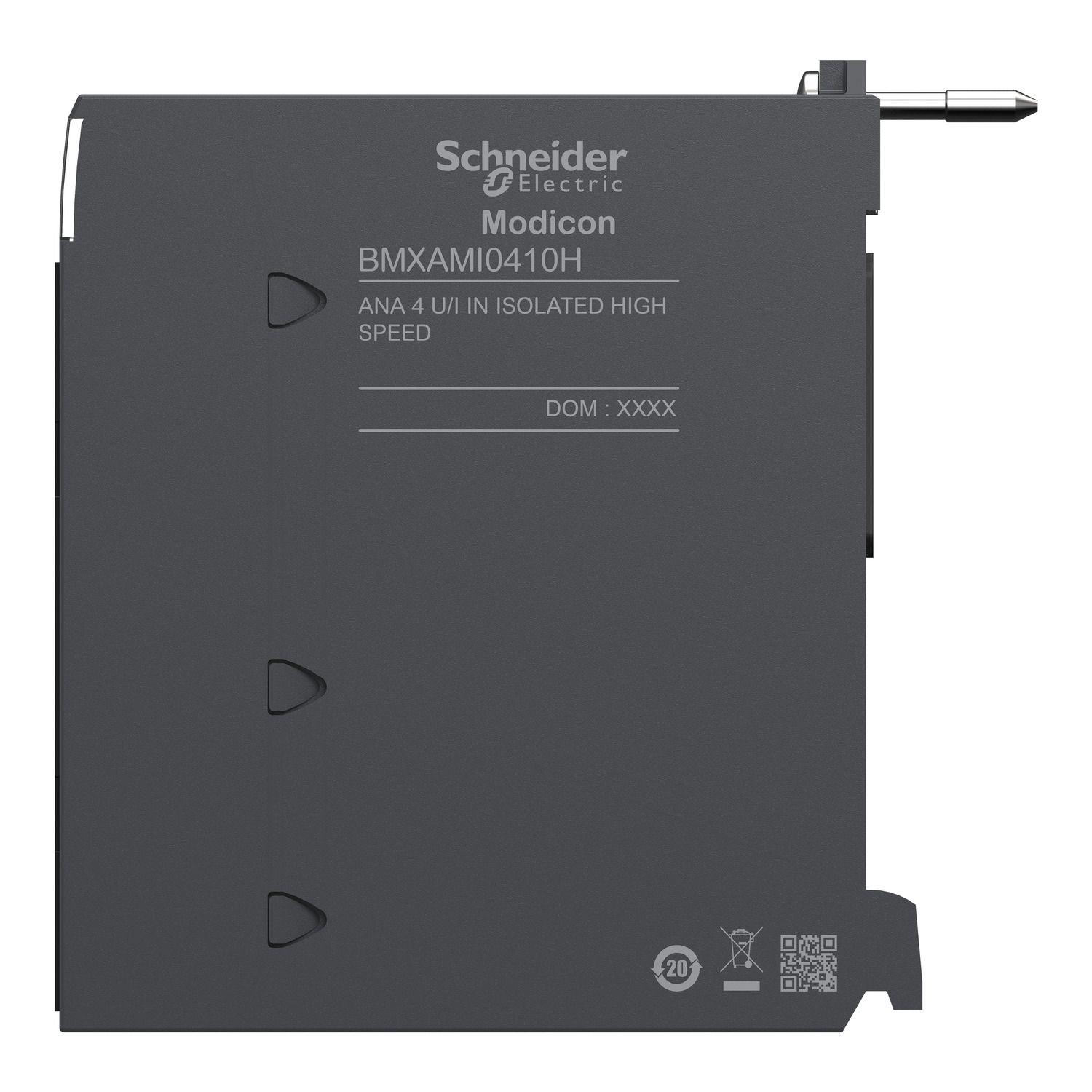

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 4 inputs with 16bit resolution for severe environments. It is an input module with a power consumption of 1.3W at 24V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.143kg. It is suitable for medium to large process and severe environments applications. This product is certified by EAC, RCM, UL, CSA, IEC-Ex, Merchant Navy, ATEX, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Analogue input type | voltage 1...5 V, voltage 0...5 V, voltage 0...10 V, voltage +/- 5 V, voltage +/- 10 V, current 4...20 mA, current 0...20 mA, current +/- 20 mA |
| Product specific application | for severe environments |
| Analogue input number | 4 |
| Input output isolation | isolated |
| Electrical connection | 20 ways 1 connector |
| Input level | high level |
| Product or component type | analog input module |
| Range of product | Modicon X80 |
| Complementary | |
| Permitted overload on inputs | +/- 90 mA 4...20 mA, +/- 90 mA 0...20 mA, +/- 90 mA +/- 20 mA, +/- 30 V 1...5 V, +/- 30 V 0...5 V, +/- 30 V 0...10 V, +/- 30 V +/- 5 V, +/- 30 V +/- 10 V |
| Measurement resolution | 0.92 µA 4...20 mA, 0.92 µA 0...20 mA, 0.92 µA +/- 20 mA, 0.35 mV 1...5 V, 0.35 mV 0...5 V, 0.35 mV 0...10 V, 0.35 mV +/- 5 V, 0.35 mV +/- 10 V |
| Analog/digital conversion | 24 bits |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Nominal read cycle time | 5 ms for 4 channels |
| Digital value format | +/- 10000 by default, - 32768 to + 32767 in maximum user scale |
| Power consumption in W | 0.48 W 3.3 V DC maximum, 0.32 W 3.3 V DC typical, 1.30 W 24 V DC maximum, 0.82 W 24 V DC typical |
| Fast read cycle time | 1 ms + 1 ms x number of channels used |
| Isolation voltage | 1400 V DC between channels and bus, 1400 V DC between channels and ground, 300 V DC between channels |
| Input impedance | 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode, 10 MOhm in voltage mode |
| Net weight | 0.143 kg |
| Minimum crosstalk attenuation | 80 dB |
| Analogue input resolution | 16 bits |
| Current consumption | 45 mA at 24 V DC, 150 mA at 3.3 V DC |
| Common mode rejection | 90 dB |
| Recalibration | internal |
| Temperature drift | 30 ppm/°C 4...20 mA, 30 ppm/°C 0...20 mA, 30 ppm/°C +/- 20 mA, 15 ppm/°C 1...5 V, 15 ppm/°C 0...5 V, 15 ppm/°C 0...10 V, 15 ppm/°C +/- 5 V, 15 ppm/°C +/- 10 V |
| Precision of internal conversion resistor | 0.1 % - 15 ppm/°C |
| Status LED | 1 LED (red) I/O, 1 LED (red) ERR, 1 LED per channel (green) channel diagnostic, 1 LED (green) RUN |
| Type of filter | first order digital filtering |
| Maximum conversion value | 0...30 mA 4...20 mA, 0...30 mA 0...20 mA, 0...30 mA +/- 20 mA, +/- 11.4 V 1...5 V, +/- 11.4 V 0...5 V, +/- 11.4 V 0...10 V, +/- 11.4 V +/- 5 V, +/- 11.4 V +/- 10 V |
| Measurement error | <= 0.55 % of full scale 4...20 mA - 25...70 °C, <= 0.55 % of full scale 0...20 mA - 25...70 °C, <= 0.55 % of full scale +/- 20 mA - 25...70 °C, <= 0.2 % of full scale 1...5 V - 25...70 °C, <= 0.2 % of full scale 0...5 V - 25...70 °C, <= 0.2 % of full scale 0...10 V - 25...70 °C, <= 0.2 % of full scale +/- 5 V - 25...70 °C, <= 0.2 % of full scale +/- 10 V - 25...70 °C, 0.15 % of full scale 4...20 mA 25 °C, 0.15 % of full scale 0...20 mA 25 °C, 0.15 % of full scale +/- 20 mA 25 °C, 0.075 % of full scale 1...5 V 25 °C, 0.075 % of full scale 0...5 V 25 °C, 0.075 % of full scale 0...10 V 25 °C, 0.075 % of full scale +/- 5 V 25 °C, 0.075 % of full scale +/- 10 V 25 °C |
| MTBF reliability | 1200000 H |
| Environment | |
| IP degree of protection | IP20 |
| Protective treatment | conformal coating |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Vibration resistance | 3 gn |
| Environmental characteristic | hazardous location, fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx |
| Shock resistance | 30 gn |
| Standards | CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61131-2, EN/IEC 61010-2-201 |
| Ambient air temperature for operation | -25-70 °C |
| Product certifications | IEC-Ex, ATEX, UL, Merchant Navy, EAC, CSA, RCM, CE |
