Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

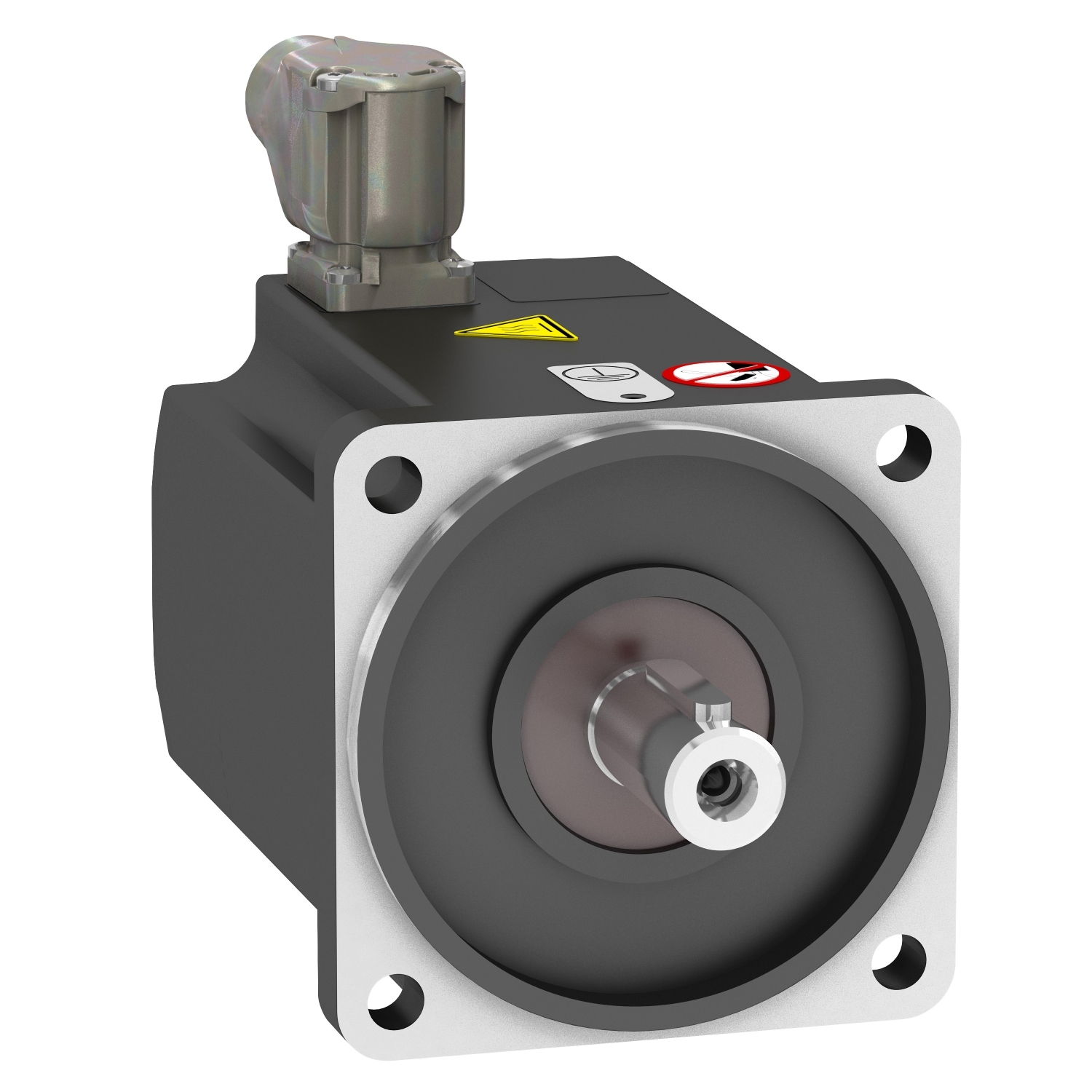

| Device short name | BMP |
| Nominal torque | 2.39 N.m with drive ATV320 at 0.75 kW 200 V single phase, 2.39 N.m with drive ATV32 at 0.75 kW 200 V single phase |
| Electrical connection | rotatable right-angled connector |
| Nominal speed | 3000 rpm with drive ATV320 at 0.75 kW 200 V single phase, 3000 rpm with drive ATV32 at 0.75 kW 200 V single phase |
| Shaft end | keyed |
| IP degree of protection | IP67 with IP67 kit, IP65 standard |
| Nominal output power | 750 W with drive ATV320 at 0.75 kW 200 V single phase, 750 W with drive ATV32 at 0.75 kW 200 V single phase |
| Product or component type | synchronous motor |
| Holding brake | without |
| Mounting support | international standard flange |
| Maximum mechanical speed | 3600 rpm |
| Product compatibility | variable speed drive ATV320 at 0.75 kW 200...240 V single phase, variable speed drive ATV32 at 0.75 kW 200 V single phase |
| Complementary | |
| Torque constant | 0.884 N.m/A at 40 °C |
| Nominal operating frequency | 250 Hz with drive ATV320 at 0.75 kW 200 V single phase, 250 Hz with drive ATV32 at 0.75 kW 200 V single phase |
| Range compatibility | Altivar Machine ATV320, Altivar 32 |
| Stator resistance | 1.28 Ohm at 40 °C |
| Maximum operating frequency | 300 Hz with drive ATV320 at 0.75 kW 200 V single phase, 300 Hz with drive ATV32 at 0.75 kW 200 V single phase |
| Type of cooling | natural convection |
| Mounting holes diameter | 9 mm |
| Minimum operating frequency | 25 Hz with drive ATV320 at 0.75 kW 200 V single phase, 25 Hz with drive ATV32 at 0.75 kW 200 V single phase |
| Shaft diameter | 19 mm |
| Key width | 6 mm |
| Number of mounting holes | 4 |
| [Us] rated supply voltage | 230 V |
| Motor flange size | 100 mm |
| Stator inductance | 3.54 mH for d-axis winding at 40 °C, 4.08 mH for q-axis winding at 40 °C |
| Centring collar diameter | 95 mm |
| Net weight | 3.34 kg |
| Maximum current Irms | 7.2 A with drive ATV320 at 0.75 kW 200 V single phase, 7.2 A with drive ATV32 at 0.75 kW 200 V single phase |
| Length | 128.6 mm |
| Network number of phases | single phase |
| Shaft length | 40 mm |
| Centring collar depth | 3.5 mm |
| Maximum axial force Fa | 0.2 x Fr |
| Number of motor poles | 5 |
| Rotor inertia | 3.19 kg.cm² |
| Number of motor stacks | 1 |
| Maximum radial force Fr | 570 N at 4000 rpm, 630 N at 3000 rpm, 720 N at 2000 rpm, 900 N at 1000 rpm |
| Circle diameter of the mounting holes | 115-115 mm |
